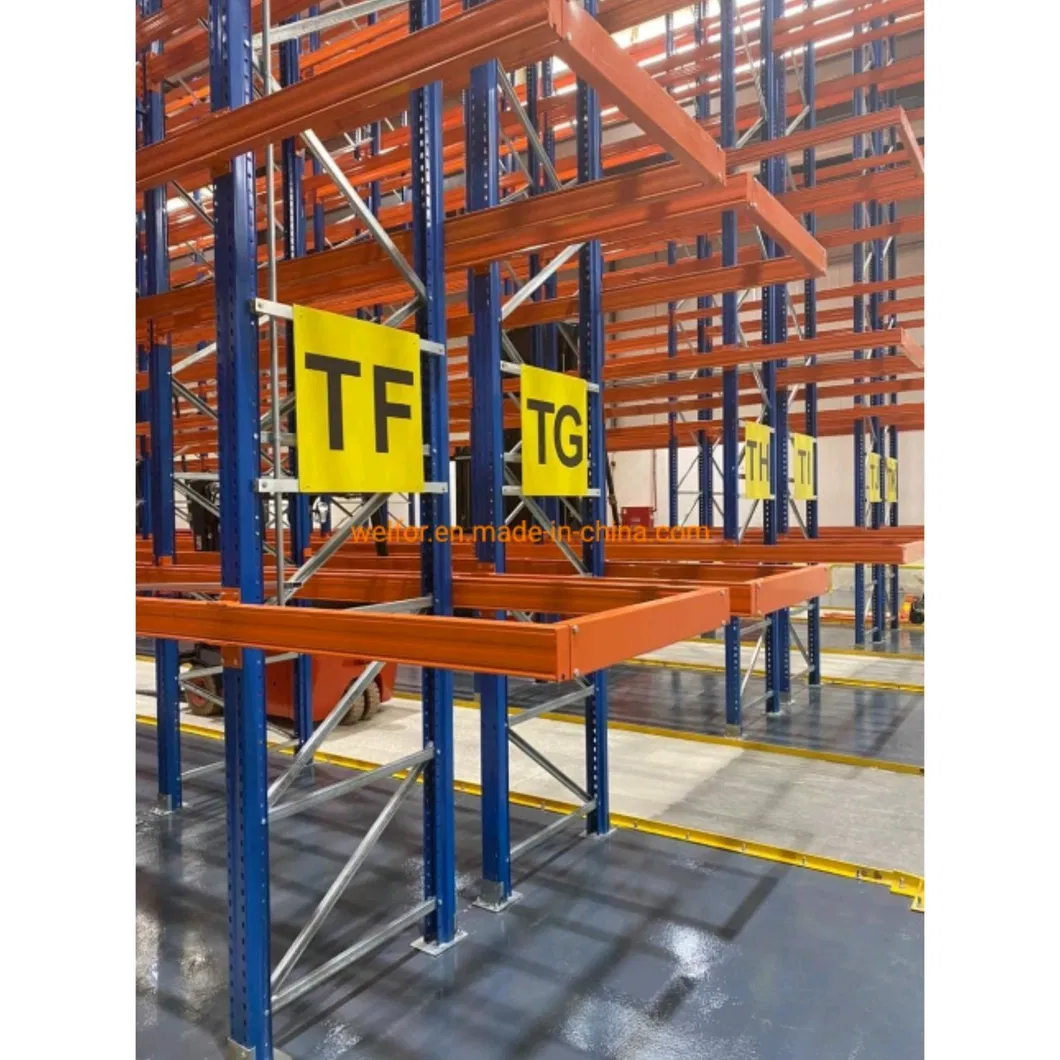

Very Narrow Aisle (VNA) Steel Pallet Racking for Industrial Warehouse Storage

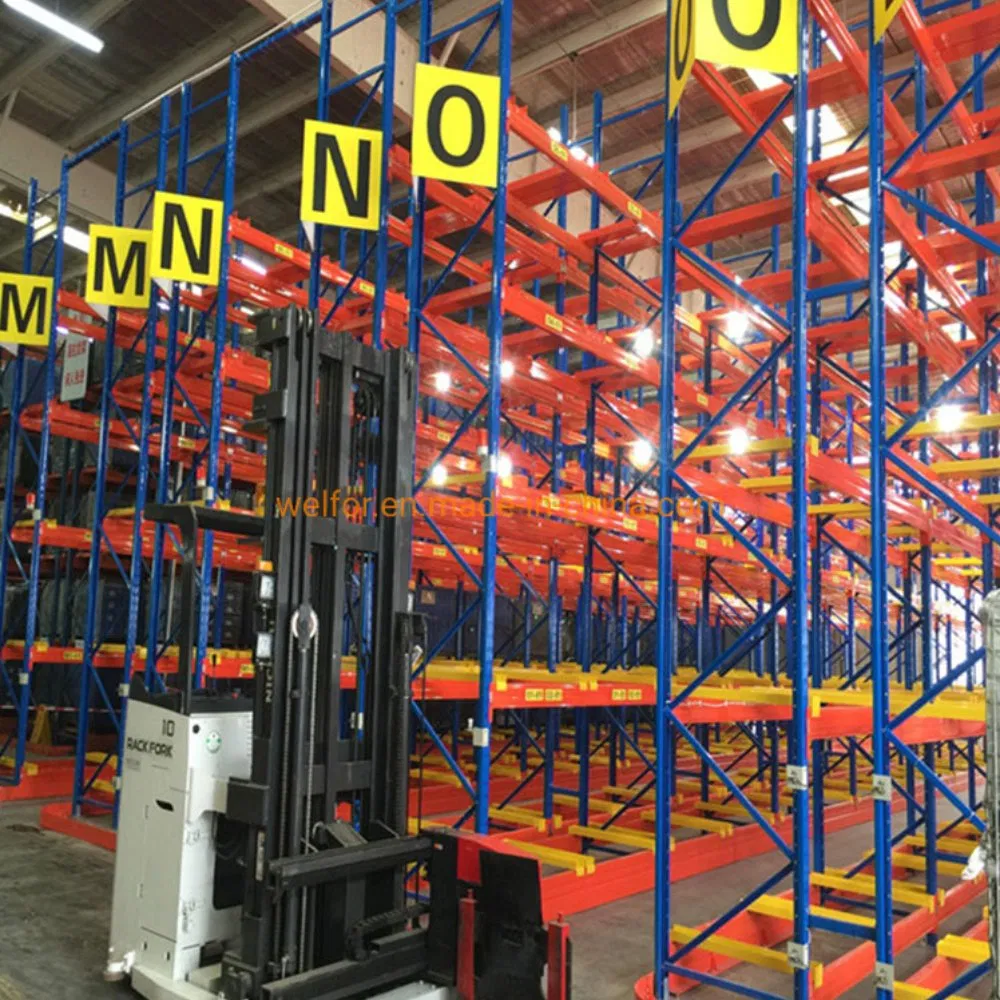

Very Narrow Aisle Pallet Rack on sale mainly used with the most advantage three ways forklift, occupying small aisle, saving the space of the warehouse, and can store and pick up products quickly, and cutting down the operating cost.

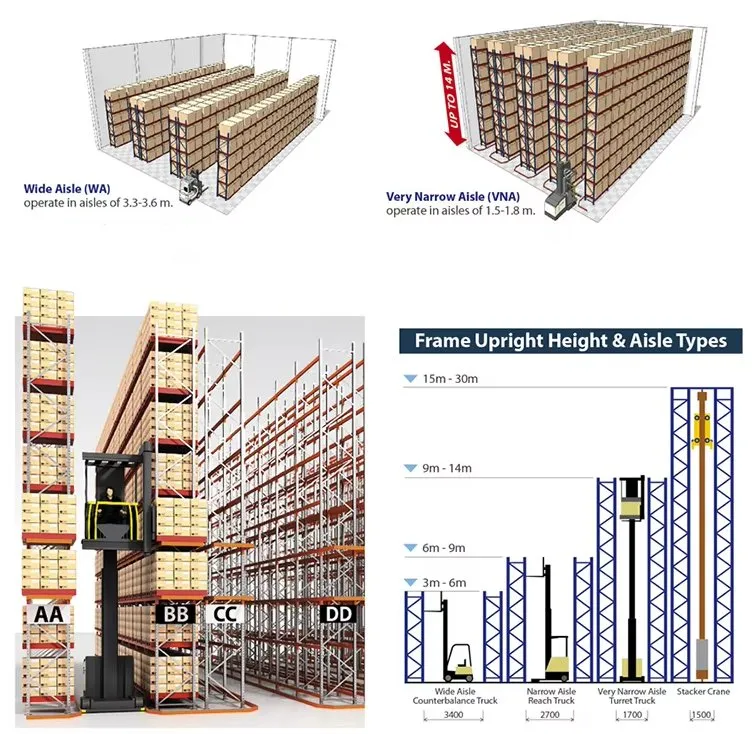

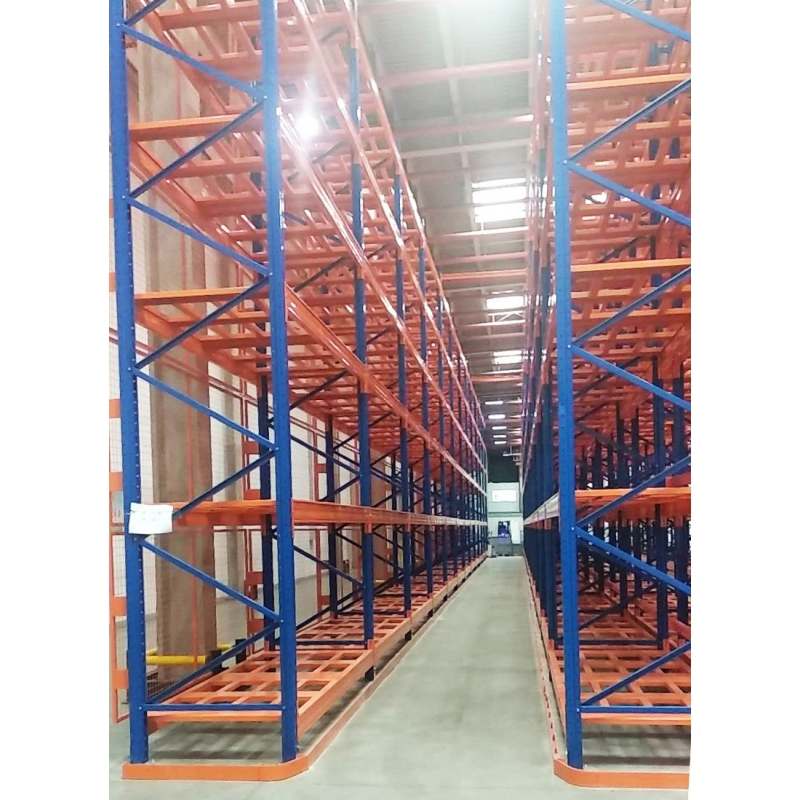

Which particularly suitable for logistic center less than 15 m high. Comparing with the conventional pallet rack, its aisle is much narrower, ordinarily 1600-2000 mm, the space utilization rate will increase about 20%.

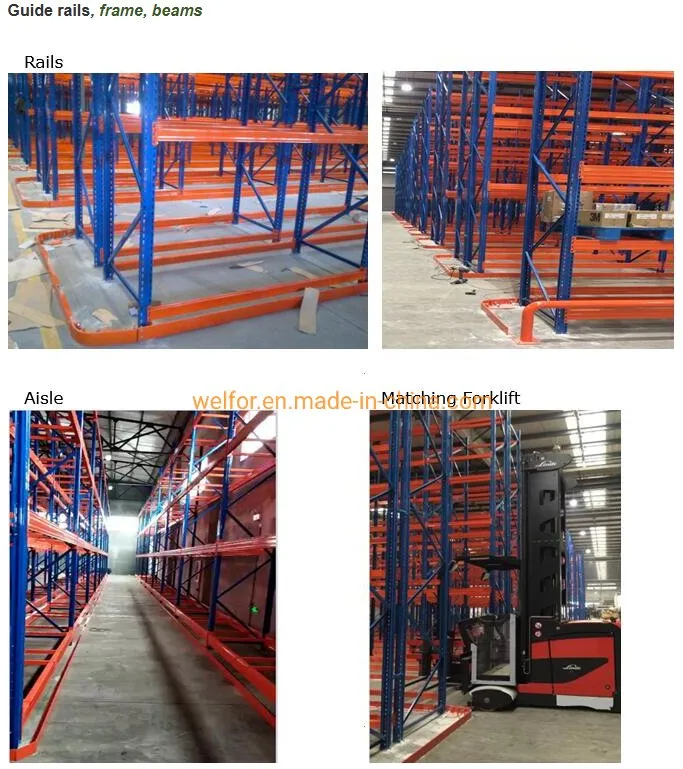

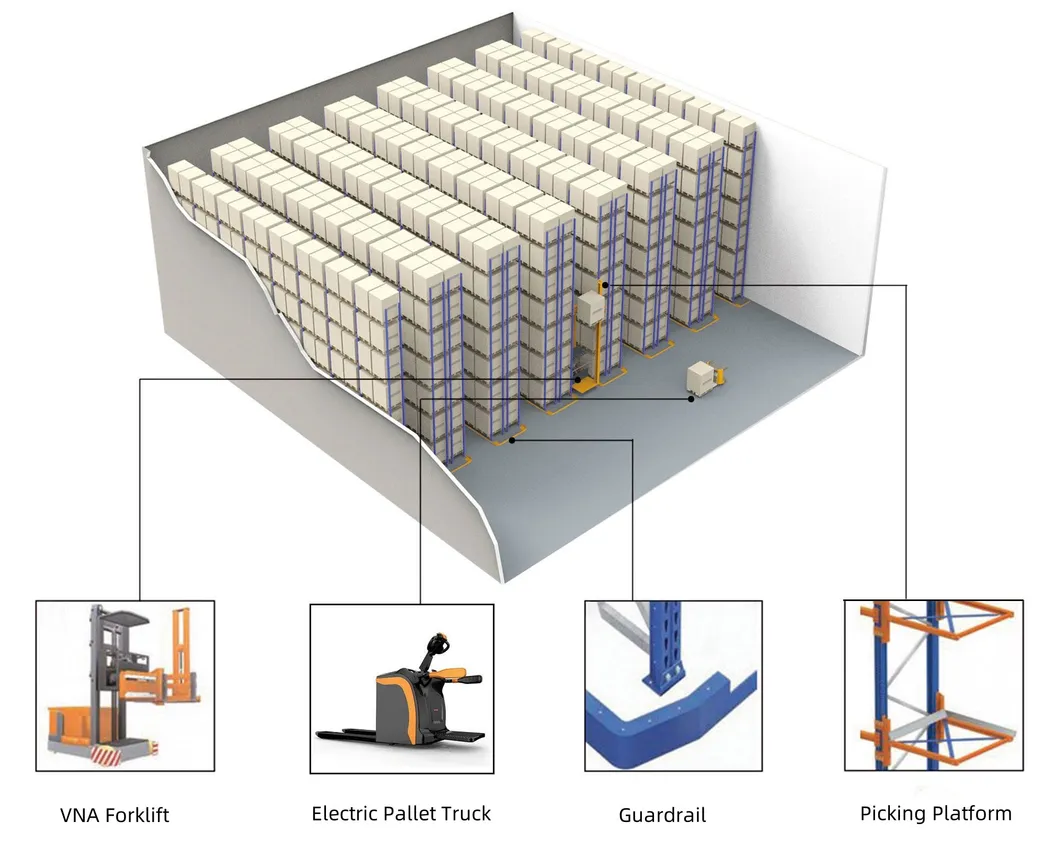

Guide rails should be installed on both sides of the aisle for the three-way forklift running.
| Style | Pallet storage warehouse rack |
|---|---|
| Selection | Single Row, back-to-back Rows and multiple Rows |
| Dimension of pallet rack |
Standard Pallet: 1200*800(F)/1200*1000(F)/1100*1100(F)/1066(F)*1220 Depth: 1000MM/900MM/1020MM Width: 2700MM/2300MM/2500MM/2432MM Height: pitch is adjusted by increments of 75mm |
| Customized Pallet | Other special size |

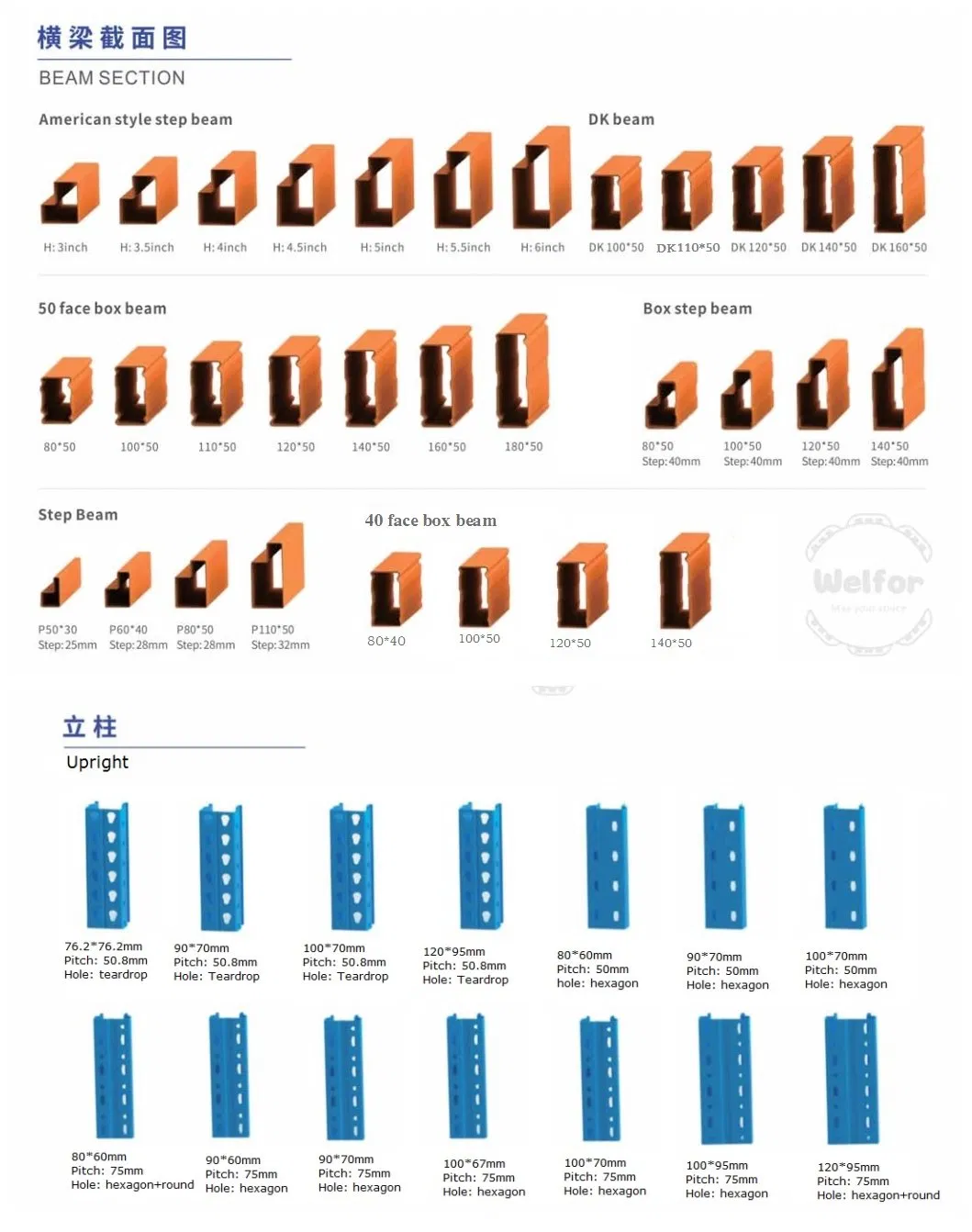

| Beam range of pallet rack | Height: 80~160mm; Width: 45mm/50mm; Thickness: 1.5~2.5mm |
| Upright range of pallet rack | 80*60; 90*60; 90*70; 90*75; 100*67; 100*70; 100*75; 120*75; 120*87mm; Thickness: 1.5~3.0mm |
| Color of pallet rack | Blue and Orange or Customized |
| Weight capacity of pallet rack | 5000KG per level max ; 1500KG per pallet max |

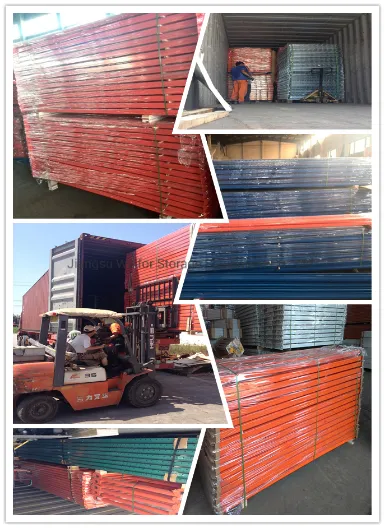

| Package of pallet rack | Packed by poly sheets and straps and pallets; Other parts and accessories are packed by cartons; straps; wooden pallets, etc. |
| Lead time of pallet rack | 20-25 working days |
