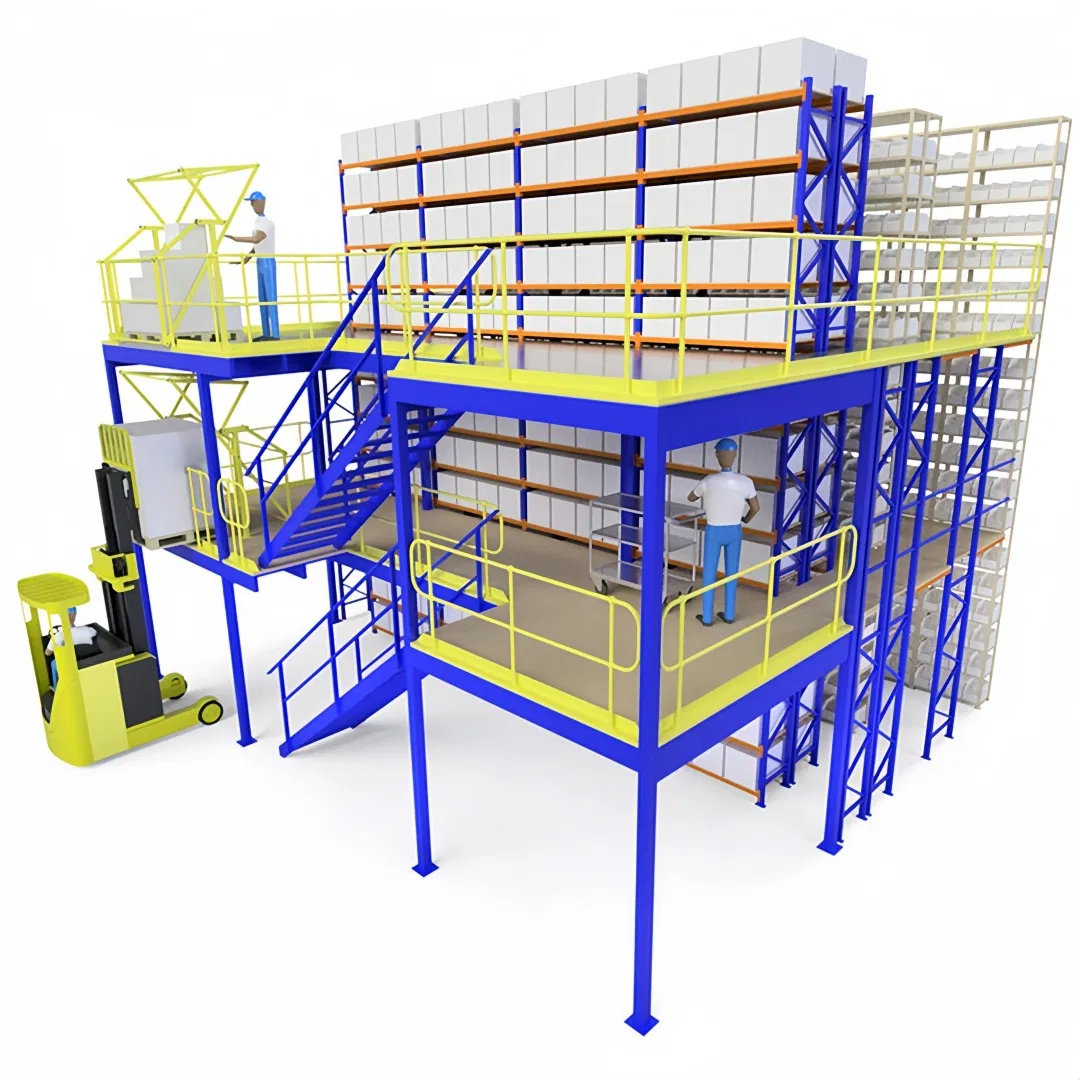

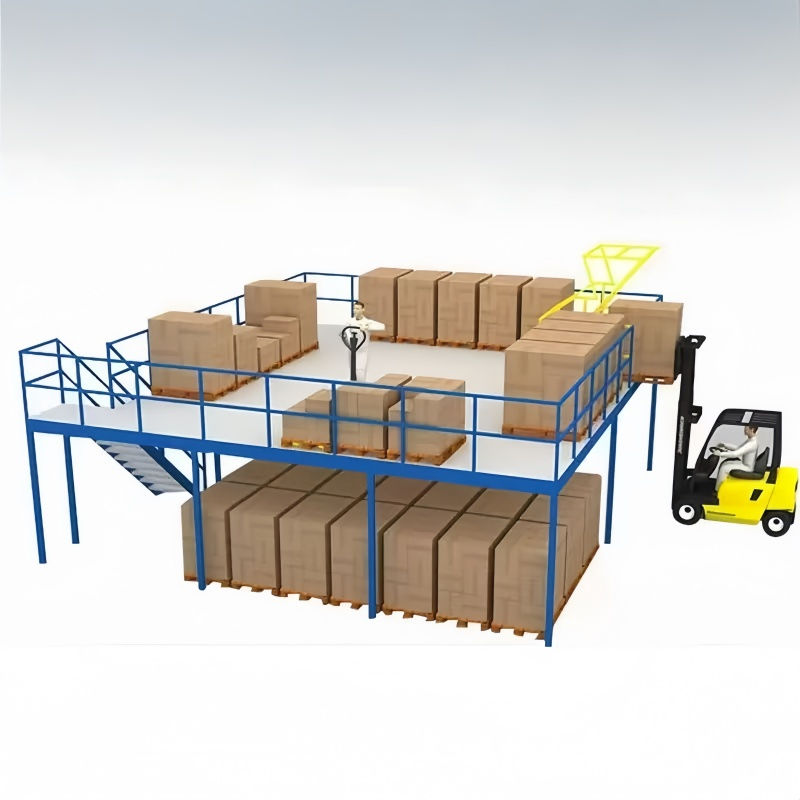

Mezzanine Shelving

This is a warehouse-customized multi-tier mezzanine rack shelving steel structure, also known as a working platform, available in various structures with comprehensive functions. It adopts an assembled plugging design (no welding) and can be flexibly customized to fit different warehouse conditions and storage needs.

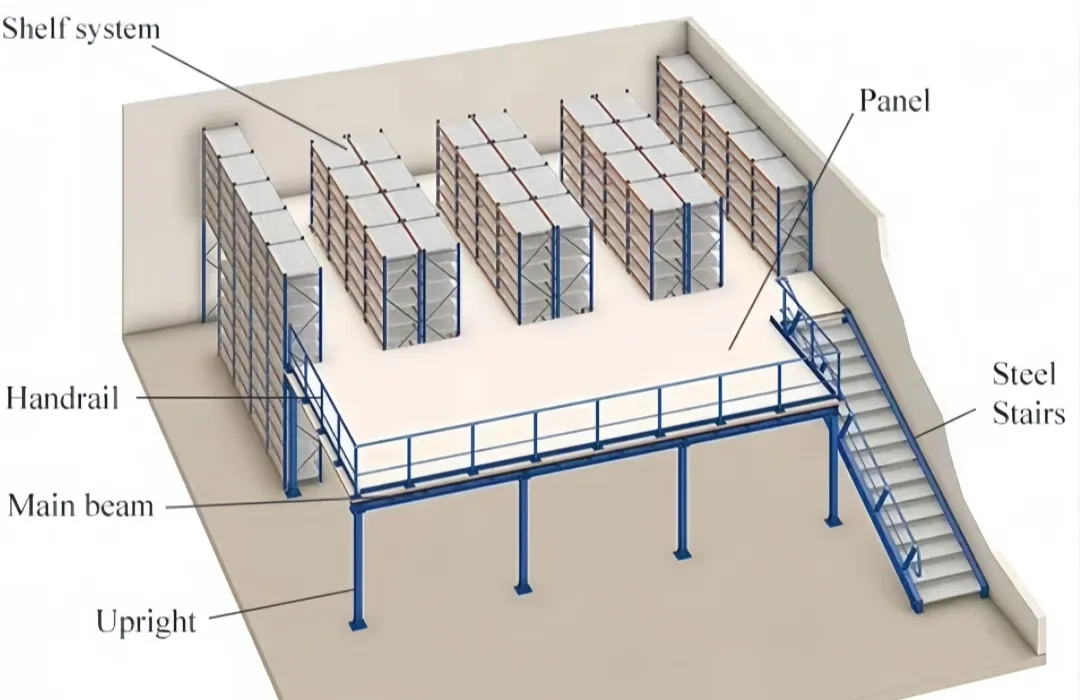

Composed of components like floor-plank, beams, uprights, bracing, ladderway and baluster, it features a stable composite structure—convenient for delivery, assembly and disassembly, with long column spans, large loading capacity (300-2000kgs/m2, customizable) and reliable safety. Cargo can be moved up and down via forklift or lift platform.

Characteristics

• Can enhance the shelf height attic shelves full use of warehouse height, better use of storage space.
• Attic shelves shelf dedicated floor laying steel gusset plate, load capacity, good integrity, carrying layer uniformity, smooth surface, easy to lock and other characteristics.
• Attic shelves full account of user-friendly logistics, design aesthetics, structure and generous, assembly installation and removal easy, according to the ground, flexible design.
• According to various floor design custom installation, can be easily assembled on site, without welding. Attic shelves for storing various types of items.
• Optional downstairs forklifts, hydraulic lifts, freight elevators, etc. cargo, cargo transport is usually the same layer using a small trolley complete.

Specification

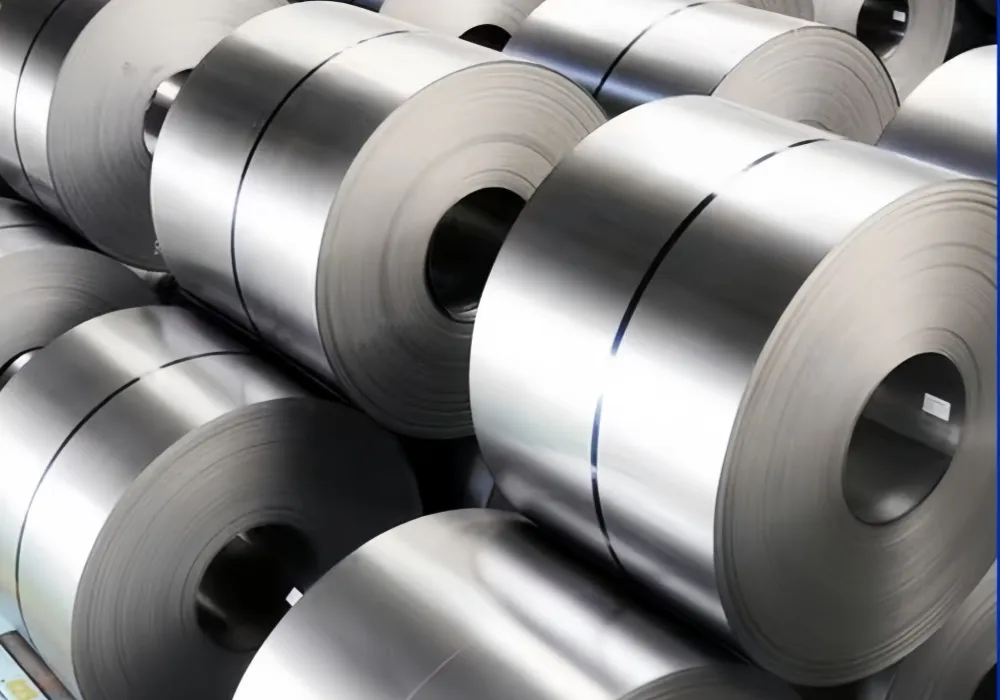

Thickened Cold-Rolled Steel Plate , Thicker for More Peace of Mind

Genuine Materials, Superior Raw Material Quality, All for Greater Safety:

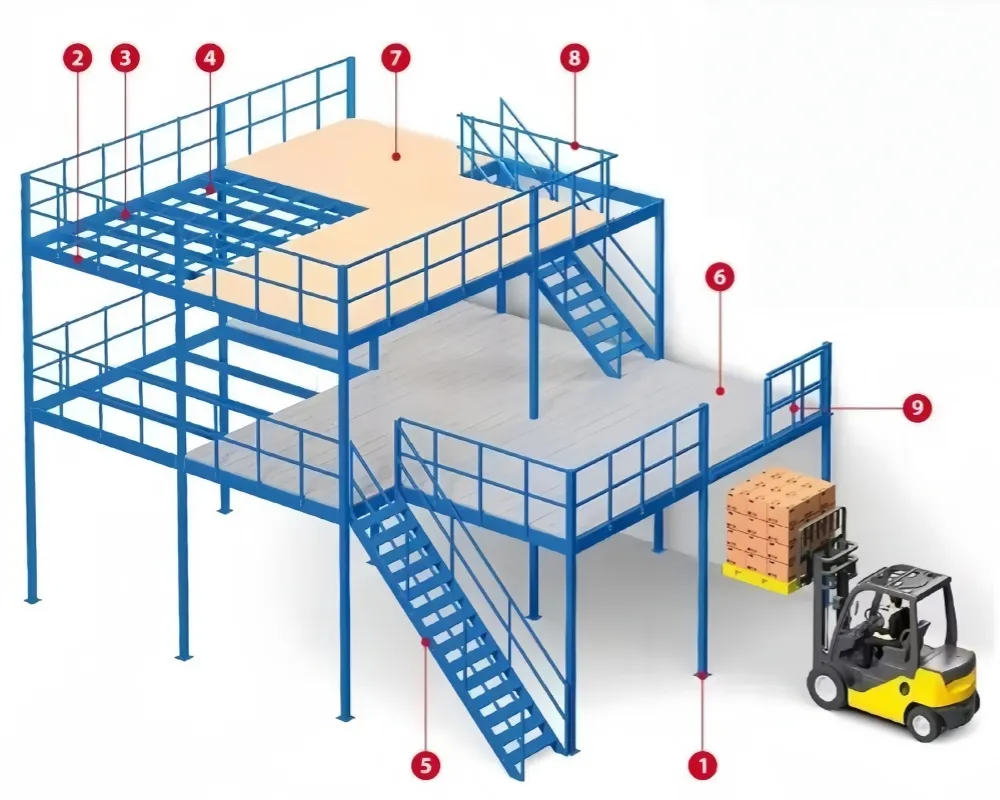

Key Components

Product Type

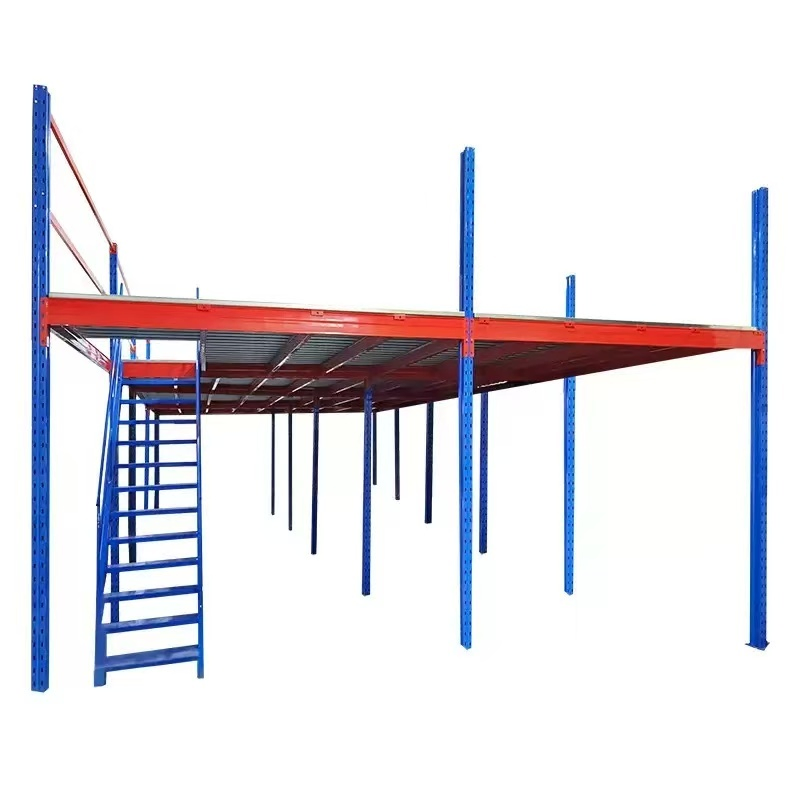

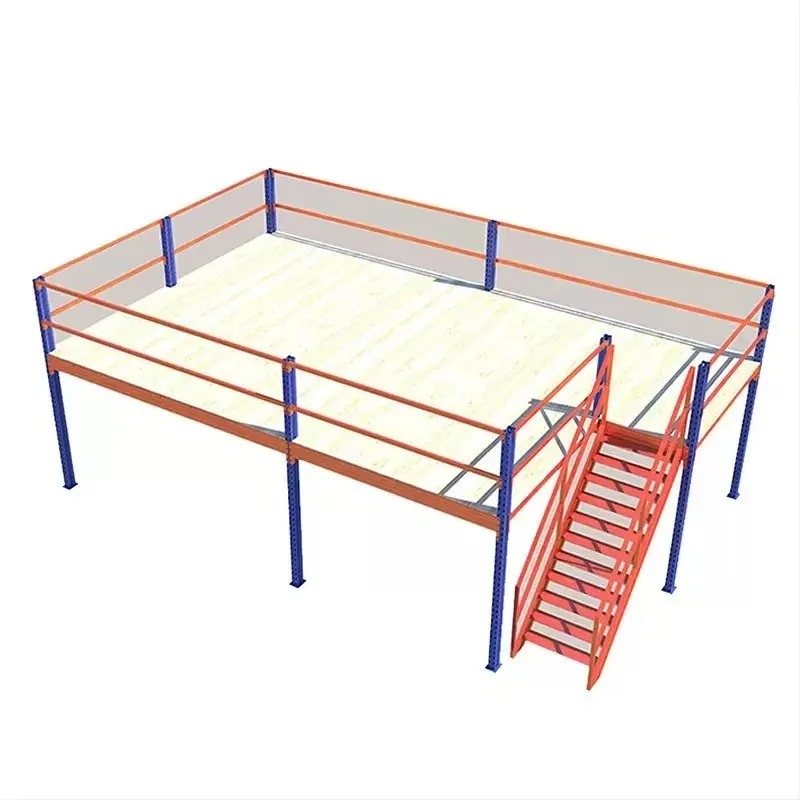

Column-Supported Mezzanine Floor Systems

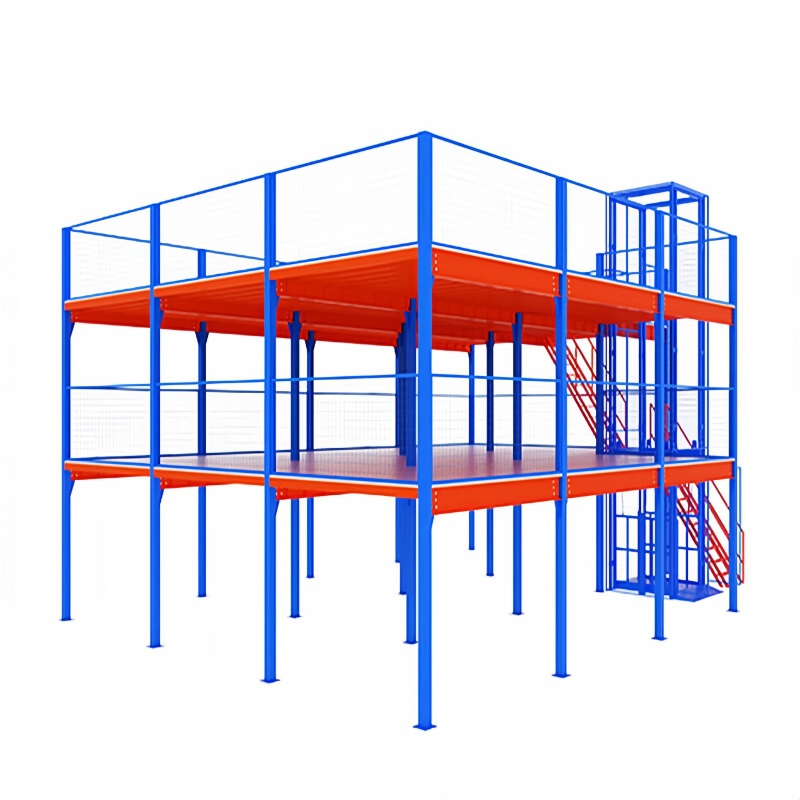

Column-Supported Mezzanine Floor System is a steel structure storage solution for warehouses. It creates single or multi-level platforms supported by columns above the existing floor, effectively maximizing vertical space utilization. The system features a stable structure and high load capacity, and can be equipped with stairs, guardrails, and sliding doors. It is widely used in warehouses, logistics centers, and industrial facilities.

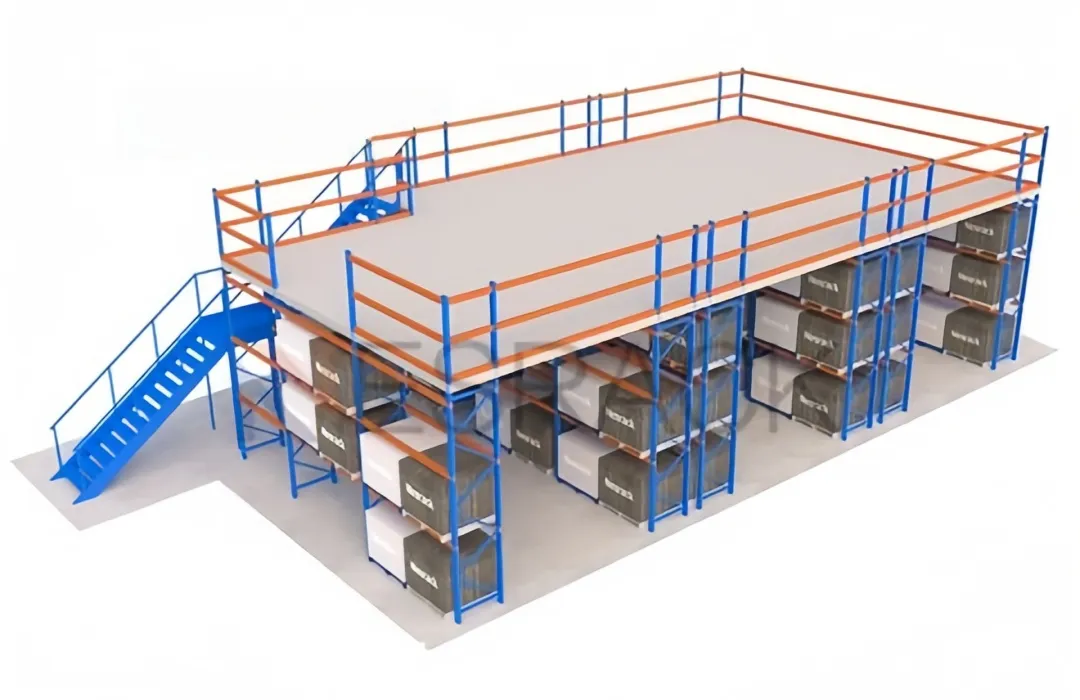

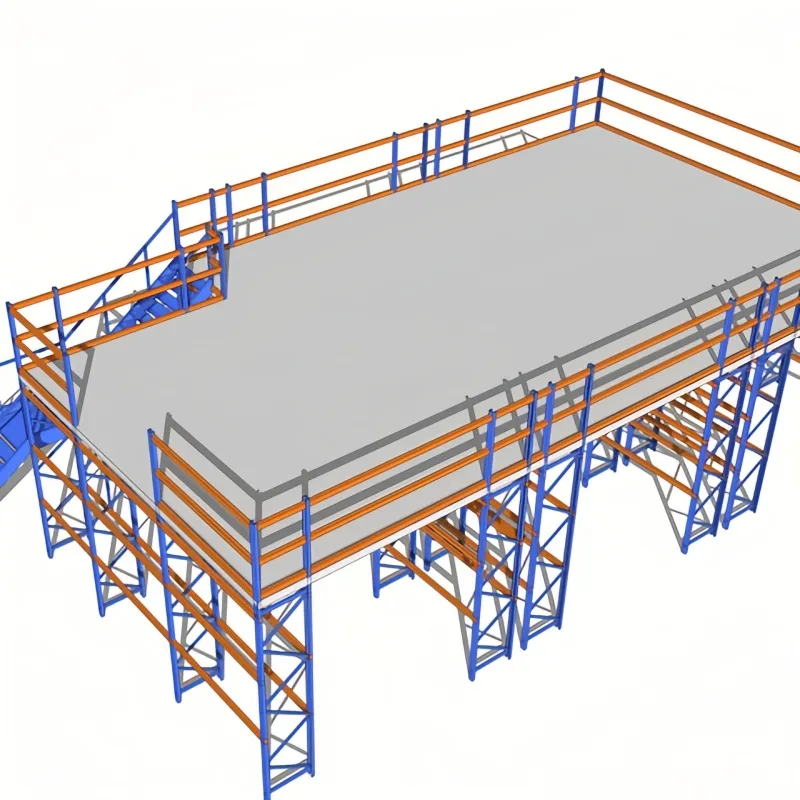

Rack-Supported Mezzanine Floor Systems

The rack-supported mezzanine floor system is a three-dimensional storage solution that combines warehouse racking with a mezzanine platform, maximizing vertical warehouse space and enabling efficient integration of storage and working areas.

Structural Configurations:

• A structure with racking on the lower level and a mezzanine platform on the upper level, suitable for ground-level storage with upper-level operations or order picking.
• A configuration with racking on both the lower and upper levels, forming a multi-tier racking system that significantly increases storage capacity.

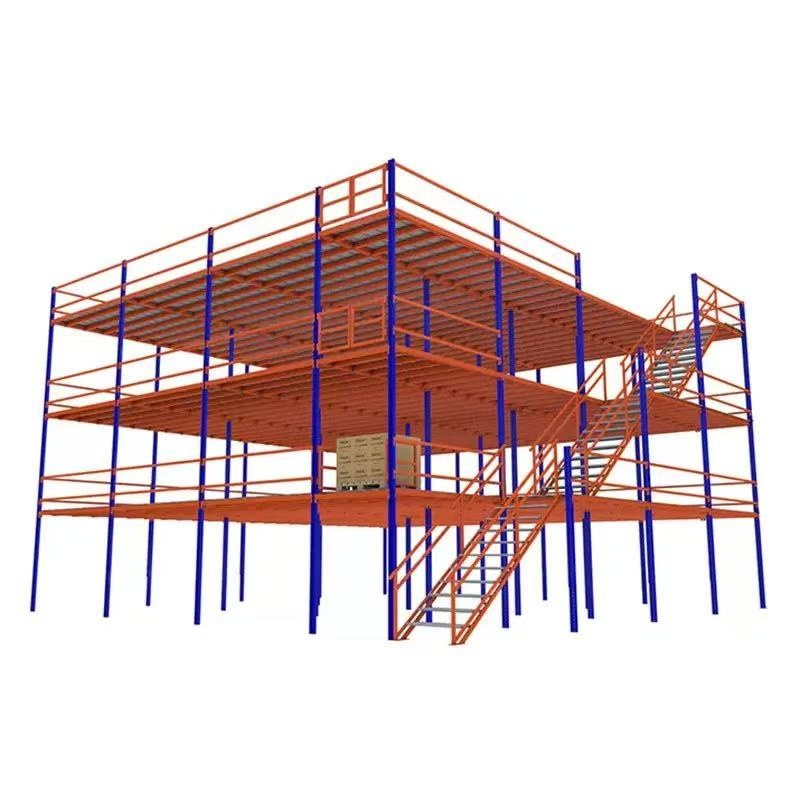

• A three-tier rack-supported mezzanine structure with a mezzanine platform on the top level, designed to meet large-space, high-load, and multi-functional warehousing requirements.

Features:

• Integrated rack and mezzanine design, stable structure.
• Modular, customizable levels based on height and load.
• High space utilization, maximizing warehouse area.
• Strong load capacity, suitable for heavy or multi-type goods.
• Flexible installation and easy maintenance, ideal for long-term use.

Product Details

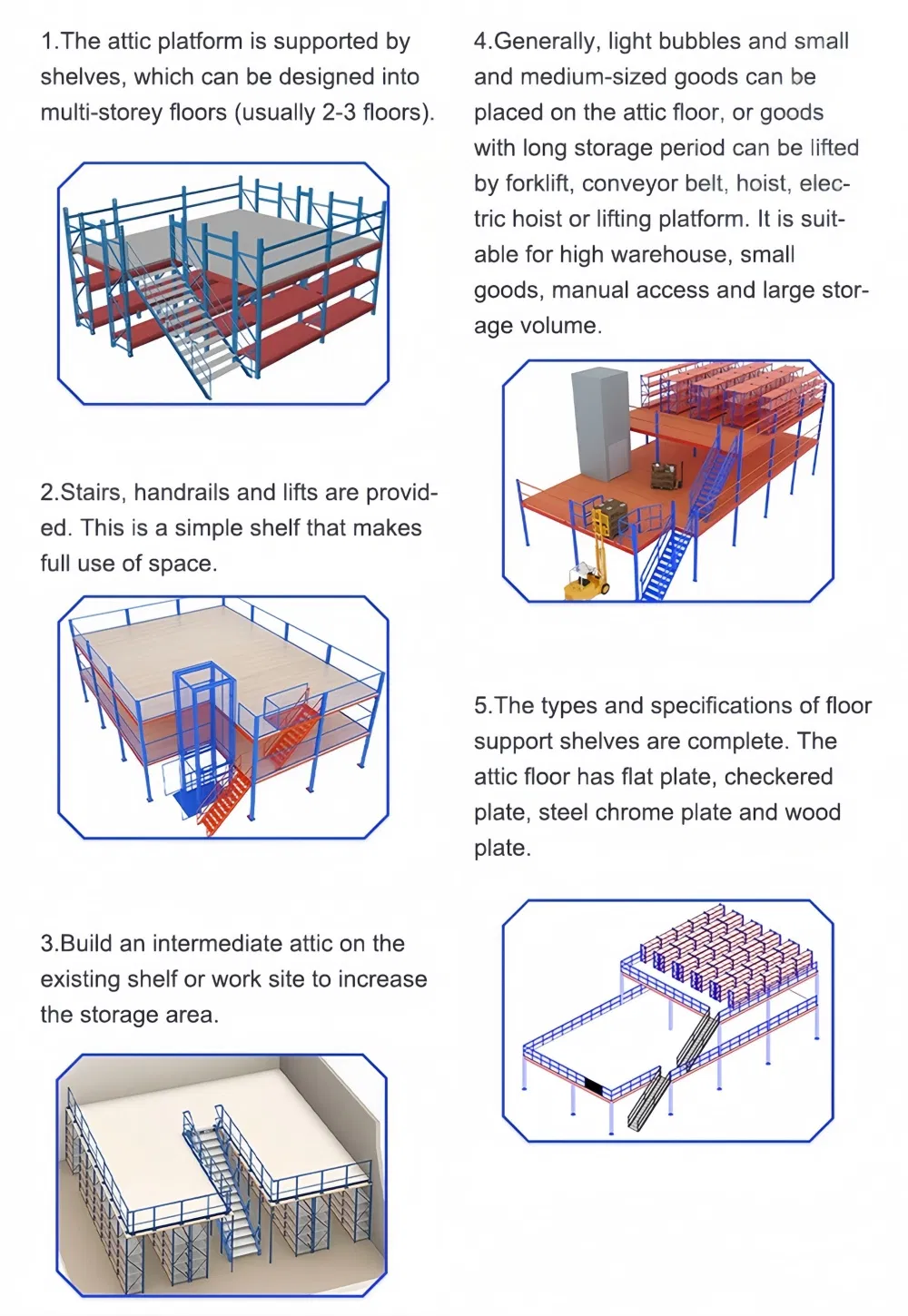

• The attic platform is supported by shelves, which can be designed into multi-storey floors (usually 2-3 floors).
• Stairs, handrails and lifts are provided. This is a simple shelf that makes full use of space.
• Build an intermediate attic on the existing shelf or work site to increase the storage area.
• Generally, light bubbles and small and medium-sized goods can be placed on the attic floor, or goods with long storage period can be lifted by forklift, conveyor belt, hoist, electric hoist or lifting platform. It is suitable for high warehouse, small goods, manual access and large storage volume.
• The types and specifications of floor support shelves are complete. The attic floor has flat plate, checkered plate, steel chrome plate and wood plate.

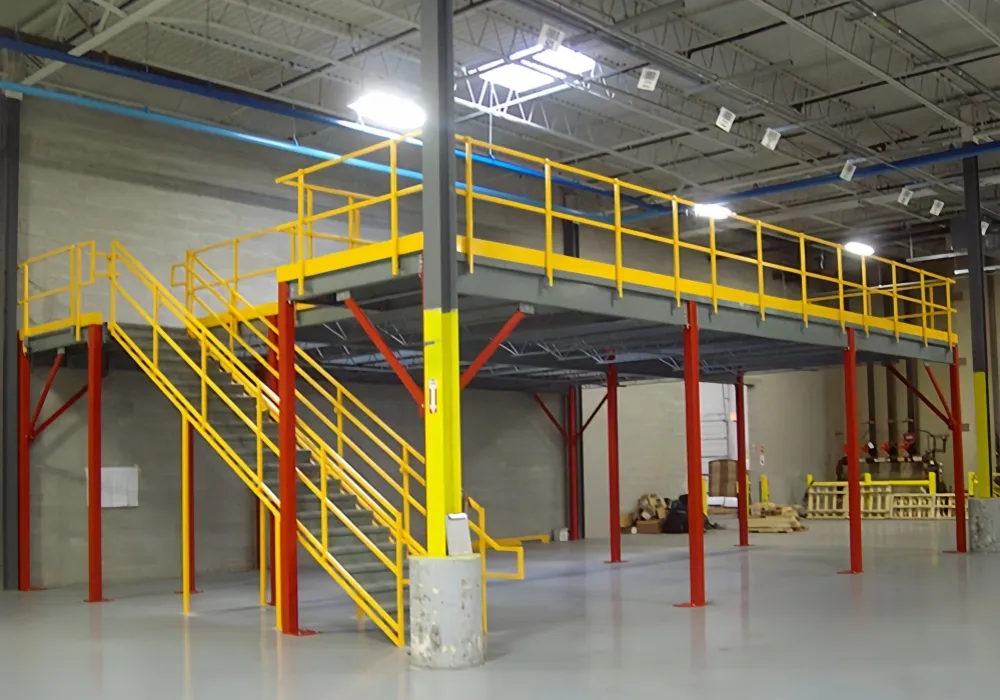

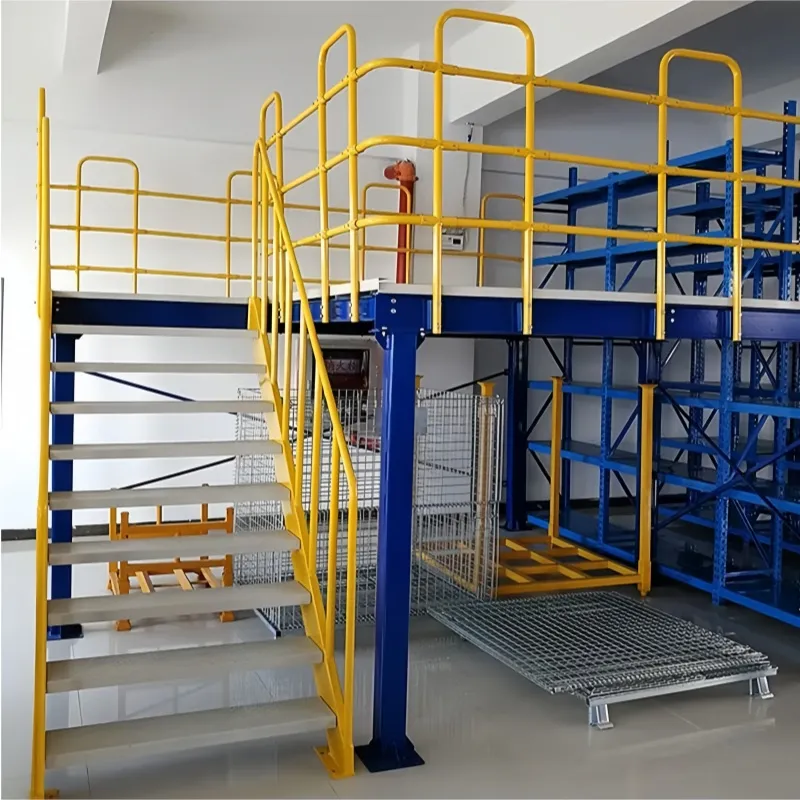

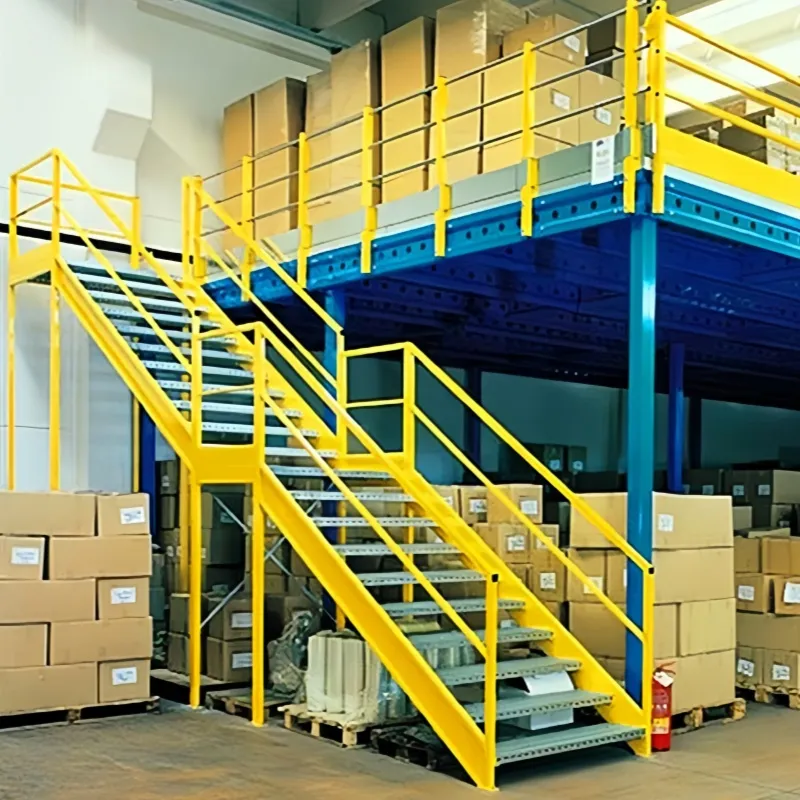

Product Display

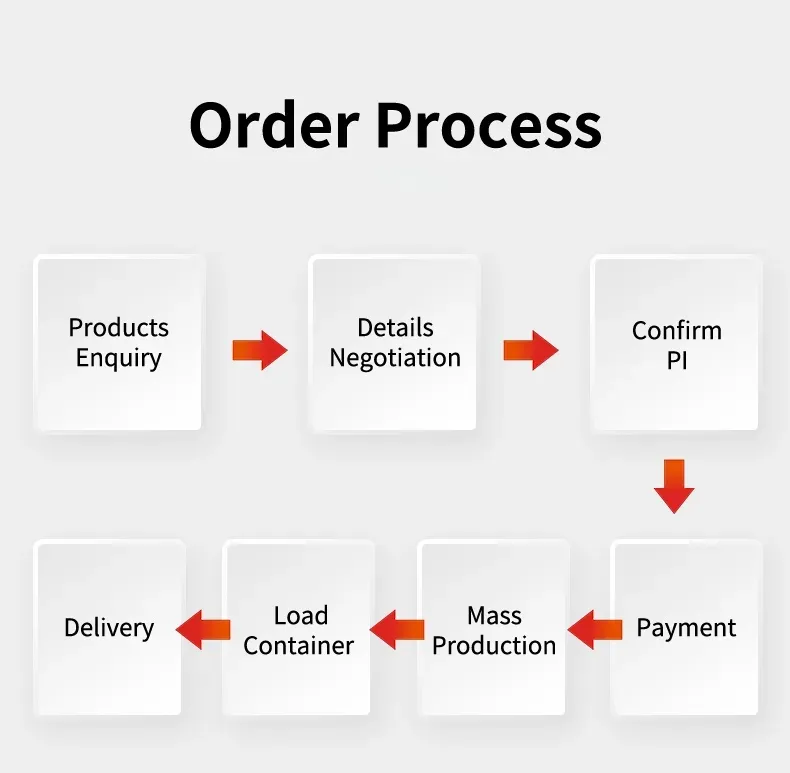

Order Process

How to get a quick quotation of mezzanine rack?

If you have a design drawing, you can send it to us and we will offer you a quotation soon. If not, we offer free CAD design. We need this information:

• The size of your warehouse - Width * Depth * Height
• It would be better if you can offer a drawing of your warehouse so that we can know the quantity and location of columns and barriers.
• Are your goods put on pallets or in cartons?
• The size of pallet/carton (Width * Depth * Height) and the weight of each pallet/carton as well.

With this information, we can know what load capacity of mezzanine is workable for you.

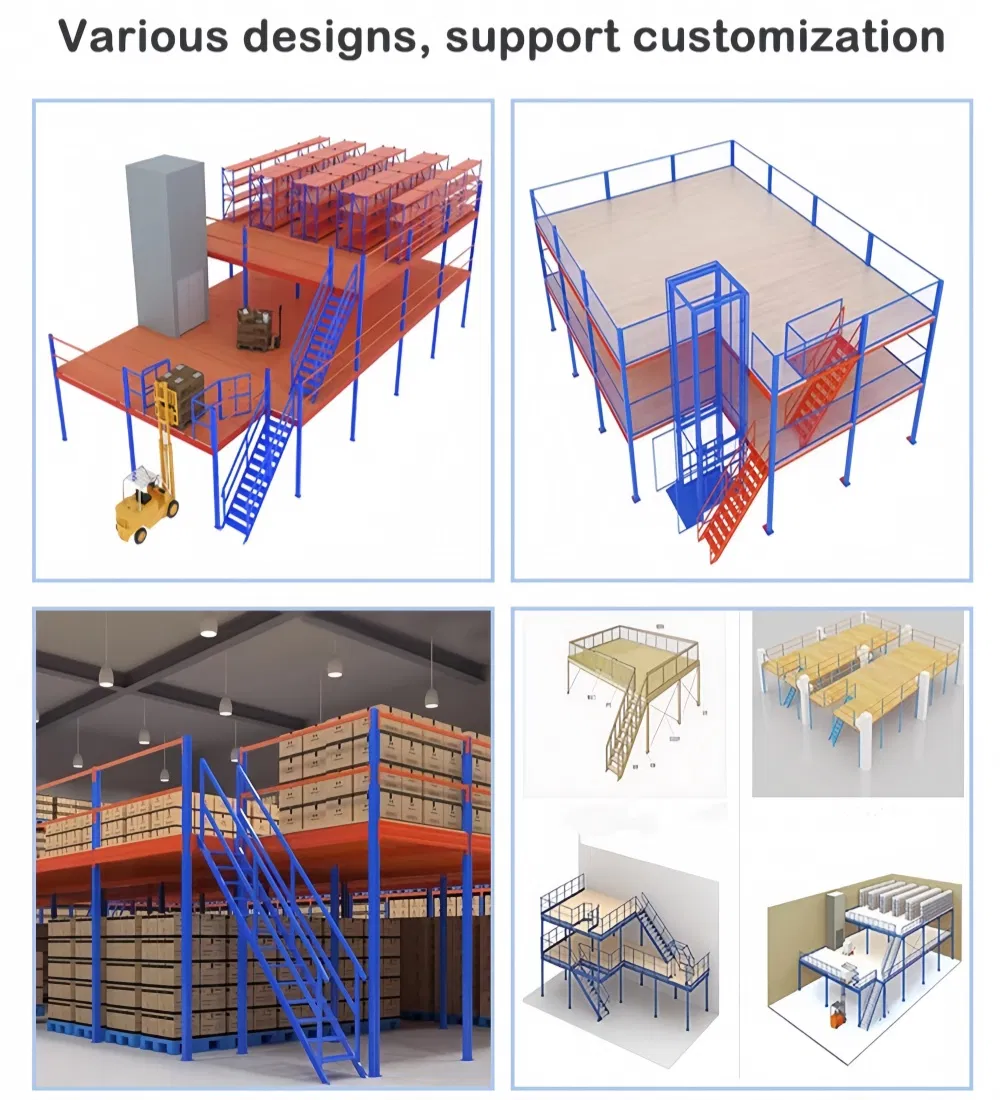

Product Series

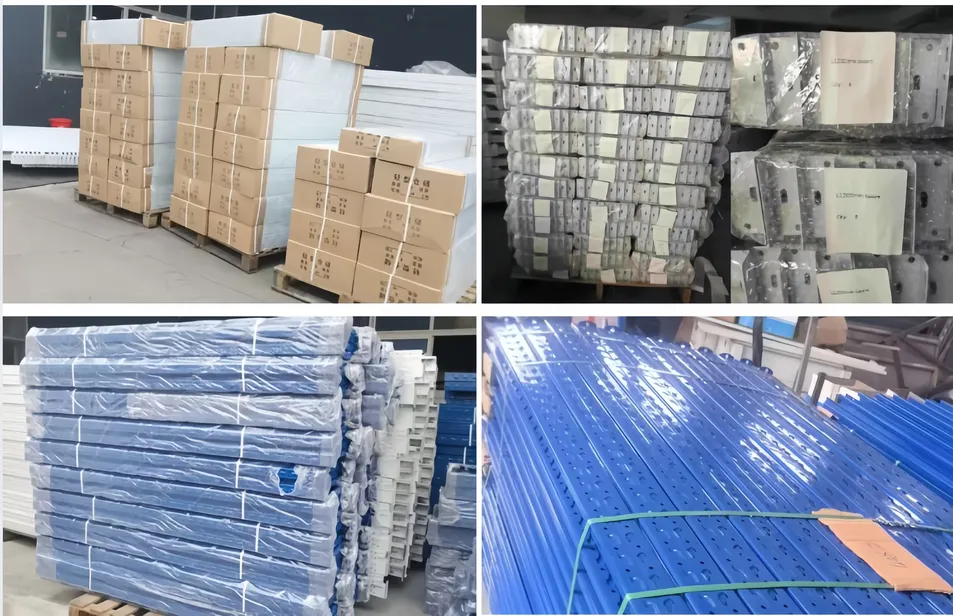

Packaging & Shipping

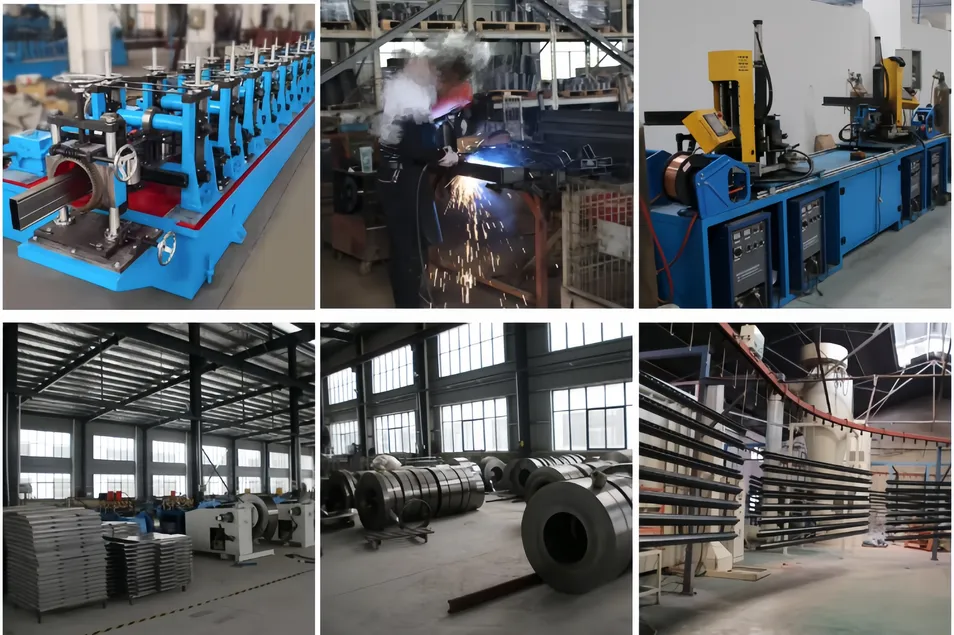

Company Profile
