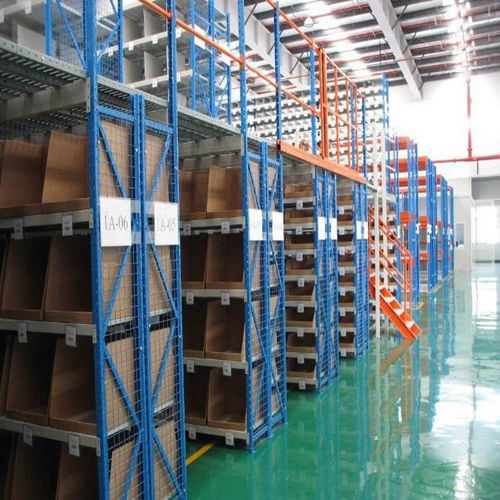

Medium Duty Storage Rack Selective Storage Mezzanine Warehouse Rack /Mezzanine Floors

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Info.
Model NO.
YJG-R09
Structure
Rack
Type
Pallet Racking
Mobility
Adjustable
Height
Sizes Can Be Customized
Weight
500-4000kg/Level
Closed
Open
Development
Conventional
Serviceability
Common Use
Certification
ISO9001/ISO14001/ISO18001
MOQ
100 PCS
Transport Package
Pallet Package or as Requested
Specification
customized
HS Code
73089000
Production Capacity
260000PCS/Year
Product Description

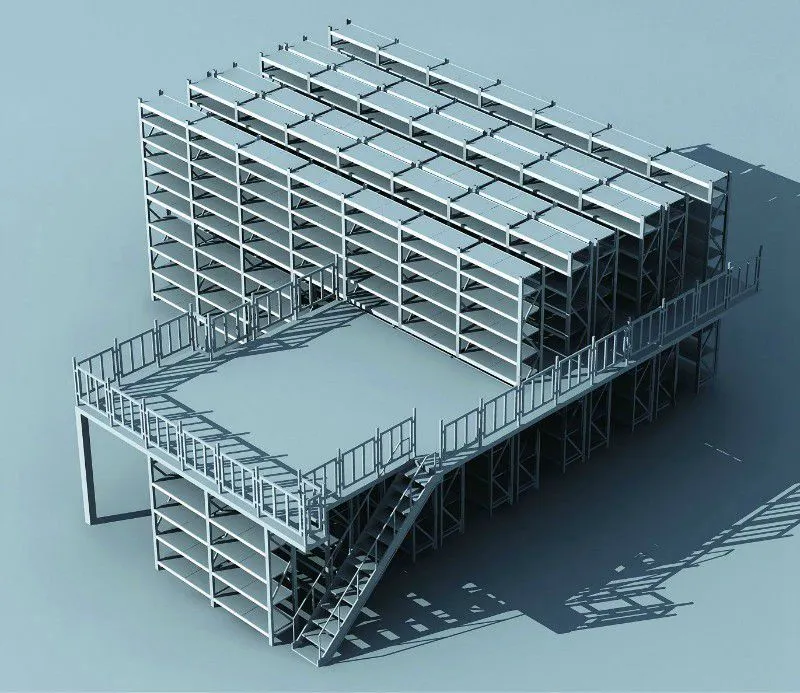

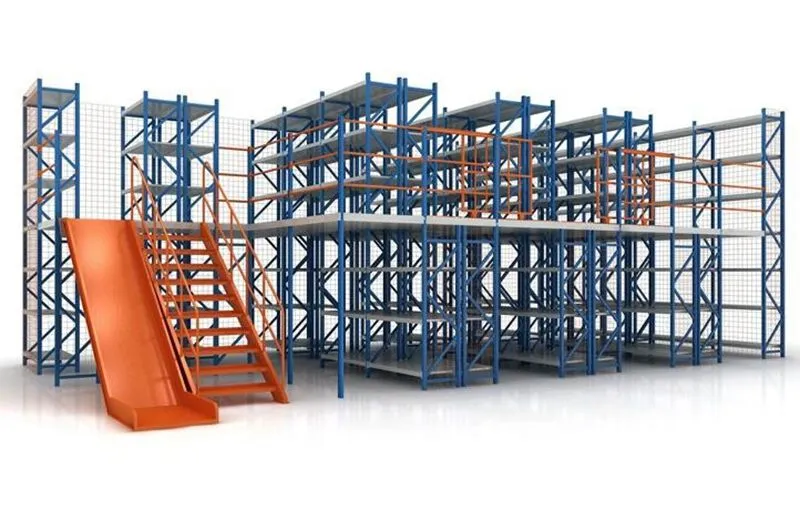

Medium Duty Storage Rack Selective Storage Mezzanine Warehouse Rack / Mezzanine Floors Multi-tier Racking

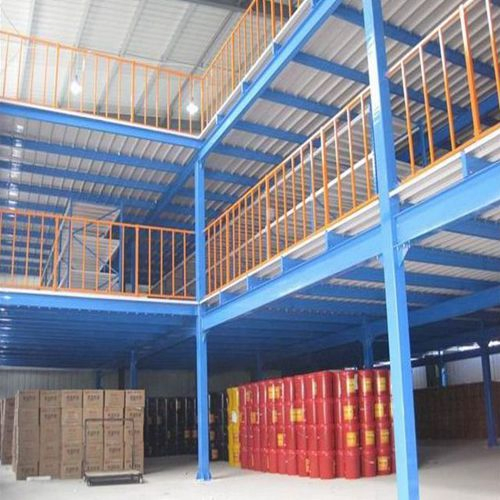

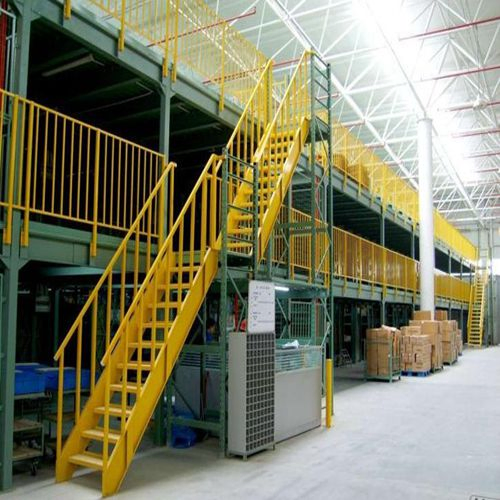

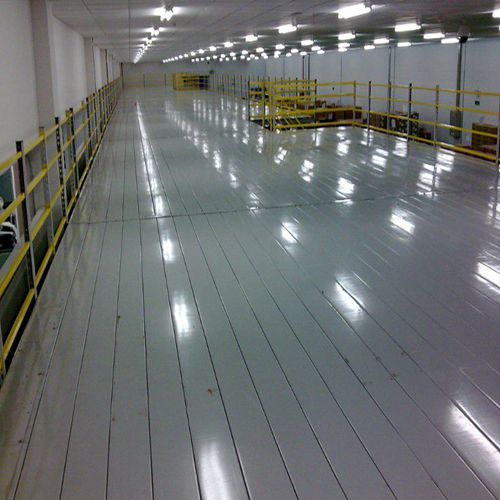

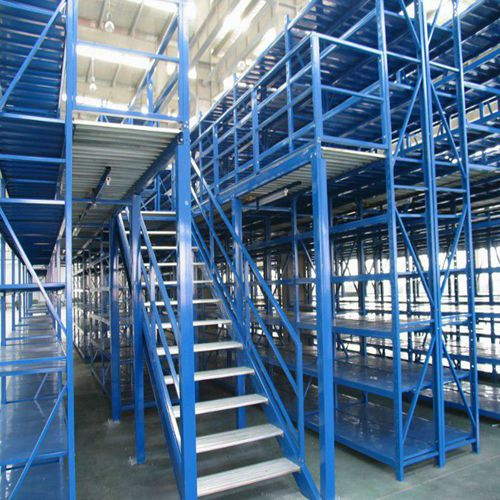

The mezzanine is extensively used in the condition of high warehouse, small goods, large quantities and manual access. It can make full use of the space and save warehouse area. It could be designed as single or multiple mezzanine, generally 2-3 layers, according to the actual field and specific requirements. It is specifically used for sorting storage of automotive fittings, electronic device fittings and electronic devices. It could carry less than 500kg per layer. The general ways of transportation from 2nd floor to 3rd floor are: manual, elevating table, hoisting machine, conveyor belt, and forklift truck, etc.

For indicating the space economization, mezzanine can be used in many conditions. By means of adding hoist, aisle self-lock, fireproof and many auxiliary devices, it can supply a big volume stereo storage settlement.

The basic elements for designing the Mezzanine Racking:
  • The dimension of the shelf (W*D*H)
  • Size of the warehouse (W*D*H better provide CAD layout)
  • Load capacity of each level for rack and of each square meter for floor
  • How many levels you want
  • Type of platform

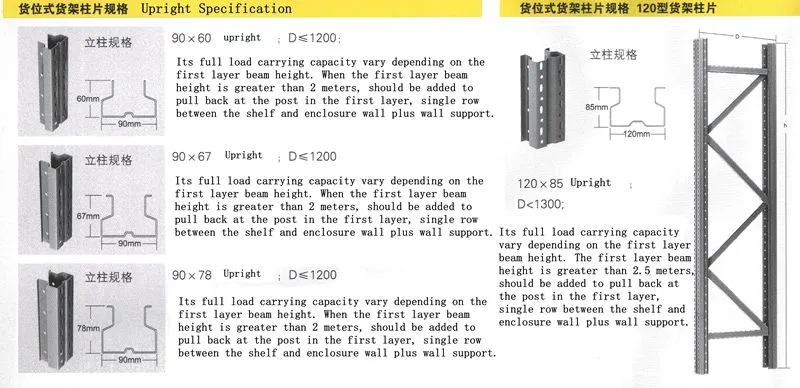

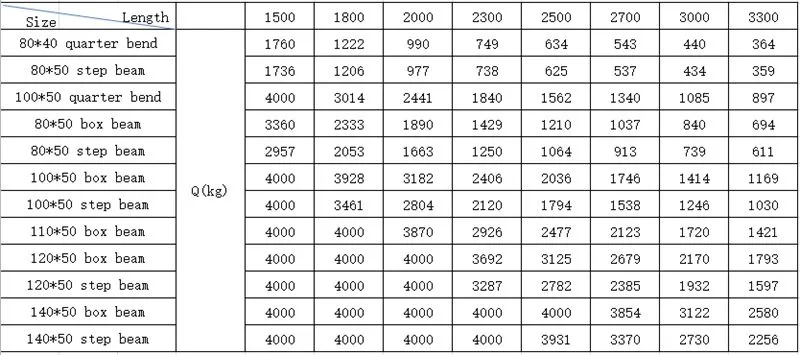

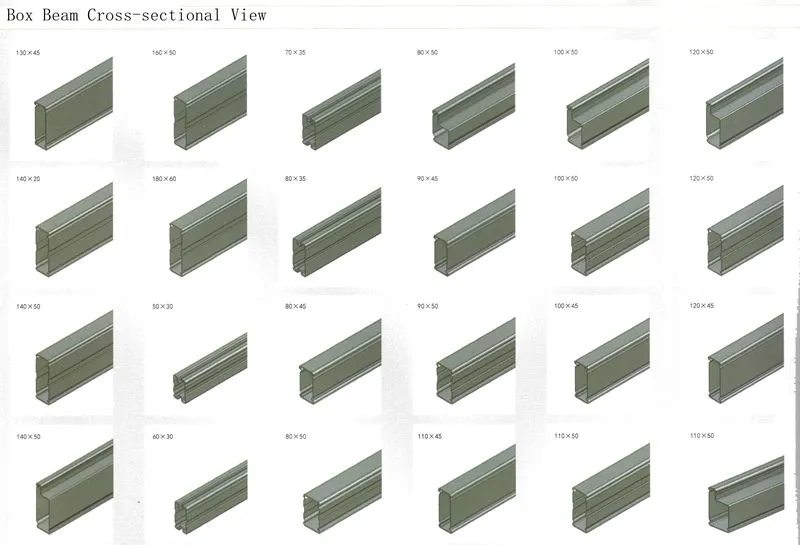

The Bearing Load Table of the Beam
Frequently Asked Questions
What are the main benefits of using a mezzanine racking system?
Mezzanine racking systems optimize vertical space, effectively doubling or tripling storage capacity without expanding the warehouse footprint. They are highly customizable and perfect for storing small to medium-sized items with manual access.
How many levels can be constructed for a warehouse mezzanine?
Mezzanines are typically designed as single or multiple levels, generally consisting of 2 to 3 layers, depending on the available warehouse height and your operational requirements.
What is the standard load capacity of these mezzanine floors?
The standard loading limit for the racking shelves is generally under 500kg per layer. However, the system's weight-bearing specifications can be customized to support heavier loads according to your storage needs.
How are goods transported between the different mezzanine floor levels?
Goods can be moved vertically using several manual and mechanical methods, including manual labor, elevating tables, hoisting machines, conveyor belts, and forklift trucks.
What parameters are required to get a custom design for Mezzanine Racking?
To design an optimized configuration, you should provide the shelf dimensions (Width*Depth*Height), warehouse dimensions (ideally via CAD layout), desired load capacities per level and per square meter, number of floor levels, and the preferred type of platform.
