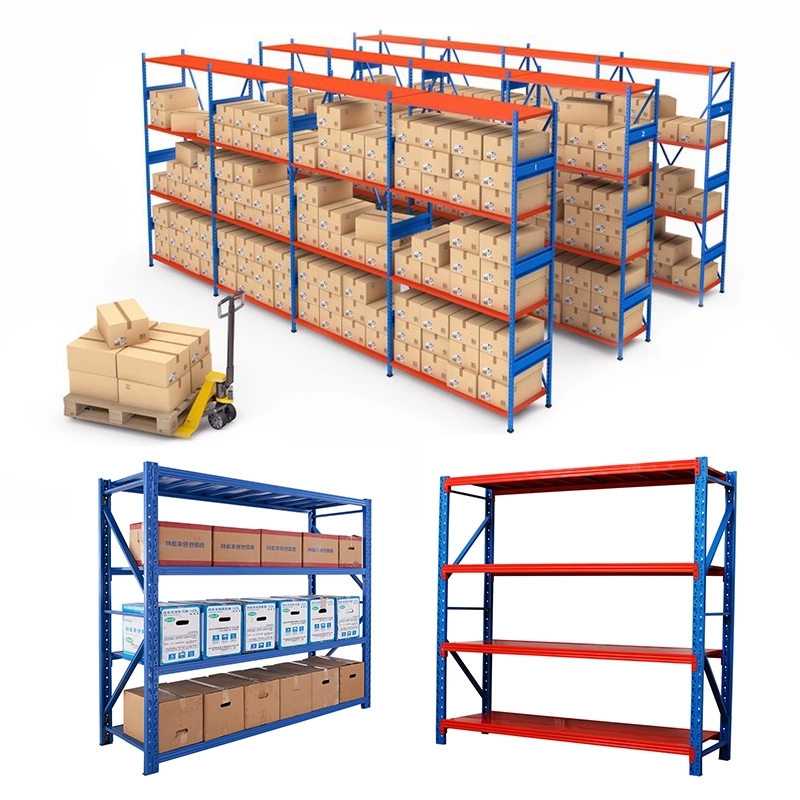

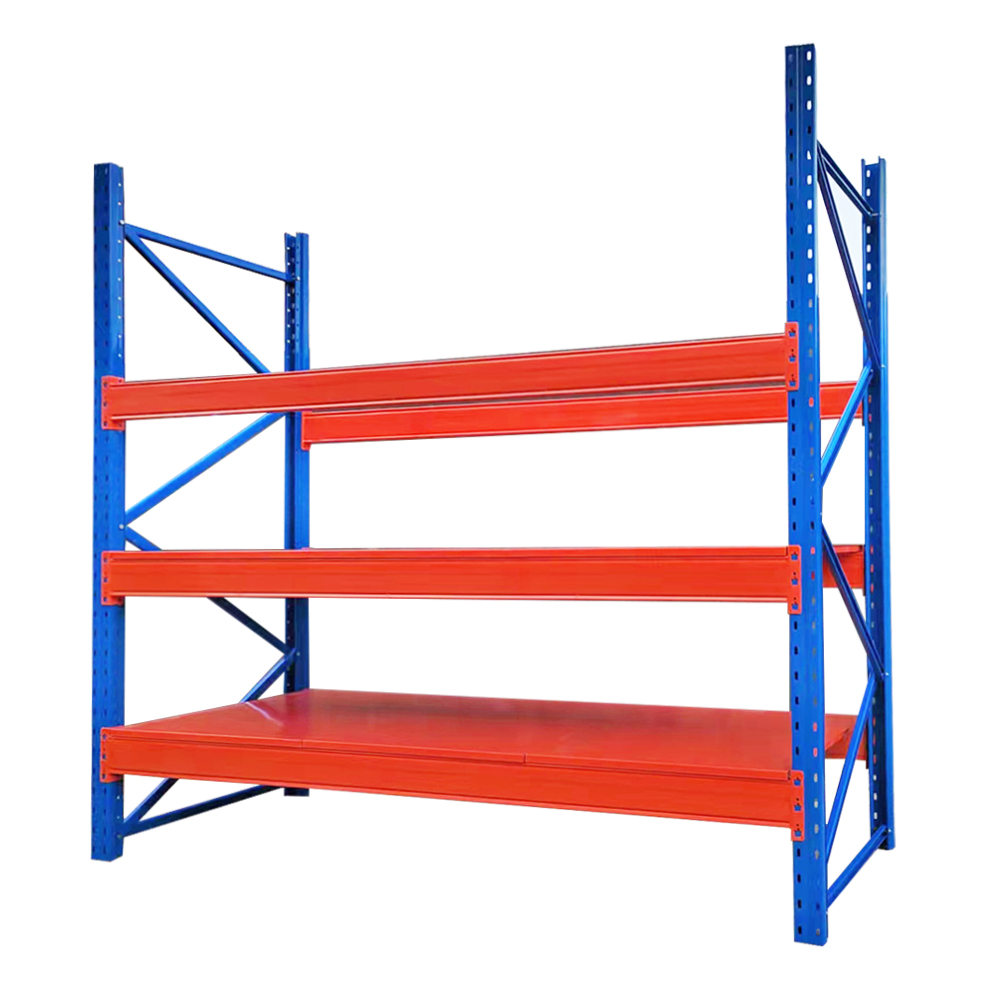

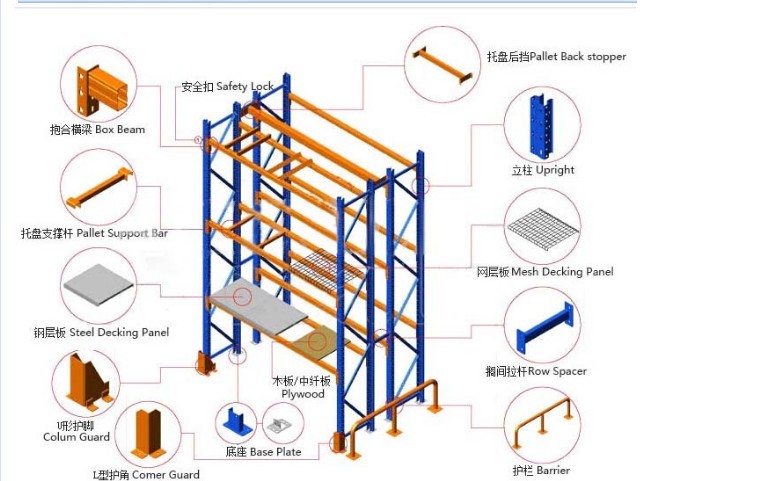

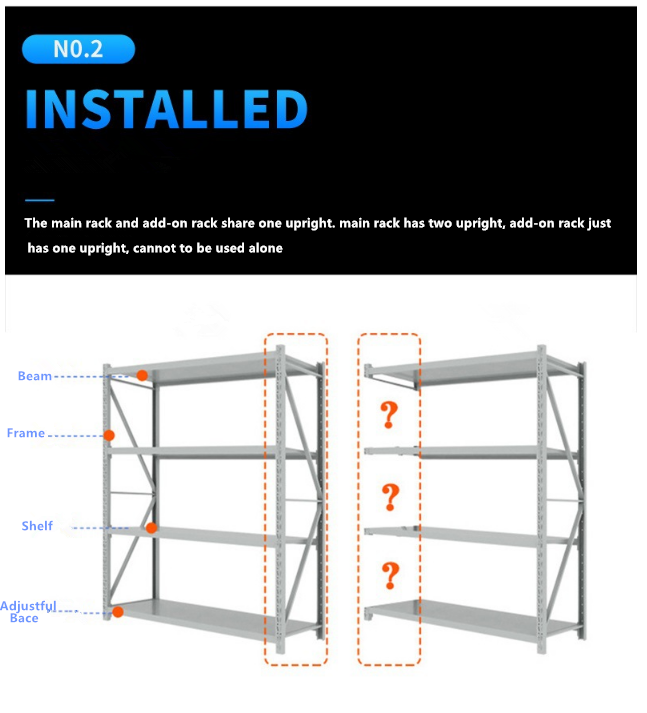

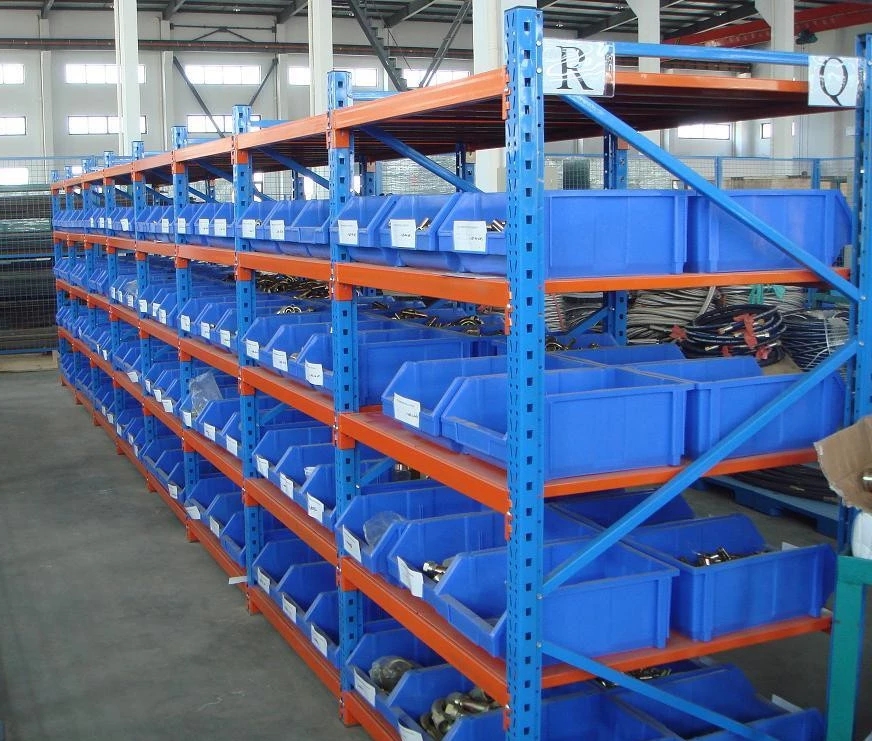

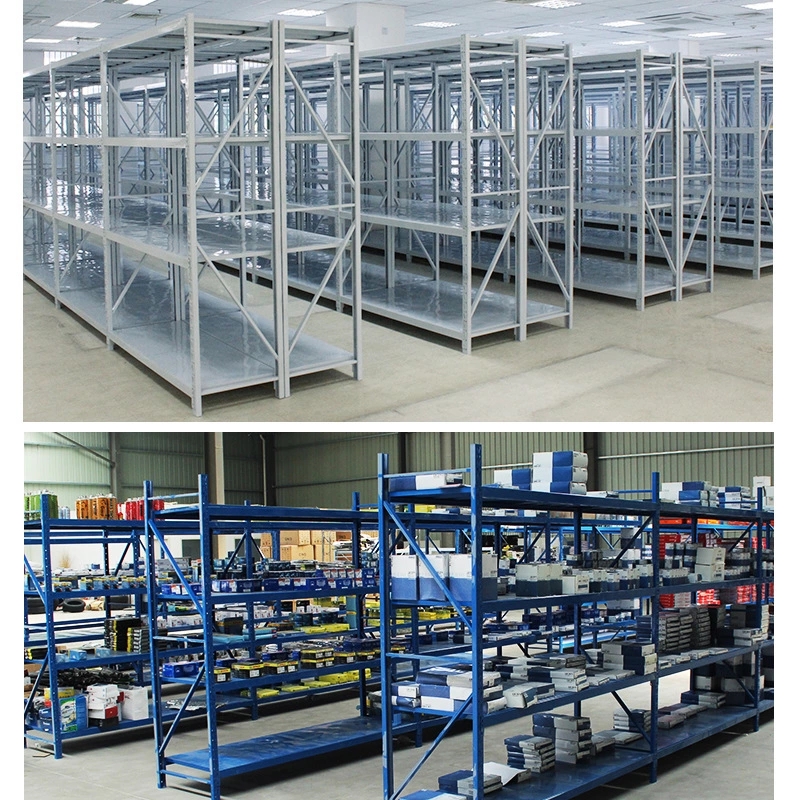

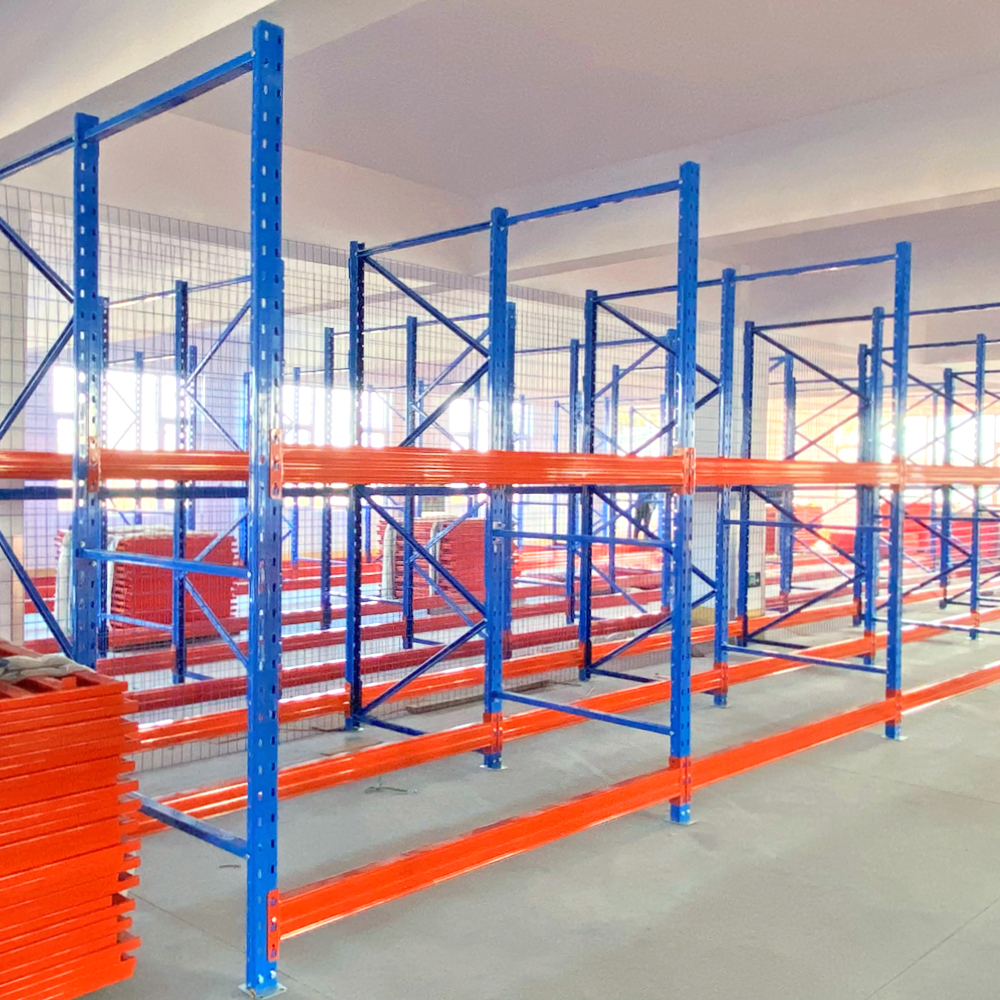

Upright: Combined with horizontal bracing, diagonal bracing, and bayonet. This structure is convenient to install and features stronger supporting power.
Beam: Special cold-rolled P-shaped closed beam is used for the cross beam, providing simplicity, reliability, light weight, strong bearing capacity, and low cost.

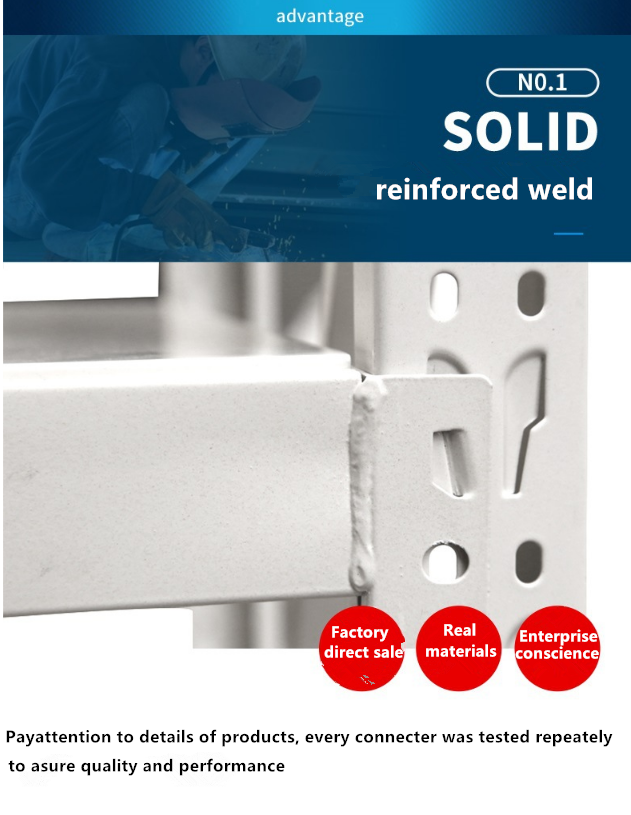

Connector: A specially designed safety pin is equipped when the column clamp connects with the column to ensure the beam will not fall off under external force impact.
Shelf: Laminates adopt strip-laminates, providing high load-bearing capacity, wear resistance, simple replacement, and low maintenance cost.
| Description (LxWxH mm) | Upright Specification | Beam Specification | Thickness of Shelf | Load Capacity / Layer |
|---|---|---|---|---|
| 1500*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 2000*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 1500*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 2000*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 1500*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 2000*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 1500*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.1mm | 50*80*1.5mm | 0.6mm | 500kgs |

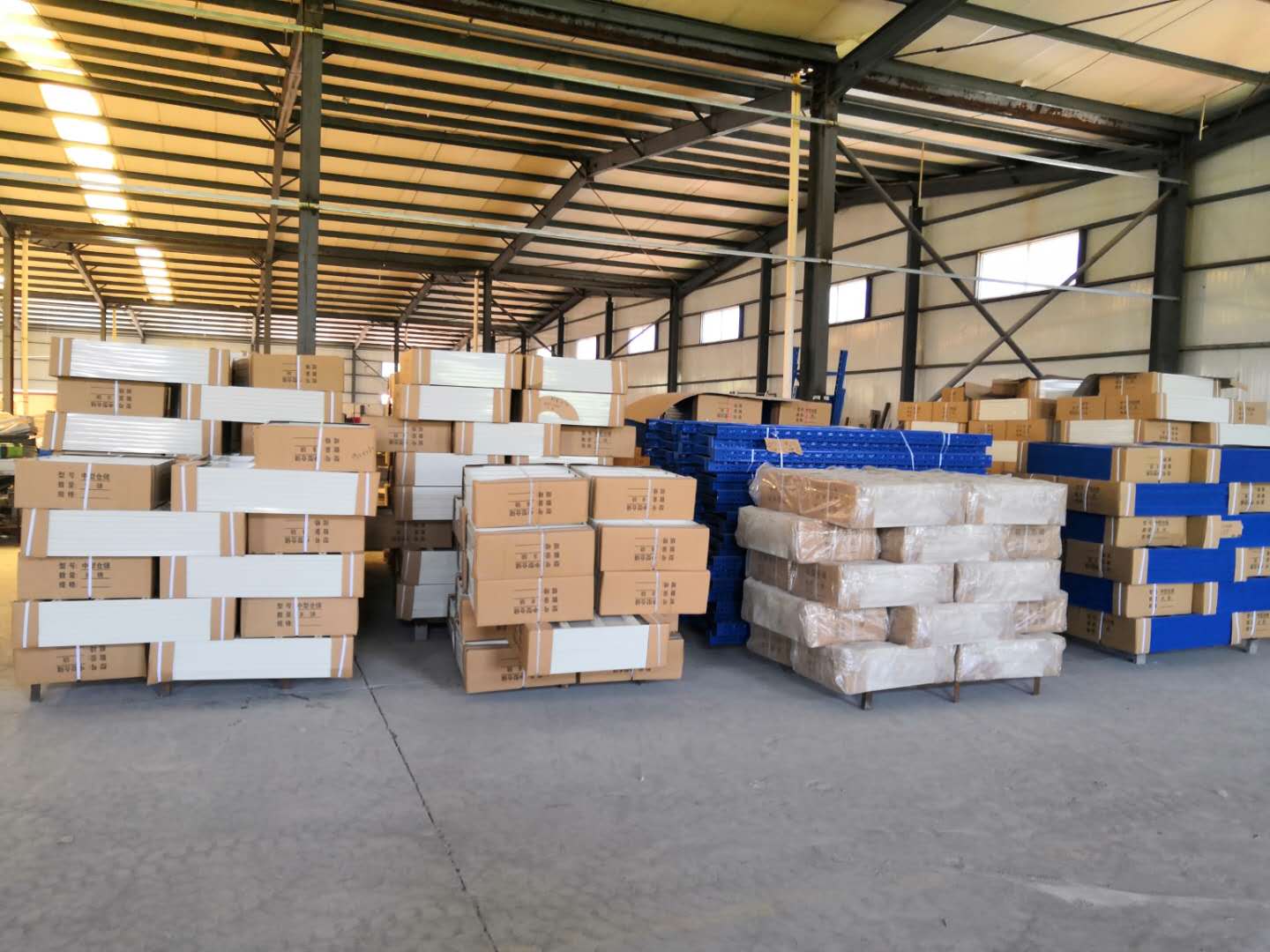

1. Protective Structure: Knock-Down (KD) structure with polyfoam positioned between parts. Everything is packed in a clean, logical order to prevent movement during transit.
2. Outer Packaging: Five-layer corrugated carton box sealed with reinforced packing tape and heavy-duty plastic bands.
3. Custom Marking: Capable of printing customized LOGOs or specific shipping marks according to client requests.
4. Setup Support: Every package includes a clear, step-by-step installation instruction manual.
Shipping Methods: Supported via Sea Freight, Air Freight, and International Express Carriers.
Lead Time: Shipped within 10 days or scheduled according to total order volume.
