LogiSteel Racking
1 / 5
| Model NO. | HDR-001 |
| Usage | Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack |
| Material | Steel |
| Structure | Rack |
| Type | Selective Pallet Racking |
| Mobility | Adjustable |
| Height | 5-15m |
| Weight | More Than 3, 000kg |
| Closed | Open |
| Development | Conventional |
| Serviceability | Common Use |
| Surface Treatment | Powder Coated |
| Color | Blue and Orange |
| Certificate | CE, SGS |
| Delivery Time | 20-25 Days |
| Steel Type | Steel Q235B |
| Transport Package | Banding, Plastic Film, Wood Pallet, Carton |
| Specification | according to pallet size and weight |
| HS Code | 73089000 |
| Production Capacity | 10000 Ton/Month |
| Package Size | 250.00cm * 110.00cm * 110.00cm |
| Package Gross Weight | 1000.000kg |

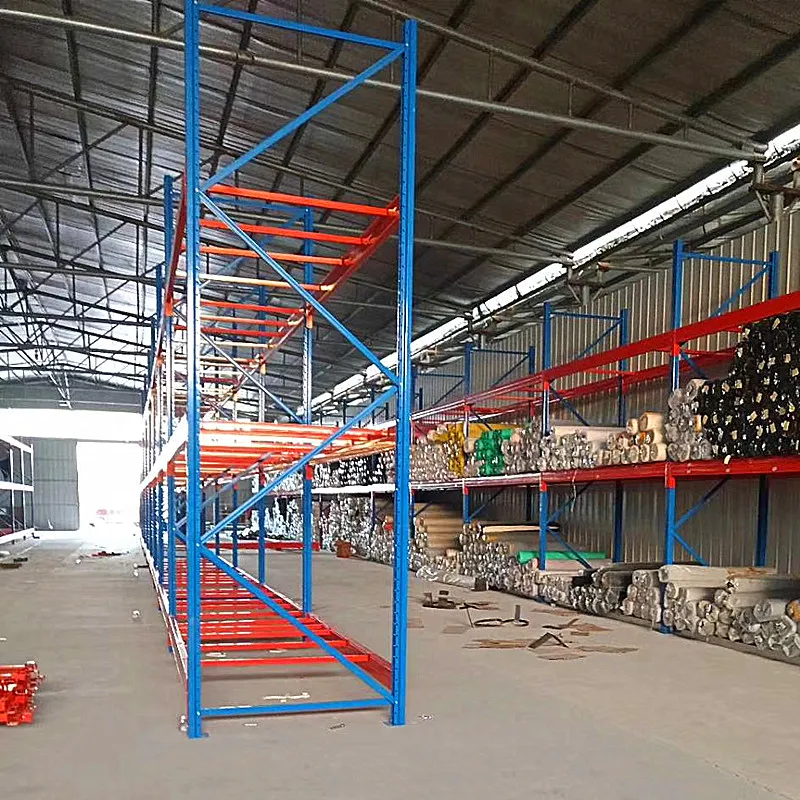

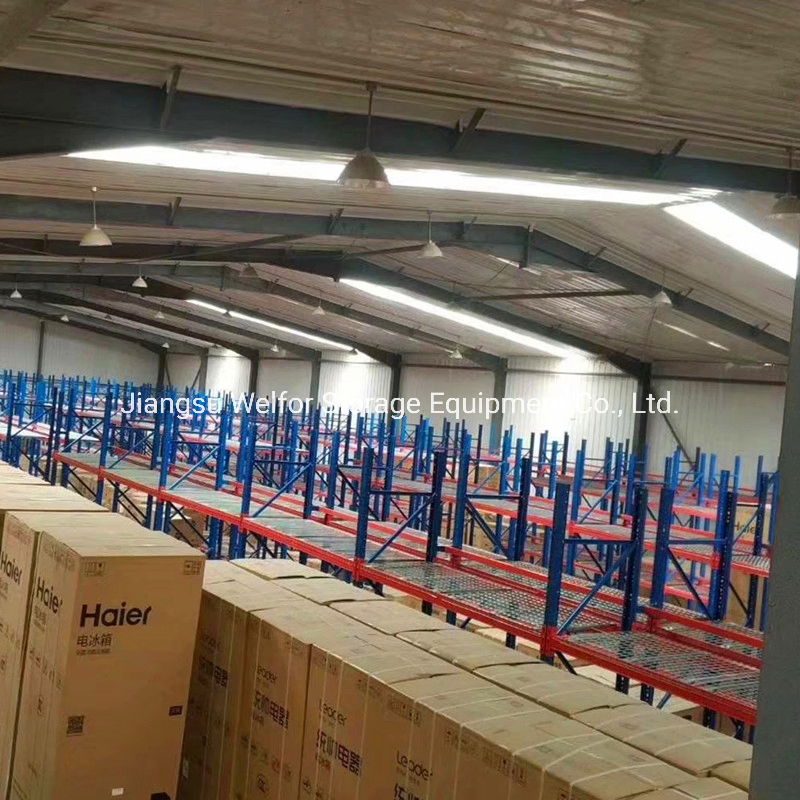

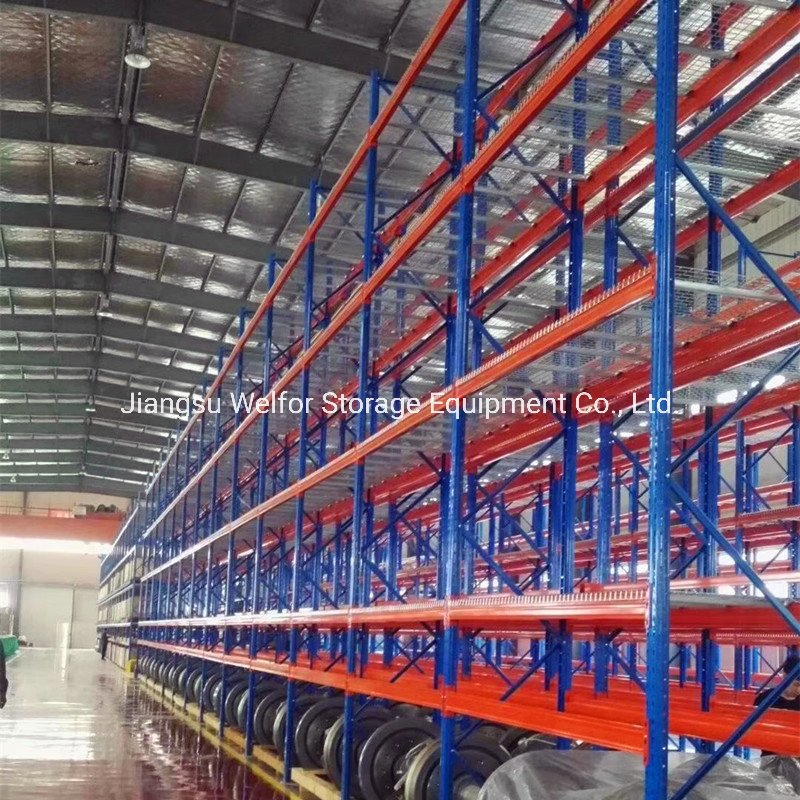

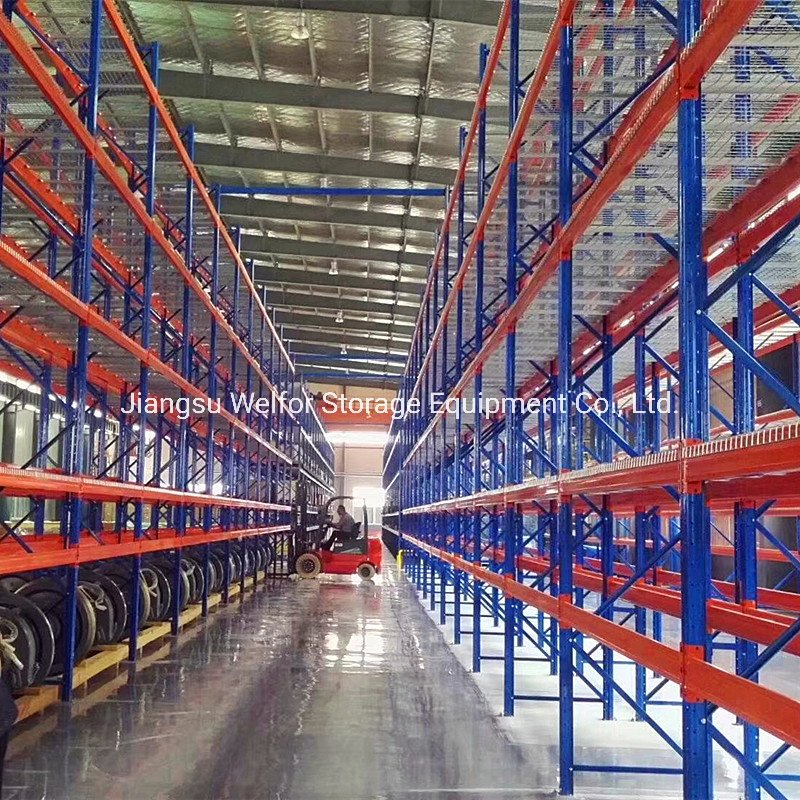

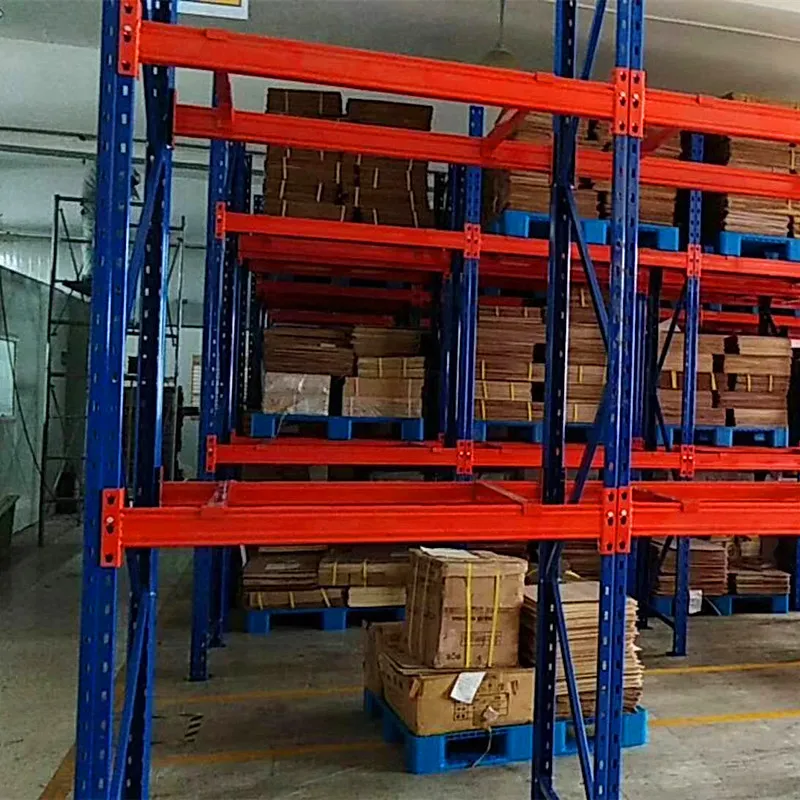

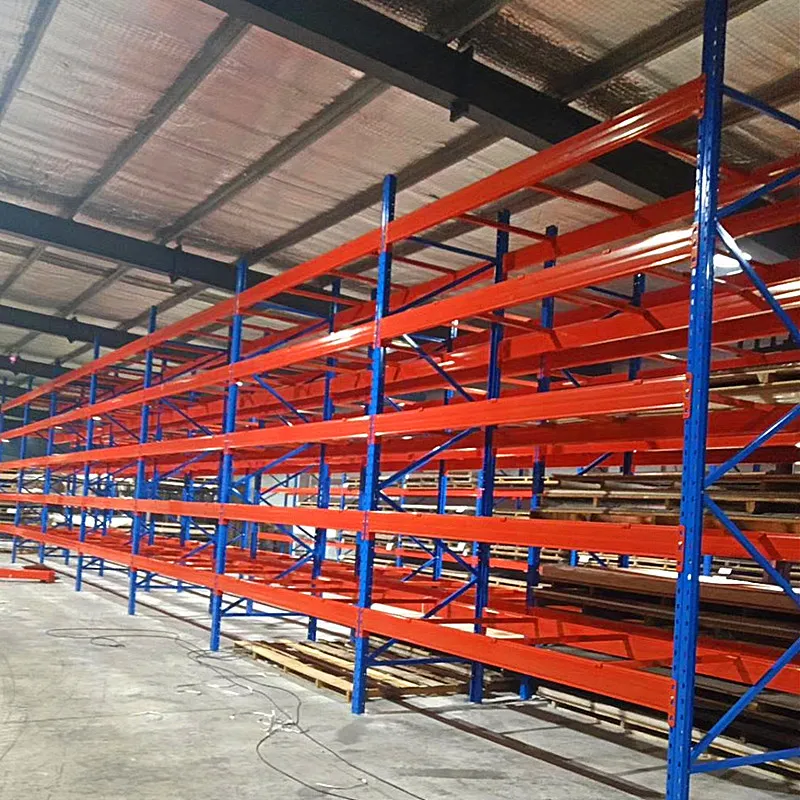

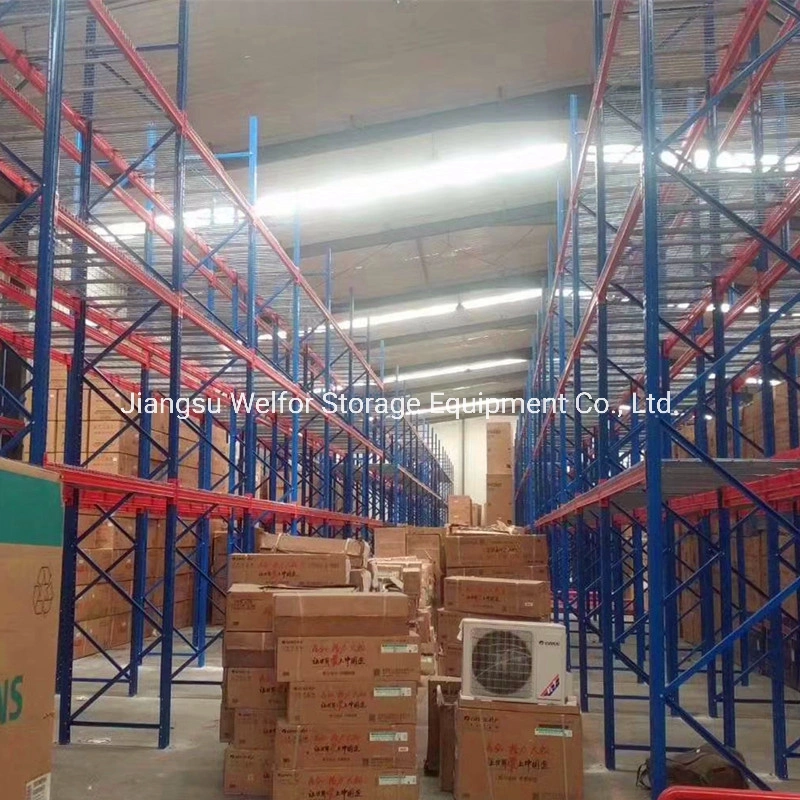

Metal Heavy Duty Steel Selective Pallet Rack for Industrial Warehouse Storage Solutions
Our selective pallet rack is highly cost-effective, offering high capacity storage and direct access to all pallets with great load flexibility. It installs quickly and adjusts easily to your specific storage requirements.
Technical data for pallet rack
| Style | Pallet storage warehouse rack |
|---|---|
| Selection | Single Row, back-to-back Rows and multiple Rows |
| Dimension of pallet rack |
Standard Pallet: 1200*800(F)/1200*1000(F)/1100*1100(F)/1066(F)*1220 Depth: 1000MM/900MM/1020MM Width: 2700MM/2300MM/2500MM/2432MM Height: pitch is adjusted by increments of 75mm |
| Customized Pallet | Customized Pallet: other special size available |

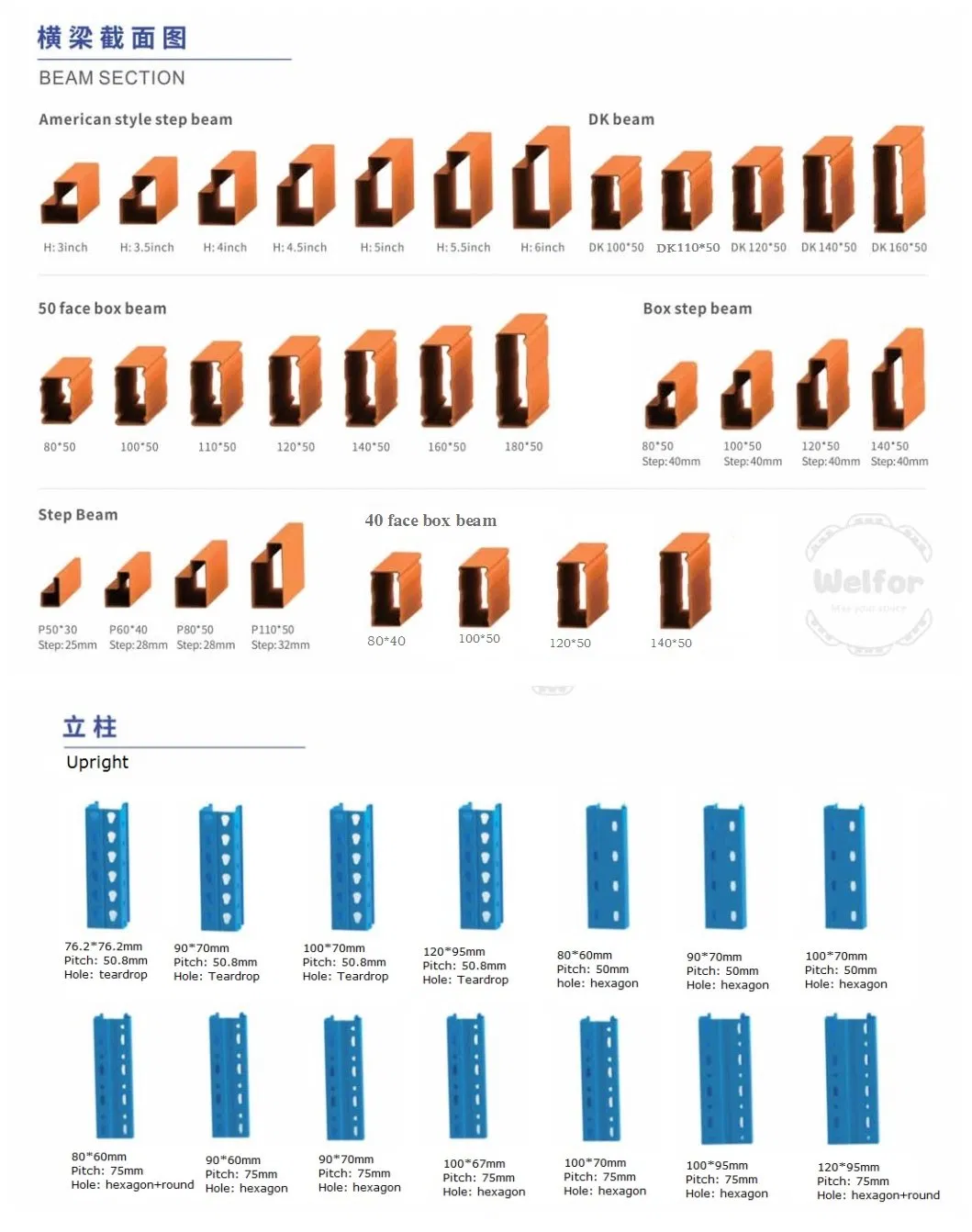

| Beam Range |
Box beam: 80*50mm, 100*50mm, 110*50mm, 120*50mm, 140*50mm, 160*50mm, 180*50mm; 80*40mm, 100*40mm, 120*40mm, 140*40mm Step beam: 50*30, 60*40, 80*50, 110*50 Teardrop type step beam: 3", 3.5", 4", 4.5", 5", 5.5", 6" |
| Upright Range |
80*60; 90*60; 90*70; 90*75; 100*67; 100*70; 100*75; 120*75; 120*87mm, Thickness: 1.5~3.0mm Teardrop type: 76.2*76.2 (3"*3"), 90*70, 100*70, 120*95 |
| Color | Standard colors; Customized color options available based on minimum order quantity requirements. |
| Weight Capacity | 5000KG per level max ; 1500KG per pallet max |
| Package |
Full container: Nude Package; manual handling Less than container: wooden pallets + steel straps + corrugated paper |
| Lead time | 15-20 days for one container |

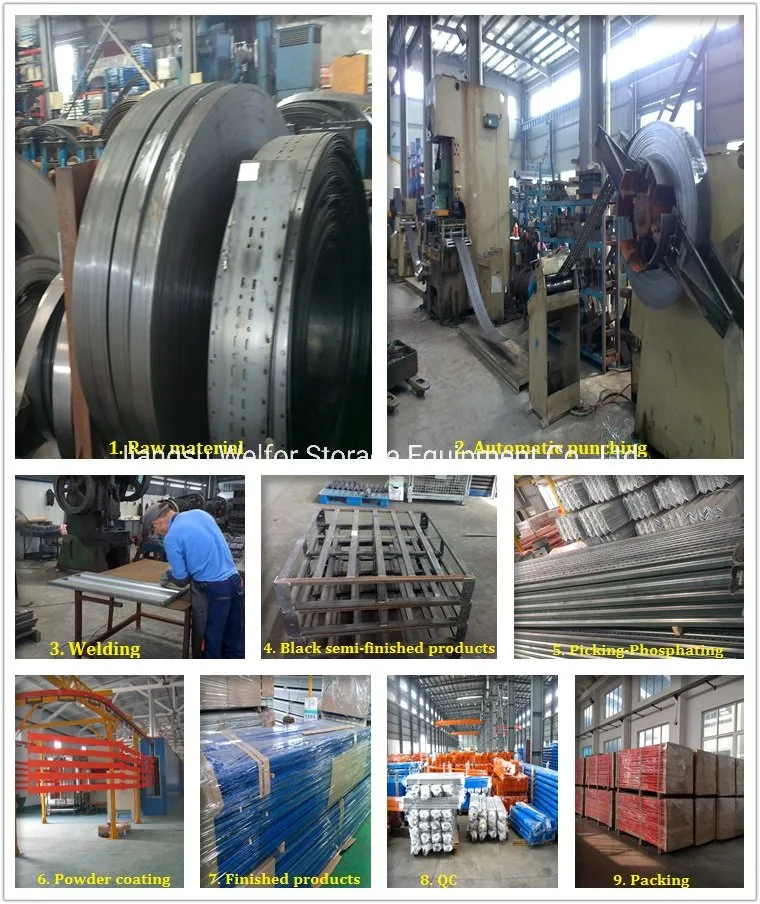

Production process

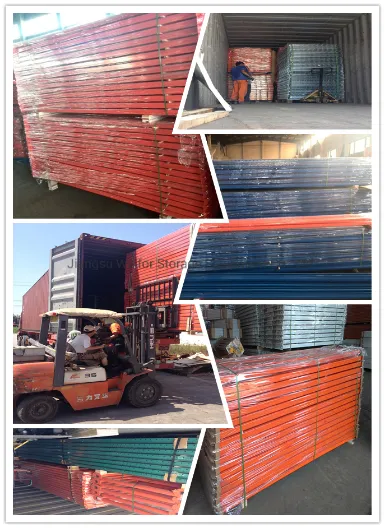

Packing and loading photos
