For Heavy Duty Stackable Pushback Gravity Roller Industrial Racks Push Back Pallet Racking System for Efficient Warehouse

Product Description

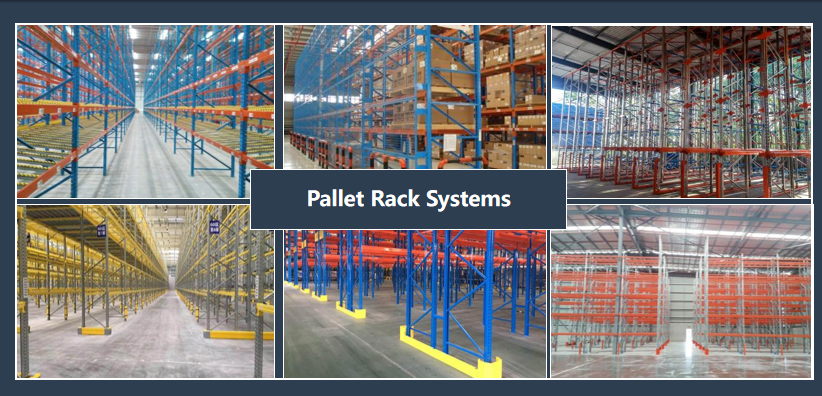

Pallet Racking Banner
Products

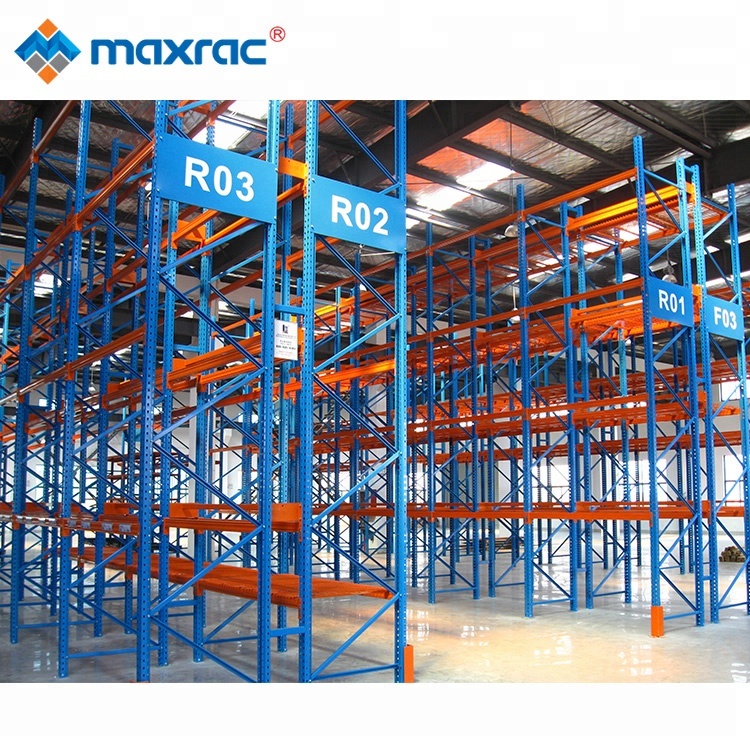

Push Back Pallet Racking

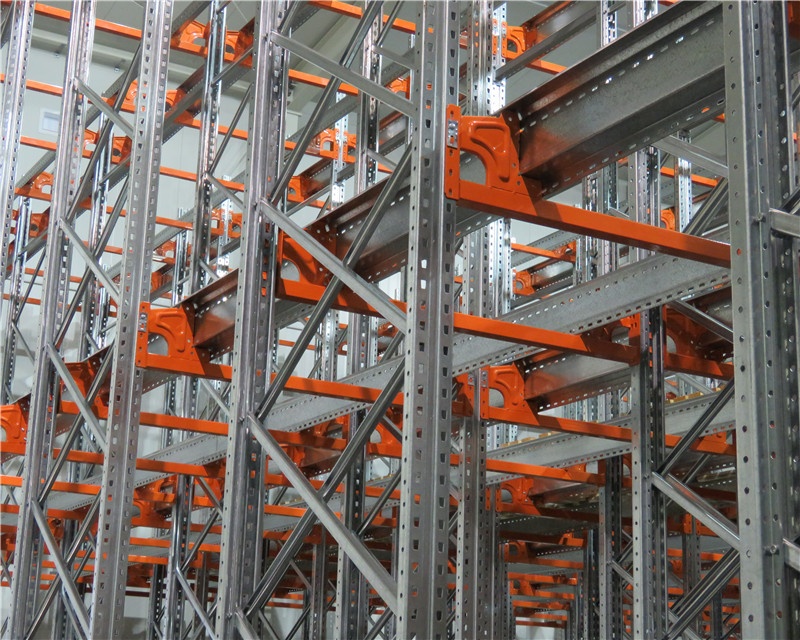

Push Back Pallet Racking System
The Push Back Pallet Rack is a cutting-edge storage system that revolutionizes the way warehouses and distribution centers manage their inventory. This innovative solution is designed to maximize storage density while maintaining a high level of accessibility, making it an ideal choice for businesses dealing with large volumes of products.
Pallet Rack Component

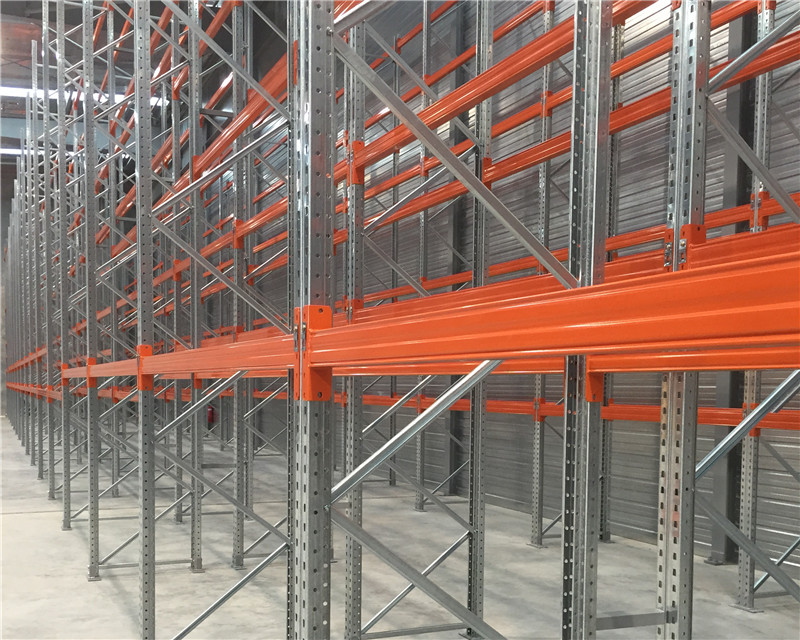

Pallet Rack Structure

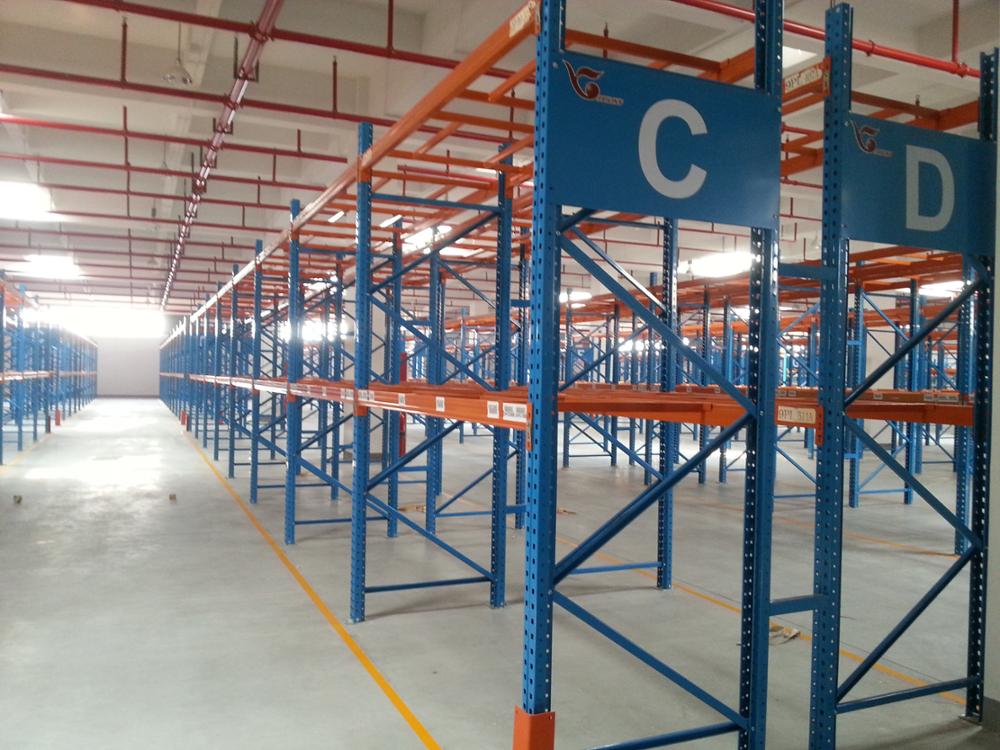

Racking Construction

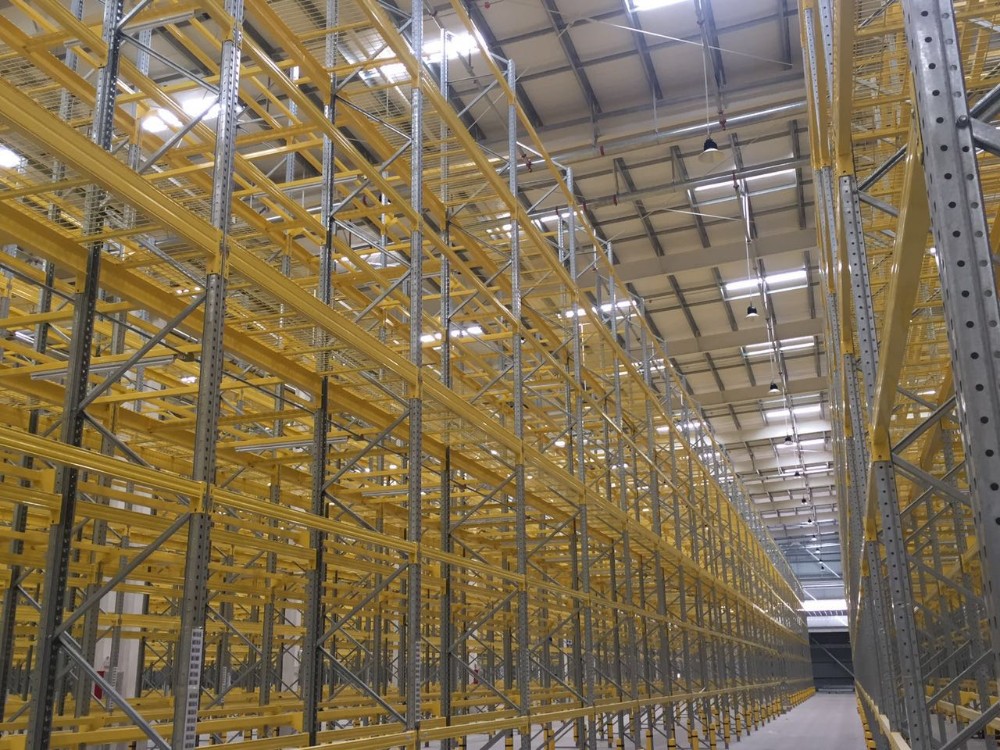

Warehouse Storage
Pallet Racks Specification
Specification Parameter
Name Pallet Rack
Materials Q235/Q345 Cold-rolled Steel
Surface Treatment Powder Epoxy-Polyester Coating or Hot Dip Galvanised
Color Customized according to requirements
Upright 80x70, 90x70, 105x70, 120x85 mm
Hole Pitch 50 mm

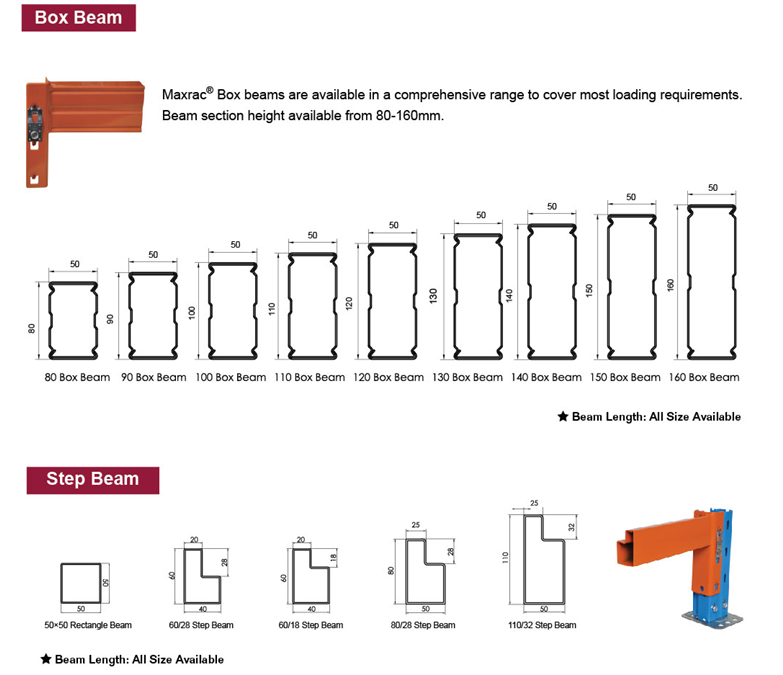

Box Beam size 80x50, 90x50, 100x50, 110x50, 120x50, 130x50, 140x50, 160x50mm
Upright Thickness 1.8/2.0/2.5/2.75/3.0mm
Beam Thickness 1.5/1.8/2.0mm
Frame Height Up to 12000mm
Beam Length Up to 6000mm
Capacity per layer 500-4000KG
Racking System Layout
Pallet Loading
Warehouse Storage Solution
Industrial Racking System
Pallet Support Detail

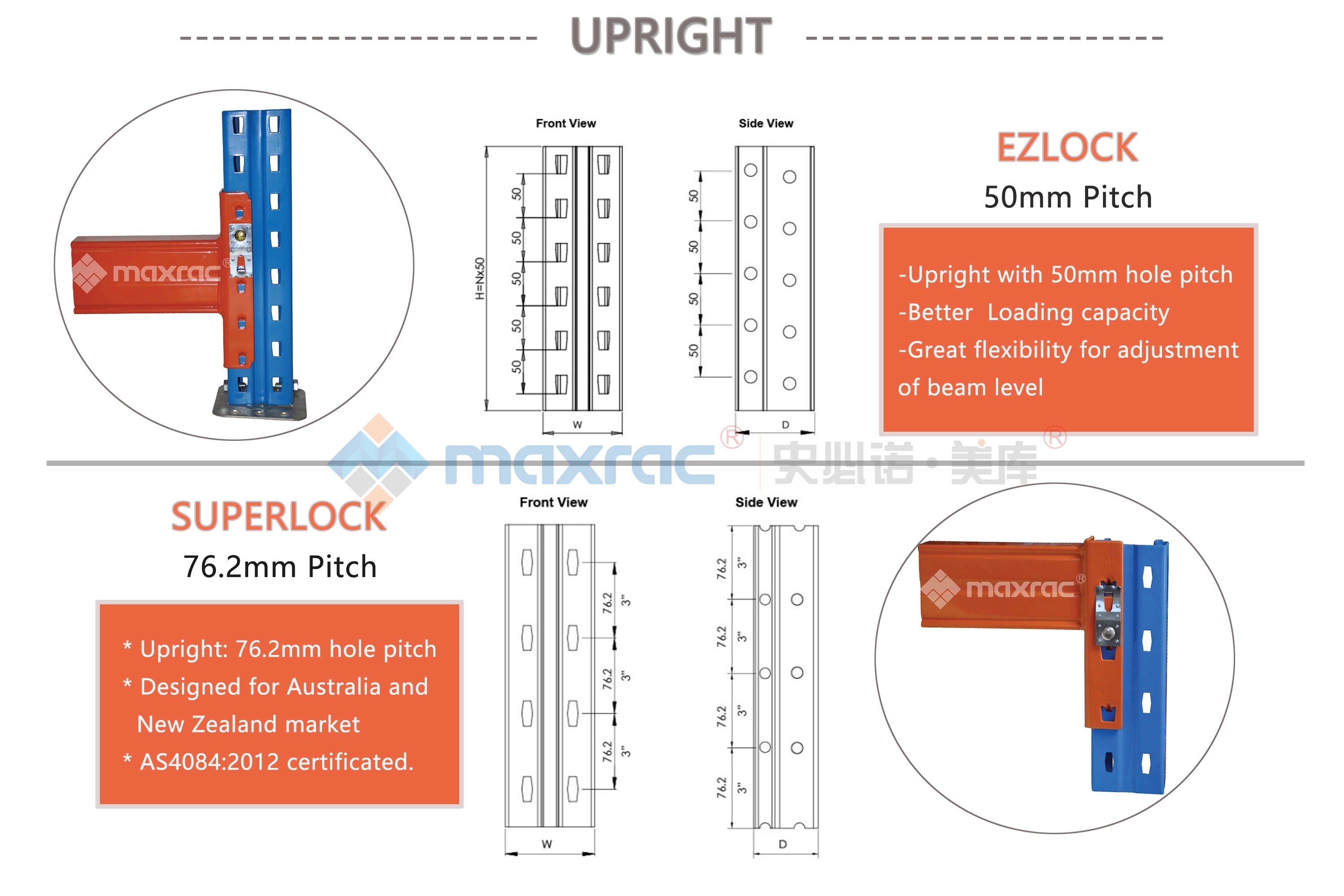

Rack Structural Upright
Racking Layout Diagram
Racking Load Test

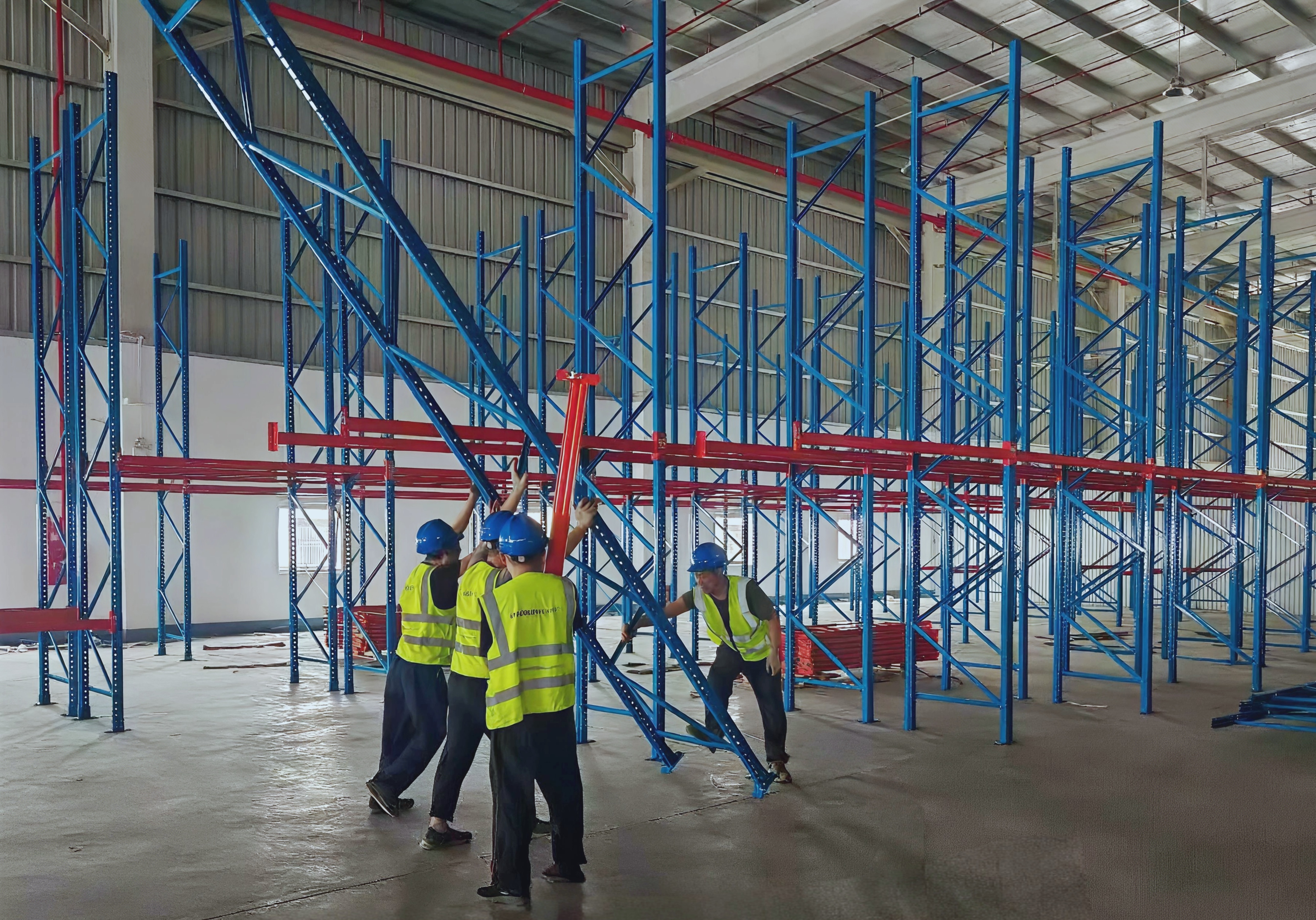

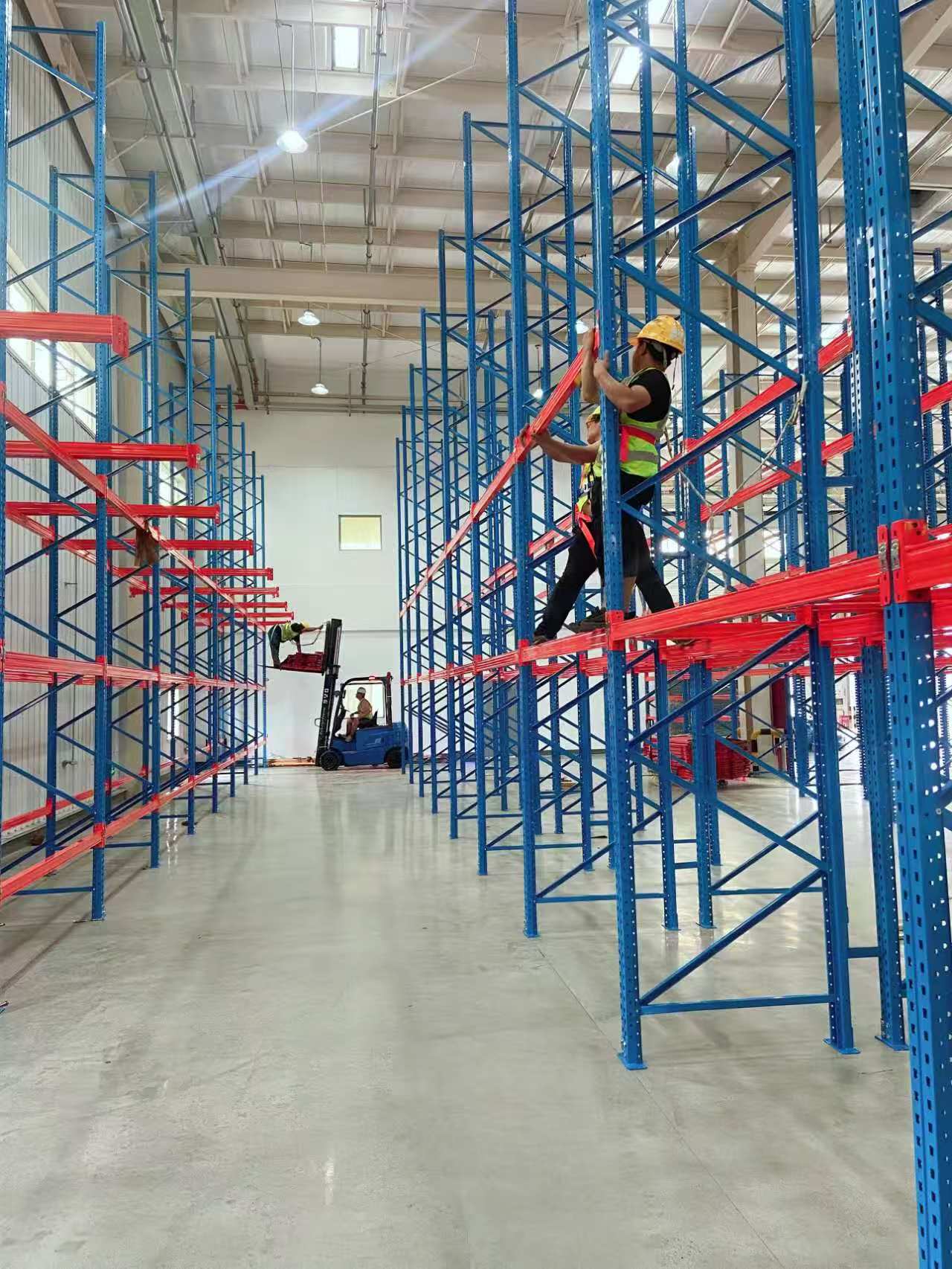

Pallet Racking Installation
Racking Installation Guide

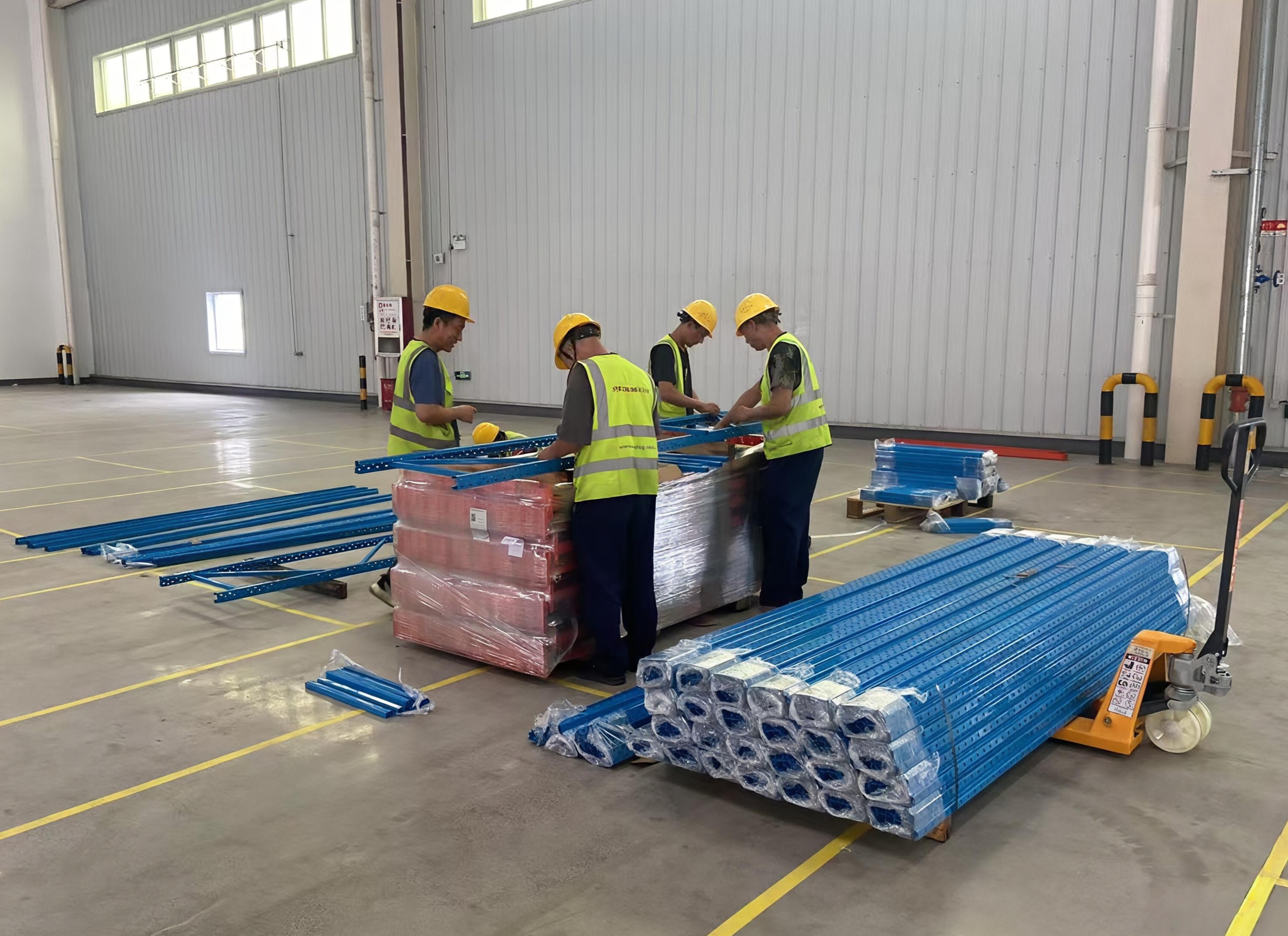

Upright Frame Assembly

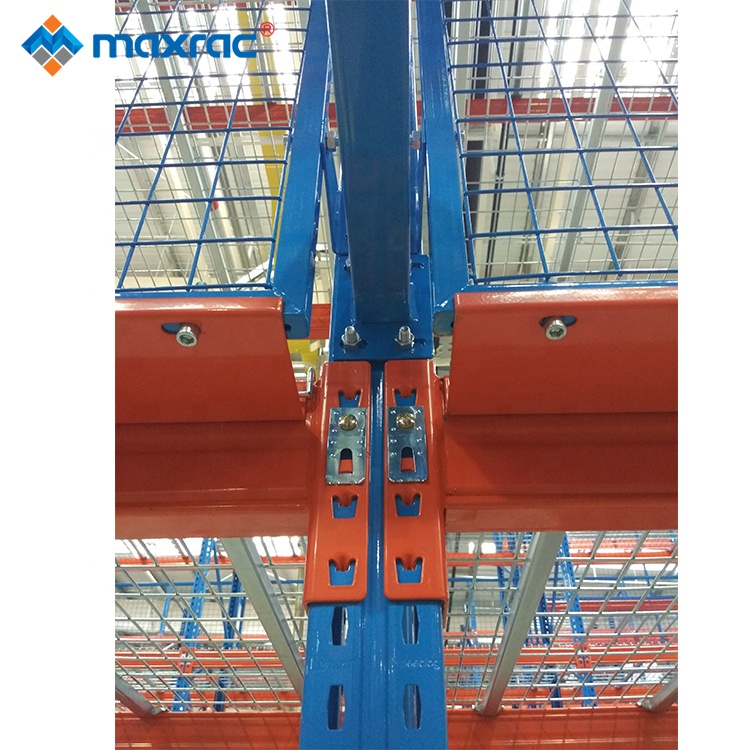

Beam Connection
Safety Lock Pin Installation

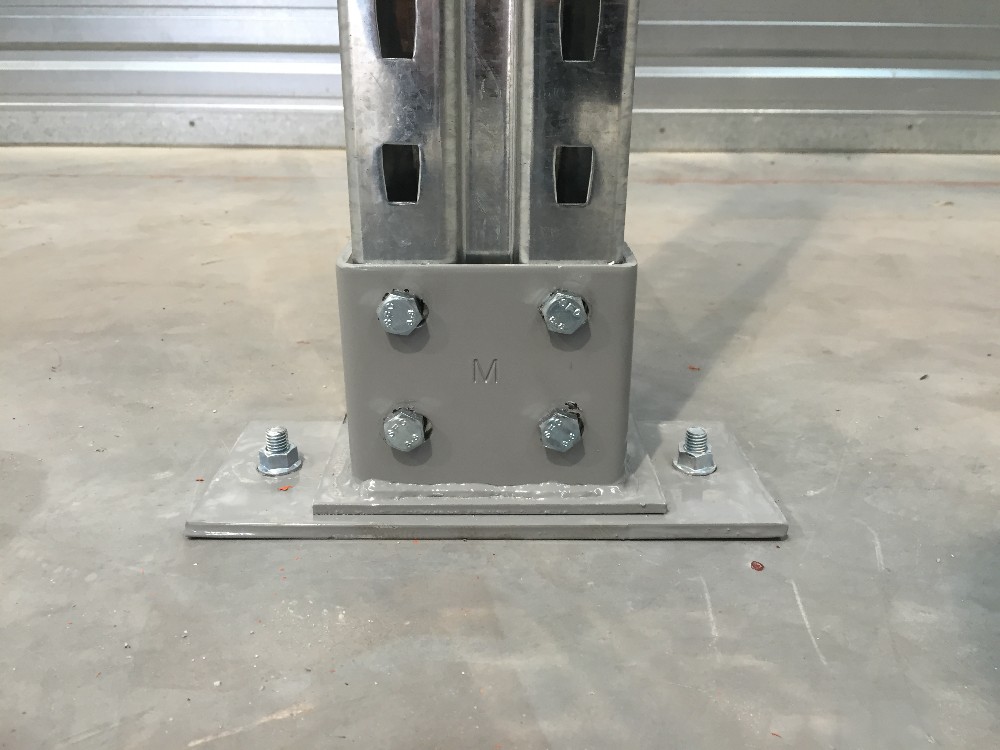

Base Plate Anchor Detail
Floor Anchoring Process
Installed Rack Unit
About Us
Manufacturing Factory
Company Profile
Established in 2003, we are one of China's leading manufacturers and a leading provider of racking design for logistics solutions.

We offer a wide range of racking systems, including shuttle-intensive storage systems, automated intelligent integration systems, pallet racks, shelving, mezzanines, cantilevers, and more, catering to various industries such as logistics, cold chain, retail, and e-commerce.

We benefit from convenient transportation and extensive export experience, delivering high-quality products and services to over 80 countries worldwide.
Production Line 1
Production Line 2
Material Storage Area
Quality Inspection
Manufacturing Facility View
Coating Line Process
Advanced Equipment
Warehouse Overview
Product Packaging
Packaging Standard
Palletized Package

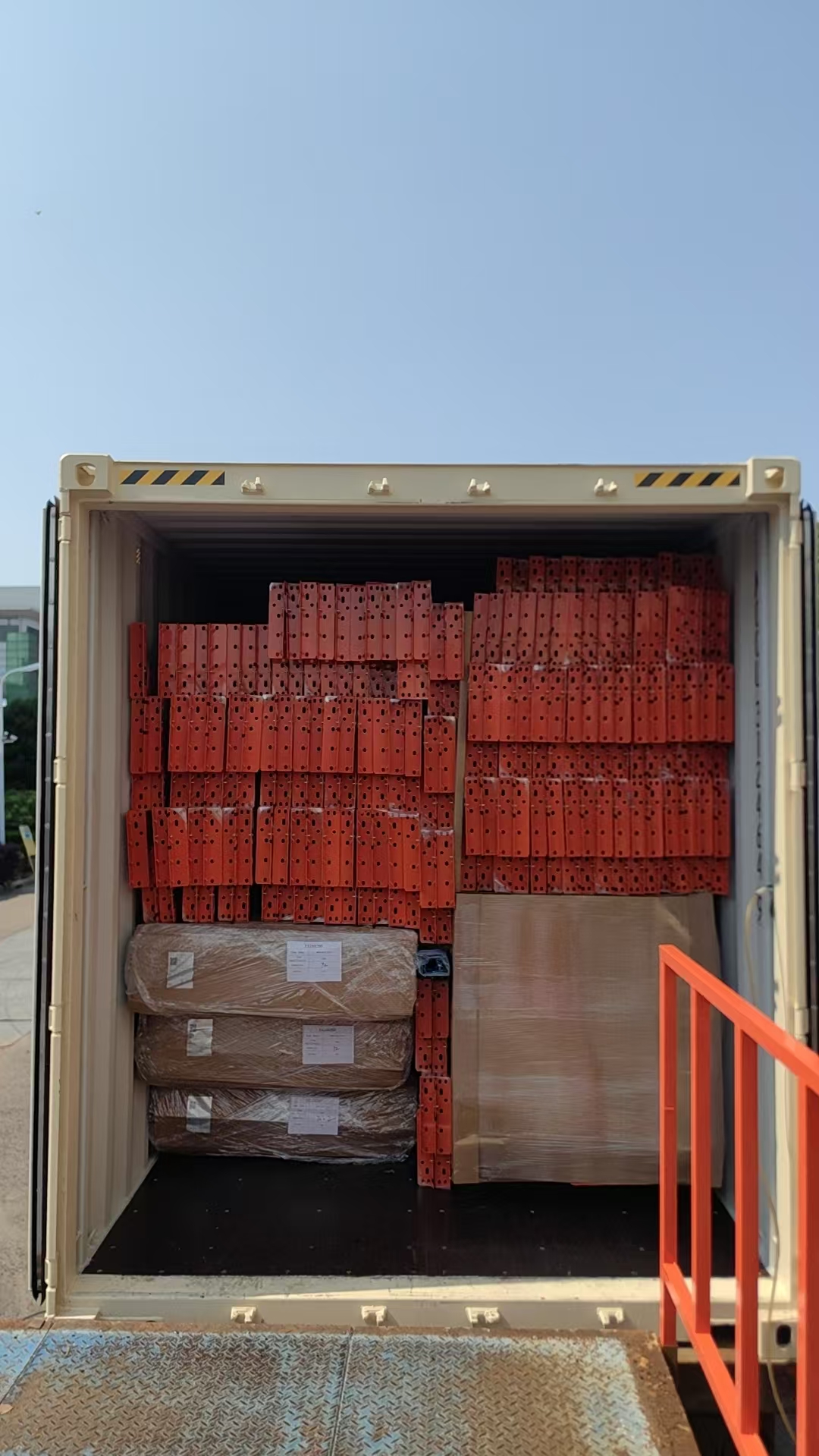

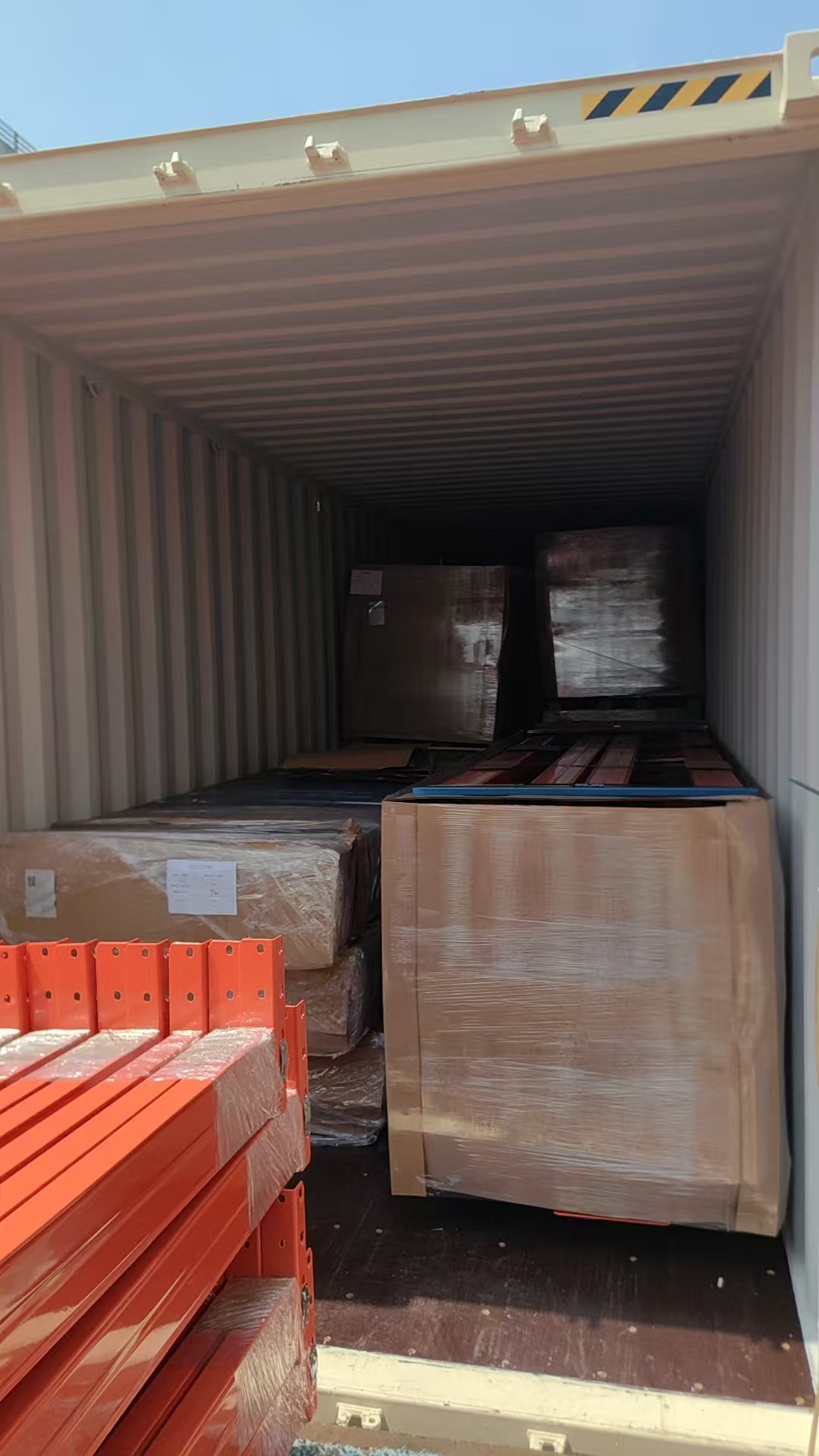

Loading into Container
Container Shipping Preparation
Questions You May Care About
Q1: Are all racks produced by your company?
Yes, we are a direct manufacturer with over 15 years of experience. Our main products include Pallet Racking, Shelving, Radio Shuttle, Cantilever, Mezzanine, etc. All products are 100% produced by ourselves. For the radio shuttle systems, we hold our own intellectual property.
Q2: What is your production plant scale and capability?

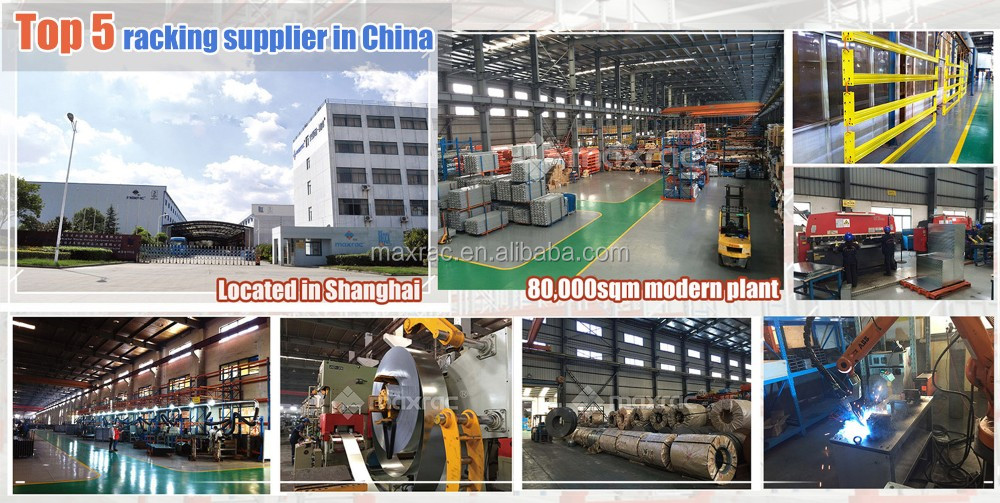

We operate an 80,000 sqm production plant that enables a strong, stable production capacity and consistent product quality. Our facility is located close to the major port for convenient shipping and delivery.
Q3: What certifications do your products carry?

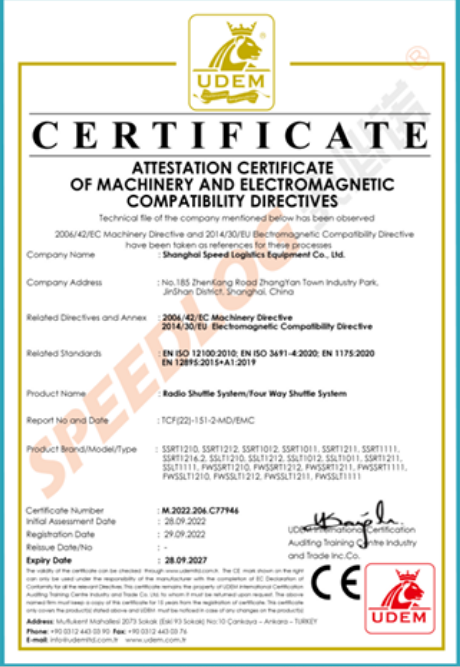

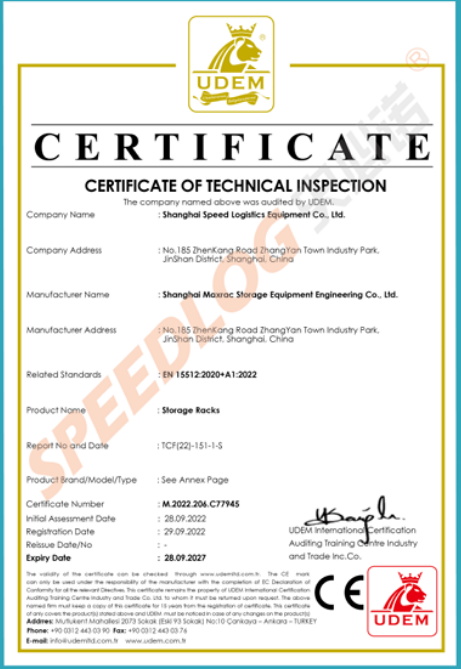

We are an ISO9001 certified company. Our rack systems are designed and manufactured strictly in accordance with CE and AS4084:2012 standards for storage racks, and also comply with FEM and RMI standards.
Q4: How long is the product warranty period?
We offer a 10-year warranty and lifetime support services for all racking products. Any issues caused by the quality of the products will be addressed, and we will provide free parts for replacement.
Q5: Are you able to provide installation services?
We have a mature installation team with rich project experience. For complex cases, our engineers can visit the project site to assist clients with installation. Normally, we also offer remote troubleshooting and support via email, phone, or video call within 24 hours.
Q6: Can the colors and sizes of the racking systems be customized?
Yes, our racking systems are fully customizable. The dimensions, including upright sizes, beam lengths, box beam profiles, and overall colors can be adjusted according to your specific structural and storage requirements.
