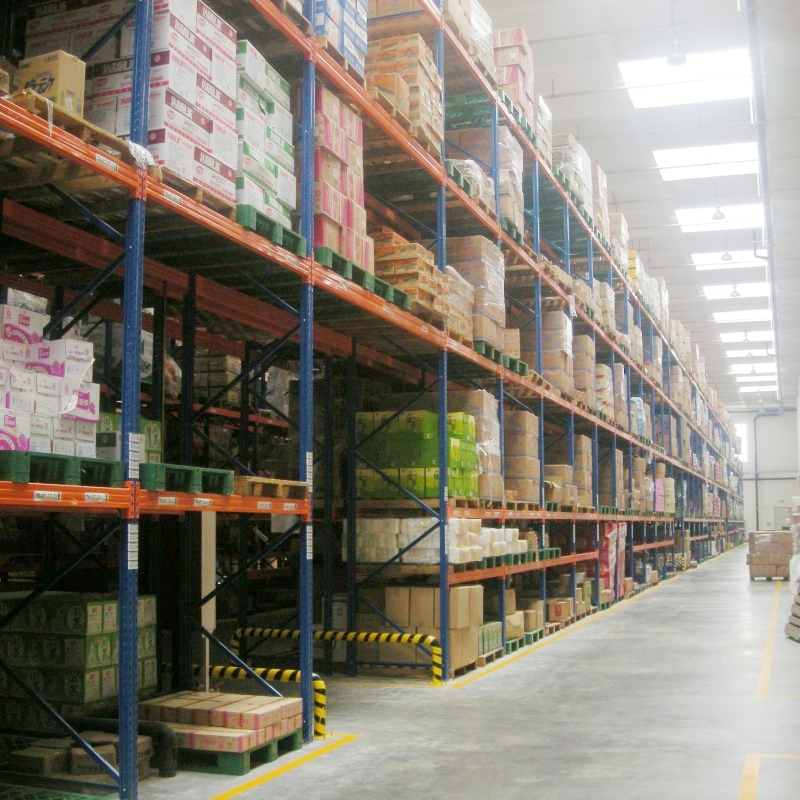

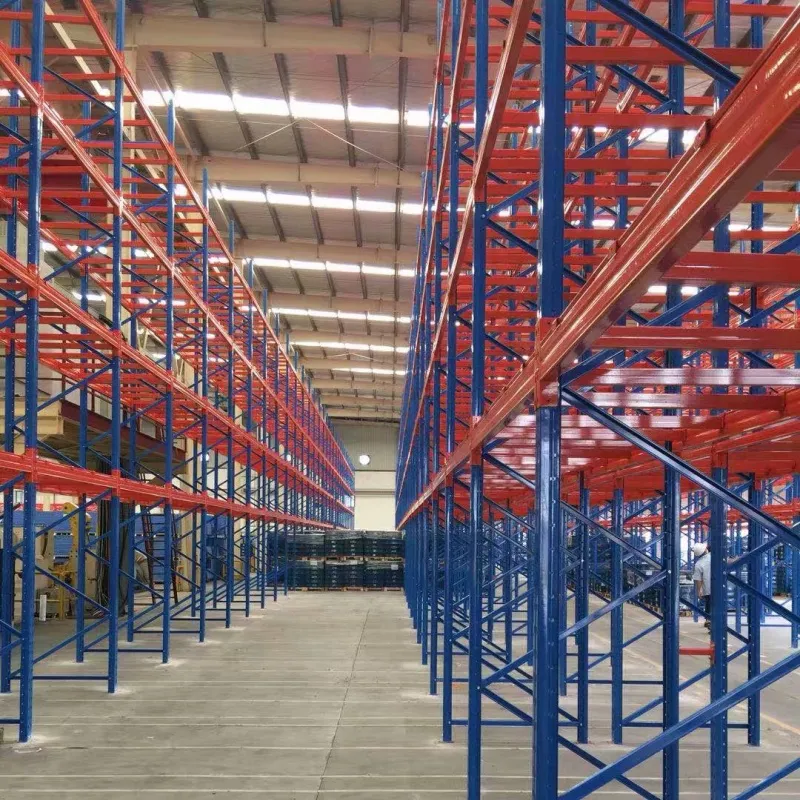

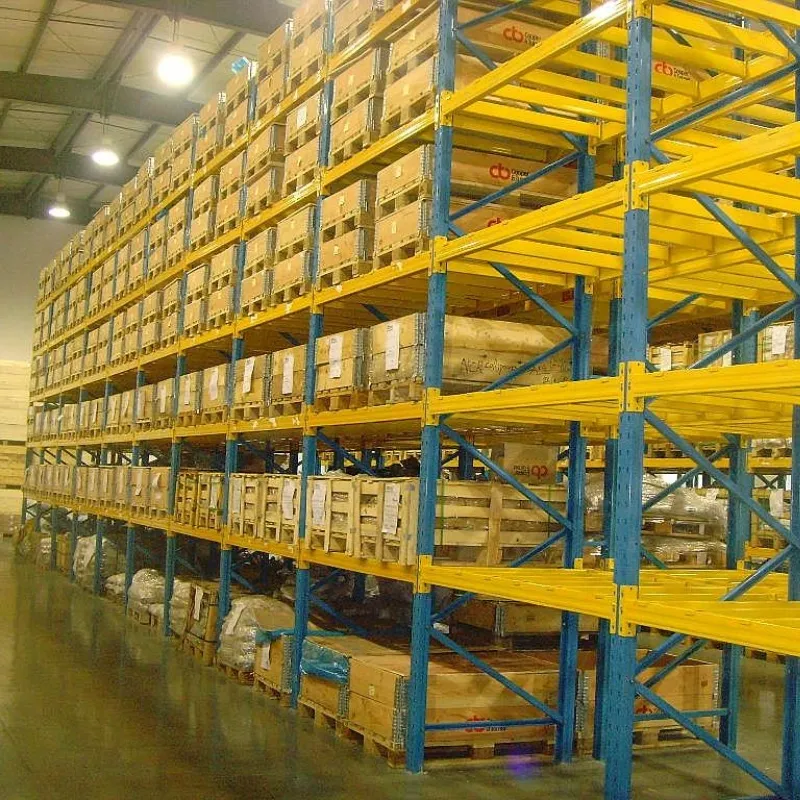

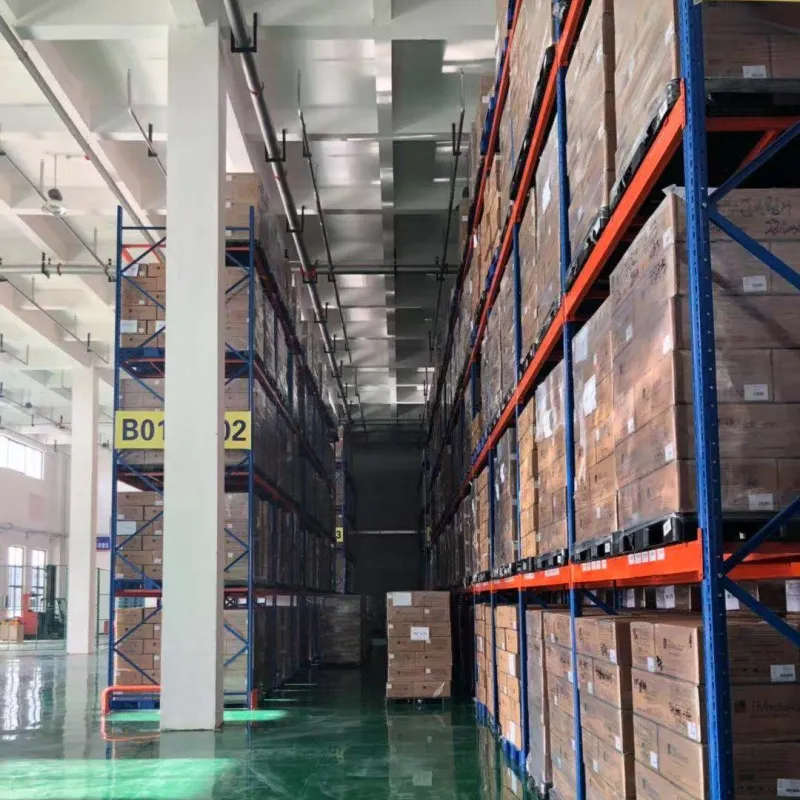

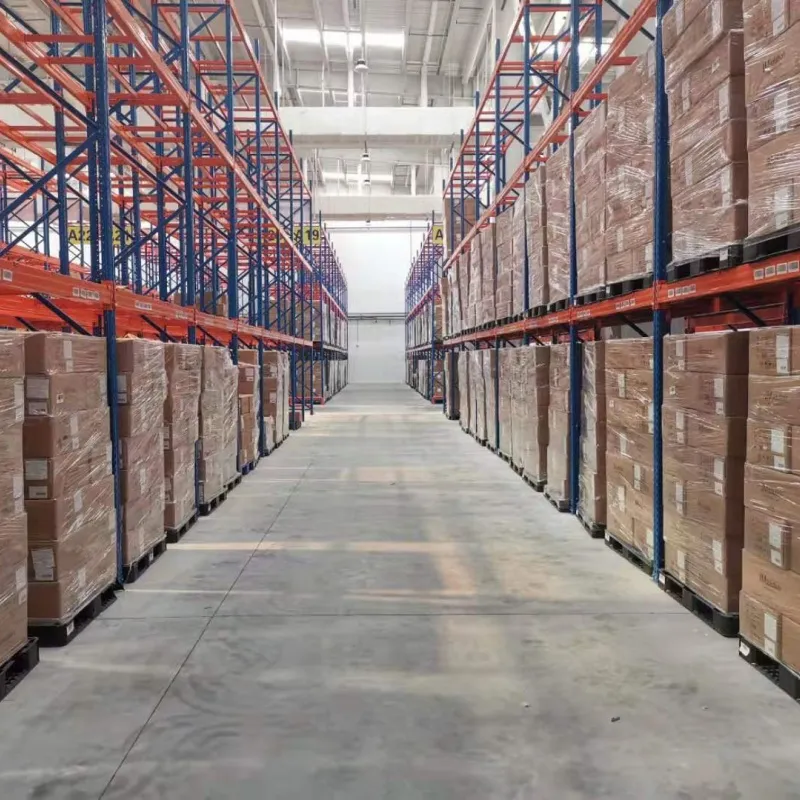

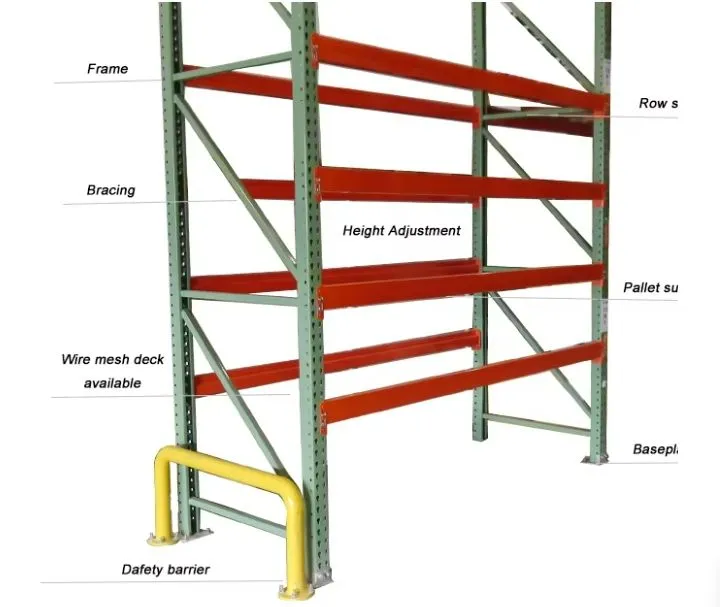

Beams and columns are connected via mechanical clasps or bolts, ensuring easy installation, strong load-bearing capacity, and prevention of rack deformation.
Adjustable beams accommodate pallets of varying sizes, suitable for heavy goods, large machinery, and industrial raw materials.

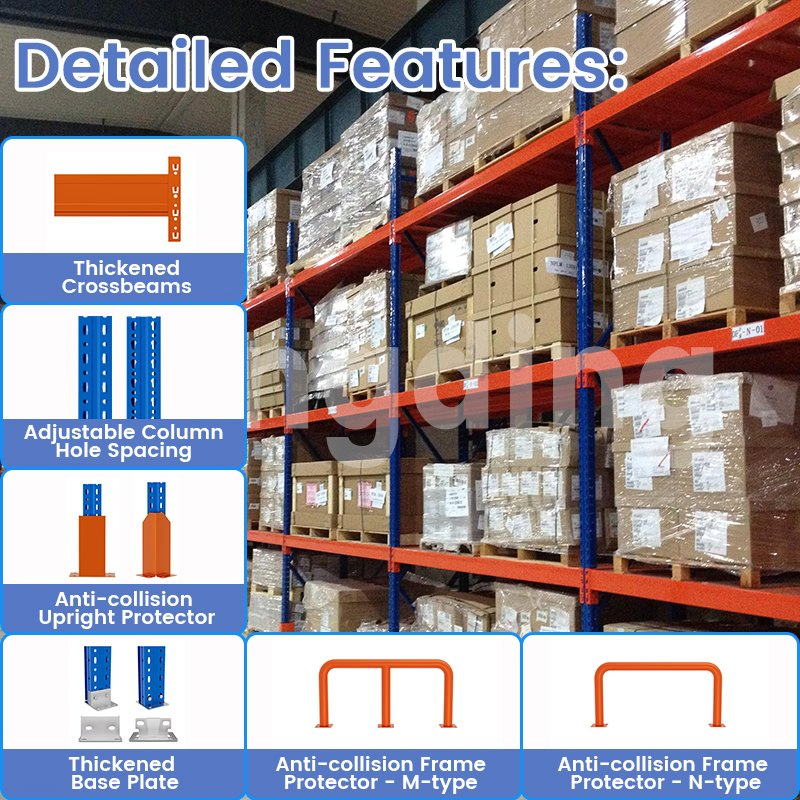

The column cross section consists of 21 faces, and the 21-fold face has a stronger bearing capacity and a higher safety factor than the traditional 13-fold face column.
The crossbeam is welded together by two column clamps and a crossbeam rod. The crossbeam rod is made of two special "C" shaped steels, which doubles the thickness of the upper and lower sides of the beam. It has the characteristics of light weight, strong bearing capacity and low cost.
| Material | The raw material brand of our normal temperature warehouse is carbon steel Q235b, or other types of steel can be customized according to your needs. |
| Load Capacity | Typically 1,000 kg to 3,000 kg per level (depending on the system configuration) |
| Rack Height | Customizable, typically 2000mm to 12000mm or more, depending on warehouse space |
| Beam Length | Typically 2,000mm(79in) to 3,500mm(138in), adjustable for pallet sizes and weight |
| Rack Depth | 1,000mm(40in) to 1,500mm(60in), depending on pallet dimensions and load weight |
| Column Size | Typically 90mm x 70mm to 120mm x 120mm, based on load requirements |
| Forklift Access | Double-deep forklift required for rear pallet access |
| Aisle Width | Typically 2.5m to 3.5m (optimized for reach trucks or narrow-aisle forklifts) |

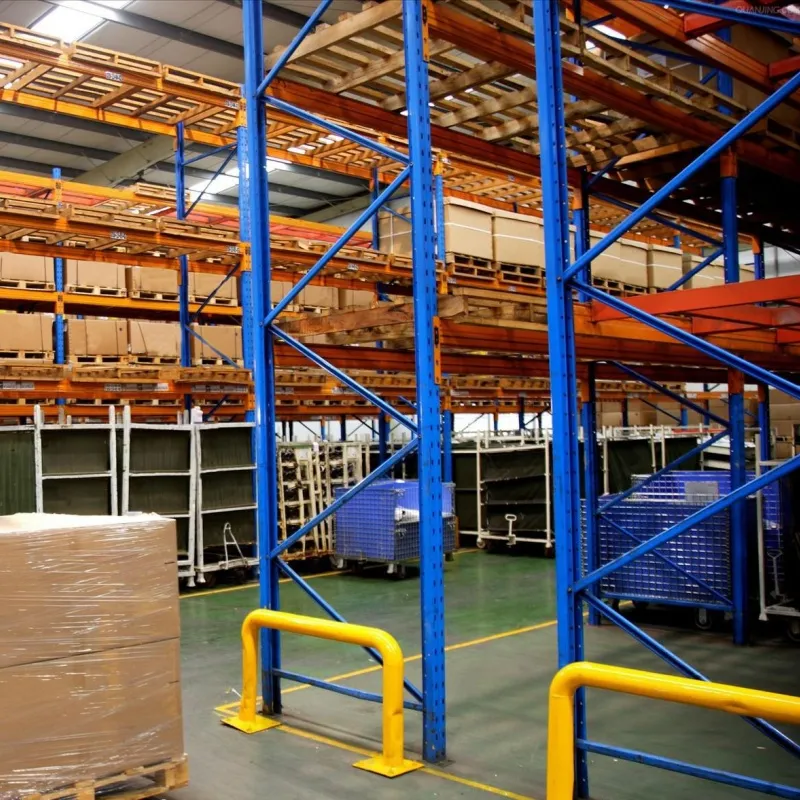

| Safety Features | Anti-collapse bars, end stops, locking pins, and impact protection |
| Finish | Powder-coated or galvanized for added strength and longevity |
| Adjustability | Beams are adjustable in 50mm/75mm increments for flexibility |
| Environmental Suitability | Ideal for ambient temperature, low-temperature storage options available with adjustments |
Our team ensures timely solutions for technical inquiries and operational challenges, maintaining seamless communication throughout the project lifecycle.
Tailored for intelligent warehousing needs (e.g., automated AS/RS, smart picking systems), we offer system optimization, software updates, and efficiency-enhancing solutions.
Post-sales services include anti-corrosion treatments and regular inspection guidance to extend shelf lifespan, ensuring compliance with safety standards.
"One Partnership, Lifetime Commitment" - Free on-site measurement, customized design, installation, and lifetime technical assistance.

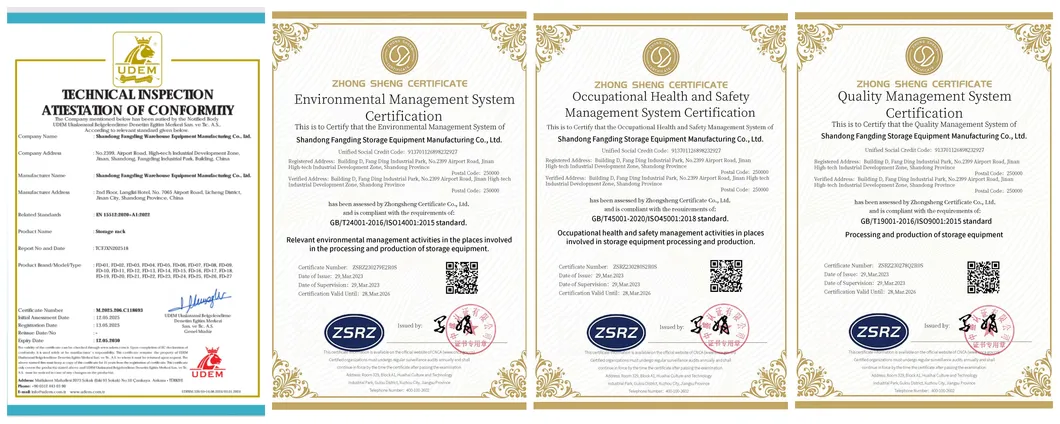

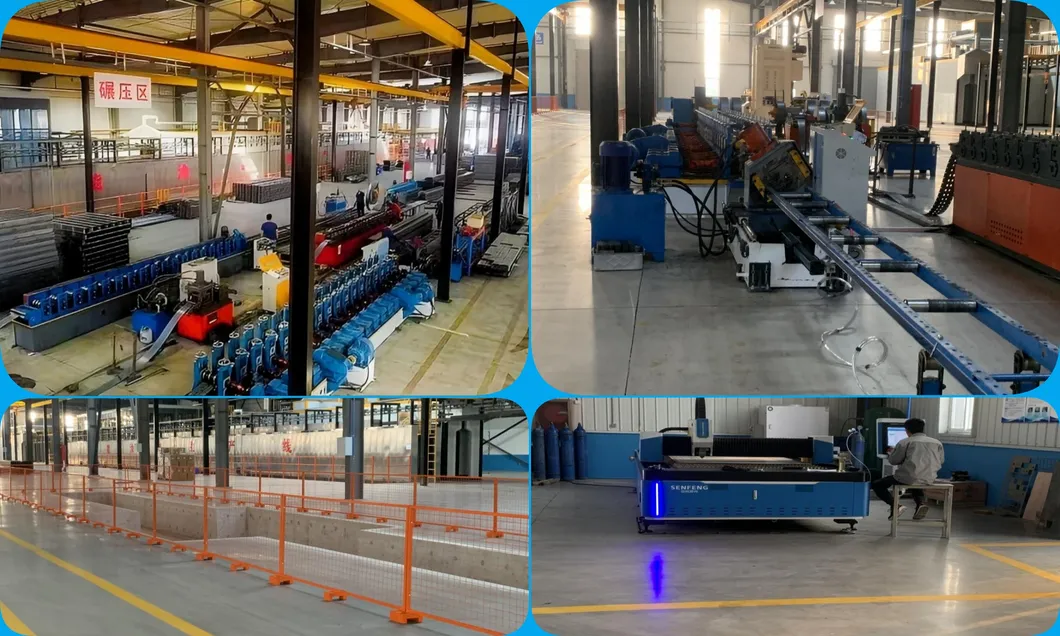

Strict quality control over raw materials and production processes ensures product durability, minimizing post-sale issues.

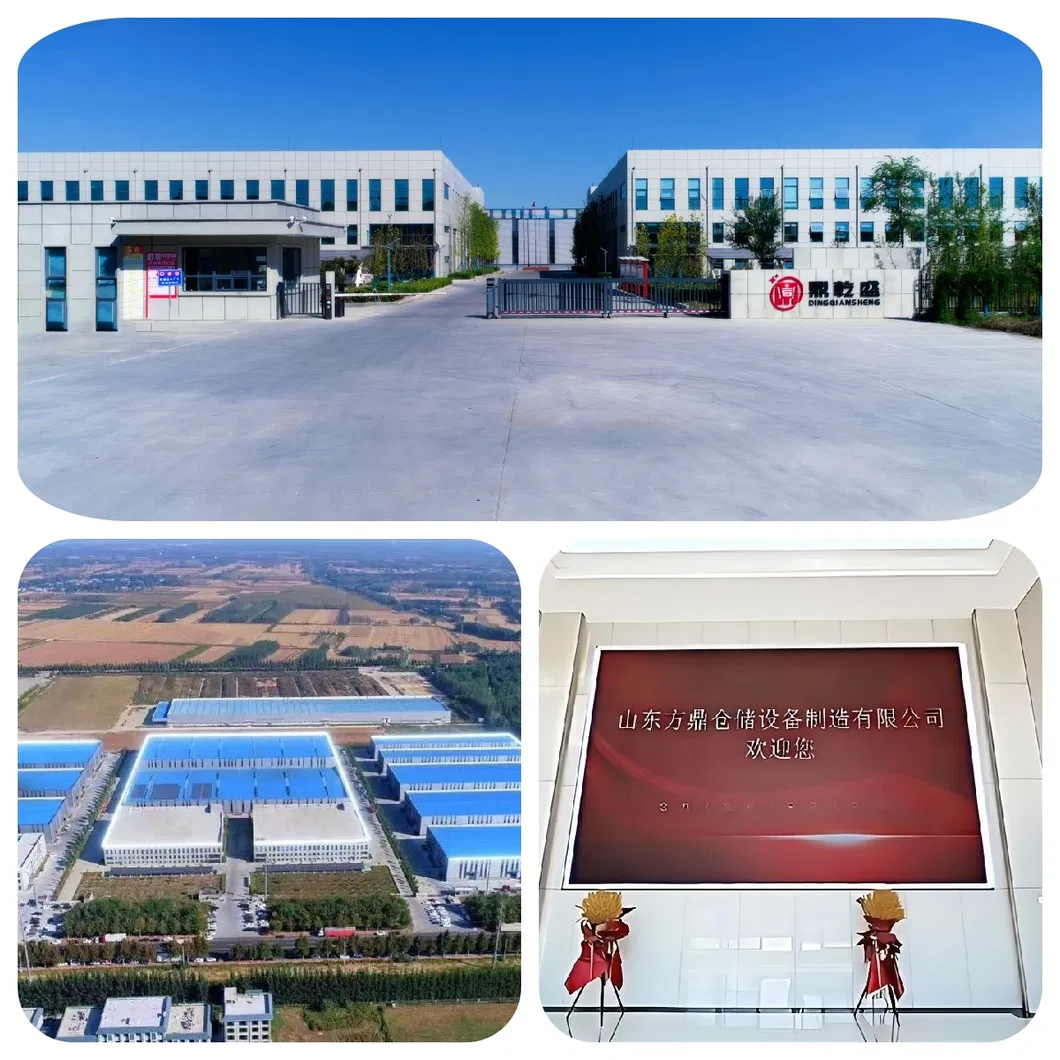

A: We are a manufactory for storage rack.
A: Qingdao port, or arrange shipment according to your needs.
A: The raw material brand of our normal temperature warehouse is carbon steel Q235b, and the cold storage at minus 18 degrees Celsius or lower temperature adopts Q345D, or other types of steel can be customized according to your needs.
A: No, we do not have MOQ requirement for most of our products. Normally 1*20ft container order would be recommended to save cost and easy operation.

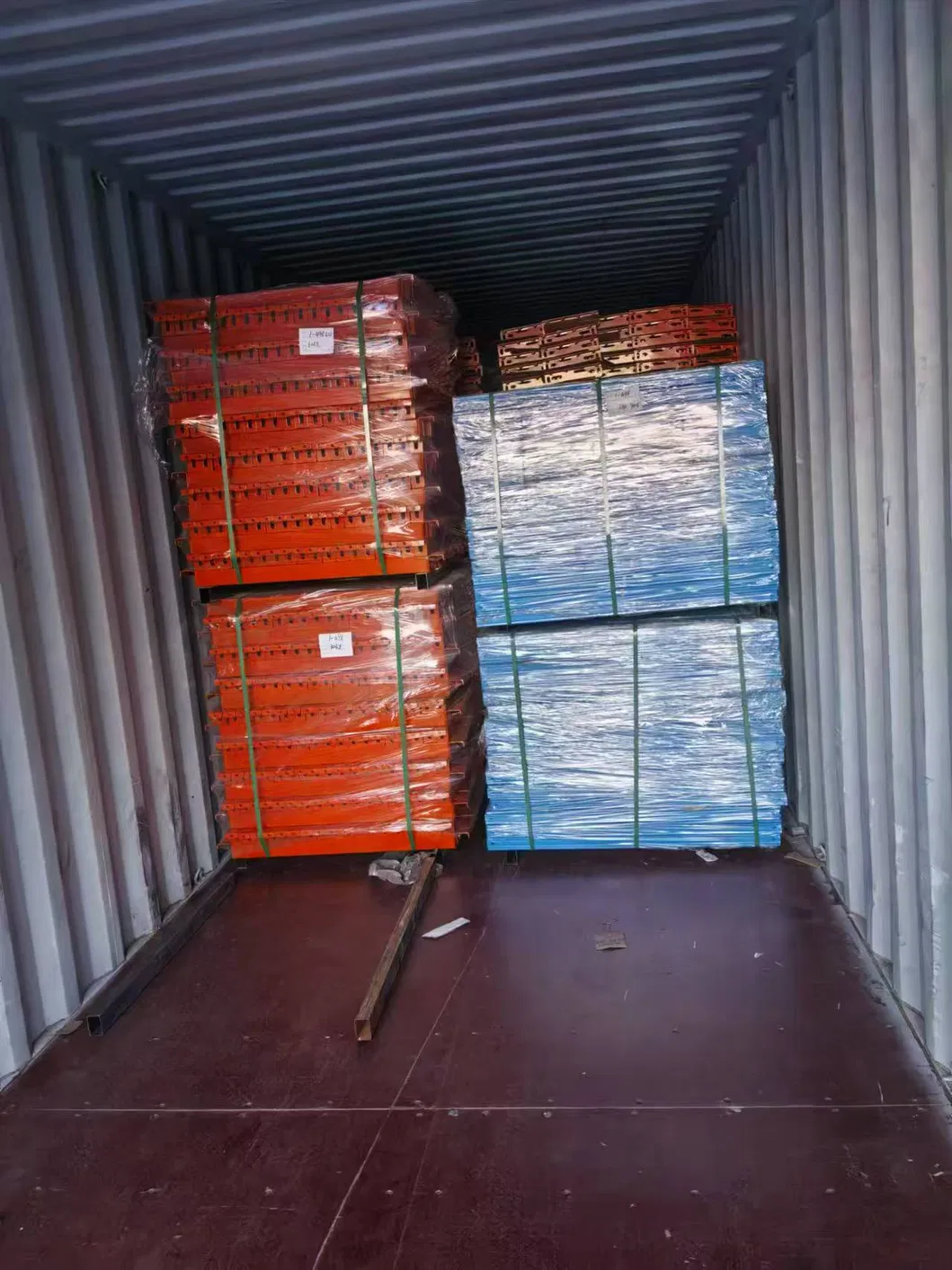

A: Standard export packaging. All parts are packed with packing tape after being stacked regularly, and covered with plastic film; The steel plates of medium-sized shelves are packed in cartons and then packed with packing belts.
A: It depends on the order quantity and racking types, normally is 15 to 30 days after receipt of the deposit.
