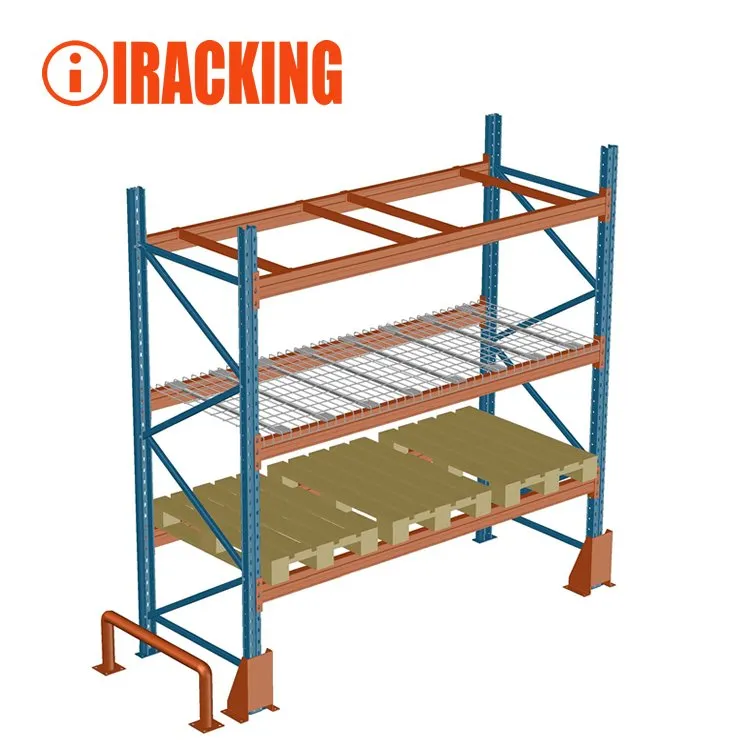

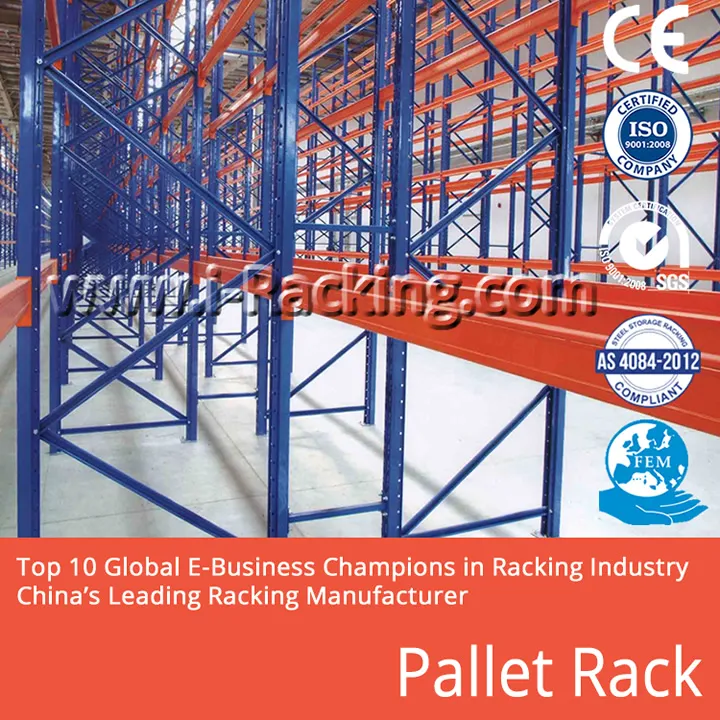

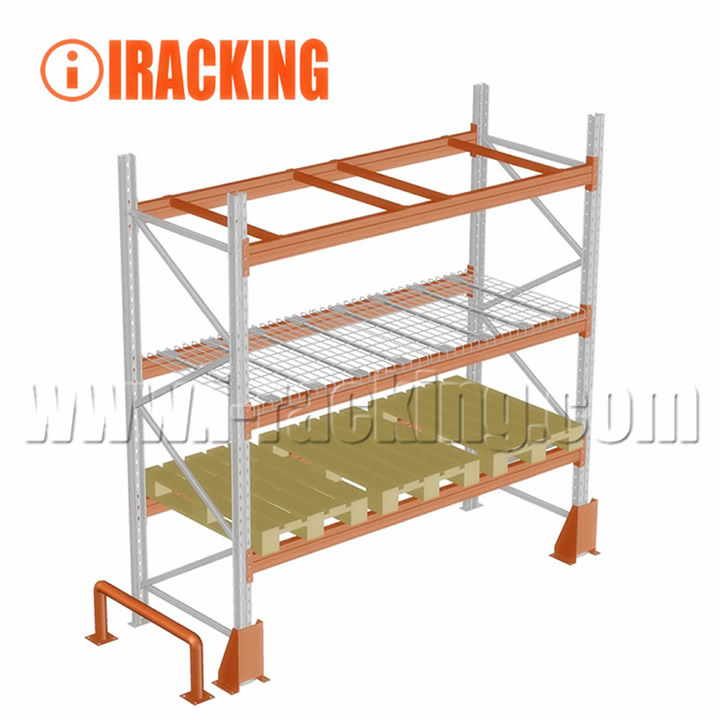

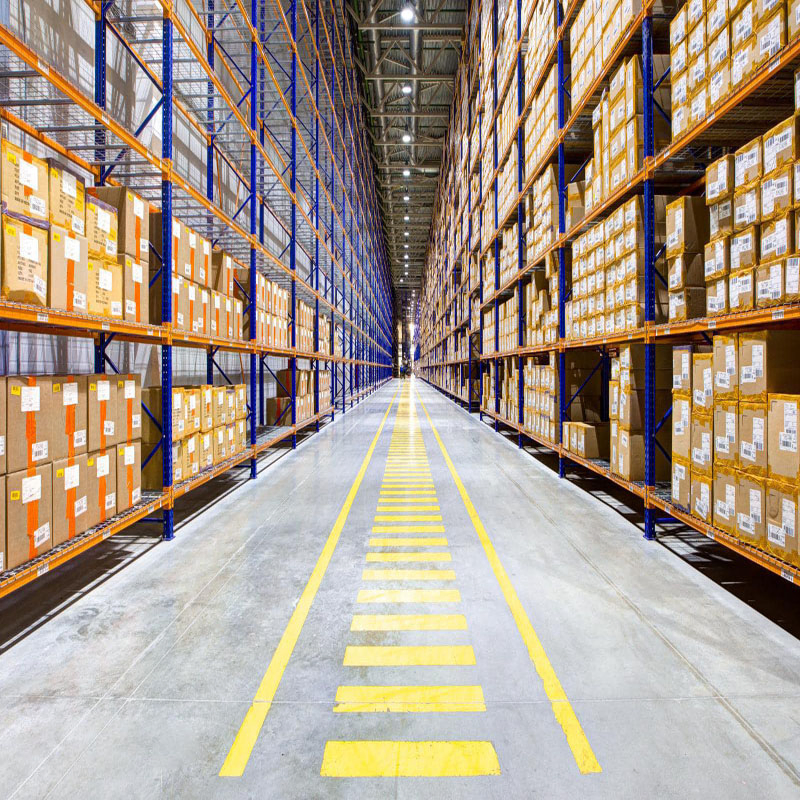

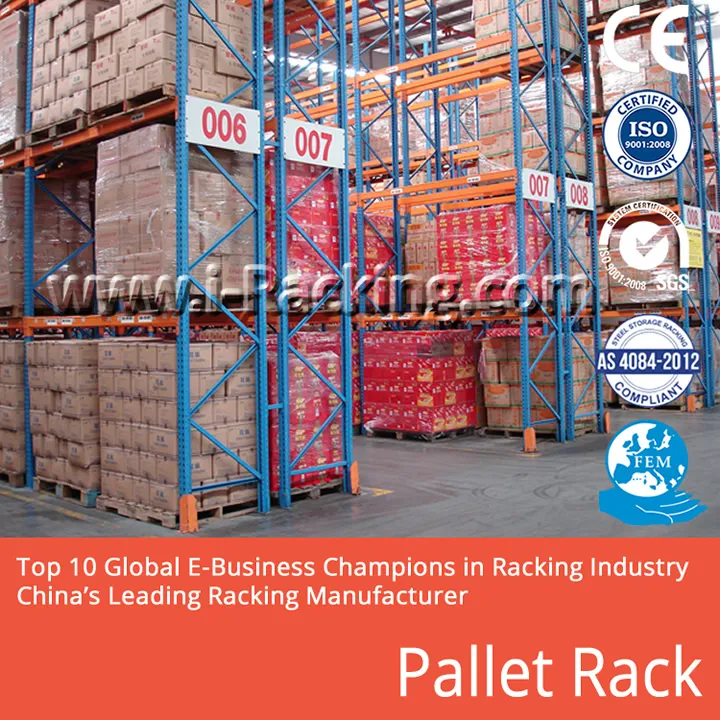

Pallet Racking System is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
| Material | Steel Q235 (Q345 for Cold Room Application) |
| Loading Capacity | Customized and up to 4,000 Kg UDL/level |
| Racking Height | Customized and up to 11,000 mm |
| Racking Depth | 700-1,200 mm |
| Beam Length | Customized and up to 3,600 mm |
| Racking Finish | Frames (Powder Coated or Pre-galvanized) + Bracings (Powder Coated or Pre-galvanized) + Beams (Powder coated) |
80*60*1.8-2.0, 90*70*1.8-2.0-2.5, 100*70*2.0-2.5, 120*95*2.0-2.5mm.

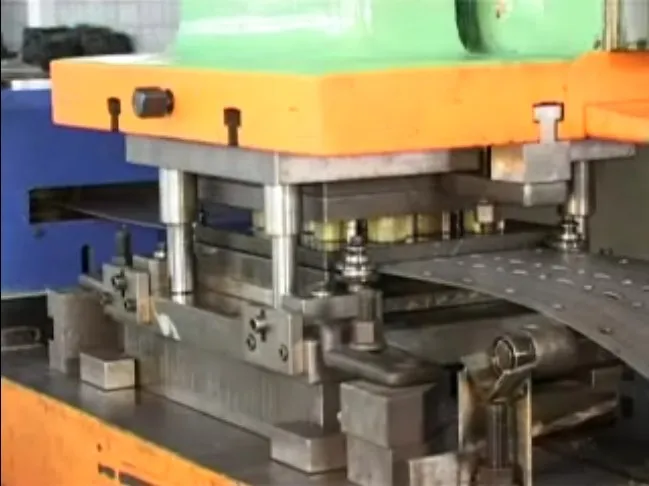

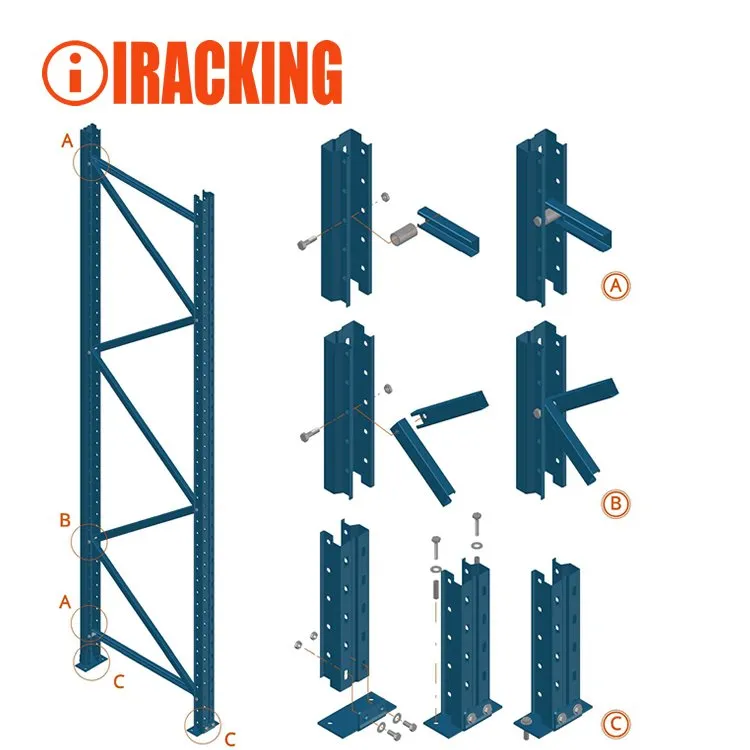

Uprights are punched with symmetric hexagonal slots at 75mm/76.2mm intervals for beam height adjustment. The different sections and thickness of uprights enable them to be adapted to a wide range of loading requirements.

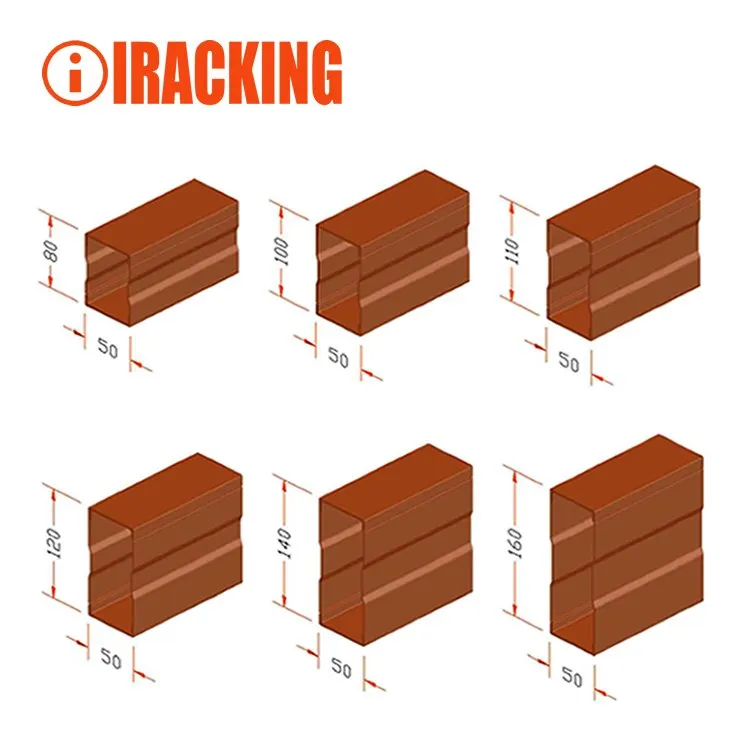

80*50*1.5, 100*50*1.5-2.0, 110*50*1.5-2.0, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm.

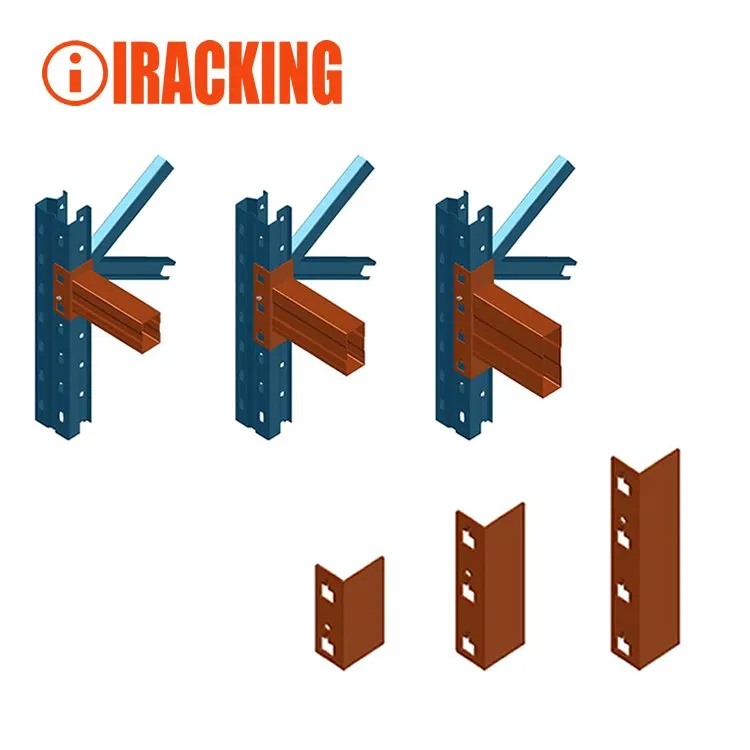

Beams provide support to pallets located on top. Box beams are constructed by joining two "C" sections over the entire length of the beams. Double material thickness top and bottom provides much greater added strength, rigidity and safety.

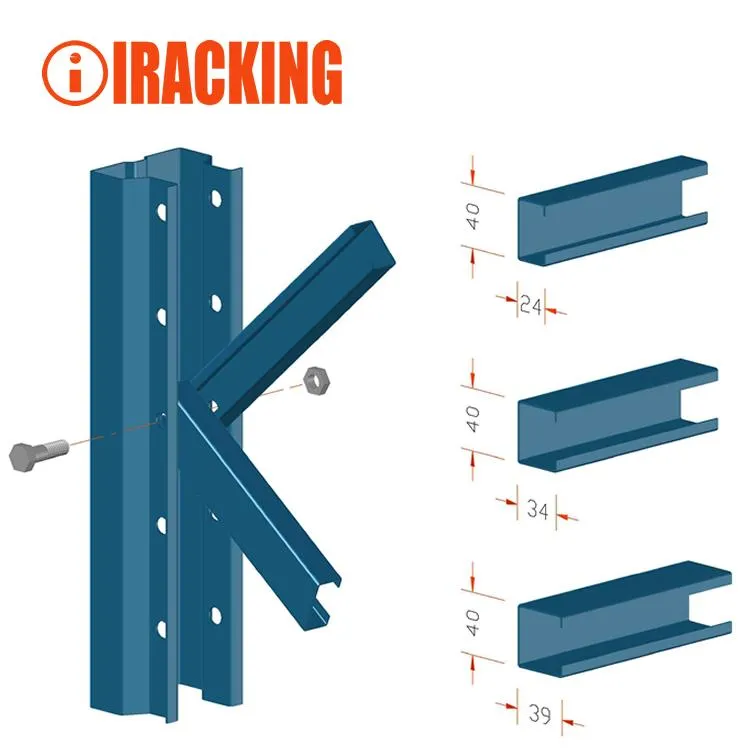

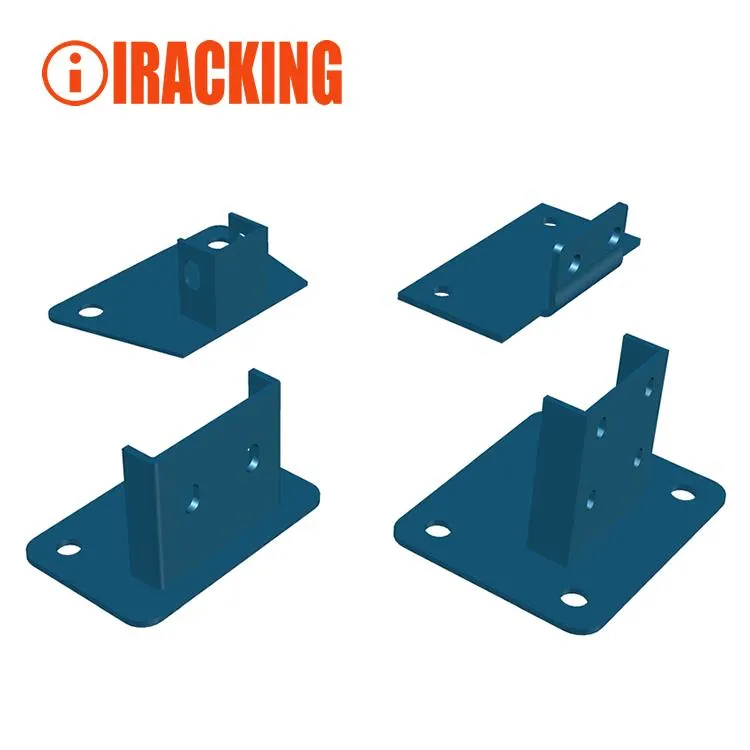

Small Components include: Post Baseplate, Bracing, Plastic Block for assembly of horizontal bracing, Anchors, Bolts & Nuts, and Safety Pin.

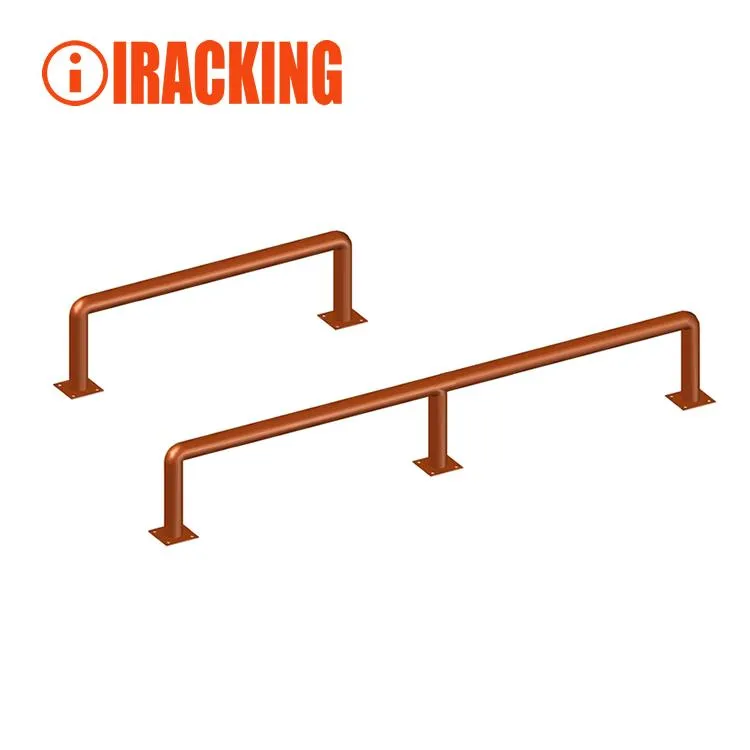

Accessories to Pallet Racking Systems: Row Spacer connecting Upright Frames for stronger structure, U-shape Post Protector, L-shape Post Protector, Frame Barrier, Pallet Supporting Bar, Steel Pallets, Plastic Pallet, Special custom-made Pallets, Cage, Mesh Container, Mesh Deck, etc.
We are a professional manufacturer and supplier in the field of shelving & racking systems, storage equipment & accessories, and storage solutions and services. Not only can we help to improve your partial storage work and operation speed, but also do the whole work of building a logistic center for you. We provide more than storage equipment.
You can send us your CAD drawing, and we could give you a quick online quotation, or you just tell us your tridimensional dimension of your warehouse we can design and work out drawings for you within 48 hours.
Please inform us of the following information for quick quotation:
| 1 | Drawing (if available) |
| 2 | Size of your warehouse (width, length, clear height) or your warehouse plan drawing |
| 3 | Size of racking (H*W*L) |
| 4 | How levels of the racking? |
| 5 | Loading capacity of each level? |
| 6 | (RAL) Color you want. |
