Our meticulously designed safety accessories, coupled with top-notch structural engineering, enhance the stability of our racking units, providing you with peace of mind, safety, and practicality.
When the weight of goods causes a downward angle shift in the cantilever, the upward angle (2°~4°) effectively prevents goods from scattering.
Installing retainers at the outer ends of the cantilever arms and on the base prevents goods from rolling and falling, while also safeguarding operators.
Connecting the uprights horizontally and diagonally strengthens the torsional stability of the cantilever rack.
The base is intentionally designed longer than the cantilever arms, effectively preventing goods from tilting the overall structure when placed on the arms.
Light-duty rack bases are secured with nine M16*120 bolts, while heavy-duty rack bases use four M18*290 bolts. These high-quality bolts reinforce the connection between the uprights and the base, enhancing the overall stability of the cantilever rack and preventing the risk of toppling.
Grade 8.8 premium expansion bolts (M12*110) securely anchor the base to the ground.
| Products Support | Details |
|---|---|
| Free Consultation | Yes, Any Questions You Can Consult With Free. |
| Support For Custom | Yes |
| Free Design | Yes, CAD/PDF/3D Drawing |
| Free Sample | Available (Delivery Cost By Buyer) |
| 3D Sample | Yes, 1:1 3D Sample, Save Your Time And Cost of Trial and Error |
| Pre-installation | Yes |

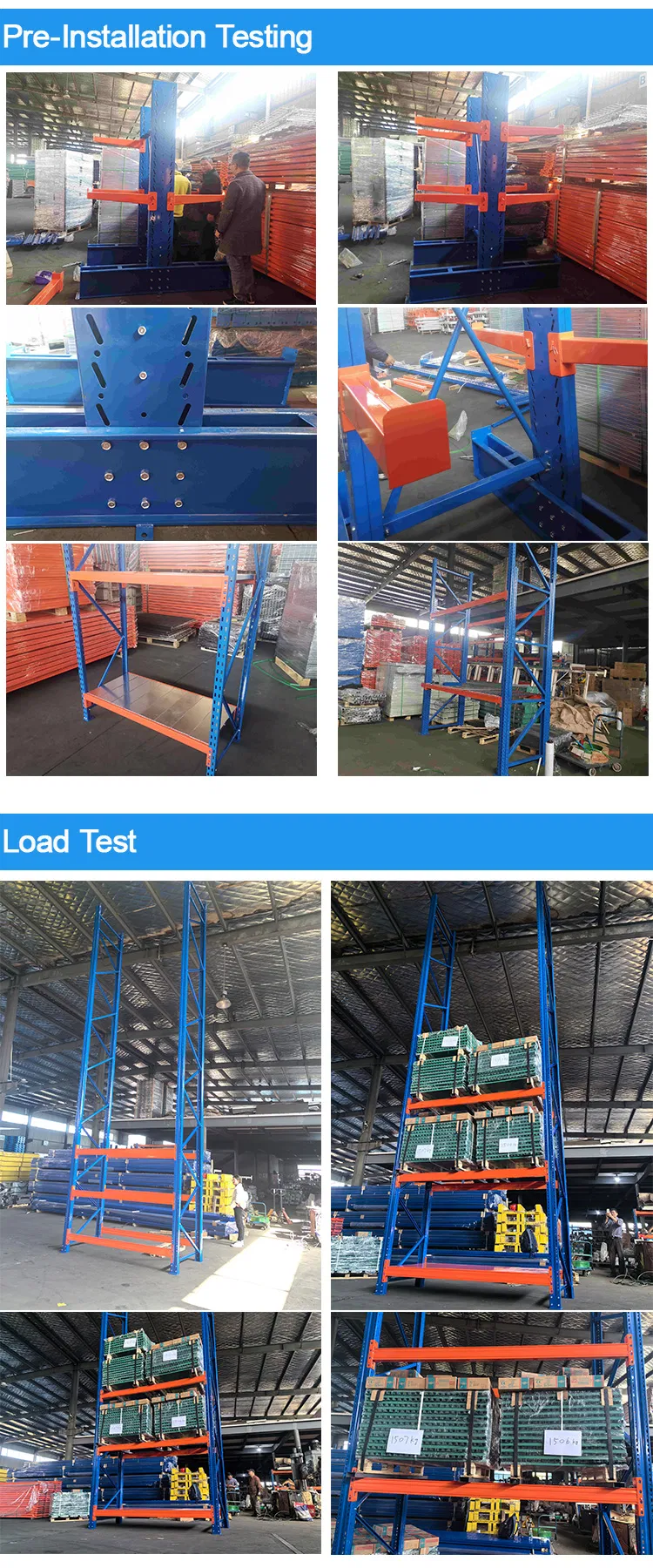

| Capacity Test | Yes, If Needed. |
| OEM&ODM | Available |
| Lead Time | 15-20 Days For Regular Pallet Racking, One Container |
| Installation Service | Yes, Submit the Installation Drawing Or Video, and send the Engineer To Your Site If Needed. |
| Maintenance Service | Yes, We Submit a Free Maintenance Guide. |
| Repair Service | Yes, We Submit Repair Services. |

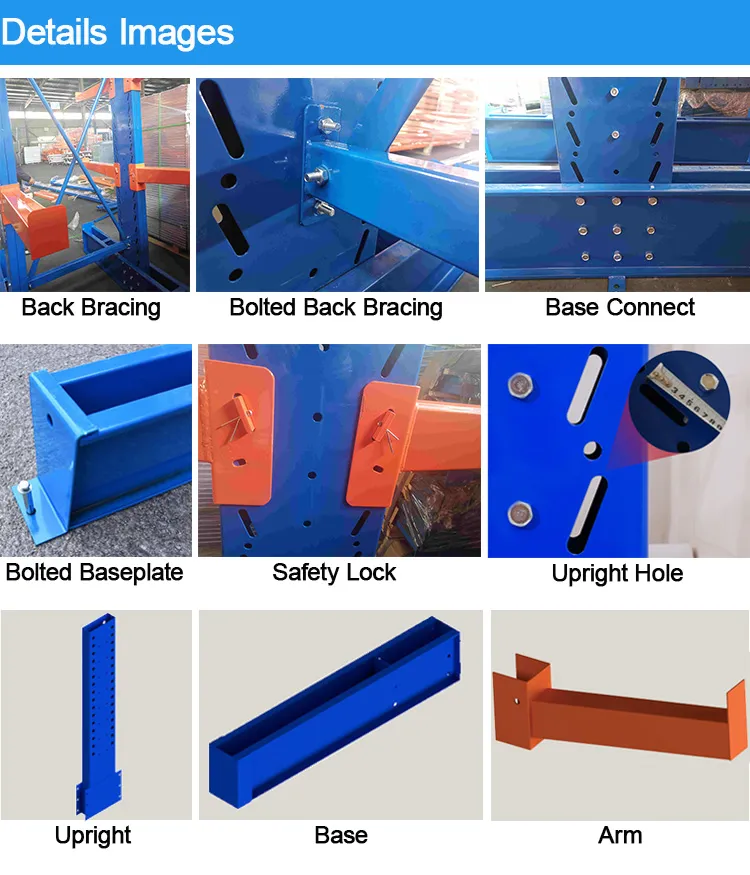

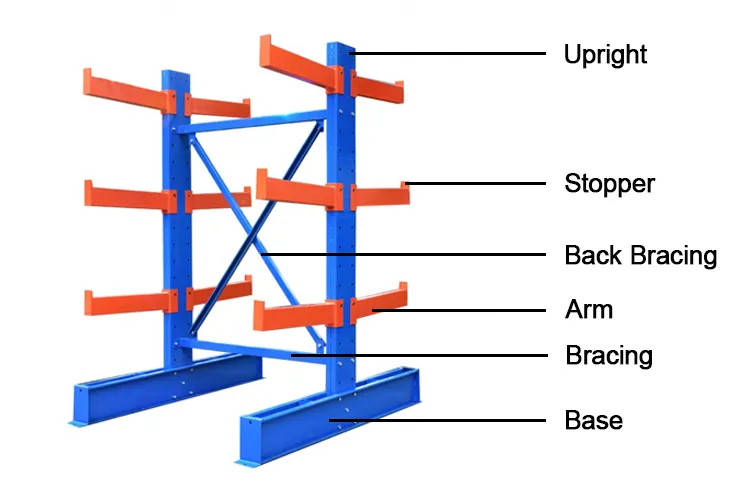

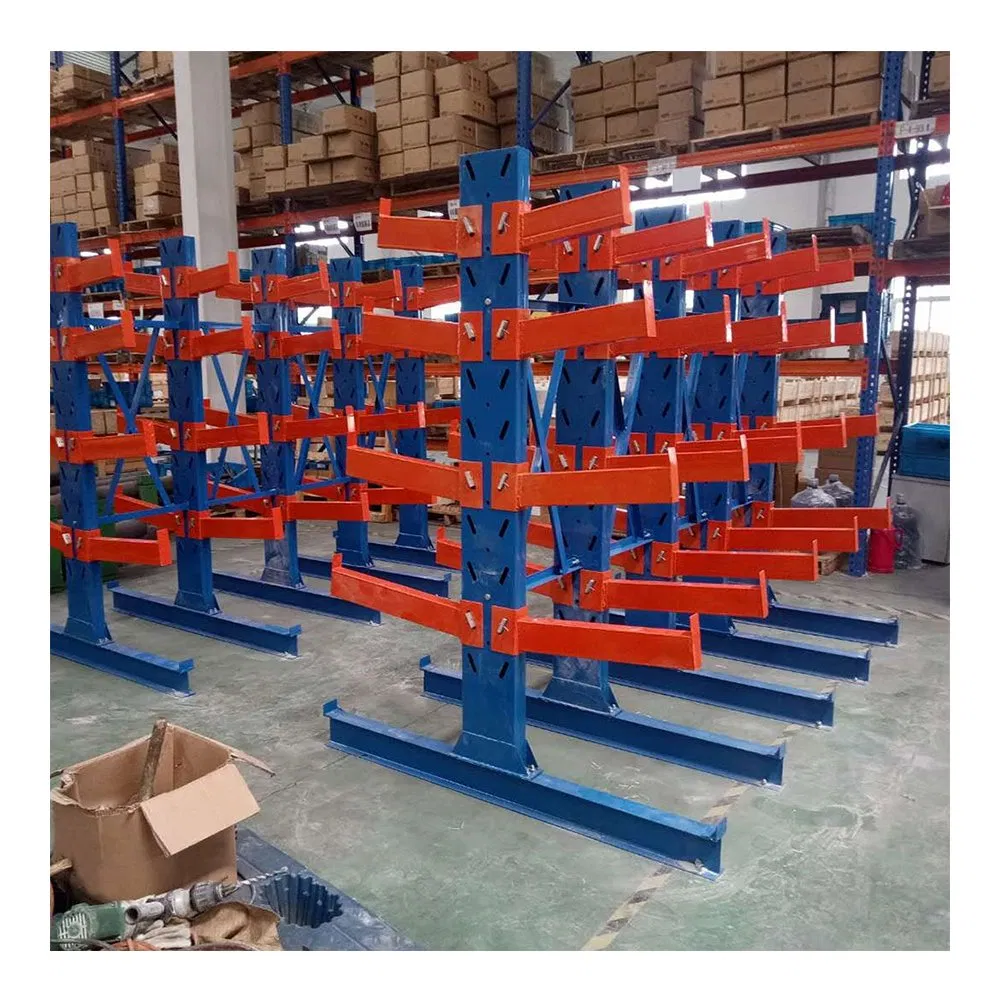

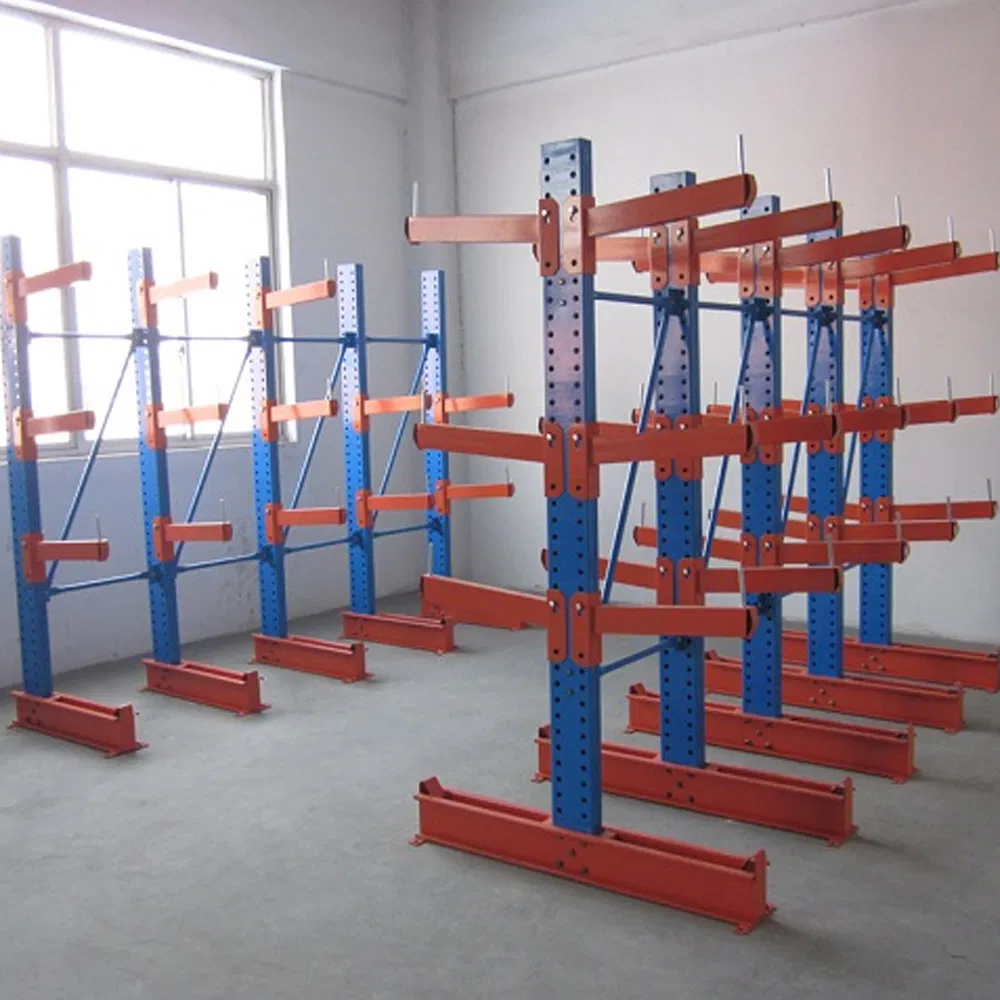

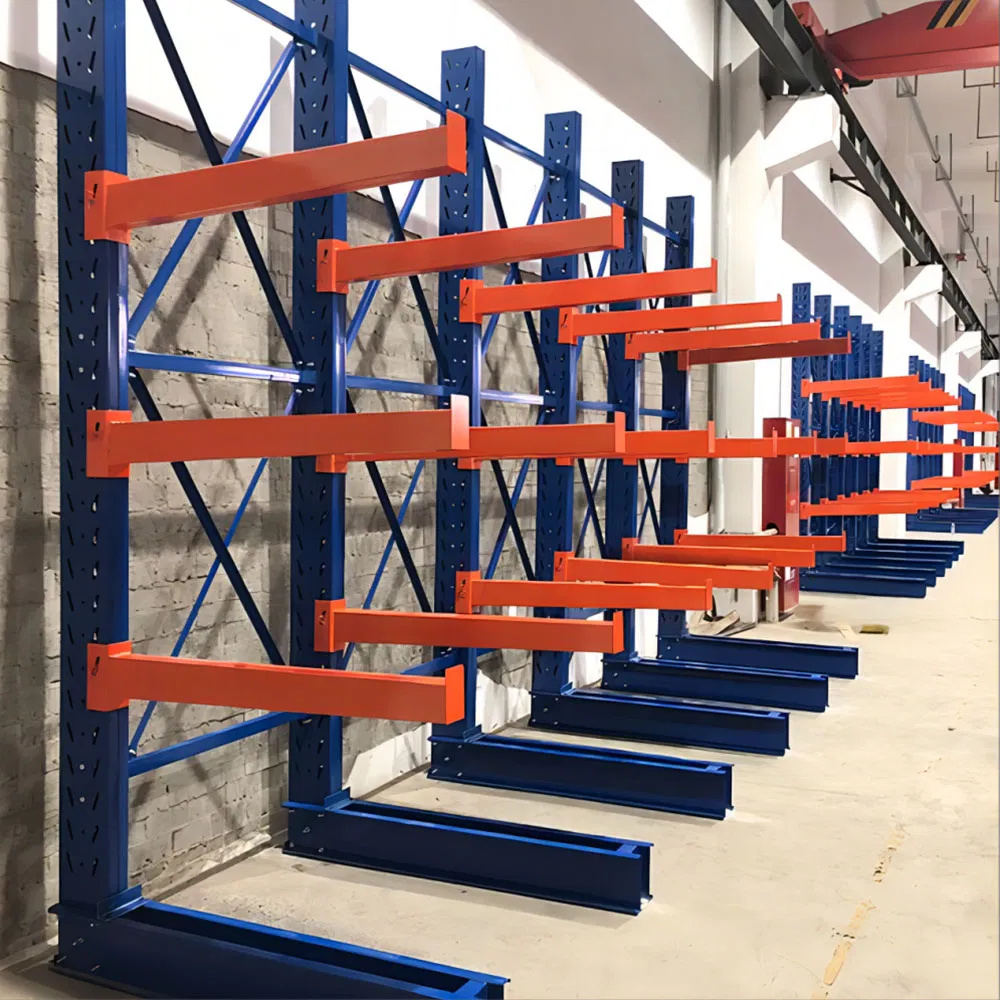

Cantilever rack consists of the following components:
Uprights are an essential part of a cantilever storage rack system. They are installed with the bases, which makes the entire system robust. Uprights are divided into single-sided and double-sided types, made from high-quality Q235 cold-rolled steel as raw material, with a hole spacing of 100mm. The cantilever arms can be adjusted vertically based on hole spacing units.
Beams, also called arms in cantilever steel rack, act as levels for storing goods. They come in horizontal and tilted (2°~4°) types. Light-duty rack cantilever arms are embedded into the uprights, while heavy-duty rack cantilever arms require bolt connections.
Base Construction Using High Load-Bearing H-Beam for Enhanced Cantilever Rack Stability in Both Vertical and Horizontal Directions.
Cross braces horizontally connect the uprights, and eight forks crisscross connect the uprights, enhancing the torsion and stability of the cantilever rack.

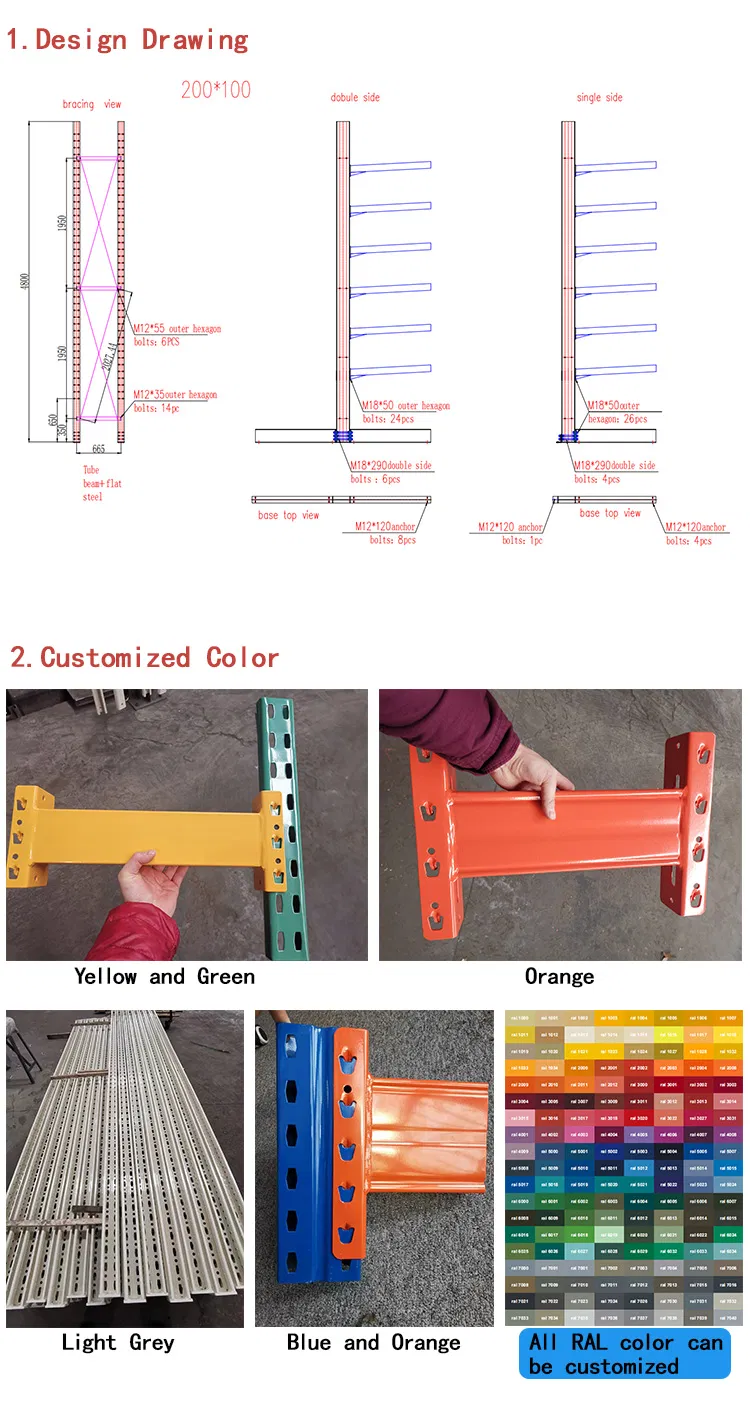

We support customization, such as drawing, color, package and size etc.

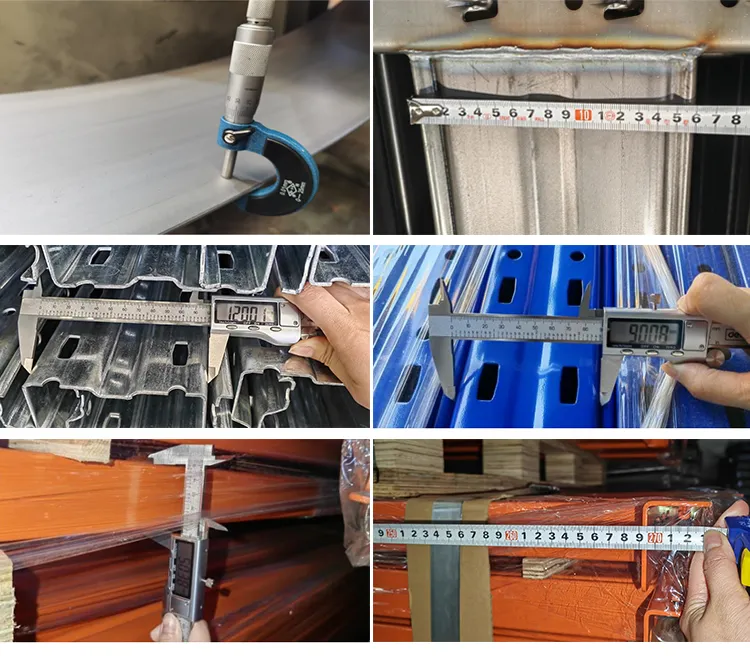

We have a professional quality inspection team consisting of 15 people. We check the pallet racking quality for every producing step to guarantee the quality of your racking during processing.

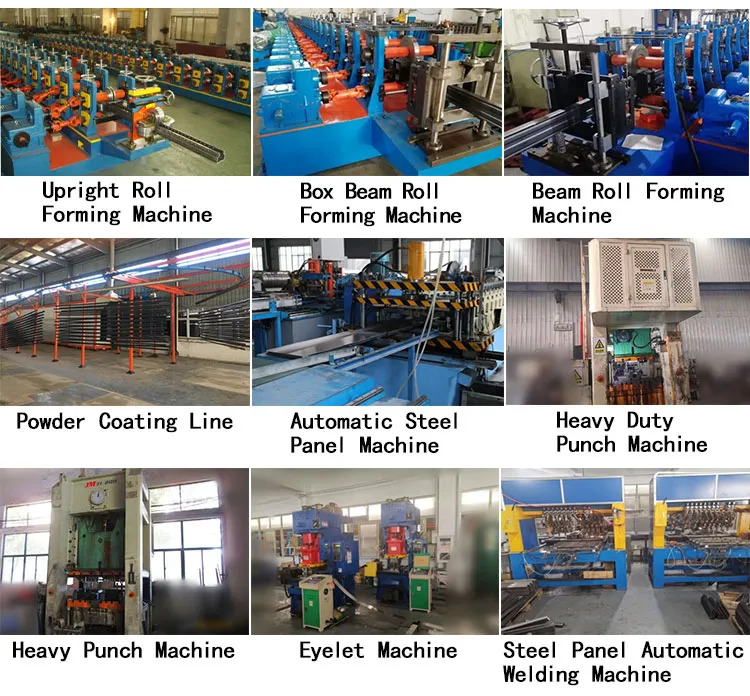

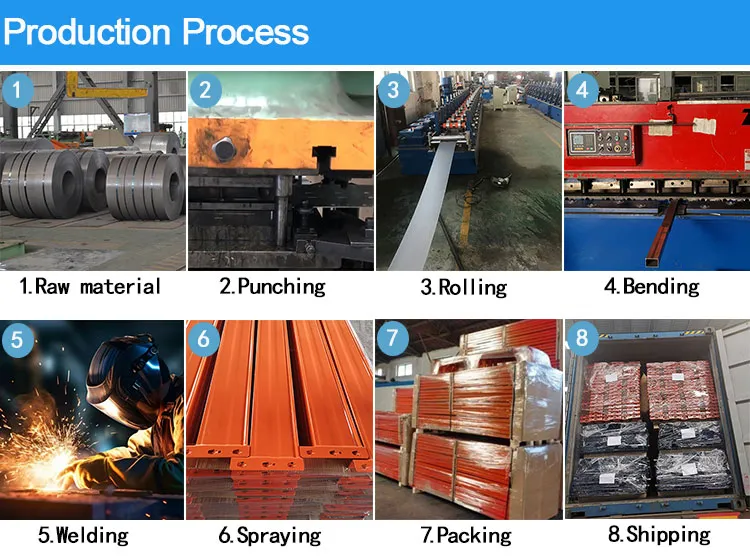

A variety of complete equipment to make sure the delivery time and quality are within our control range.

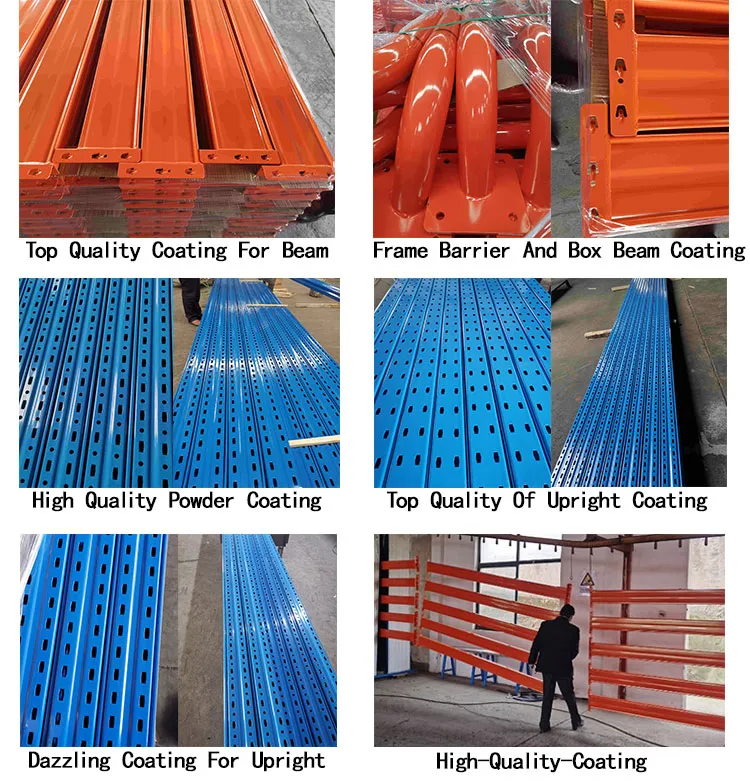

Our production utilizes a two-time powerful pickling technology to optimize oxidation and produce a durable protective layer on the steel surface. This ensures the resin powder adheres perfectly, greatly increasing your racking life.
We are dedicated to the production of racking storage, providing quality solutions for saving your storage space and storage ways.
We have over 23 years of experience exporting our quality racking to over 85 countries worldwide to date. Our fully automated, state-of-the-art technology provides the preconditions for the production of the optimum racking.
We also offer a 10-year warranty to cover all your racking problems in the future. Most importantly, we always put the customer first and provide the best possible service.
A1: Roll-formed cantilever industrial storage systems have a bolt-less structure and are best for lightweight materials. Contrarily, in structural type the system is tightly fixed to the ground through bolting it. As a result, this cantilever type is perfect for keeping heavy goods.
A2: Always pay attention to the roof of your warehouse so you can customize cantilever systems accordingly. Likewise, it is necessary to have correct uprights, braces, and arms, to avoid product overhanging or deflection.
A3: Yes, storing materials at the base of your cantilever racking is safe.
A4: The interval between each hole in the uprights is 100mm, and the minimum adjustment distance for shelf height is 100mm. You can continue to add uprights to extend the depth of the cantilever rack.
A5: Regular inspections, cleaning, checking of components, and replacement of worn parts are necessary. We also offer maintenance and upkeep services if needed.
A6: We offer a 10-year warranty and 24/7 after-sales service. Please feel free to contact us with any questions.
