Warehouse Storage Heavy Duty Cantilever Rack for Irregular Goods

Technical Specifications

Model NO.CR-001

UsageTool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack

MaterialSteel

StructureRack

TypeCantilever Rack

MobilityAdjustable

Height5-15m

Weight CapacityMore Than 1, 000kg

ClosedOpen

DevelopmentConventional

ServiceabilityCommon Use

Surface TreatmentPowder Coated

ColorBlue and Orange

CertificateCE, SGS

Arm LengthLess Than 1500mm

Loading Capacity300-1000kg/Arm

Transport PackageBanding, Plastic Film, Wood Pallet, Carton

SpecificationAccording to pallet size and weight

HS Code73089000

Production Capacity5, 000 Ton/Month

Package Size210.00cm * 105.00cm * 120.00cm

Package Gross Weight1000.000kg

Product Description

Warehouse Storage Heavy Duty Cantilever Rack for Irregular Goods

Cantilever rack is a type of racking that is used for storage of irregular or long items. This is achieved by eliminating obstructions and providing a clear opening in the front of the rack in lengths as long as desired. These rackings can also be decked for storage of items smaller than the spacing between towers. Tower spacing, upright capacity, and arm capacity are critical for a safe and proper system. This racking is available in roll form and structural styles. It is widely used in mechanical manufacture and architecture material supermarket enterprises.

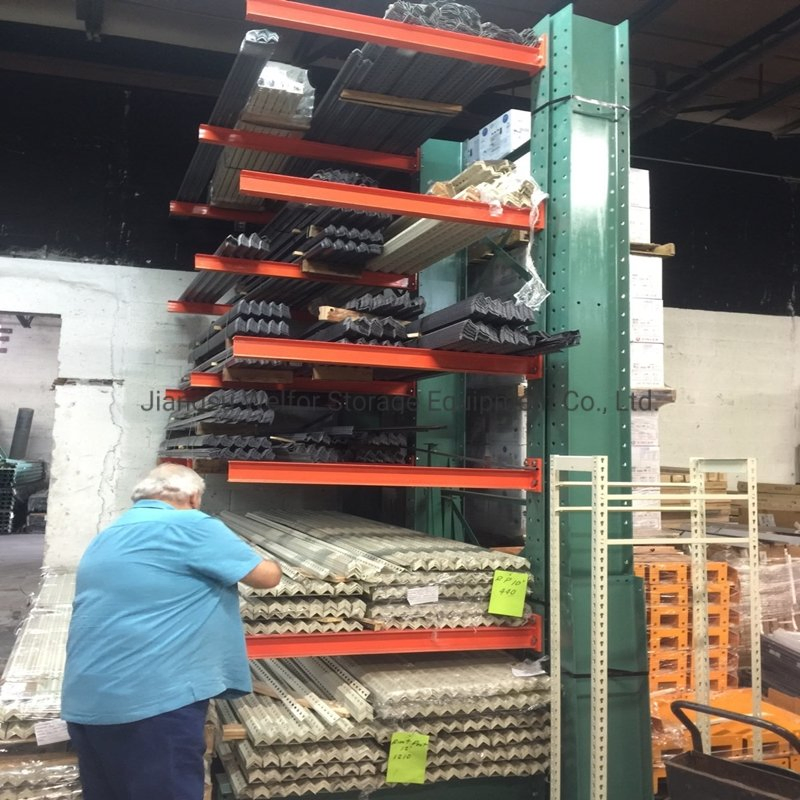

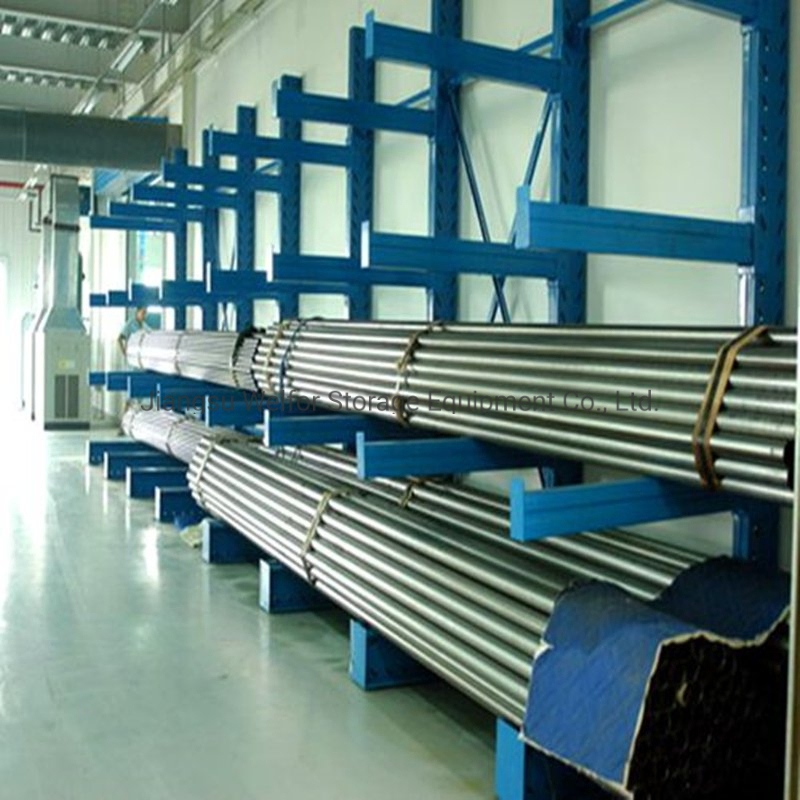

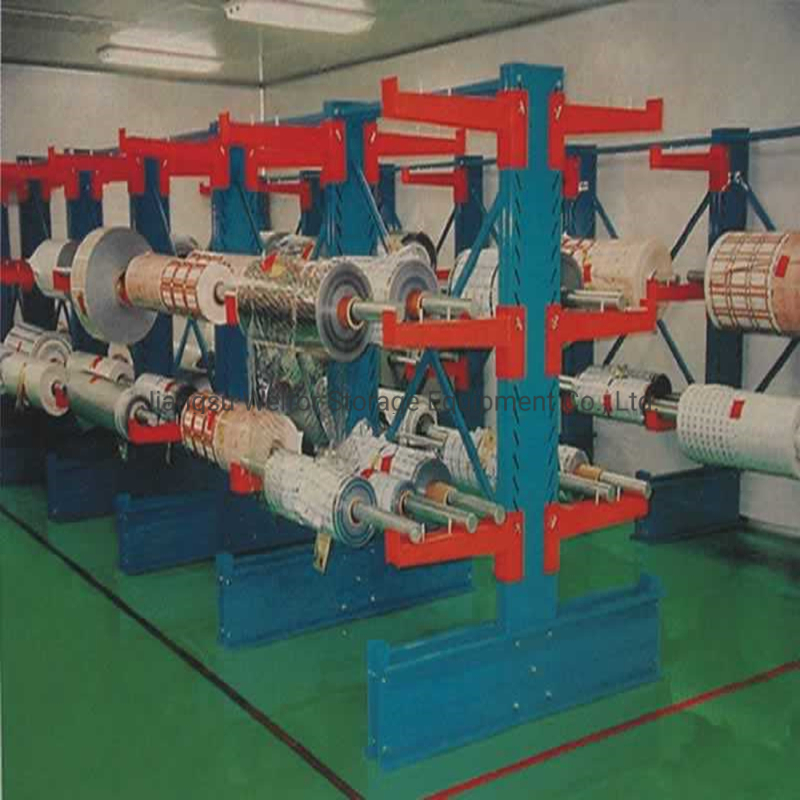

The cantilever rack is suitable for storing long or circular material, flat products, tubes and irregular goods.

Key Features

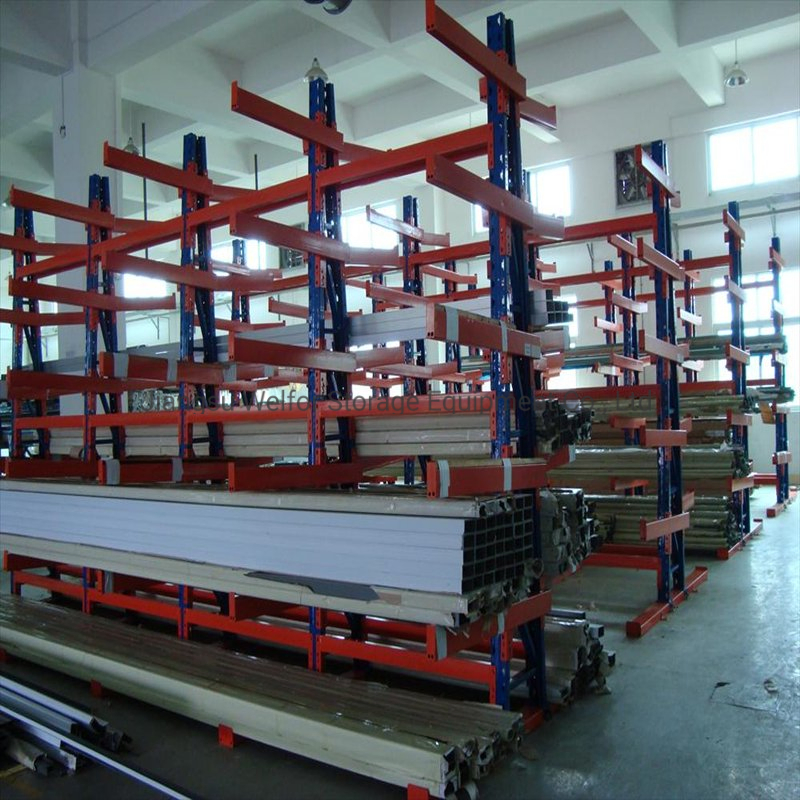

Designed for effective storage and handling of items such as lumber, pipes, bar stocks, timbers or other similar items.
This rack can be divided into a single sided or double sided cantilever rack.
Available with light, medium, and heavy loading capacities.

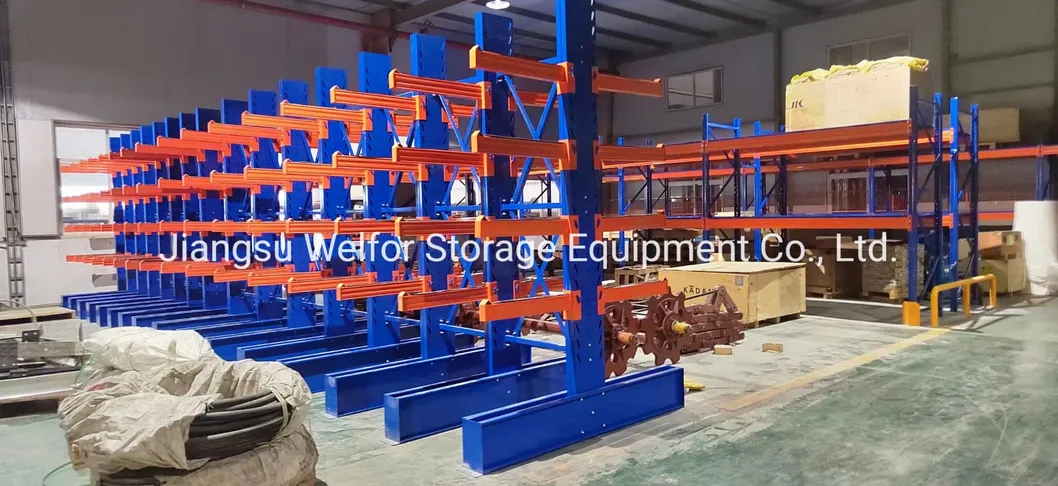

Warehouse Storage Heavy Duty Cantilever Rack Details

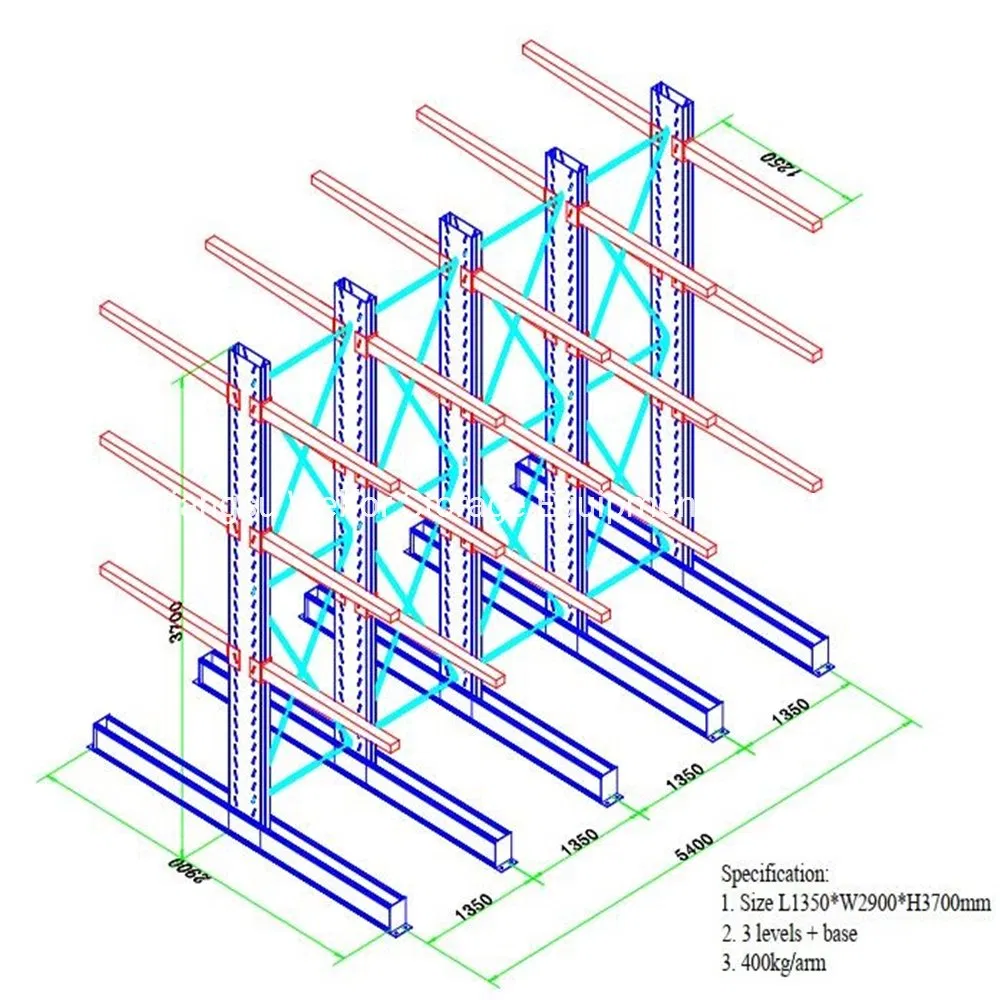

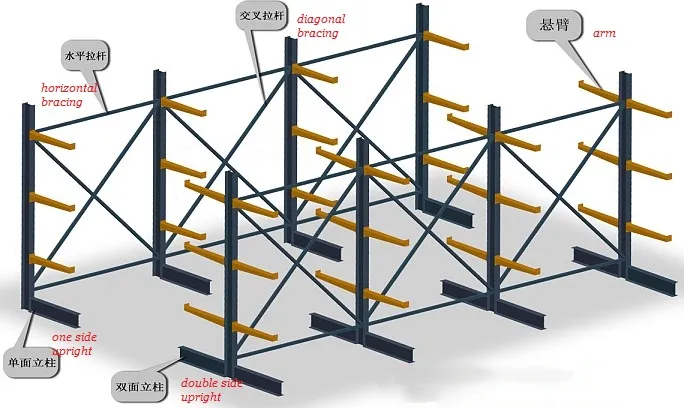

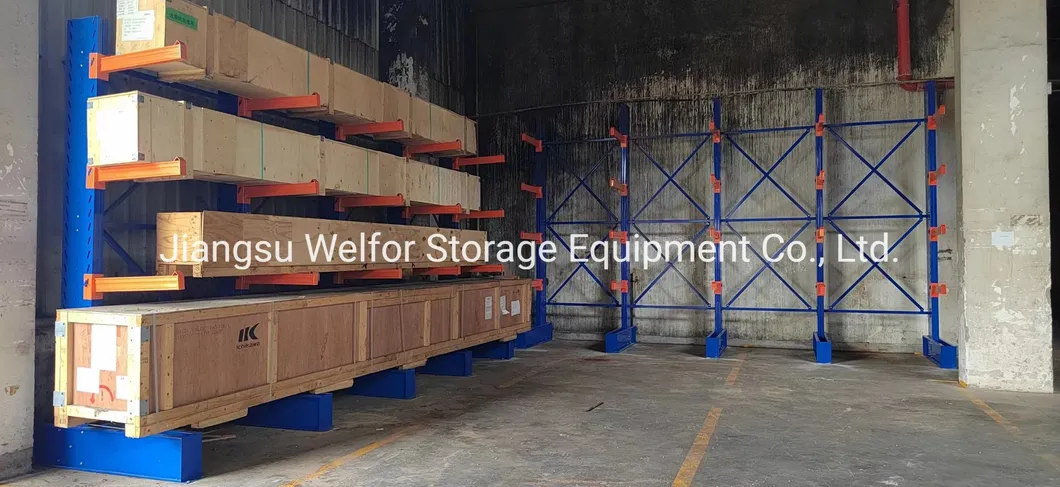

Warehouse Storage Heavy Duty Cantilever Rack Structure

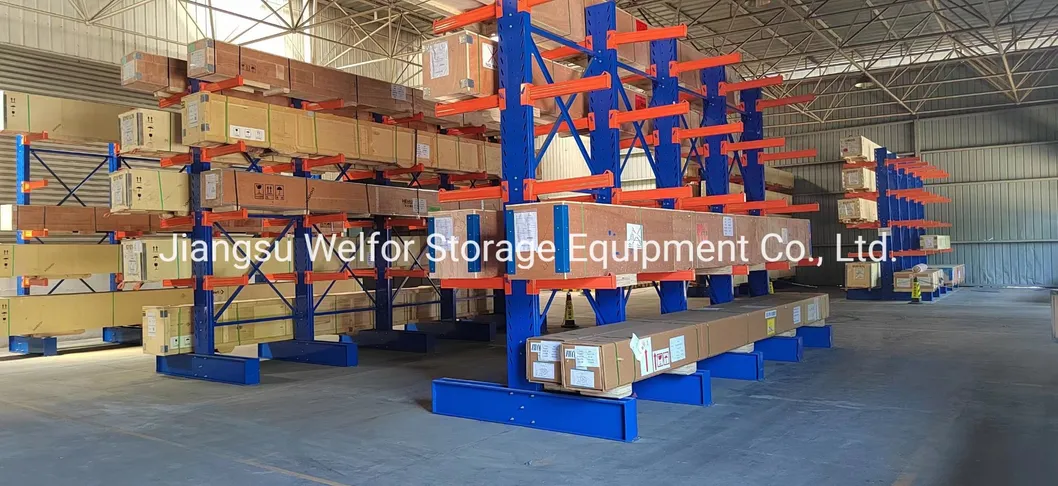

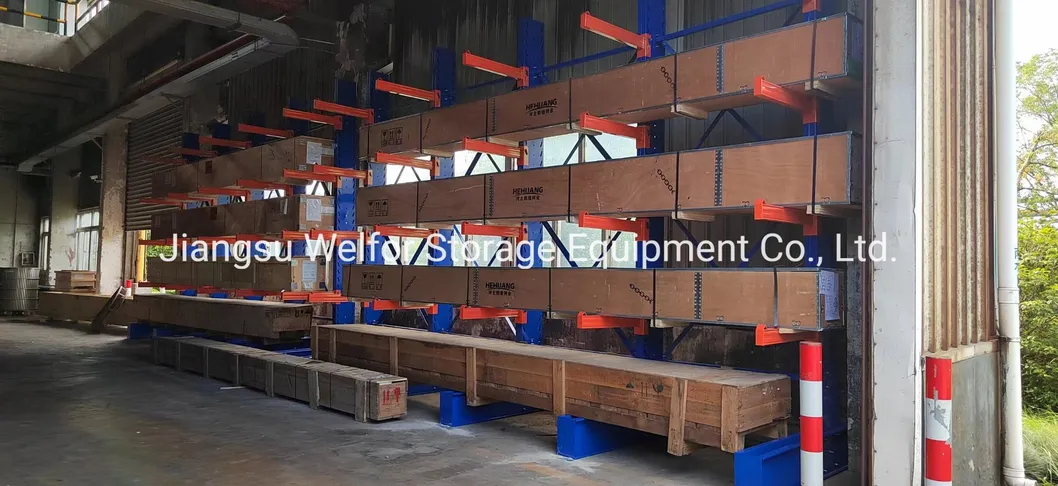

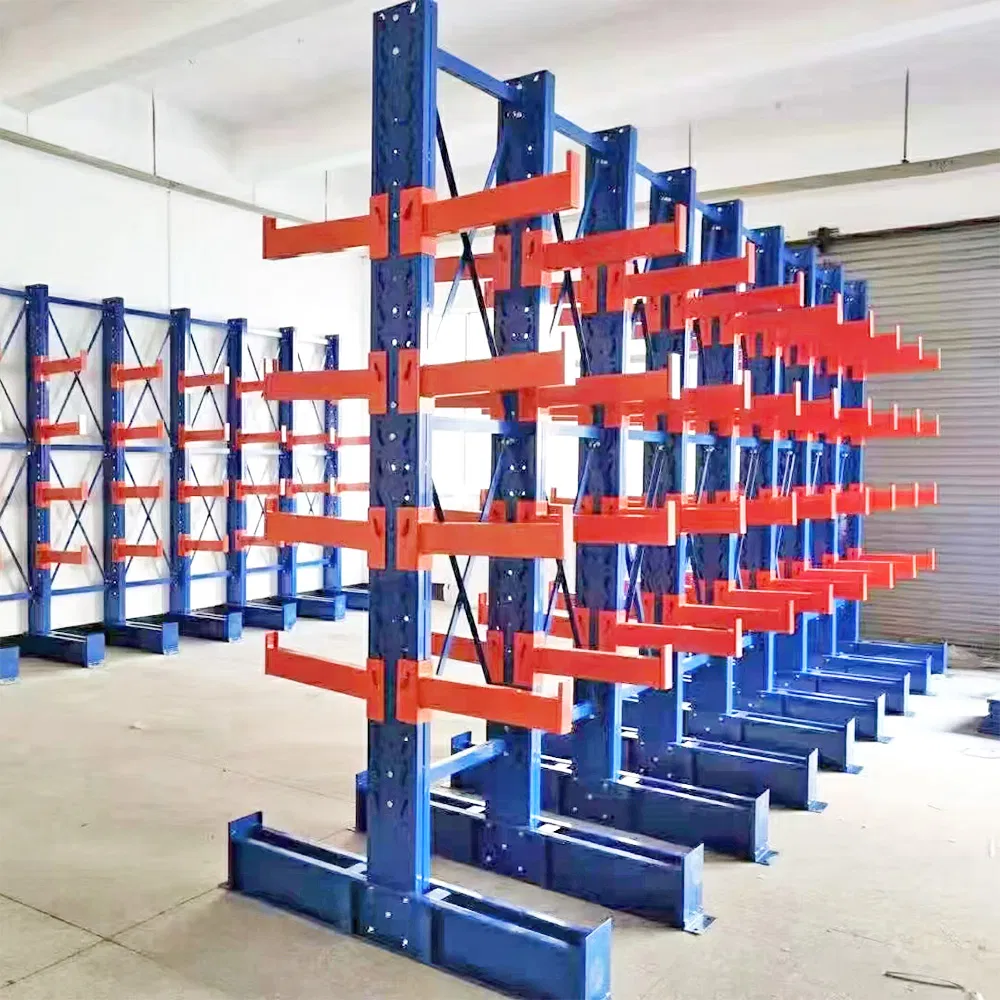

Warehouse Storage Heavy Duty Cantilever Rack View

Key Advantages

A big scale of output allows a good position to control lower product costs on a basis of the same high quality level.
A wide range of different racking types to suit different storage needs, maximizing the utilization of your space.
Assemble and disassemble easily and conveniently, so it can be recyclable.
Free but expert advice & proposed racking solutions for your kind reference.
Short lead times and FAST delivery so you can get back to business!
Commitment to provide a detailed quotation and product information; promise to tailor your required products in the shortest time.

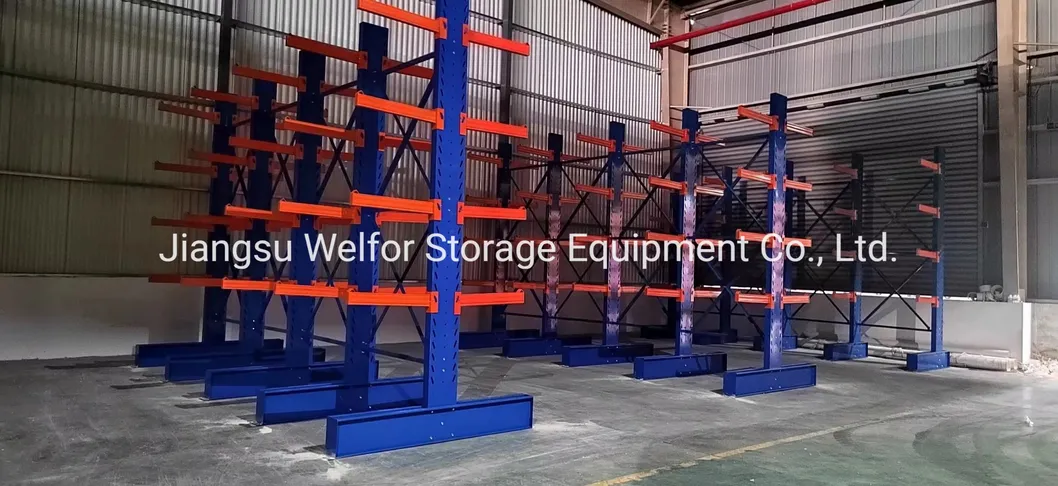

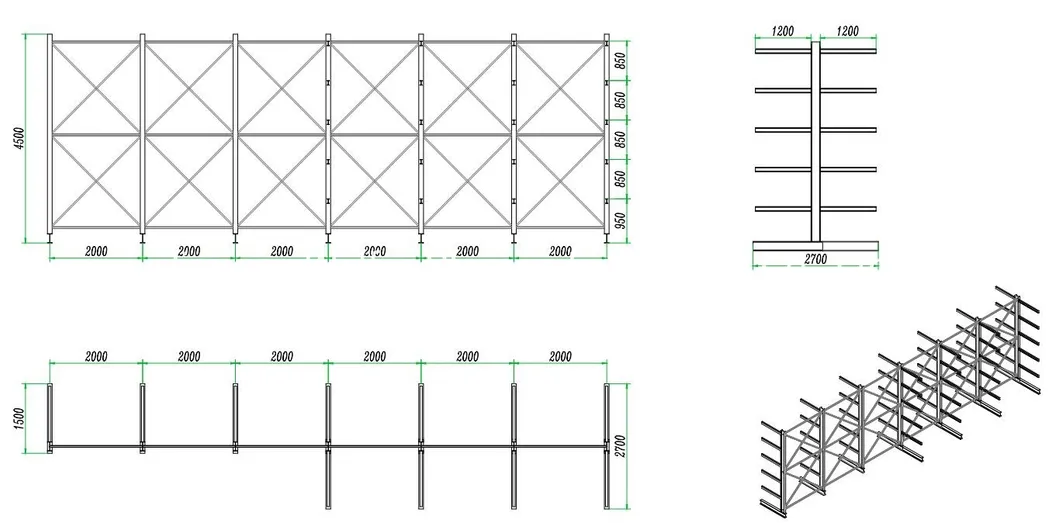

Cantilever Rack Warehouse Project Layout

Technical Data for Cantilever Rack

Length (mm)	Height (mm)	Max Beaming Capacity (kg)
400	60	500
500	60	400
500	75	750
600	60	350
600	100	1000
750	70	500
750	110	1000
1000	90	500
1000	135	1000
1250	100	500
1250	155	1000
1500	110	500
1500	180	1000
1750	160	500
1750	200	1000
2000	180	500
2000	220	1000

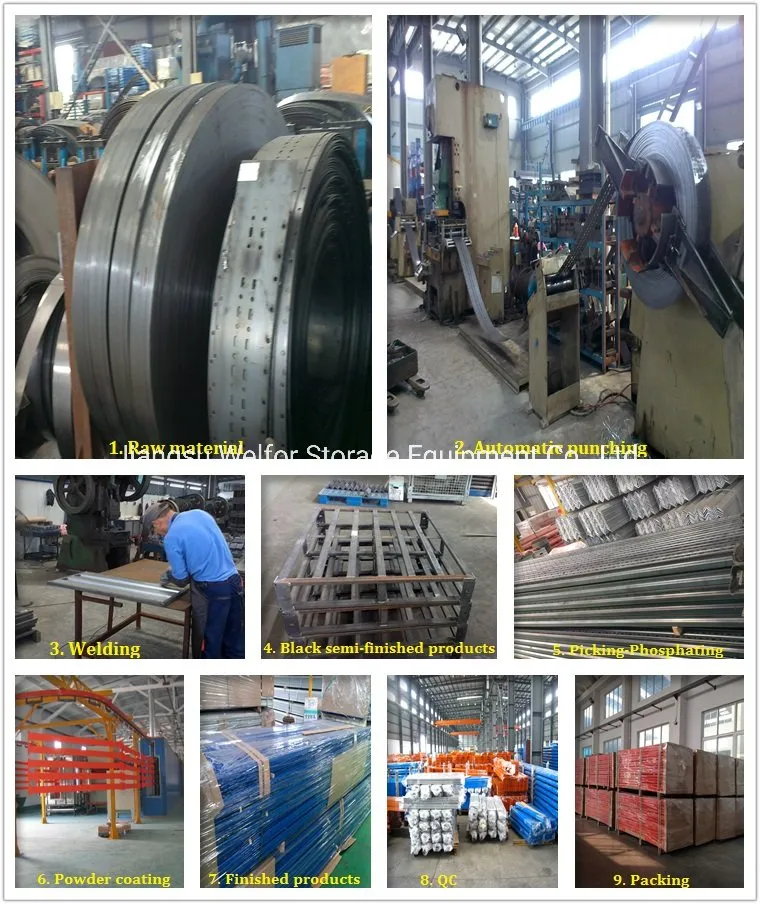

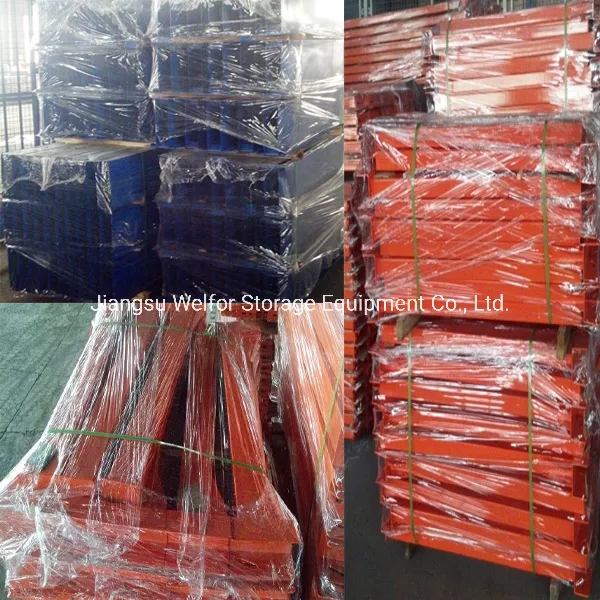

Production & Packing Process

Information Needed for a Quick Quotation

To help us design and quote the best system for your warehouse, please prepare the following details:

Drawing of rack (CAD design service available)

Size of your warehouse (Length x Width x Clear height)

Storage requirement on the cargo (temperature, etc.)

Size (W*D*H) & weight of pallet after loading

How many pallets each layer you require

How many layers you would like

Parameter of your forklift (for aisle width determination)

Preferred colors

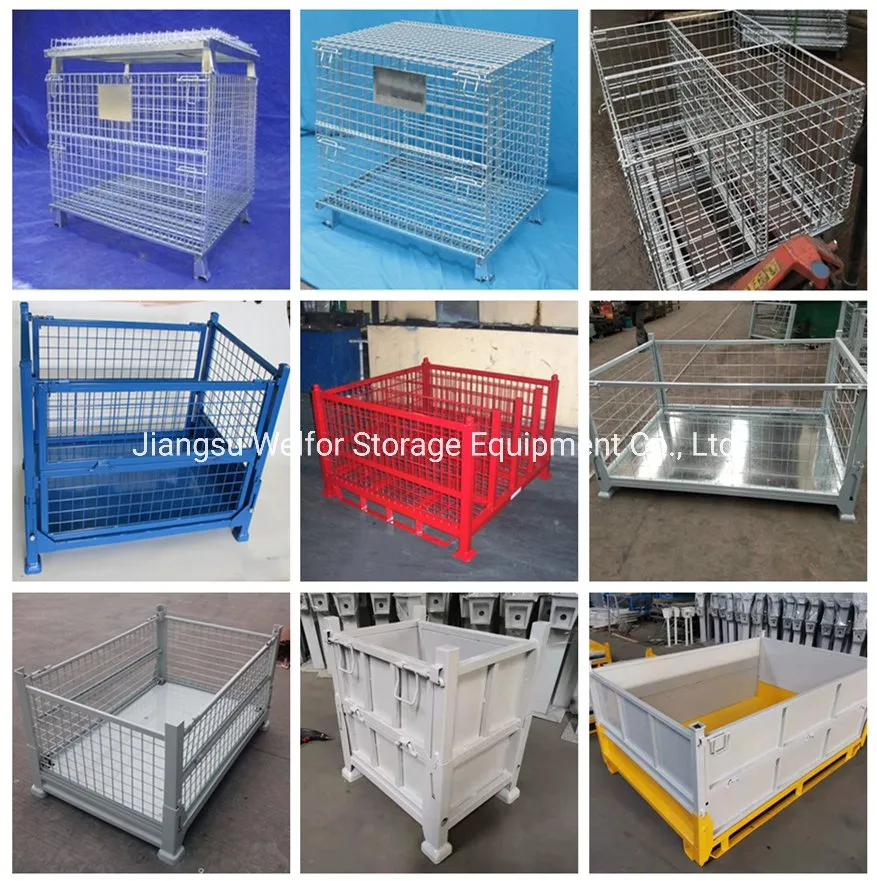

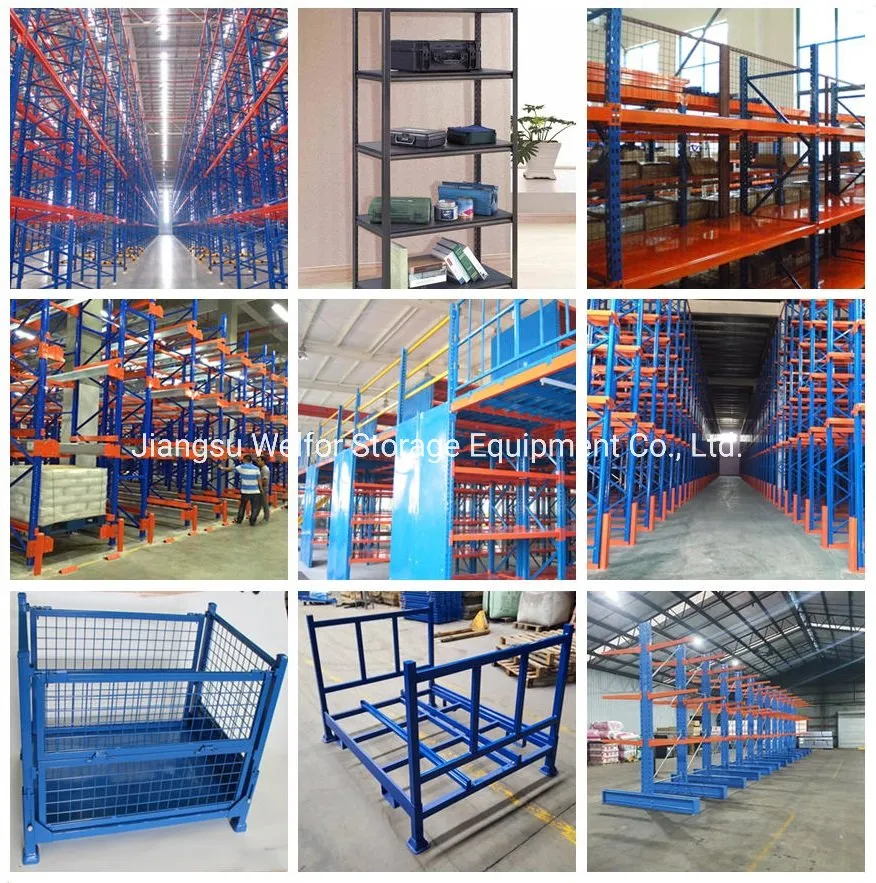

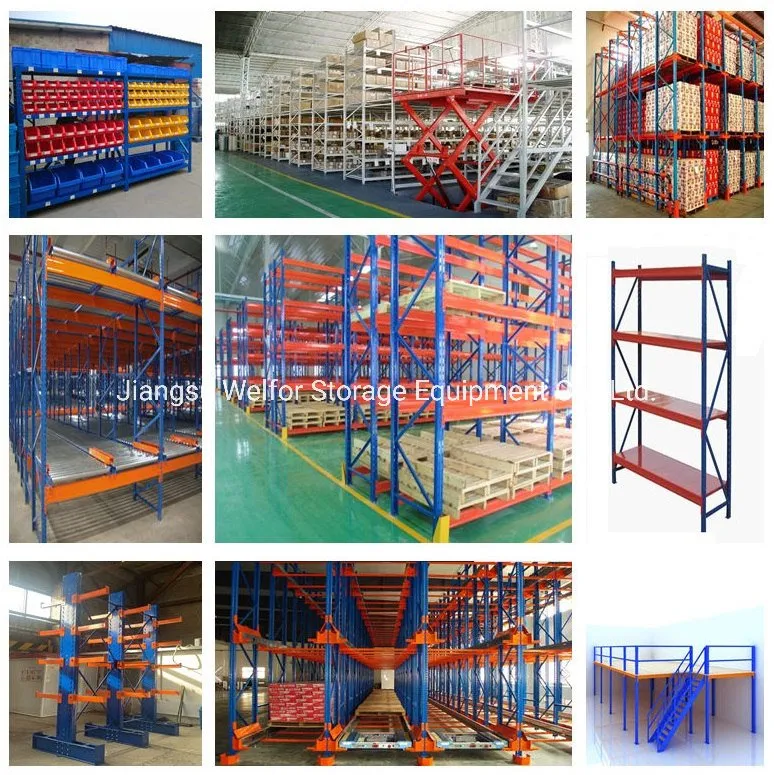

Other Racking Systems

Frequently Asked Questions

What is the MOQ limitation for the rack system?

There is no strict MOQ limitation. However, a large purchase will bring competitive prices. A 20FT container (10T to 13T) is highly recommended for optimized production handling and shipping.

What is the lead time for production?

For standard orders fitting a 20FT container, the manufacturing time is approximately 10-15 days. Customized racking items typically require 20-25 days.

What payment methods do you accept?

We accept standard international payments including T/T (Telegraphic Transfer) and L/C (Letter of Credit).

Can I get samples before ordering?

Yes, short sections of uprights and beams can be provided free of charge. However, freight costs will be collected upon your delivery account or duty.

What is the warranty policy for the rack system?

All rack components are warrantied against manufacturing defects. To prevent any component shortage, we provide 1% to 2% spare parts in addition to the base requirements.

Can you assist with customized design and planning?

Yes, if you do not have CAD drawings available, we can offer customized CAD design services based on your warehouse layout dimensions and loading requirements.
