Basic Info.
Usage
Tool Rack, Tools, Industrial, Warehouse Rack
Material
High Quality Cold-Rolled Steel
Structure
Cantilever Rack
Weight
up to 3900lbs (1769kg)
Serviceability
Common Use
Design Service
Free CAD Service Available
Back-up Service
Installation Drawing/on Site Instruction
Container Load
15-18tons/1*20' Container, 20-25tons/1*40' Contain
Transport Package
Airbag; Air Bubble; Wooden Pallet, etc
Specification
Customizable
Production Capacity
20000tons/Month
Product Description

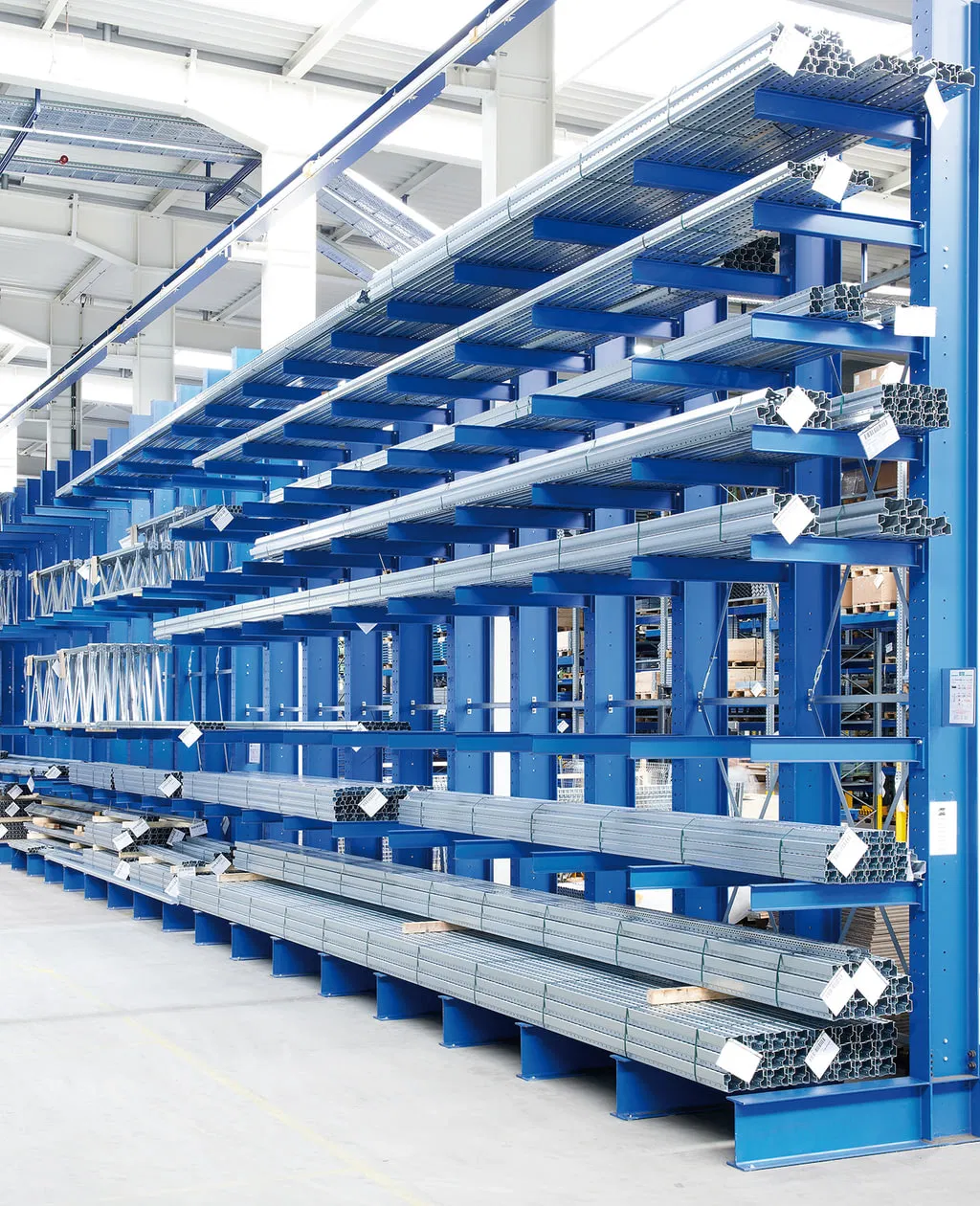

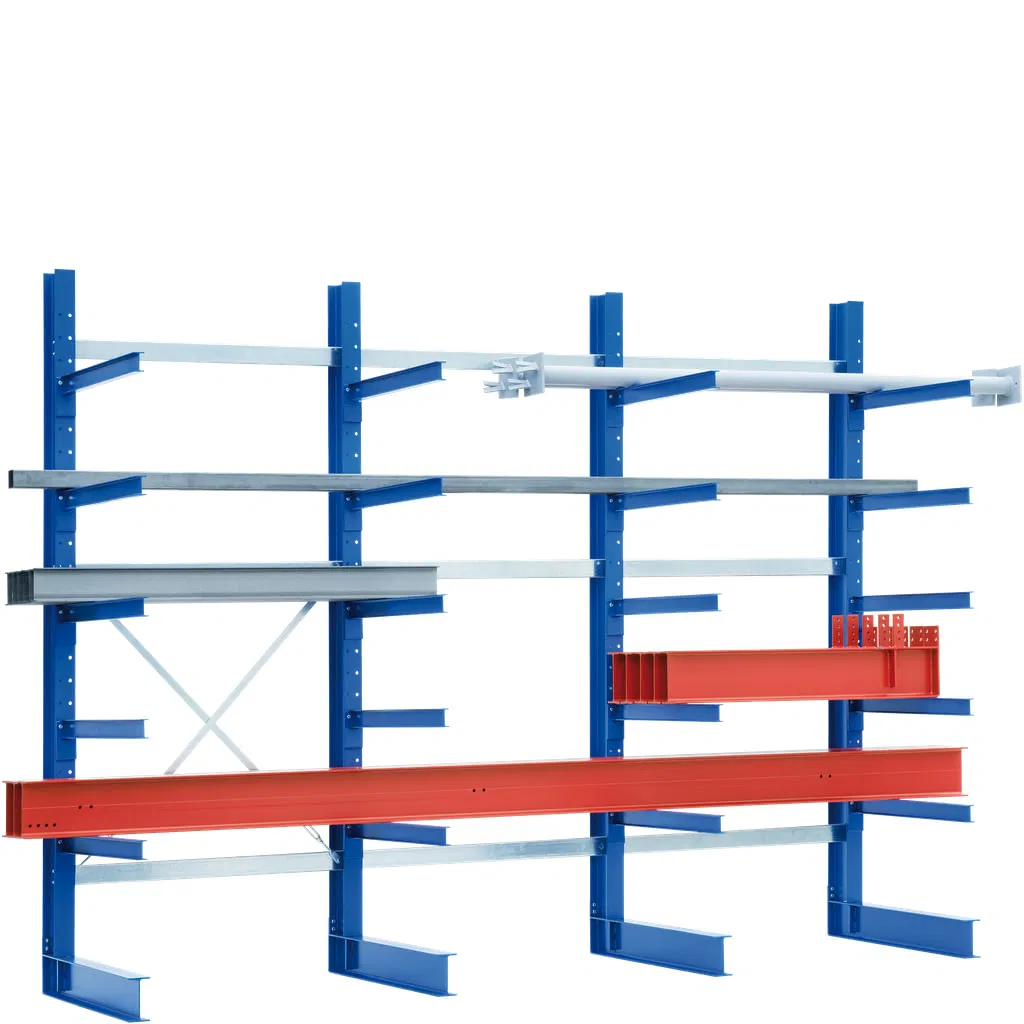

What is Cantilever Racking?
Cantilever racking is a storage system designed specifically for long, bulky, or awkwardly shaped items that wouldn't work well on standard pallet racking systems. Unlike pallet racks, cantilever racks have no vertical posts in front, which creates a completely open storage area.
Benefits
-
Unobstructed access: The lack of front columns allows for easy loading and unloading of long items using forklifts or other equipment.
-

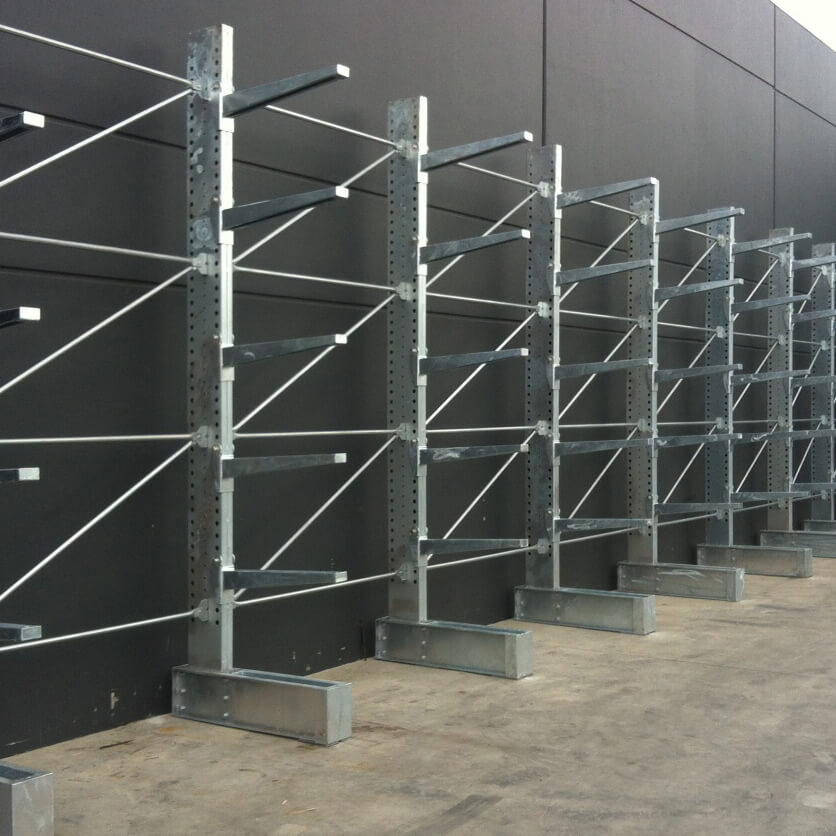

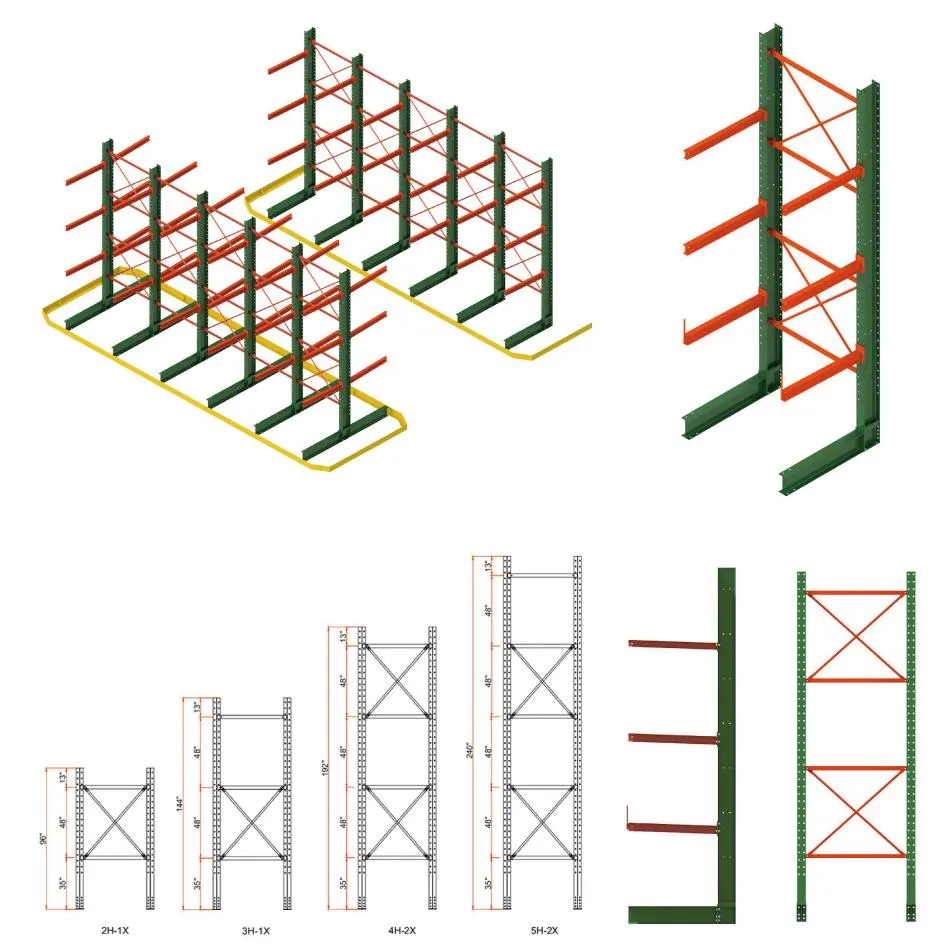

Versatility: Cantilever racks can be configured in various ways to accommodate different sized items and storage requirements. You can have single-sided racks placed against walls or double-sided racks for maximized storage capacity.
-
Customizability: The arm levels can be adjusted along the uprights to fit the specific lengths of the items you're storing.

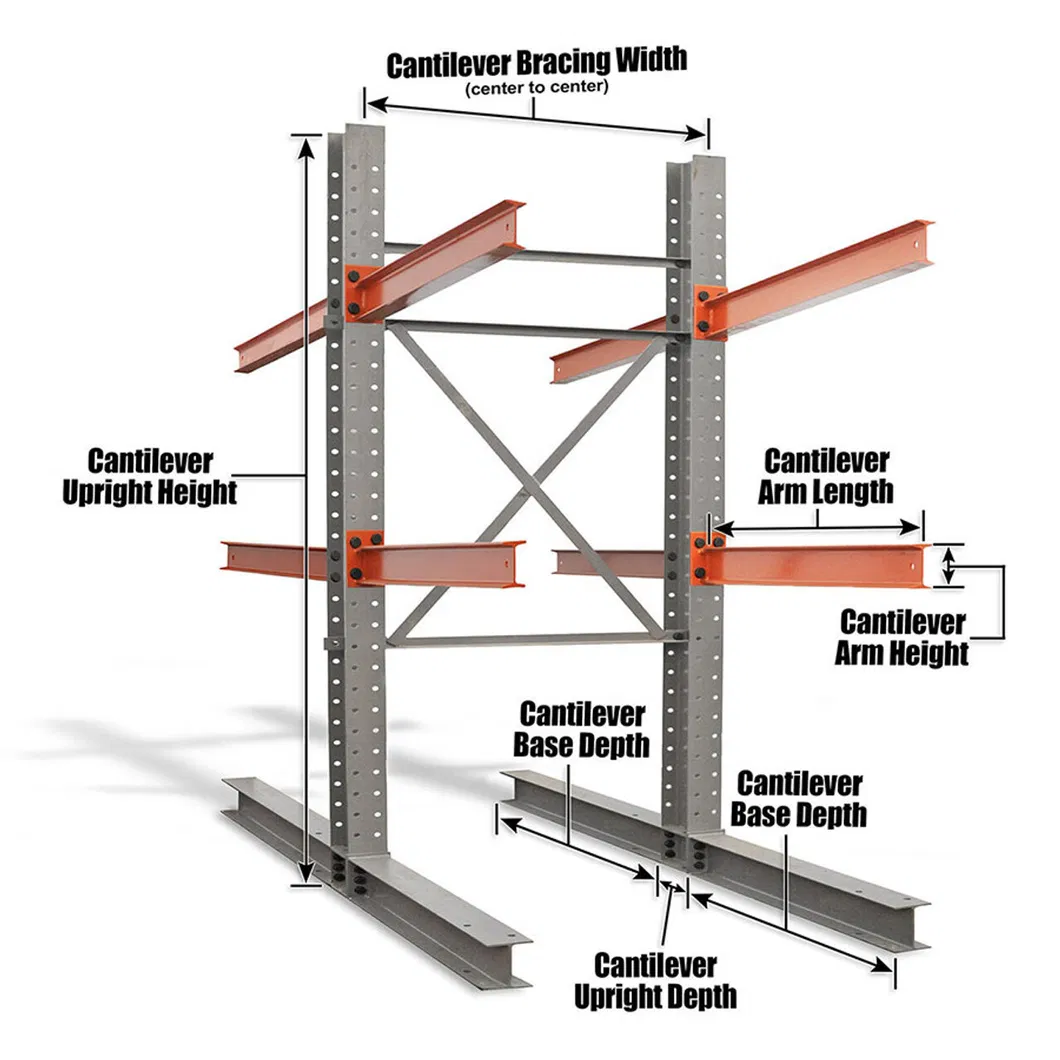

Specification
| Larm [in] |
Static Capacity [lbs] Cantilever Column Per Side |
| 36" |
40" |
48" |
60" |
| Hcolumn |
W9.7 |
| 8' |
14,000 |
14,000 |
14,000 |
14,000 |
| 12' |
13,000 |
13,000 |
13,000 |
12,000 |
| 16' |
12,000 |
12,000 |
12,000 |
10,000 |
| 20' |
12,000 |
12,000 |
11,000 |
8,300 |
| 24' |
8,800 |
6,600 |
- |
- |
| 28' |
2,720 |
- |
- |
- |
| Column height can be up to 32' |
| Larm [in] |
Cantilever Arm Static Capacity [lbs] |
| 36" |
40" |
48" |
60" |
| Arm 4" |
2,600 |
2,600 |
2,300 |
- |
| Arm 4.7" |
3,300 |
3,300 |
3,300 |
2,900 |
| Arm 5.5" |
3,900 |
3,900 |
3,900 |
3,900 |
Frequently Asked Questions
What is the production capacity for the storage racks?
The standard production capacity is approximately 20,000 tons per month.
What is the typical delivery timeframe for orders?
Delivery time typically ranges from 25 to 45 days. Depending on the final quantity, the most efficient production and delivery schedule will be calculated.
What specific types of racking products are available for export?
The primary export range includes: Selective Racking (teardrop and traditional), Cantilever Racking, ASRS systems (Radio Shuttle, Crane-based, and Four-way shuttle), Double Deep, Drive-in, VNA, Mezzanines, and various steel pallets (powder coated, galvanized, and hot-dipped galvanized).
What international trade and transaction terms are supported?
Standard terms such as EXW, FOB, and CIF are commonly provided. All standard international transaction configurations can be handled upon request.
What are the standard payment terms for orders?
Standard terms generally consist of a 50% T/T deposit in advance, with the remaining 50% T/T balance payable against the copy of the Bill of Lading (B/L). Customized payment conditions can be adjusted based on order value.
How are the components packaged to ensure safe international shipment?
Packaging forms depend on the type of goods and agreement terms. Materials used include corrugated paper, carton boxes, crossties, pallets, angle steel, plastic film, steel ties, and airbags to ensure maximum transit security.
