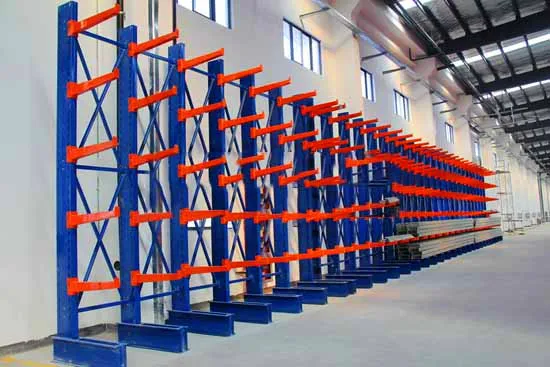

Heavy Duty Adjustable Industrial Steel Warehouse Storage Cantilever Racking

Product Description

Cantilever Rack / Medium Duty Cantilever Racks / Used Cantilever Racking
📦 Product Description

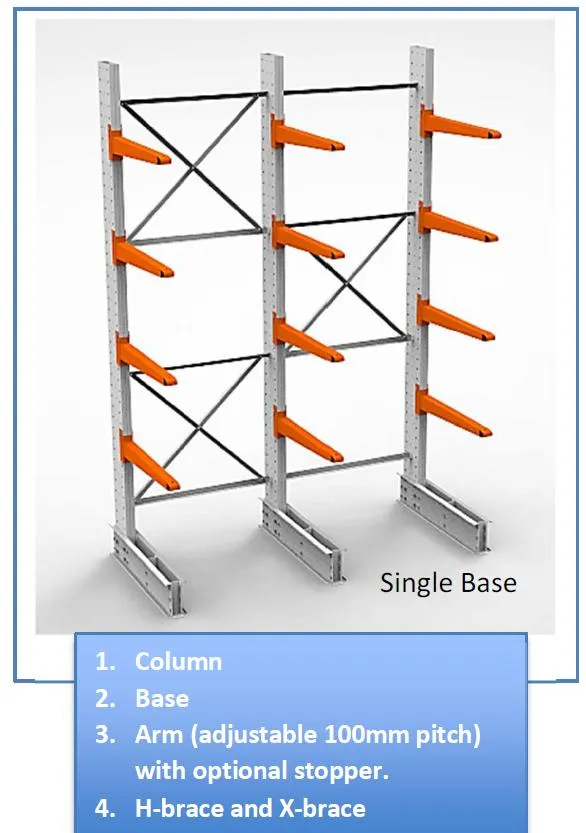

Light Load Cantilever
Light load cantilever system is best for storing long items where ceiling height is less than 3.5m and total load under 3000kg. Recommended arm length within 1000mm with load on each arm less than 400kg.
Heavy Duty Adjustable Industrial Steel Warehouse Storage Cantilever Racking Heavy Duty Adjustable Industrial Steel Warehouse Storage Cantilever Racking
Column
C200 x 60 hot dip pre-galvanised coil. Recommended maximum height 3500mm.

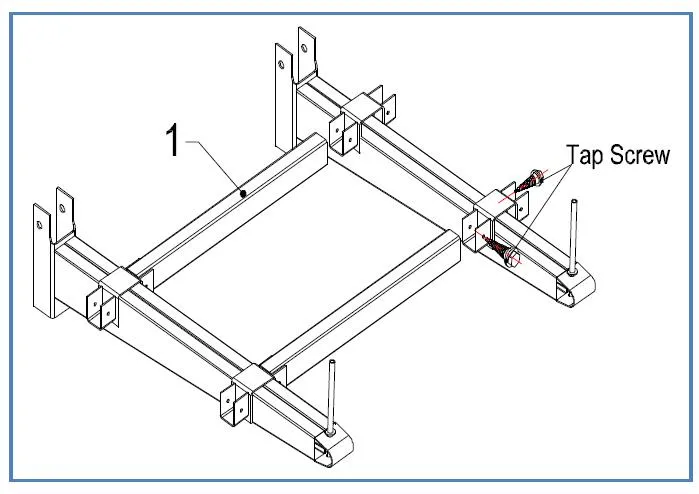

Base
Single-sided and Double-sided welded Base using hot dip pre-galvanised coil. Easy to assemble.

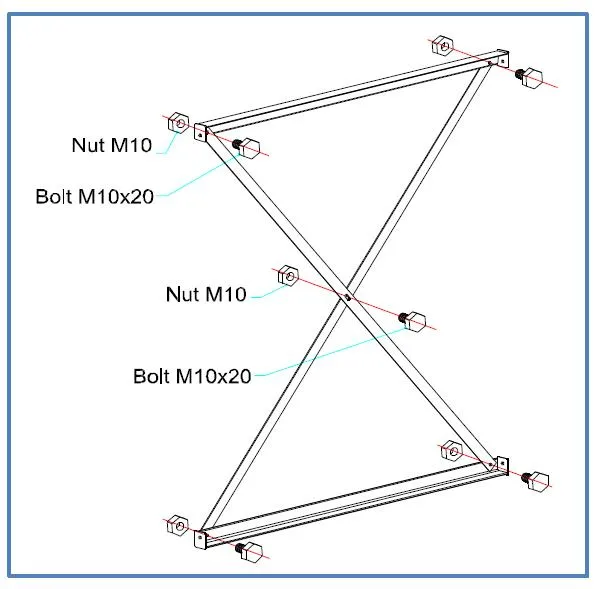

X-Brace Set
Bracing set consists of Horizontal and X-braces provides the necessary stability to the racks.
Finish (Column, Base and Bracing):
  • Pre-Galvanised (Pre-gal)
  • Powder Coated RAL 5015
Arm
There are 2 arm profiles:
  • C80x60
  • RHS100x50
Both weld with light duty bracket. End of arm can be bolted with an optional Stopper Plate if required.
Finish: Powder Coated RAL 2004
Heavy Duty Adjustable Industrial Steel Warehouse Storage Cantilever Racking

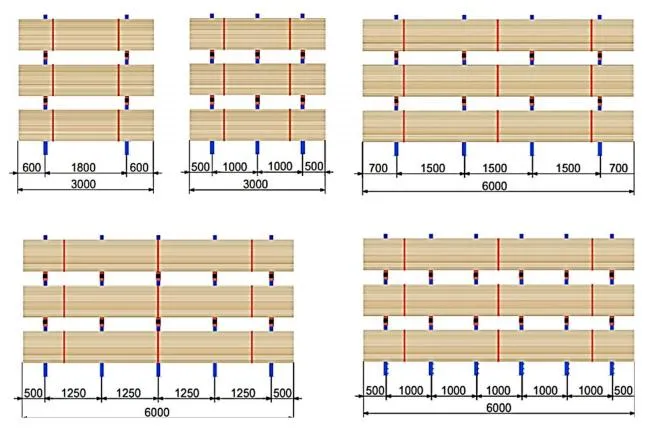

Safety Load Distribution
Uniformly distributed load on cantilever racks and arms is of paramount important to operational safety. The diagram below illustrates the concept of safety load distribution. Take note of the overhanging dimensions in each example.
Heavy Duty Adjustable Industrial Steel Warehouse Storage Cantilever Racking
Impact Safety Design
The rounded nose design at the tip of the arm together with the single-round-pin bracket, provide the arm with a free uplift motion for accidental uplift by forklift. This safety feature greatly reduces possible damages to the cantilever structure in daily operation. Only medium and heavy load cantilever models provide this safety feature.
Heavy Duty Adjustable Industrial Steel Warehouse Storage Cantilever Racking

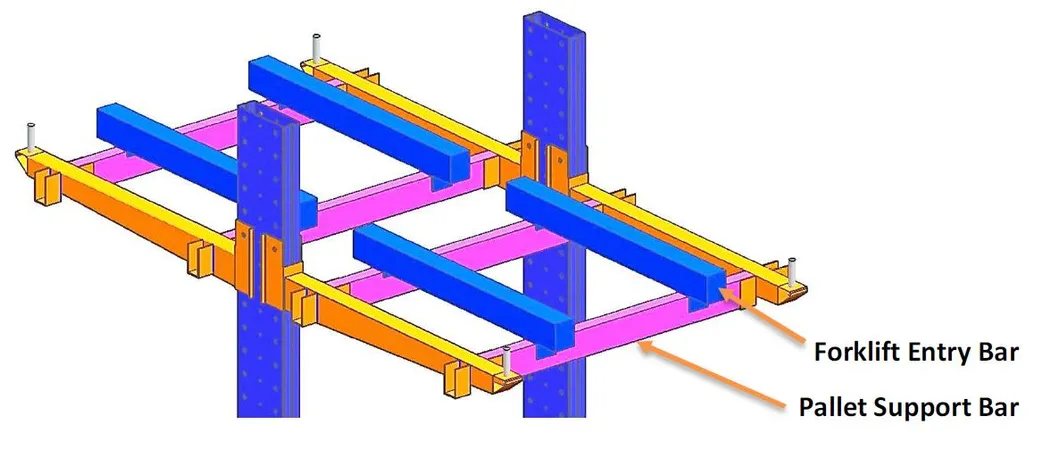

Pallet Support Bar
Cantilever Racks can also store pallets. This is achieved by adding Pallet Support Bars on the arms. Each pallet support is rested on a pair of Saddles as shown in the diagram.
Heavy Duty Adjustable Industrial Steel Warehouse Storage Cantilever Racking
Heavy Duty Adjustable Industrial Steel Warehouse Storage Cantilever Racking
Heavy Duty Adjustable Industrial Steel Warehouse Storage Cantilever Racking

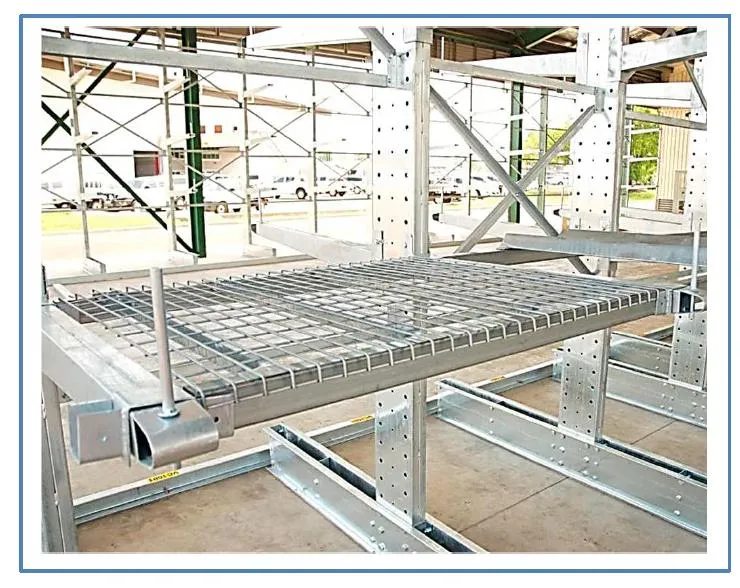

Storage levels at lower storage levels can be converted into "Manual Picking" by adding Wire Mesh Decking.
Heavy Duty Adjustable Industrial Steel Warehouse Storage Cantilever Racking
🏭 Facility Gallery
Facility Image 1
Facility Image 2
Facility Image 3
Facility Image 4
Facility Image 5
Facility Image 6
Facility Image 7
Facility Image 8
💬 FAQ
Q What factors set your storage solutions apart from standard alternatives?

Excellent Service: We ensure quick, hassle-free quotations, with guaranteed replies within 24 hours. Export support is also available for immediate consultation.

Quick Production Time: Standard orders are typically processed and produced within 15 days, adhering strictly to contractual schedules.

Advanced Export Design: We utilize specialized export packaging, including protective plastic clips on the beams to prevent surface damage and transparent plastic wrap for all uprights.

Warranty Standards: Our designs meet strict industrial manufacturing standards, backed by a 10-year warranty for normal operational use.

Q What are the standard delivery timeframes?
Delivery timeframes depend strictly on the type of product. Standard systems are typically delivered within 20 days. Custom solutions are scheduled based on the timeframe required for setting up customized tooling.
Q What payment methods do you support?
We accept T/T (Telegraphic Transfer) and L/C (Letter of Credit) payments.
Q Can I obtain production updates on my order status?
Yes. We provide complete updates, including images and documentation, from various stages of the manufacturing process to ensure transparency.
Q Are physical product samples available for verification?
Yes, we can arrange and ship material sections as samples via express courier for your reference.
Q Are custom OEM and ODM services supported?
Yes. Complete OEM and ODM services are available to accommodate custom technical specifications. Please submit your request to receive a custom design option.
