Industrial Heavy Duty Storage Shelves System Metal Rack Stacking Units Warehouse Pallet Racking

Product Description

Overview & Scope

Established in July 2012, our production facility spans an extensive area of over 15,000 square meters, fully equipped with advanced manufacturing systems to handle large-scale demands.

Business Scope: Specializing in the manufacture of heavy-duty warehouse shelves, mezzanine floors, mobile racking systems, mold racks, stacking frames, wire mesh decking, supermarket display shelves, domestic organizers, steel dormitory bunk beds, automated storage and retrieval systems (AS/RS), and narrow aisle shelving structures.

15,000+ ㎡ Factory Area
200+ Production Personnel & Equipment Units
Our Core Product Series
Mezzanine Rack
Cantilever Rack
Heavy Duty Rack
Medium Duty Rack
Light Duty Rack
Supermarket Shelves
Dormitory bunk beds
Anti static workbench
Attic shelves
Pallet racking
Pallet Racking Classifications
steel pallet racking warehouse pallet rack pallet rack system pallet racking industrial pallet rack shelving heavy duty pallet rack industrial pallet racking
Technical Specifications & Notes
1
Fully assembled structural design. Offers custom combinations for simple, flexible installation and modular disassembly.
2
Columns are manufactured from premium hot-rolled steel plates folded at multiple structural angles, ensuring a high loading capacity.
3

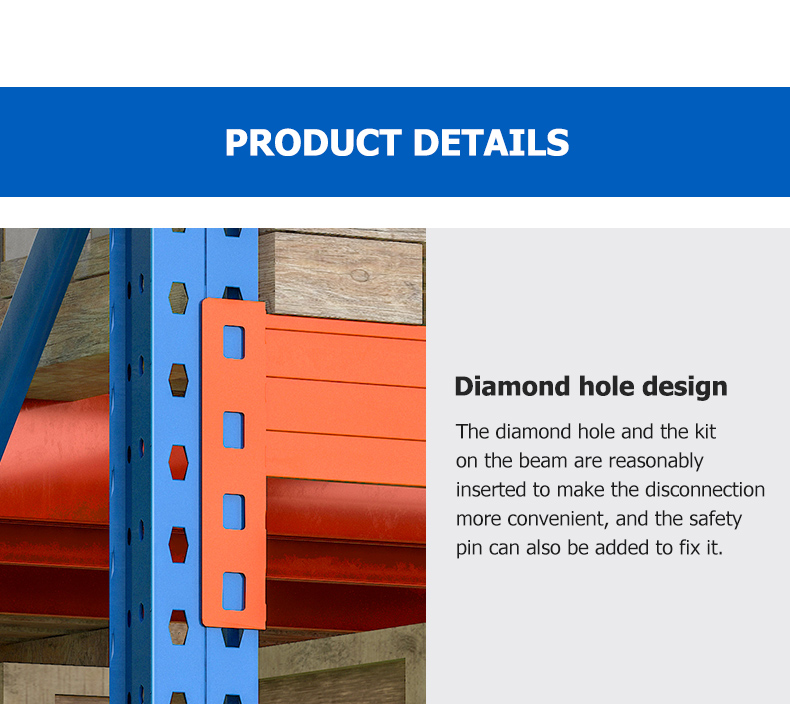

Columns feature prefabricated elements, linking beams via heavy-duty steel connector buckles, locked with security pins to avoid accidental dislodgement.
4
Columns feature adjustable slot pitch steps of 75mm, allowing vertical levels to adjust based on dynamic cargo profiles.
5
Ideal for high-altitude vertical material storage, maximizing warehouse spatial efficiency. Integrates perfectly with forklifts or stacker cranes.
6
Engineered for heavy loads, achieving up to 5000kg load-bearing capacity per layer (custom configurations available).
7
Advanced surface protection (color): different sections are finished with premium, durable powder coating in variable high-visibility colors.
8
Fully compliant and certified to international quality standards including CE and ISO certification.
Product & Application Gallery
Storage Rack Option 1
Storage Rack Option 2
Storage Rack Option 3
Storage Rack Option 4
Storage Rack Option 5
Storage Rack Option 6
Storage Rack Option 7
Storage Rack Option 8
Storage Rack Option 9
Storage Rack Option 10
System Detail 1
System Detail 2
System Detail 3
System Detail 4
System Detail 5
System Detail 6
System Detail 7
System Detail 8
System Detail 9
System Detail 10
System Detail 11
System Detail 12
System Detail 13
System Detail 14
Frequently Asked Questions (FAQ)
Q: What is the load capacity of your heavy-duty pallet racking?
A: The maximum loading weight can reach up to 5000kg per layer, depending on your custom layout specifications and thickness requirements.
Q: Are the rack shelf levels adjustable?
A: Yes, our storage columns have pre-punched adjusting slots every 75mm, making it simple to alter the layout configuration according to product size.
Q: What quality standards do your racking products comply with?
A: All our storage racking products hold full CE and ISO certification compliance, validating safe global application.
Q: How is the structure prevented from collapsing or slipping?
A: We utilize heavy-duty metal connection buckles combined with safety pins/keys that securely lock the beams and columns together.
Q: Is welding required for assembling these racks?
A: No, our structures feature a fully boltless and assembled configuration, making installation and teardown quick, simple, and clean.
