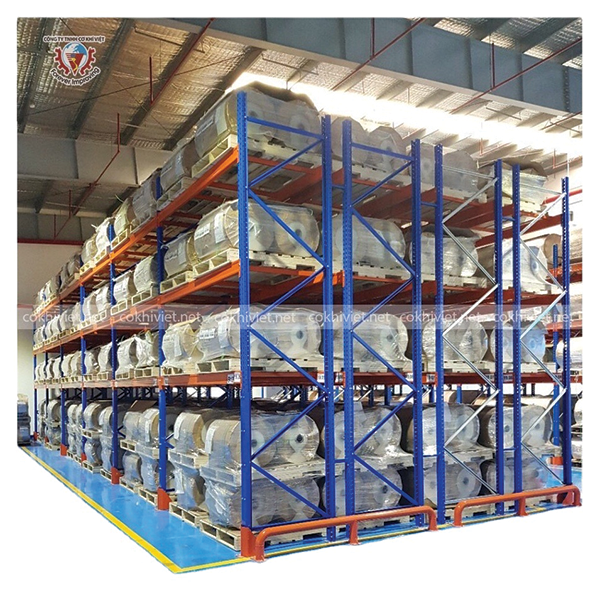

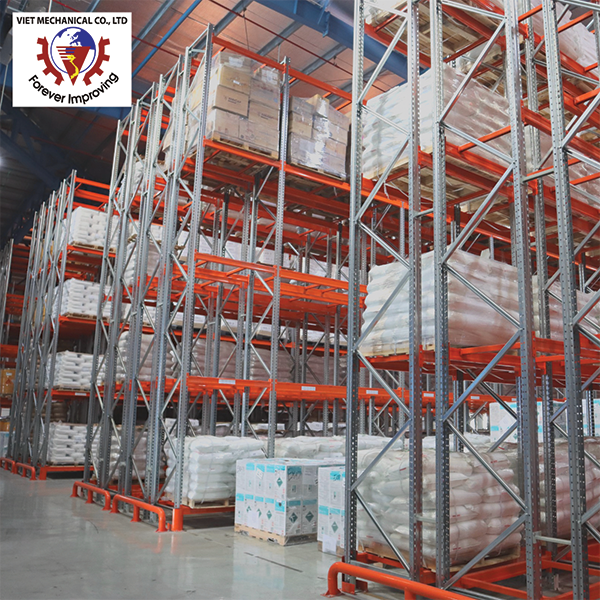

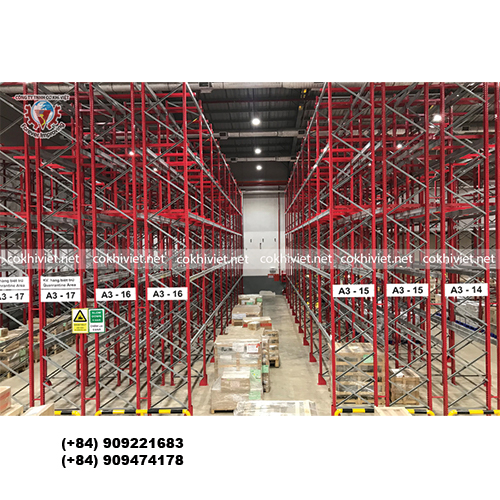

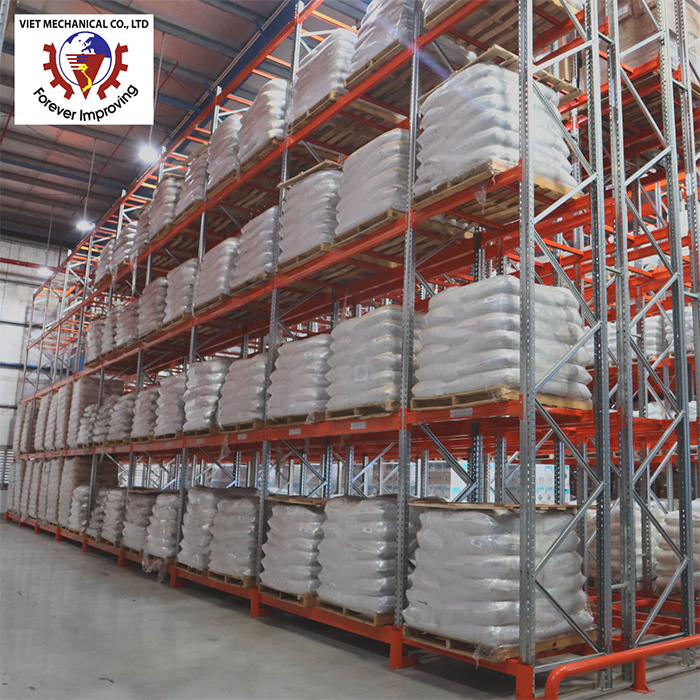

Heavy Duty Pallet Rack Teardrop Double Deep Warehouse Pallet Racking Storage System Made in Vietnam

Product Description

Overview

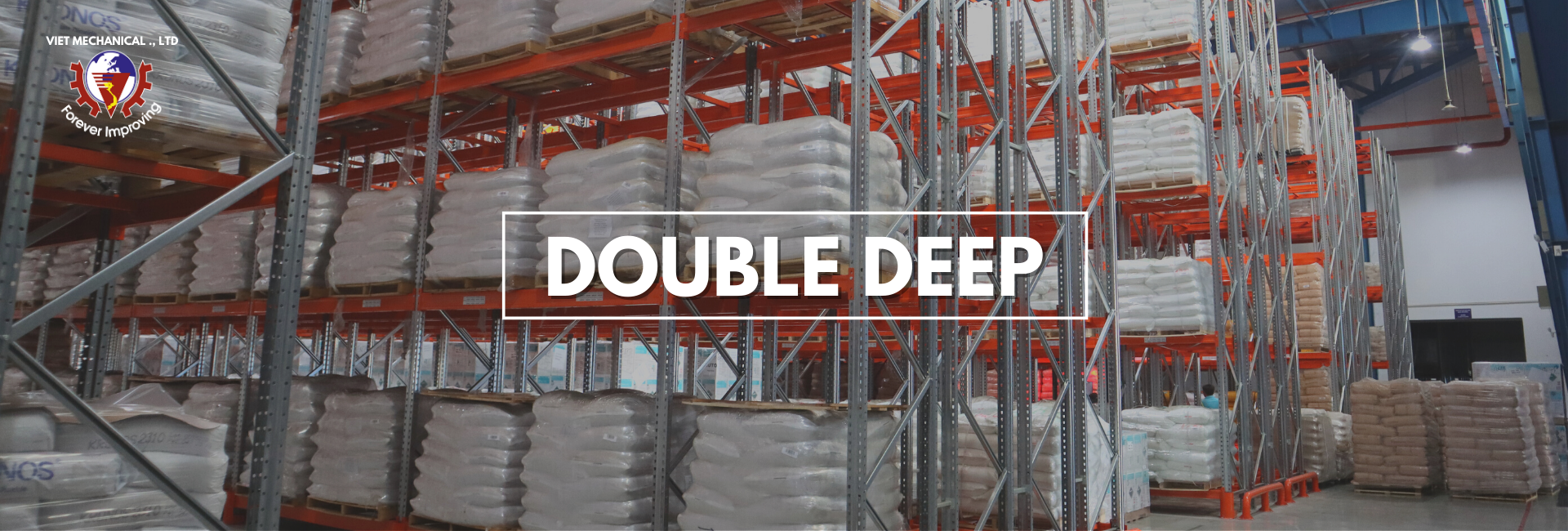

Pallet Racking System Detail 1 Pallet Racking System Detail 2
American Standard Teardrop Pallet Racking

Teardrop pallet racking offers easy access to each pallet, enhancing inventory management and versatility. The upright frame is an essential part of the pallet rack structure. We supply upright frame columns in multiple sizes and thicknesses, catering to various load capacities to meet your specific needs. Our teardrop beam-to-column connection is designed to integrate smoothly with other widely used teardrop systems.

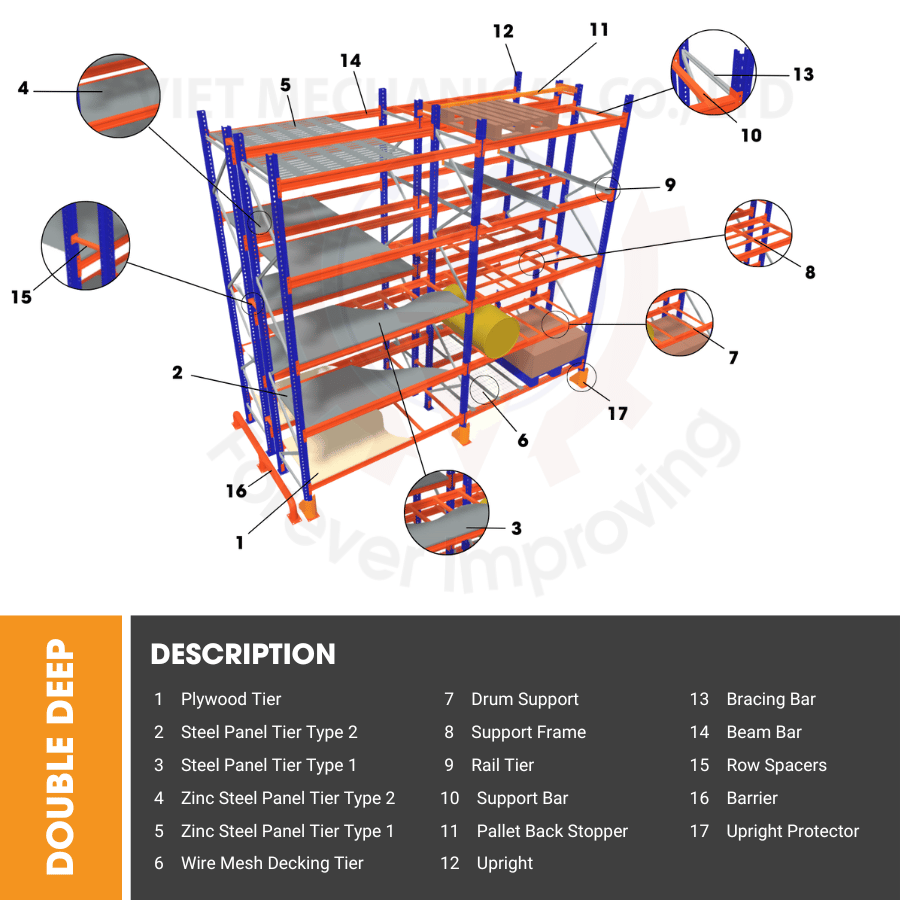

Pallet Racking Structure Design
Specifications
Model Number PALLET RACK TEARDROP Frame Structure Type 3"*3" (76.2 * 76.2 mm) Bolted Upright frame with Baseplate
Depth 1.5 - 2.6mm - Customized
0.059" - 0.102" - Customized
Beam Type 100-110-120-130 ... 180mm Box beam
(3.94" - 4.33" - 4.72" - 5.12" ... 7.09" Box beam)
Weight Capacity 5.000 - 25.000kg (11023 - 11339lb) Beam Connector Type Safety Locker
Width 800 mm-1m2 (31" - 47") Surface finish Powder coating & Galvanized
Height 2 - 12m (78" - 472") Frame Punch Whole Type Pitch 2" ( 50.8mm )
Key Features
  • Easy beam installation with no special tools or training required.
  • Durable powder coating and baked enamel finishes ensure long life even under the most demanding conditions.
  • Beam and column locking system provides exceptional protection against damage, tampering, and accidental disengagement.
Certifications & Production Standards
Product Certifications Production Standards
Packing & Delivery

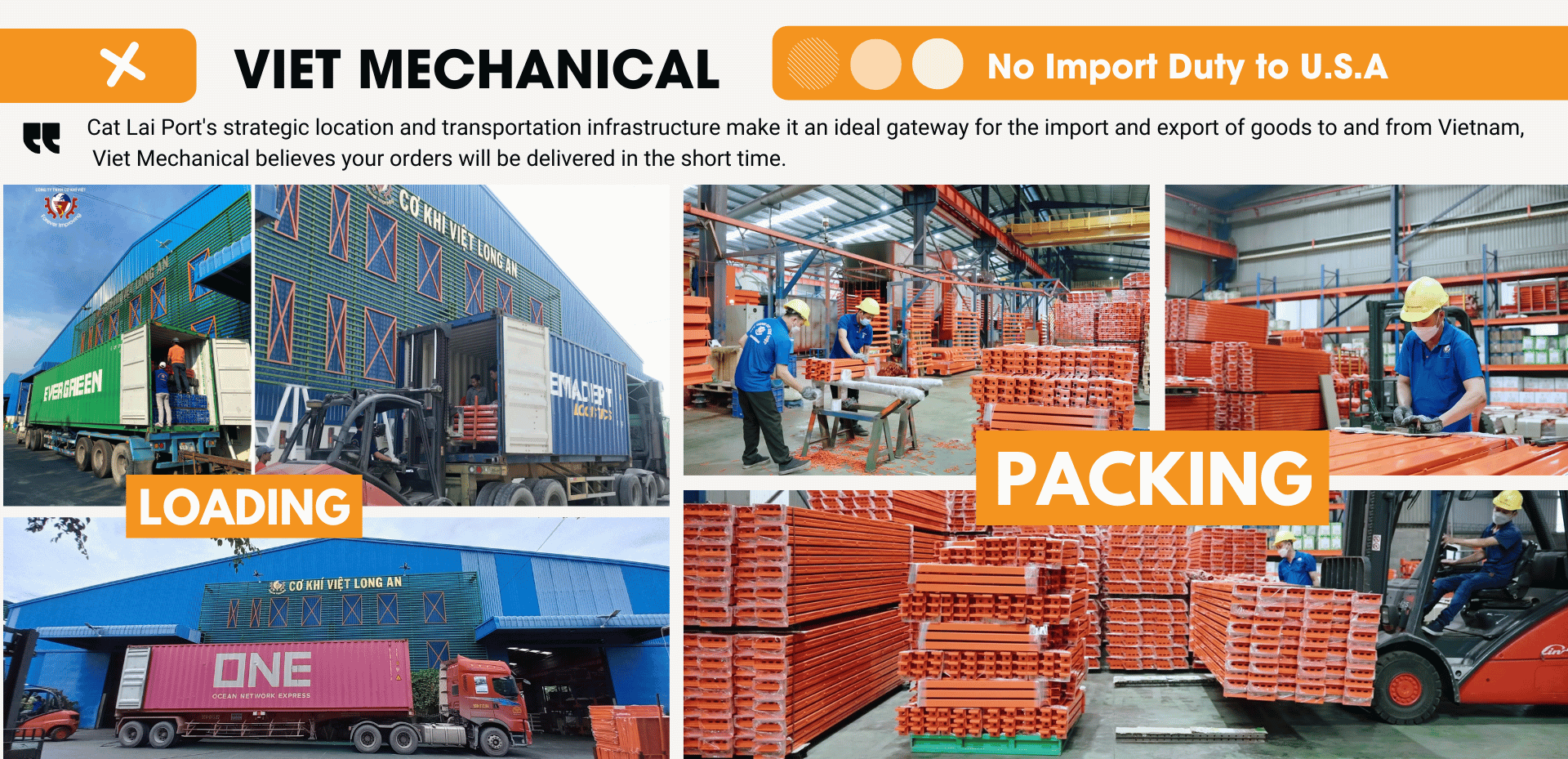

Packaging Process Delivery Loading
Inquiries
Contact Us Banner
Contact online customer service, Get the latest product catalog!

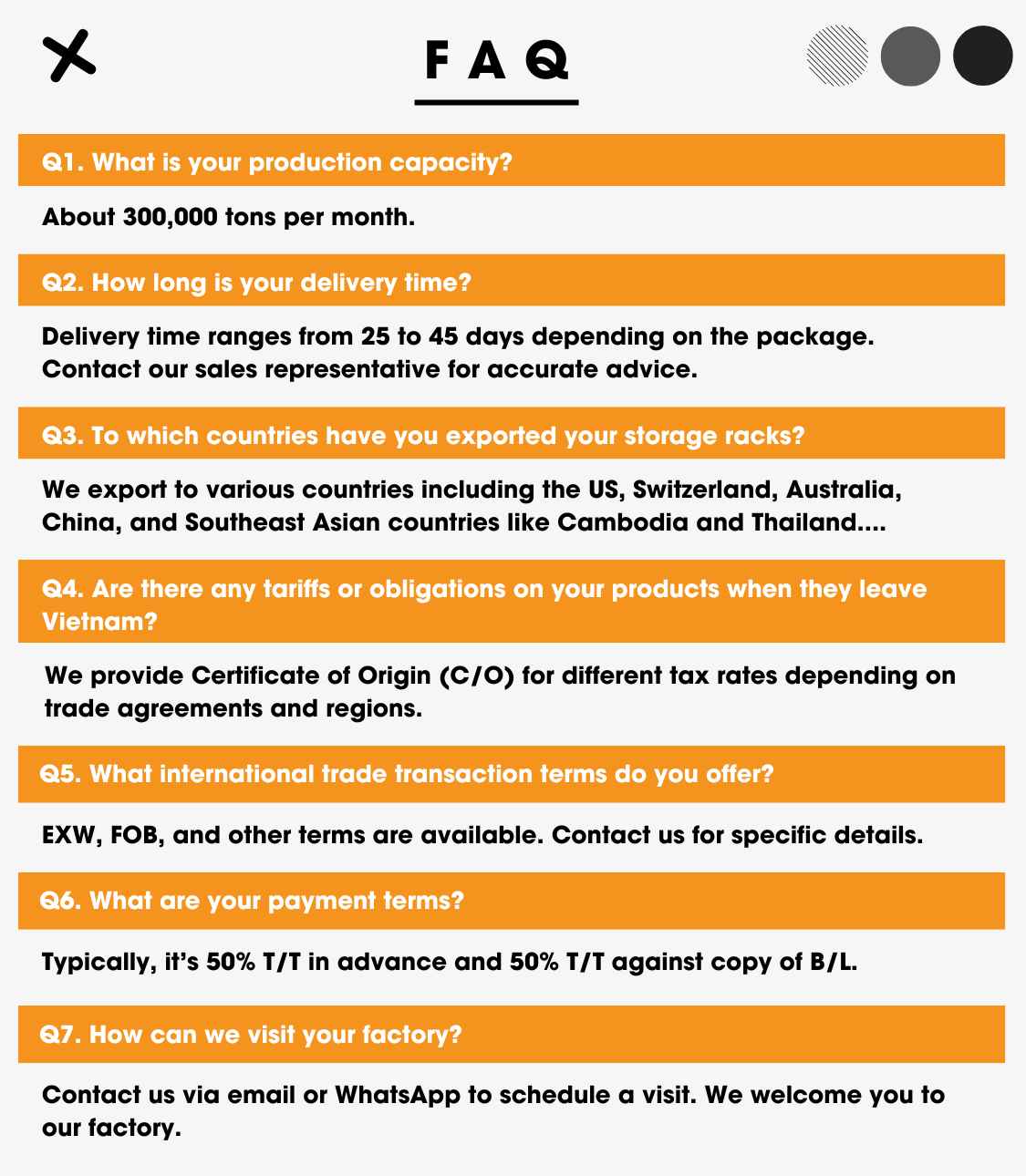

FAQ Overview
Frequently Asked Questions
Q: What is American Standard Teardrop Pallet Racking?

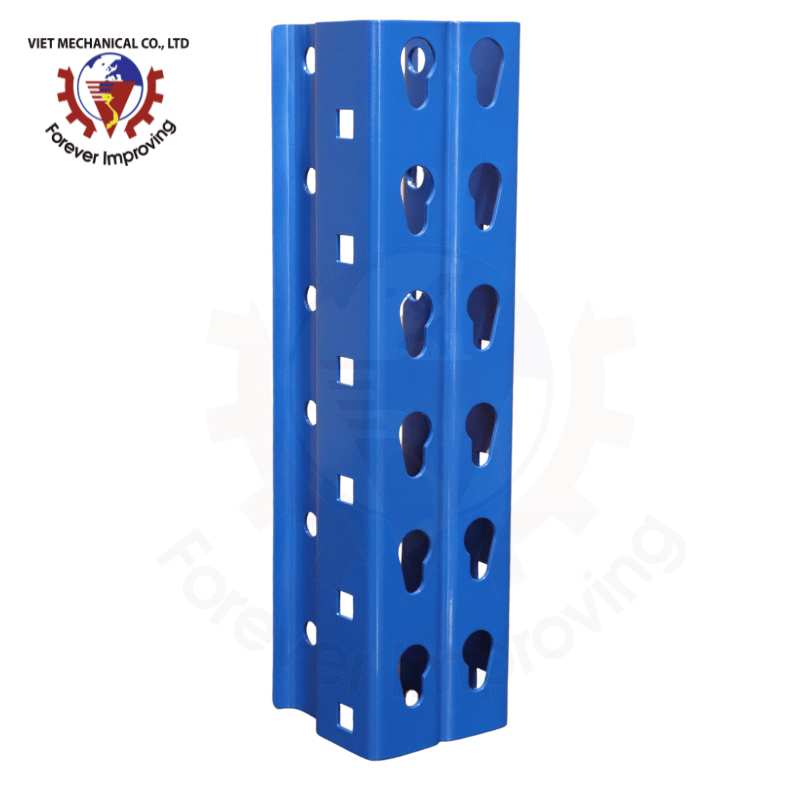

A: It is the most popular style of industrial storage rack system. The upright frames feature teardrop-shaped punch holes spaced at 2-inch intervals, allowing beams to lock securely in place without tools.
Q: Is this teardrop racking system compatible with other brands?
A: Yes, our teardrop connection design is universally compatible, meaning it can be seamlessly integrated with most other standard teardrop racking configurations on the market.
Q: What weight capacities can these racking systems support?
A: The weight capacity ranges from 5,000kg to 25,000kg (approximately 11,023 to 55,115 lbs) per frame, depending on the thickness and configuration selected.
Q: Do I need special tools to adjust or install the beams?
A: No special tools are required. The tool-free slide-in mechanism allows you to reposition or install the box beams easily by engaging the safety locker pins.
Q: What surface finishes are available for the racking?
A: We offer durable electrostatic powder coating and hot-dip galvanized finishes to provide maximum resistance to scratches, corrosion, and challenging warehouse conditions.
Q: Can dimensions and loading capacities be customized?
A: Absolutely. Upright frame depths (from 1.5mm to 2.6mm thickness) and heights (up to 12m) can be fully customized to meet your specific space layout and loading weight requirements.
