Basic Info
Usage
Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack
Serviceability
for Special Purpose
Used Scene
Pallet Density Storage, Cold Warehouse
Load/Unload
Forklift or Forklift Agv
Design
Pallet Size and Weight , Warehouse Size
Surface
Powder Coating or Galvanizing
Production Capacity
10000 Sets/Year
Product Description

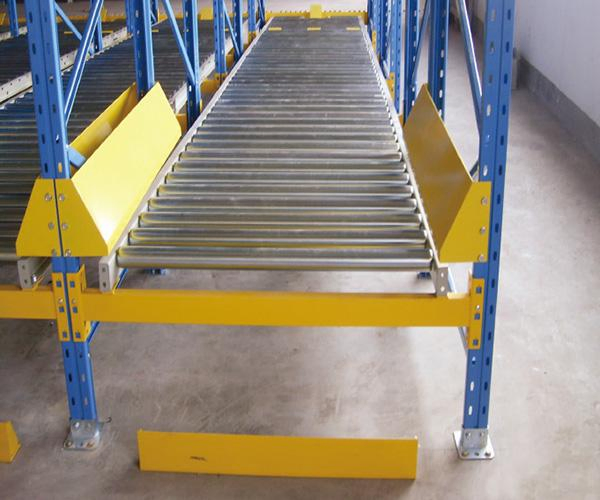

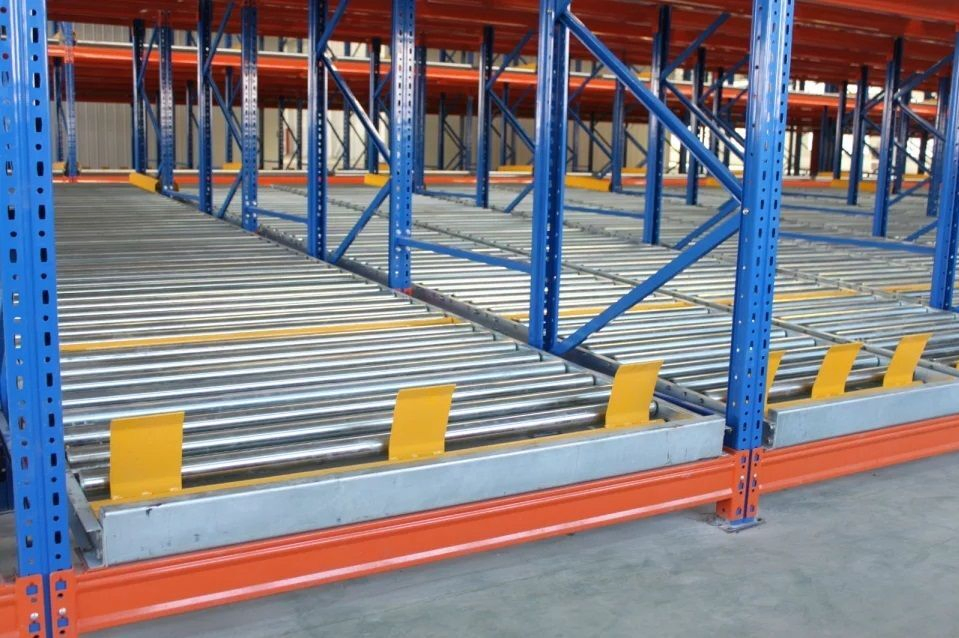

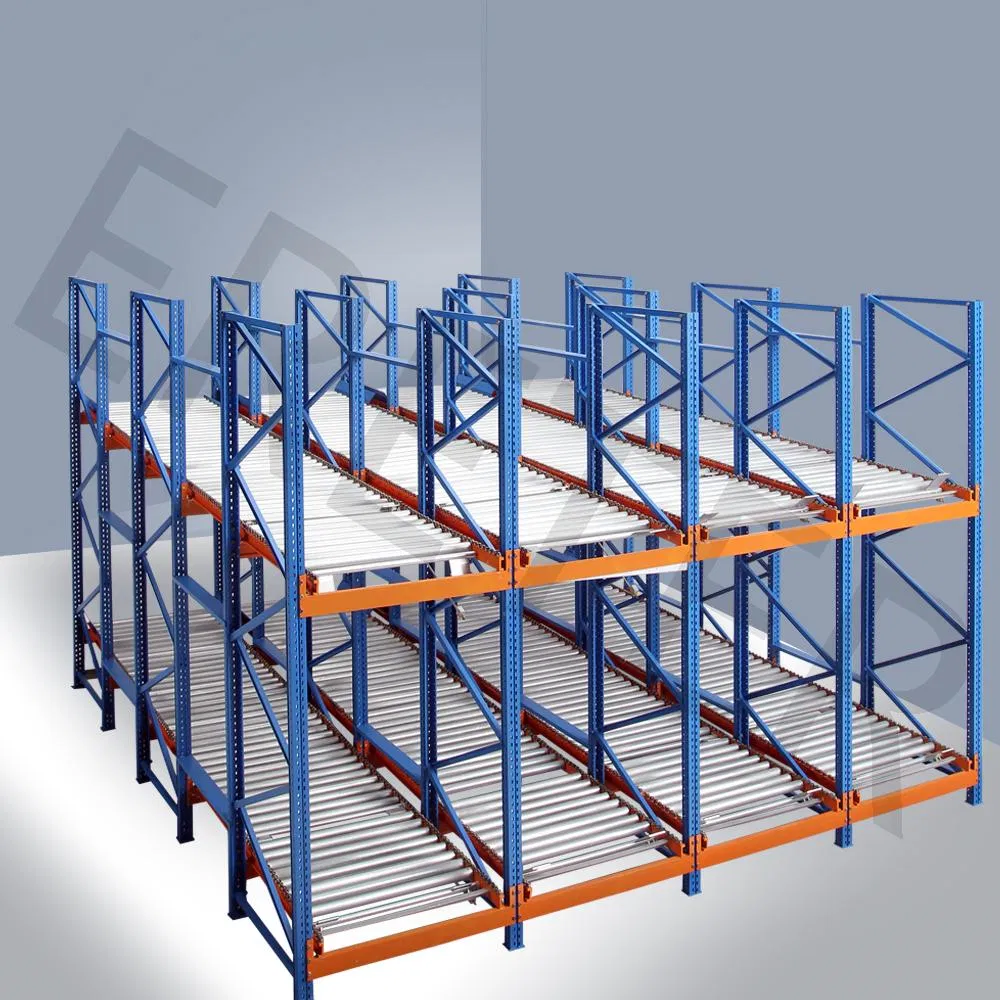

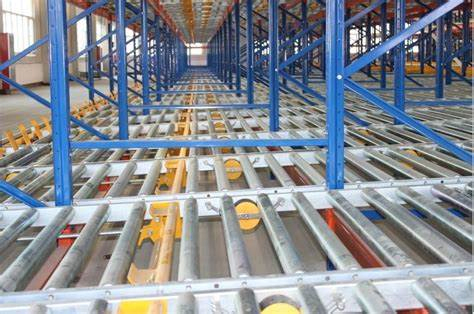

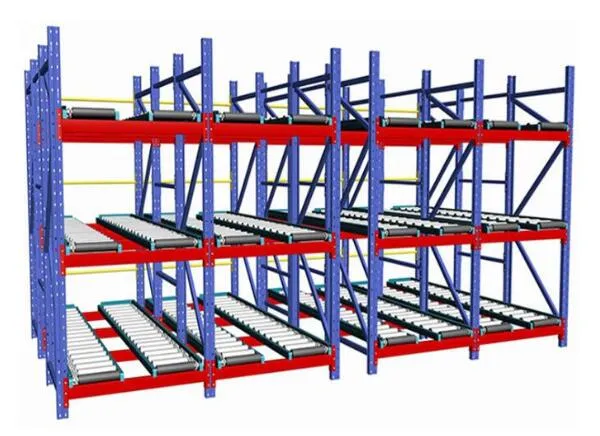

Gravity Flow Racking is an innovative, high-density, dynamic storage solution engineered for exceptional FIFO (First-In, First-Out) inventory management. The system utilizes inclined roller tracks, enabling goods to glide seamlessly from the loading end to the picking end, powered by gravity. This reduces manual handling and significantly optimizes order-picking efficiency.

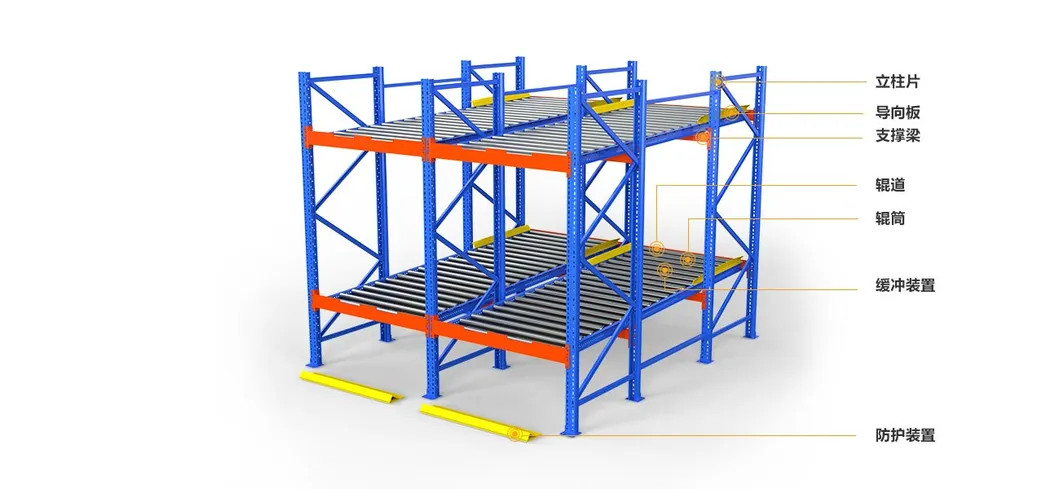

1. Structural Design
-
Core Components:

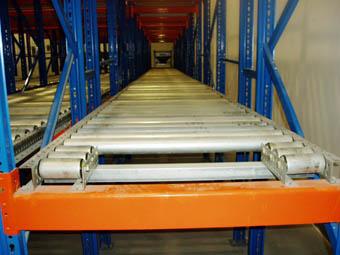

- Roller Tracks: Comprises inclined steel or polymer rollers with low-friction bearings, ensuring smooth, consistent movement.
- Frame Structure: Constructed with robust steel uprights and beams, providing unwavering support for roller tracks and pallet loads.
- Braking System: Equipped with speed controllers or wheel brakes to meticulously regulate item movement.
- Loading/Unloading Zones: Features dedicated entry (higher end) and exit (lower end) points for streamlined workflow optimization.
-
Material:
- Utilizes galvanized or powder-coated steel for superior corrosion resistance, ensuring longevity.
- Rollers crafted from durable nylon, polyurethane, or steel, offering reliability under various conditions.
2. Key Advantages
- High-Density Storage: Expertly maximizes warehouse space by eliminating aisle gaps, ideal for storing homogeneous SKUs efficiently.
- FIFO Compliance: Automatically ensures stock rotation, crucial for managing perishable goods or time-sensitive products effectively.
- Labor Efficiency: Experience a revolutionized operational pace by cutting down forklift travel and manual picking time by an impressive 50%, streamlining warehouse operations for maximum productivity.
- Scalability: With its versatile modular design, effortlessly expand or reconfigure your storage system to adapt to the ever-changing demands of your business, ensuring long-term efficiency and adaptability.
- Safety: Engineered for peace of mind, our system features roller brakes to prevent collisions and sturdy guardrails to maintain load stability, safeguarding both your inventory and your personnel.
3. Applications
- Food & Beverage: Perfectly suited for cold storage of perishables such as dairy and meats, ensuring freshness and quality are preserved from storage to delivery.
- E-commerce Fulfillment: Optimized for high-speed picking of small to medium parcels, facilitating seamless and swift order processing to meet customer expectations.
- Automotive: Efficiently stores essential components like tires, batteries, and parts kits, maintaining organization and accessibility in a fast-paced automotive environment.
- Pharmaceuticals: Enables precise FIFO management of medicines, crucial for monitoring expiration dates and maintaining compliance with industry standards.
- Retail Distribution: Supports rapid replenishment of high-turnover items, elevating inventory management and customer satisfaction in bustling retail settings.
4. Technical Specifications
| Parameter |
Specification |
| Load Capacity |
Accommodates 500-2,000 kg per lane, customizable to your design needs, offering a robust solution for diverse storage requirements. |
| Roller Pitch |
Adjustable 75-150 mm to fit various carton or pallet sizes, ensuring smooth and efficient flow regardless of load dimensions. |
| Incline Angle |
3°-7°, thoughtfully optimized for a seamless gravity flow, balancing speed and safety. |
| System Height |
Customizable from 2-12 meters, providing flexibility to maximize vertical space and optimize your warehouse layout. |
| Compliance |
Meets strict FEM 10.2.02, OSHA, or ISO standards, affirming our commitment to top-tier safety and operational excellence. |
5. Types of Flow Racking
| Type |
Features |
Use Case |
| Carton Flow Racking |
Tailored for boxed items, with rollers strategically spaced for small SKUs. |
Excels in retail warehouses and pharmacies. |

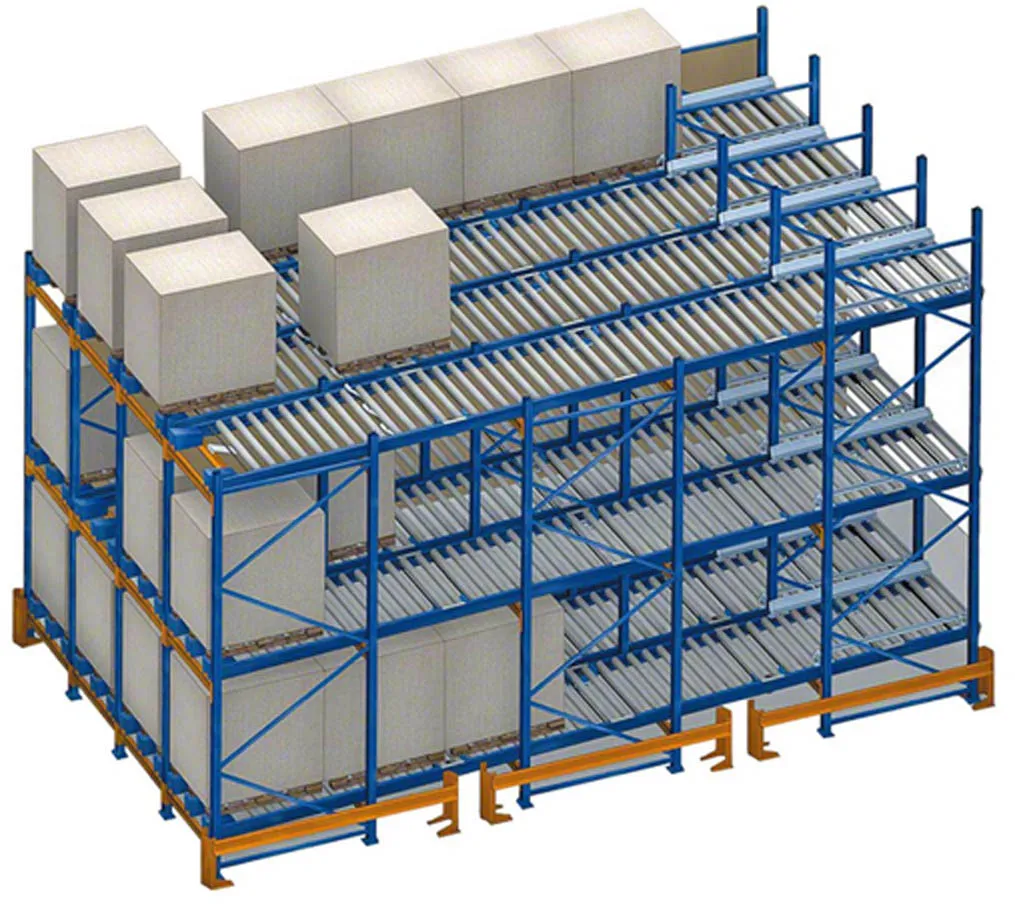

| Pallet Flow Racking |
Equipped with heavy-duty rollers designed for full pallet loads, ensuring robust performance. |
Ideal for bulk storage in the beverage industry. |
| Hybrid Systems |
An innovative blend of flow lanes and static shelving. |
Ideal for mixed inventory environments, offering versatile storage solutions. |
6. Installation & Safety Guidelines
- Floor Preparation: Ensure your flooring is level to sustain consistent incline angles, a critical factor for optimal system performance.
- Load Testing: Conduct thorough tests to verify roller speed and braking efficiency, ensuring safe and effective operation before full deployment.
-
Safety Features:
- Install robust guardrails at picking ends to protect workers and products.
- Utilize advanced photoelectric sensors to alert operators of empty lanes, enhancing operational awareness and efficiency.
-
Maintenance:
- Perform annual roller lubrication to maintain smooth operation and extend equipment lifespan.
- Conduct quarterly inspections of alignment and braking systems to ensure continued safety and performance.
7. Comparison with Static Shelving
| Feature |
Gravity Flow Racking |
Static Shelving |
| Space Utilization |
Achieves high-density storage by eliminating aisles, maximizing space efficiency and storage capacity. |
Requires aisles for access, limiting space utilization. |
| Workflow |
Automates FIFO processes for streamlined operations, enhancing efficiency and accuracy. |
Relies on manual FIFO or LIFO management, potentially hindering workflow efficiency. |
| Labor Cost |
Reduced significantly (optimized picking time). |
Higher (due to manual handling). |
| Initial Investment |
Higher (due to complex, robust installation). |
Lower (thanks to a simplistic structure). |
Frequently Asked Questions
What is a Gravity Flow Racking system and how does it work?
Gravity Flow Racking is a high-density storage system featuring inclined roller tracks. Pallets or cartons are loaded from the higher end and glide smoothly down to the picking end using gravity, facilitating an automatic First-In, First-Out (FIFO) workflow.
What are the primary differences between Carton Flow and Pallet Flow Racking?
Carton Flow Racking is specifically engineered for smaller boxed items and utilizes small-pitch rollers, making it ideal for retail and pharmaceuticals. Pallet Flow Racking is built with heavy-duty rollers to manage full, heavy pallet loads, commonly used in bulk beverage or cold warehouse storage.
What is the standard load capacity of these gravity systems?
The load capacity typically ranges from 500 kg up to 2,000 kg per lane. It is highly customizable to match the structural constraints of your specific pallet size, weight, and layout requirements.
How does this system improve warehouse safety?
Our gravity flow systems are equipped with integrated speed controllers or roller brakes to prevent speed runaway and potential collisions. Additionally, heavy-duty guardrails at the picking zones and photoelectric sensors ensure load stability and ease of operations.
What maintenance is required to keep the system running efficiently?
To sustain maximum performance, we recommend annual lubrication of the rollers and bearings, along with quarterly inspections of alignment, frame integrity, and safety braking systems.
