Tailored Storage Solutions

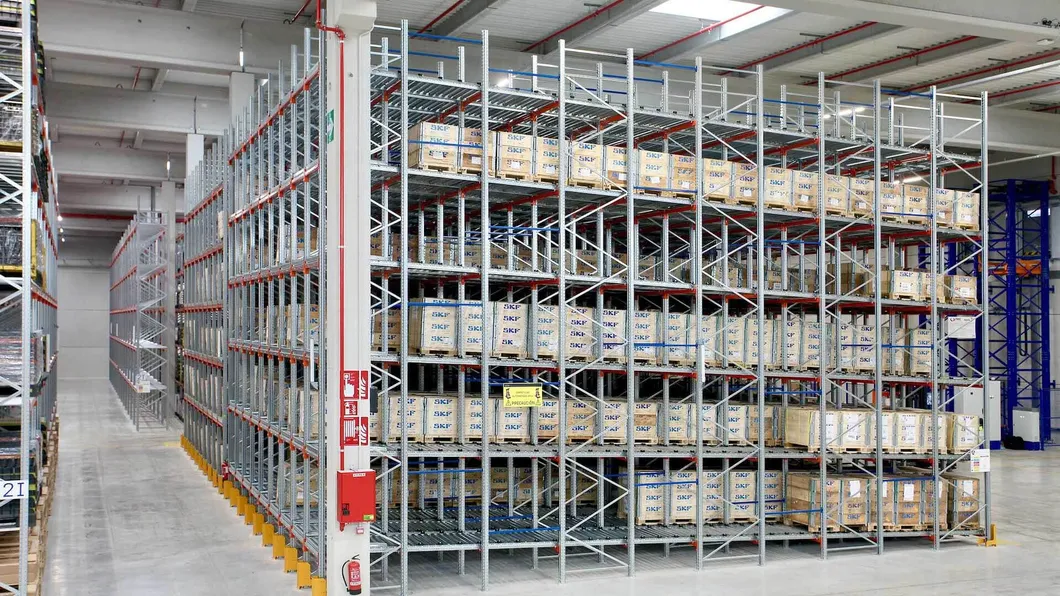

Whatever you need, we have all the products and solutions to make the most out of every section of available space in your storage area. If you don't know what you're looking for, just contact us.Pallet Flow Racking system (Live Storage FIFO) is ideal for warehouses where stock turnover control and space saving are critical. It consists of a compact structure where each level has linear roller beds that allow the load units to slide easily thanks to a slight inclination. It is a high-density storage system perfect for storing homogeneous pallets.

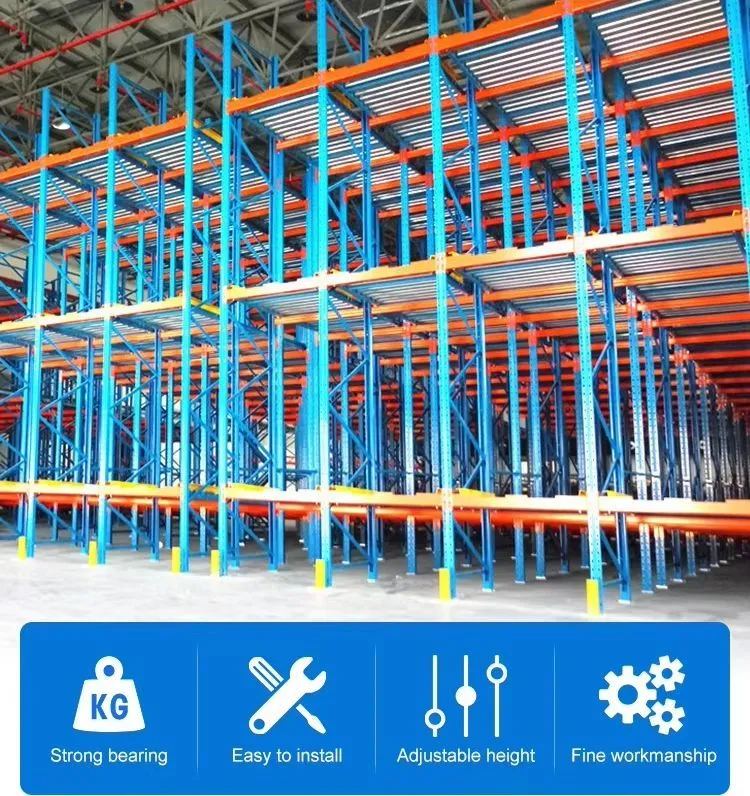

Saves Labor and Improves Work Efficiency: Fluent shelves are high-density dynamic storage systems that increase flexibility and maintain the First-In / First-Out product flow from the stocking aisle to the picking aisle, therefore increasing efficiency. Fluent shelf permits dense storage by eliminating all aisles except the entrance and exit aisles.

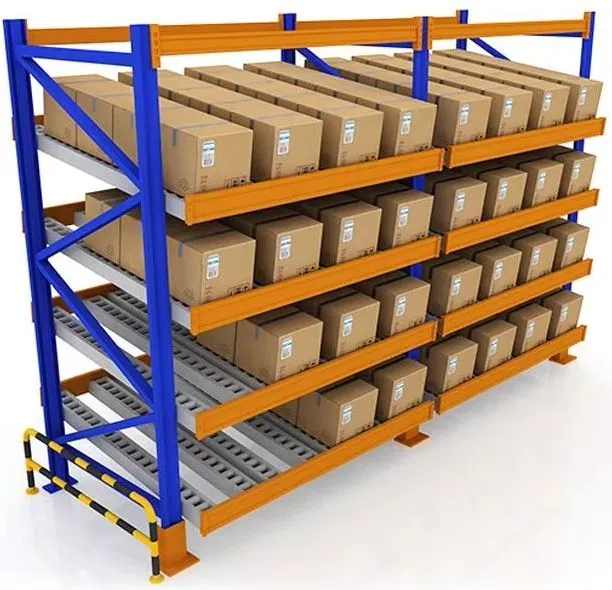

Exceptional Use of Space: Suitable for mass storage of similar goods, with plastic or carton use, high space utilization rate, widely used in manufacturing, commercial, assembly workshops, and warehouses with high delivery frequency.

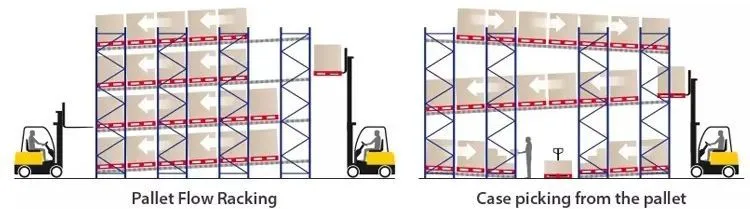

Working Principle: The incline allows gravity to glide goods effortlessly down the flow lanes.
| Category | Details |
|---|---|
| Dimensions |
1000mm (1 lane) 2000mm (2 lanes) 3600mm (3 lanes) Block Height: Up to 13500mm Channel Depth: Up to 15 pallets deep |
| Loading | Pallet Weight: Up to 1500kg |
| Finish |
Uprights: Pre-galvanized Beams: Pre-galvanized or painted Accessories: Pre-galvanized or painted |
| Can be customized to your requirements | |
As a general rule, live storage is a compact storage system that uses the force of gravity to store unit loads. There are live storage systems for both FIFO (First In, First Out) and LIFO (Last In, First Out) warehouse management. These systems cater to heavy loads (pallets) and light loads (cartons).

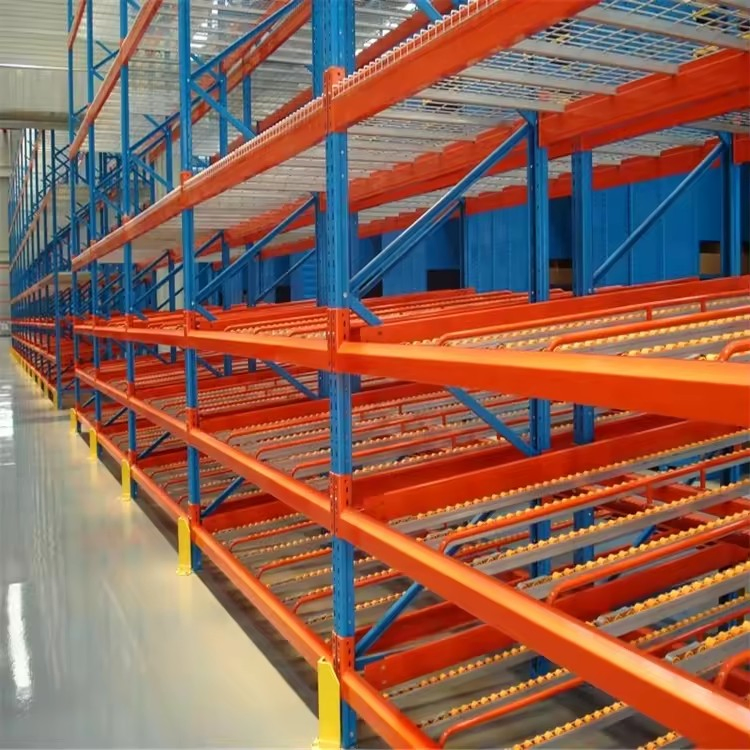

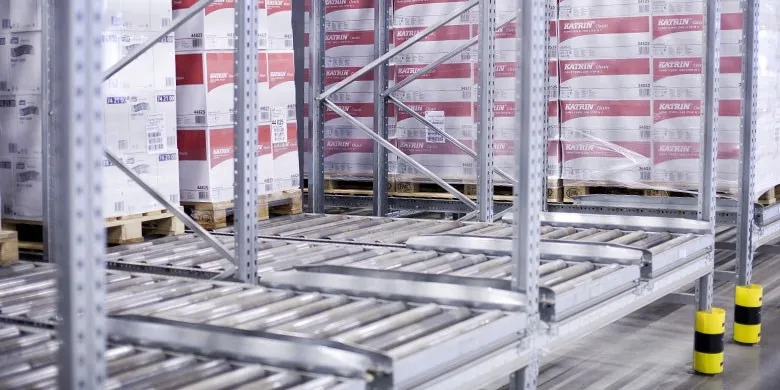

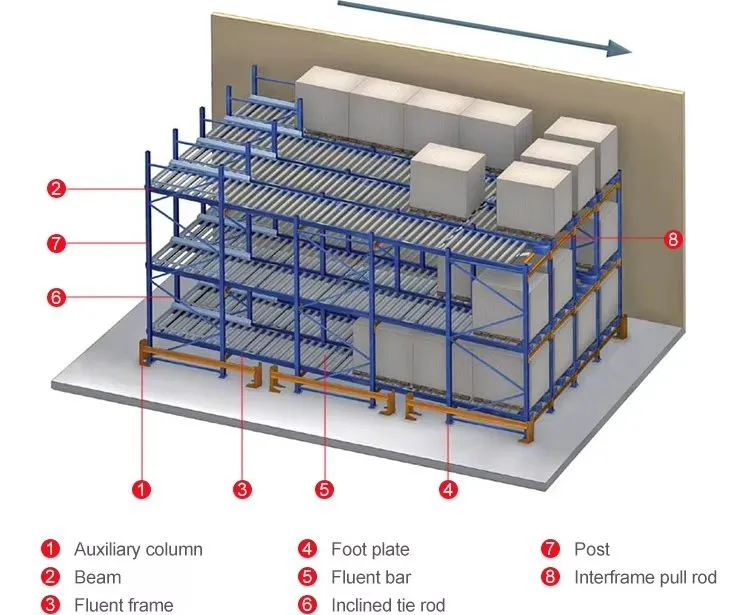

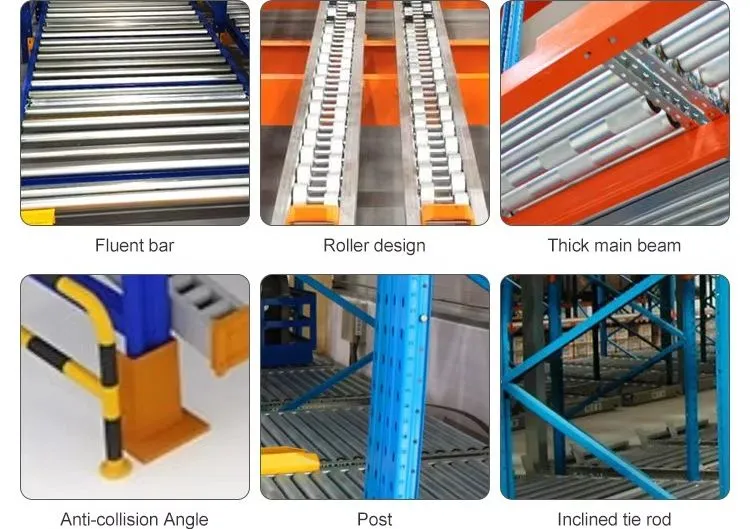

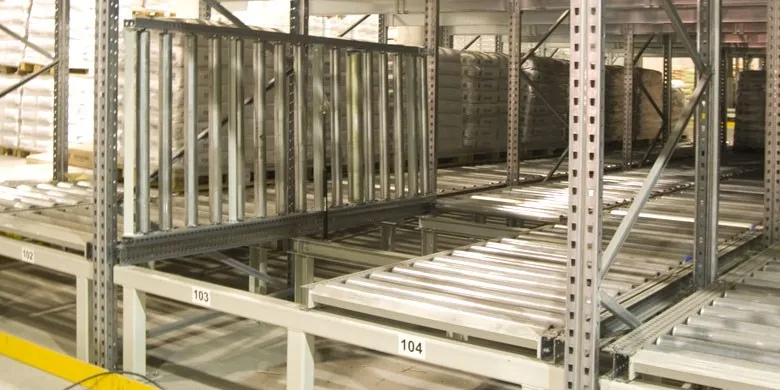

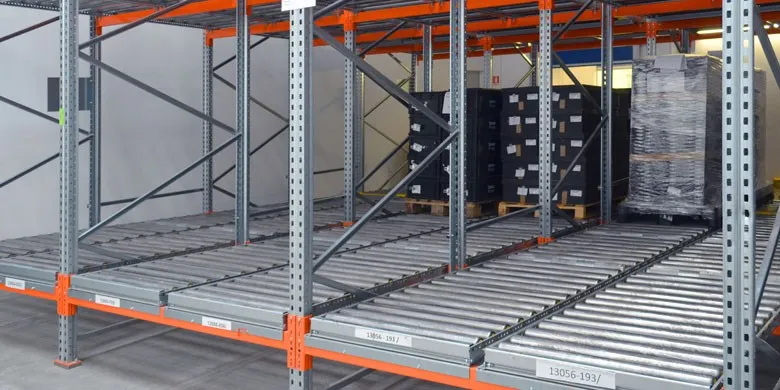

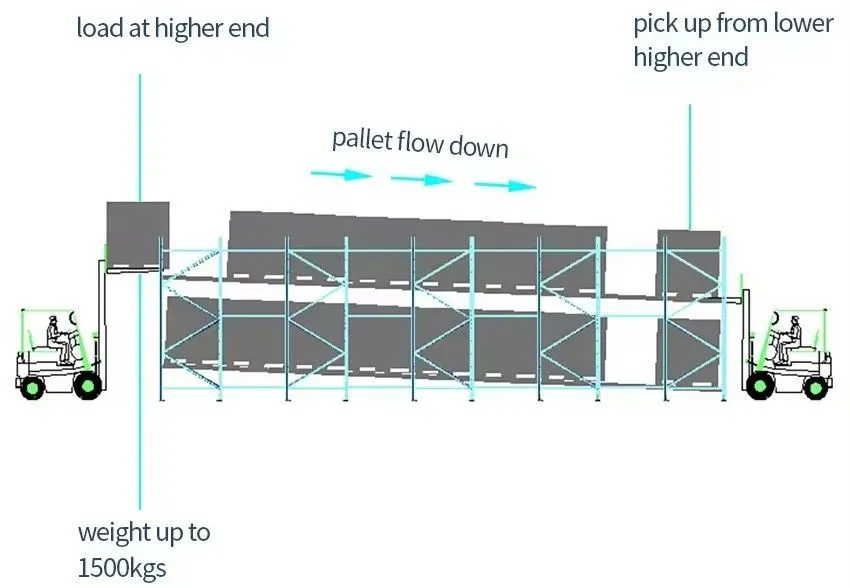

These are the most widely used live system of all the options. This storage system consists of a compact metal structure equipped with a system of roller conveyors on each level with a slight incline that allows unit loads, generally pallets, to slide freely.

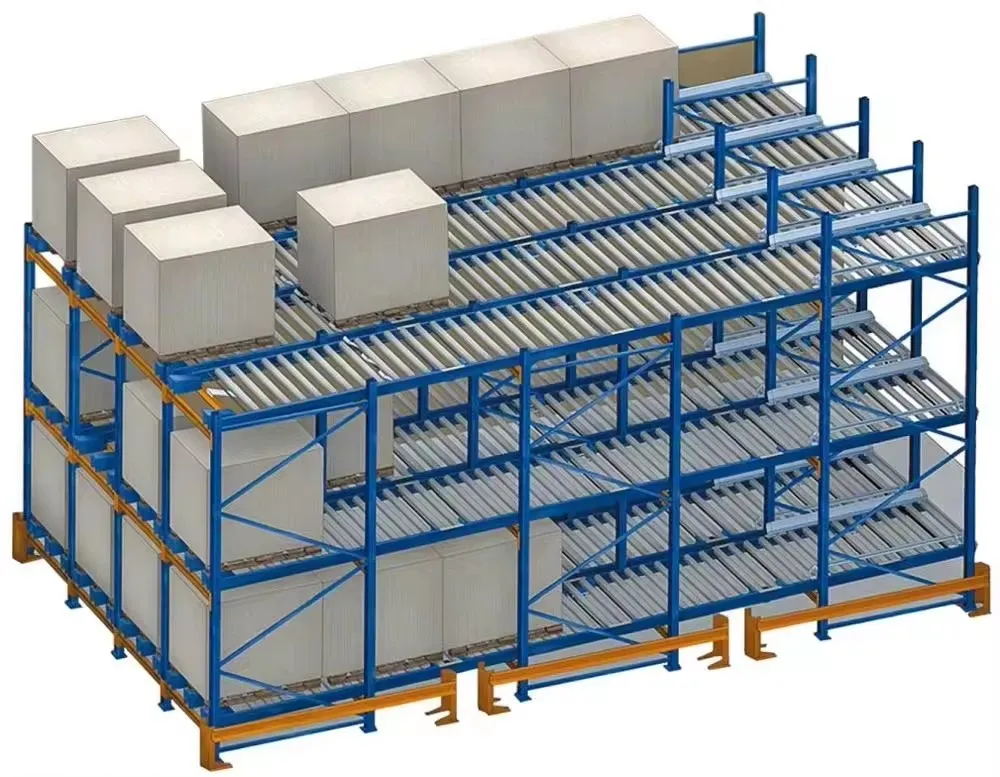

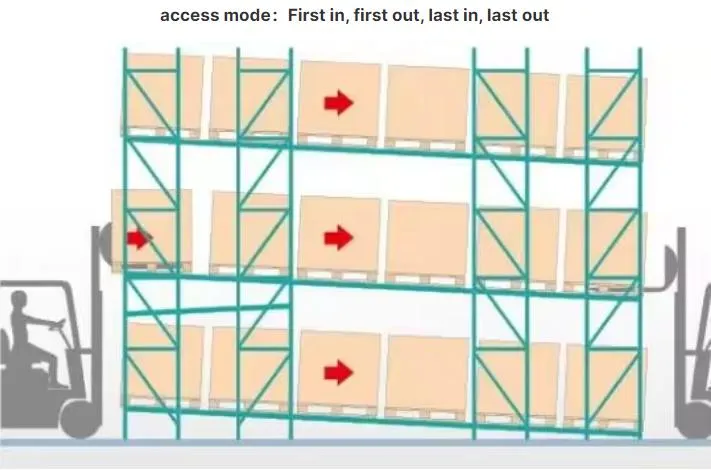

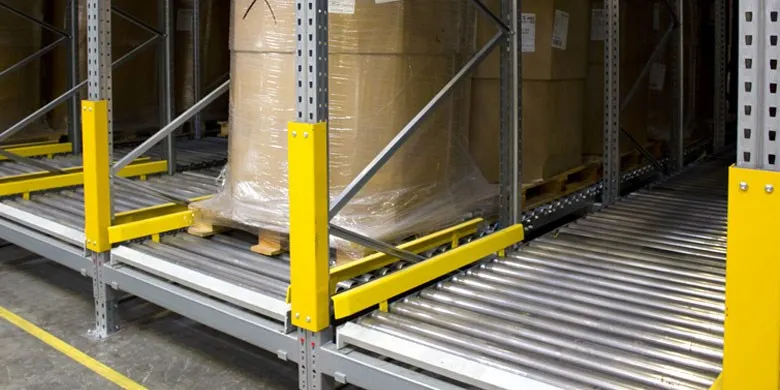

FIFO Principle: The first pallet in is the first pallet out. The safety of the system and movement is guaranteed thanks to the control, braking, and protection measures. Separate aisles for loading and unloading improve safety and workflow productivity.

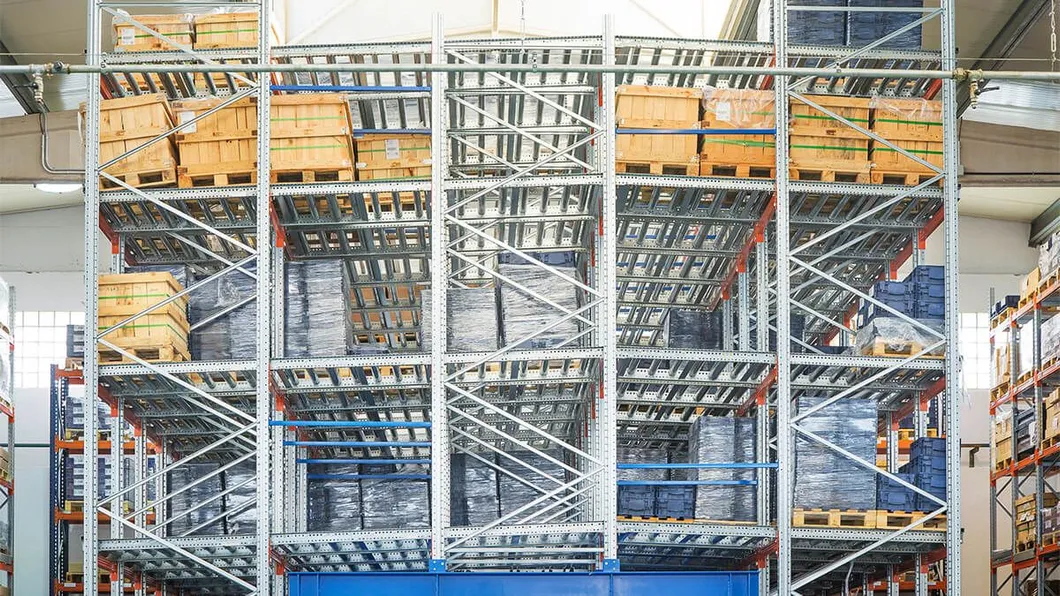

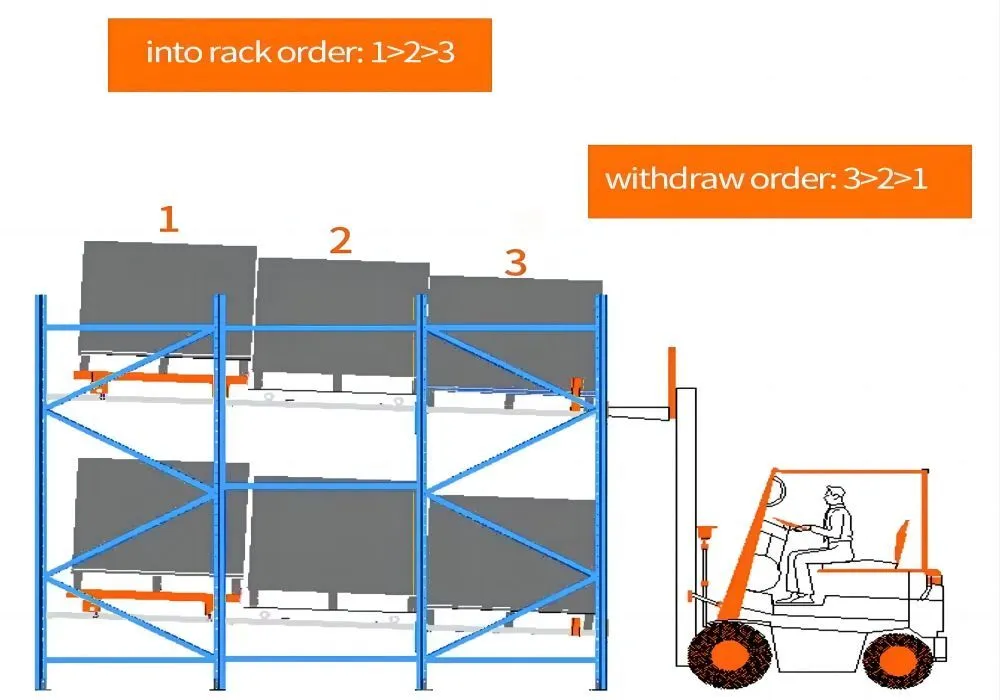

Unlike gravity live storage, push-back racking is designed for LIFO warehouse management, where the last pallet in is the first pallet out. Both loading and unloading processes take place within the same aisle. The pushing force of the forklift is used for loading, while gravity brings the subsequent pallets forward for unloading.

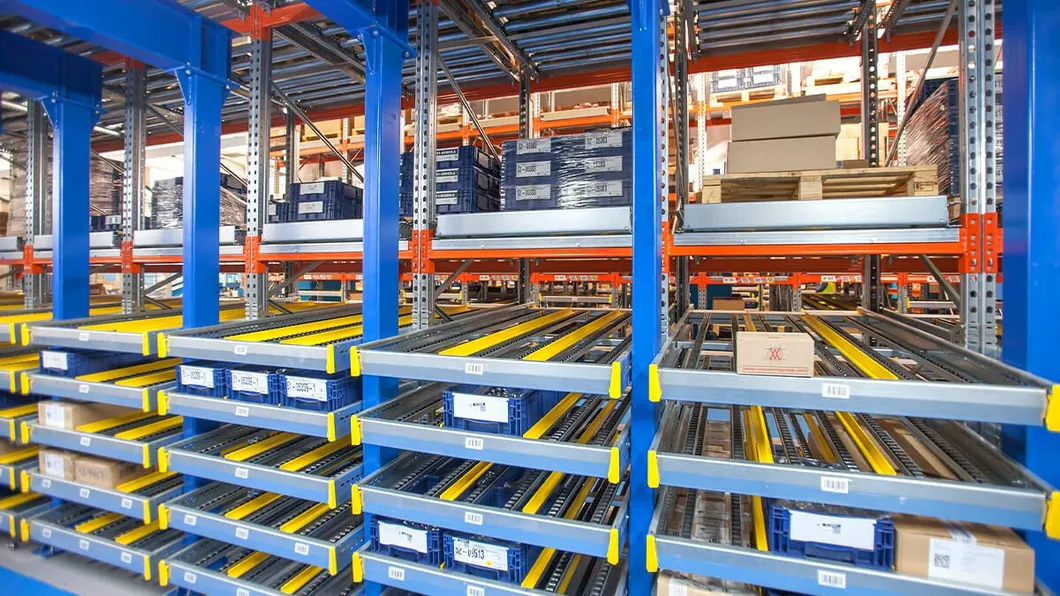

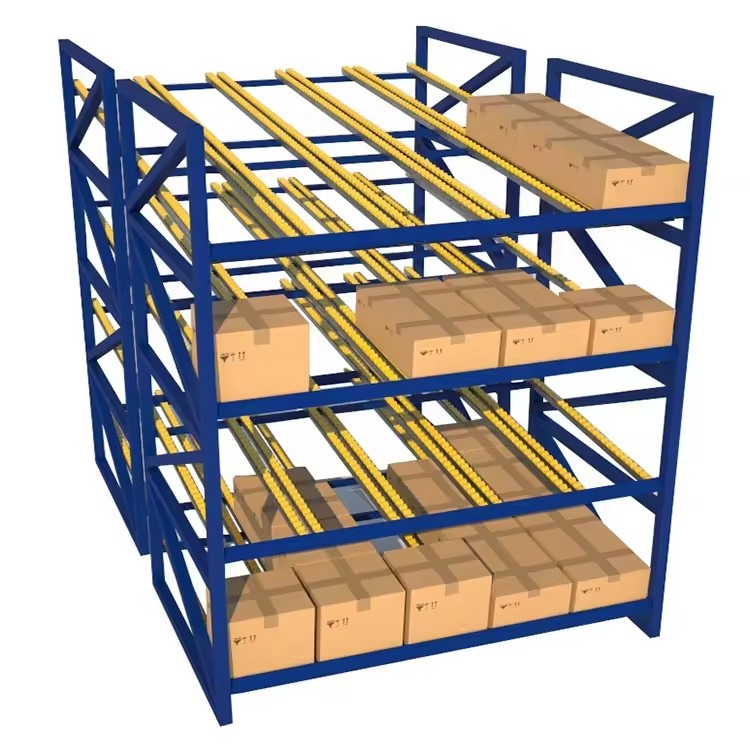

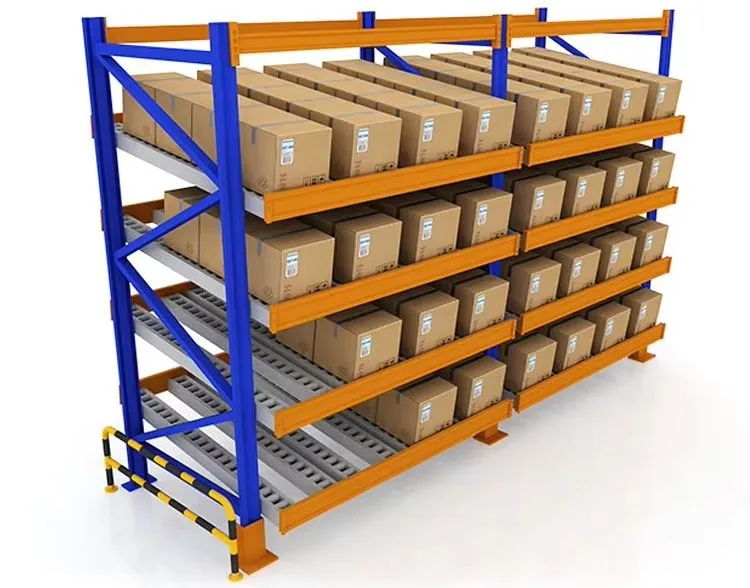

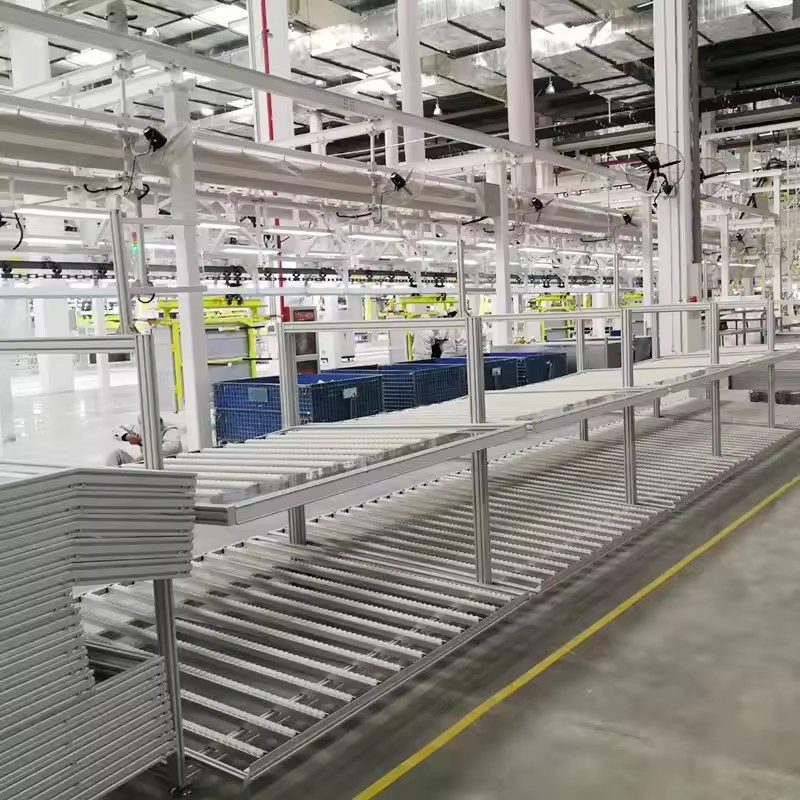

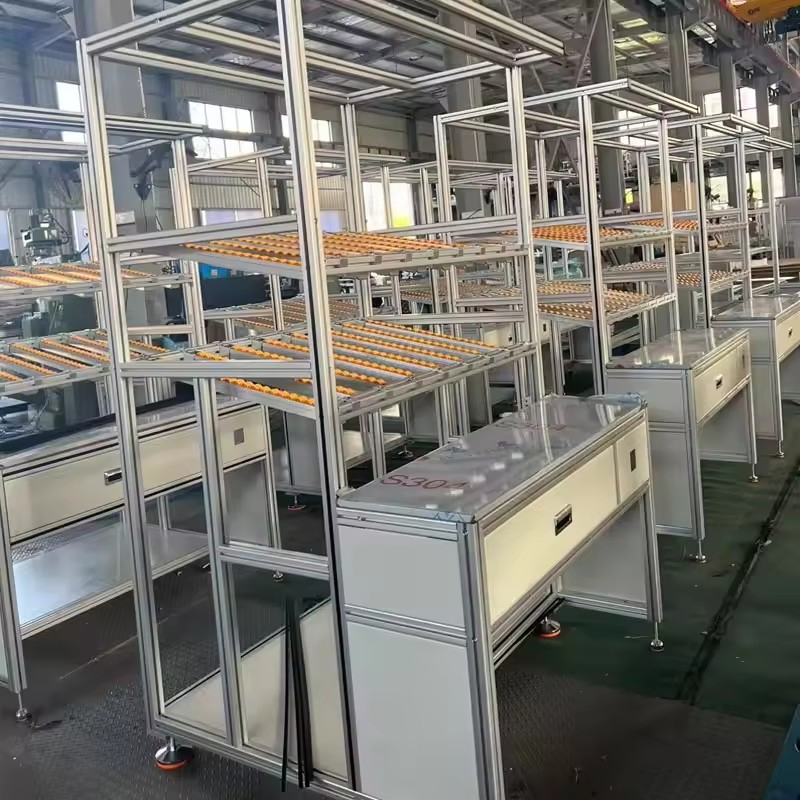

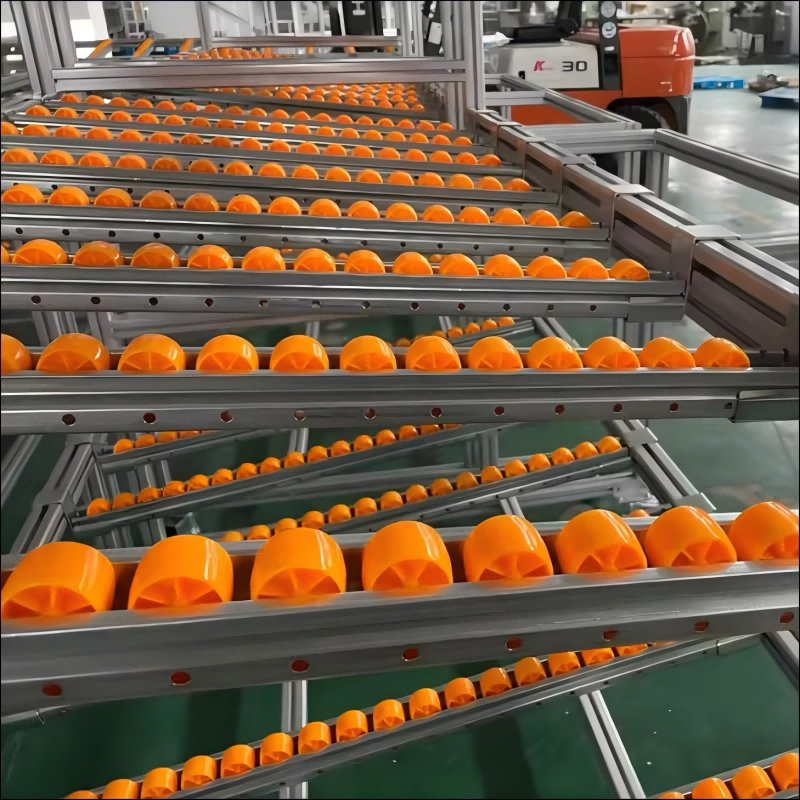

Also known as carton live storage, carton flow systems are a gravity-controlled high-density compact system designed to facilitate manual picking tasks. Similar to gravity live pallet racking, the cartons slide on pulley rails from the loading area to the unloading area thanks to a slight incline. It is ideal for high-volume picking operations, reducing operator transit times.
We are an experienced manufacturer in the warehouse storage industry.

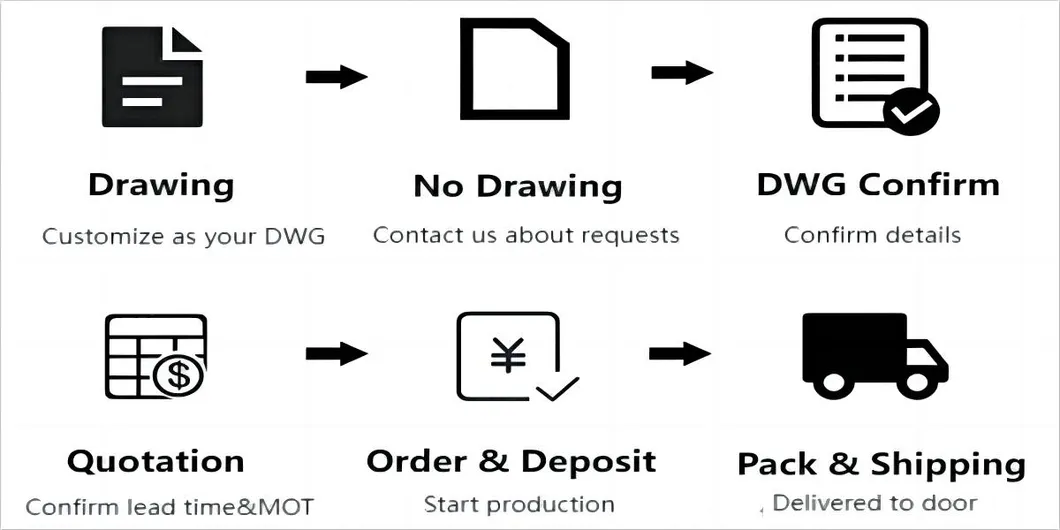

Generally, it is within 20 days against formal order and deposit. It also depends on factors such as order quantity.
T/T 30% as deposit, and 70% before delivery. We will show you the photos of the products and packages before you pay the balance.
We support EXW and FOB delivery terms.
We use high-quality mild steel Q235 for our products to ensure strength and longevity.
Yes, we provide a 3-year warranty for our storage solutions.
