LogiSteel Racking
1 / 5

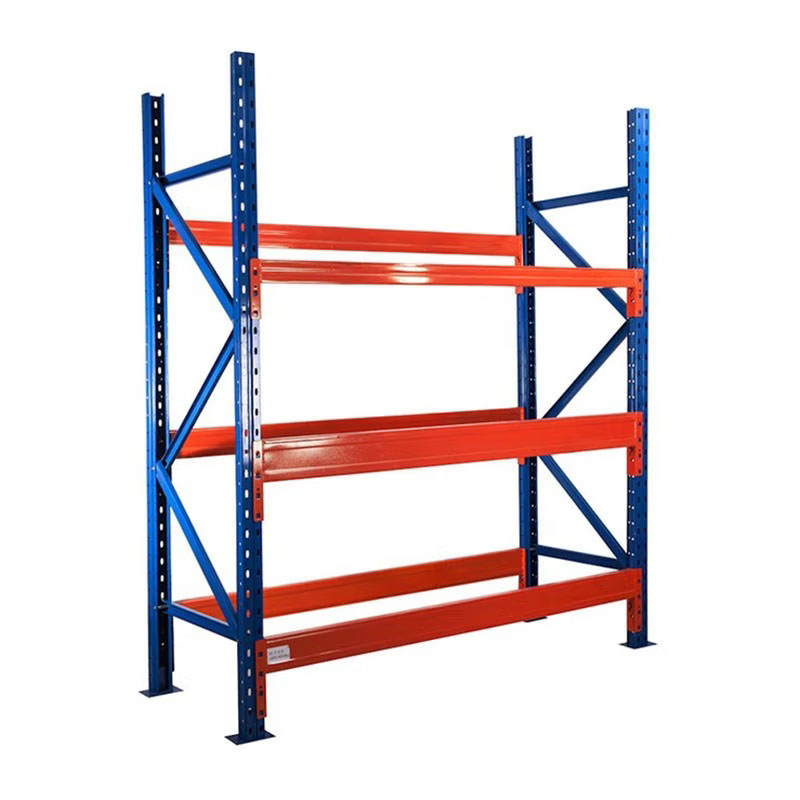

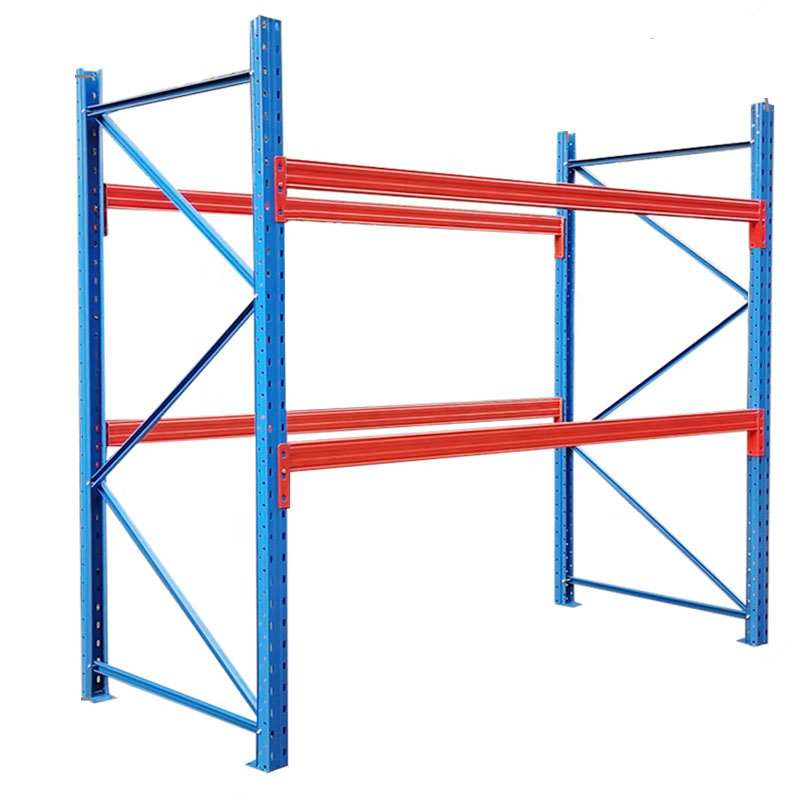

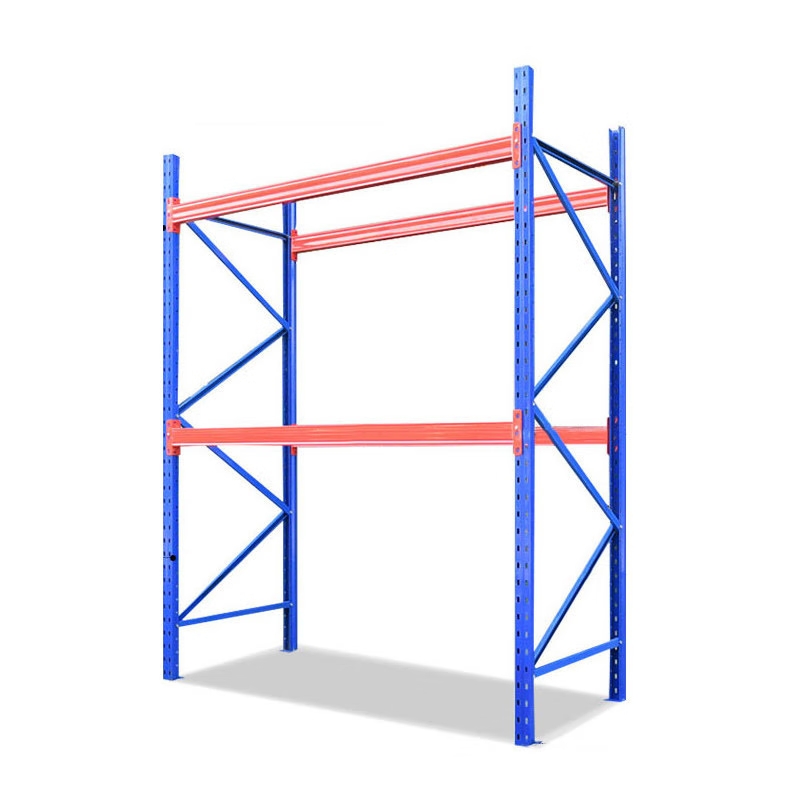

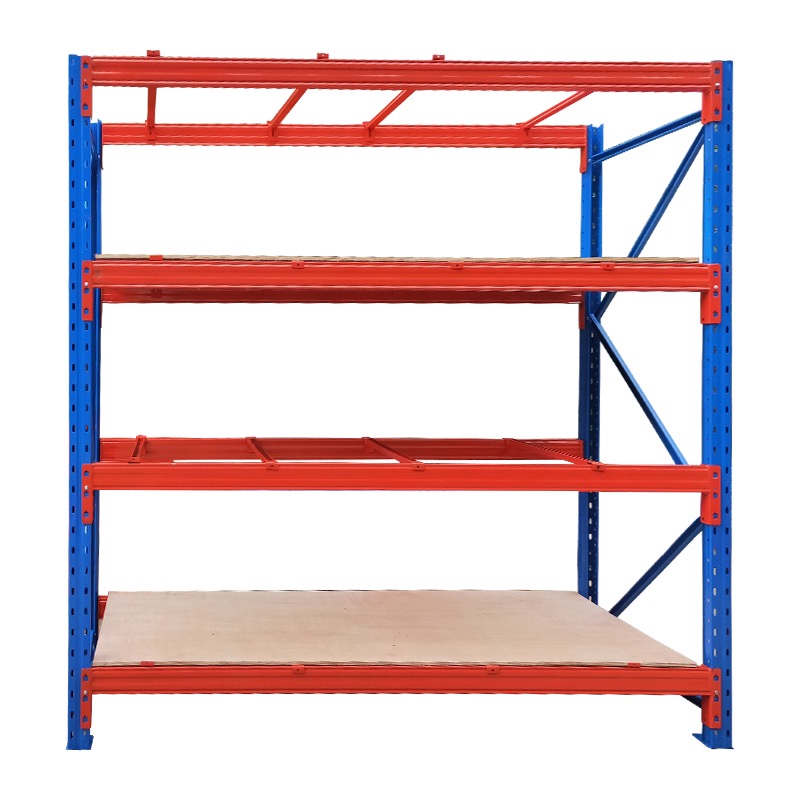

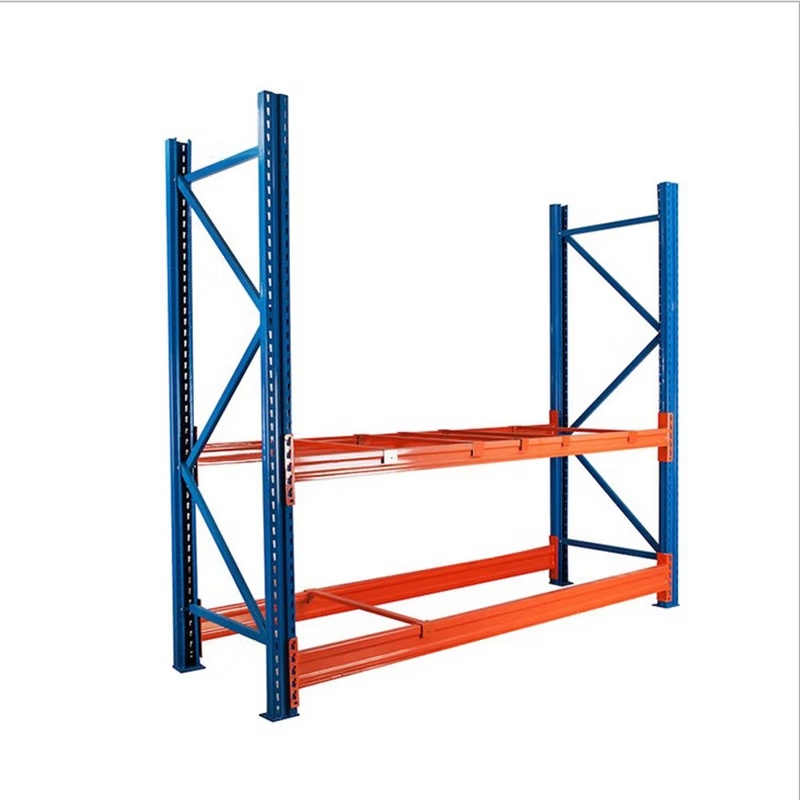

Heavy duty rack is hooking structured, easy to dismount and install. It can be adjusted by each 75mm based on the goods height, and can load 800-3000kg/layer. Steel plate, wood plate, and MDF can be chose as the layer board. This kinds of rack is an ideal storage rack for small and medium-sized warehouse for its advantages of appropriate height, and convenience in accessing goods.
| Raw-Material | High-Quality Q235 Cold rolled steel |
| Color | Upright frame is blue, Beam is orange, can be customized. |
| Standards Size | L2300*D1000*H4500 and size can be customized according to your requirement |
| Height | 1500-8000mm or Customized; |
| Wide/Depth | 400-1500mm or Customized; |
| Length | 1500-3200mm or Customized; |
| Upright-Section | 80*60*1.5/1.8/2.0mm, 90*65*1.5/1.8/2.0mm, 100*70*2.0/2.5mm, 120*95*2.0/2.5mm etc. |
| Loading Capacity | 1000~6000kgs or 2200~13200lbs |
| Beam-Section | 80*45mm, 100*45mm, 120*45mm, 140*45mm, 160*45mm, 180*45mm etc. |
| Treatment Surface | Powder coated |
| Packing Term | Air bubble, Wooden Case, etc. |
