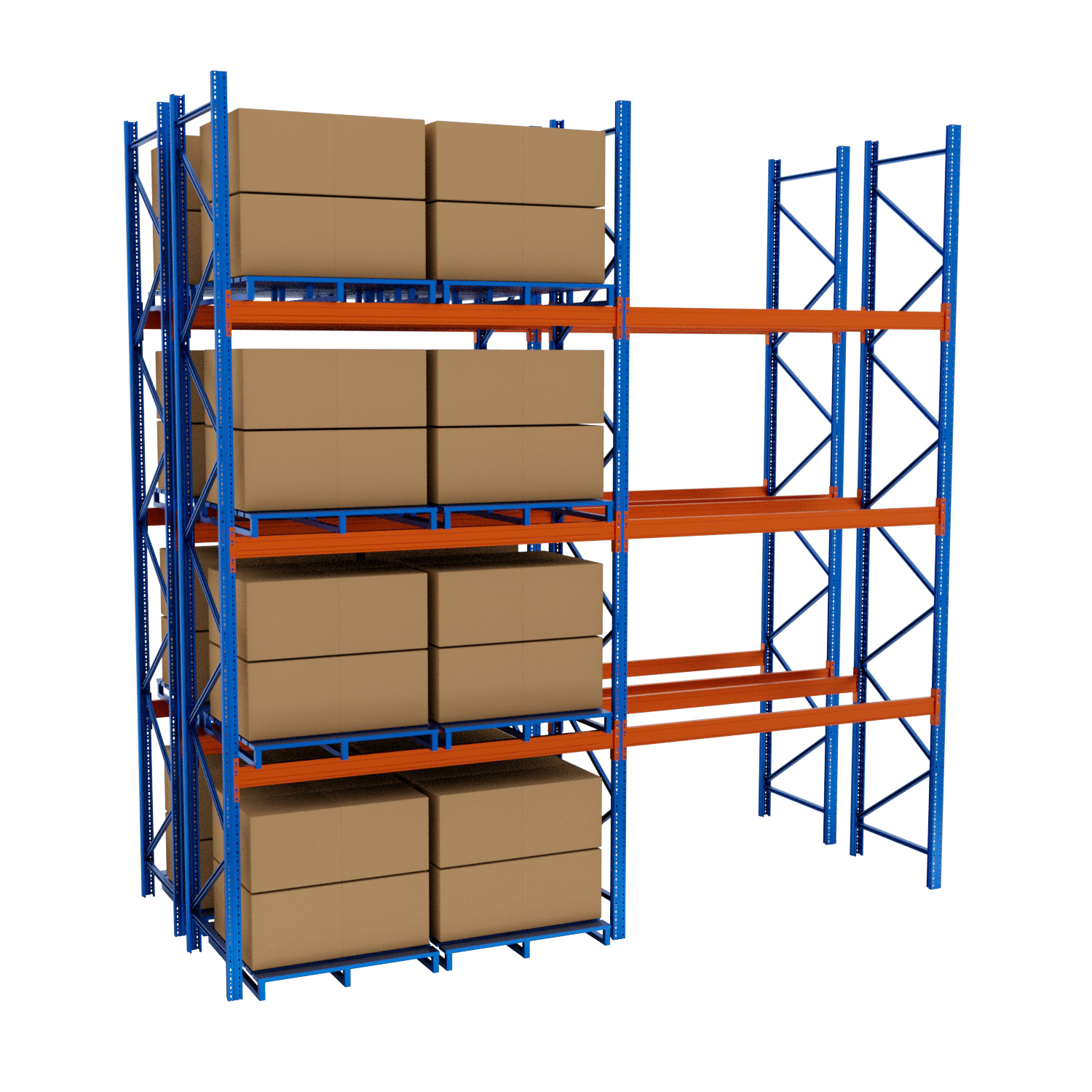

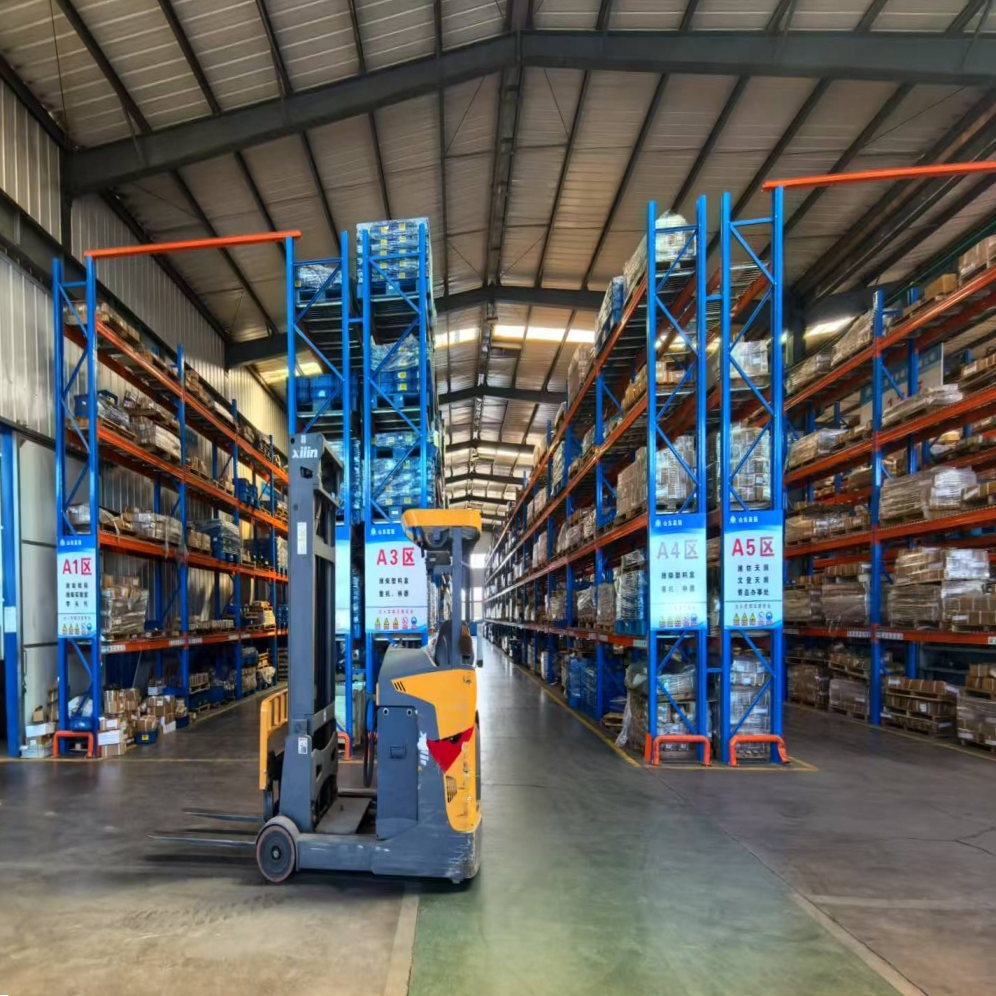

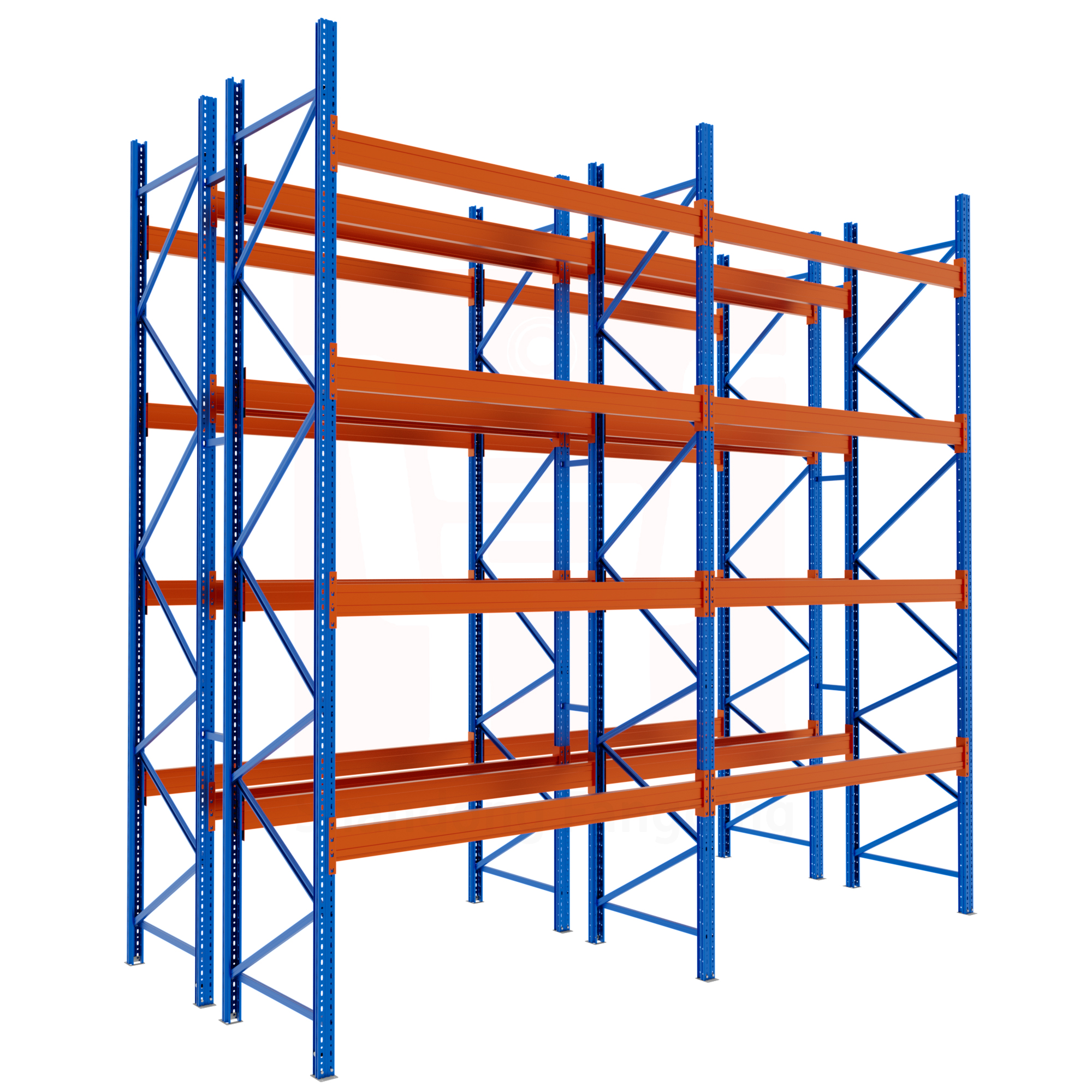

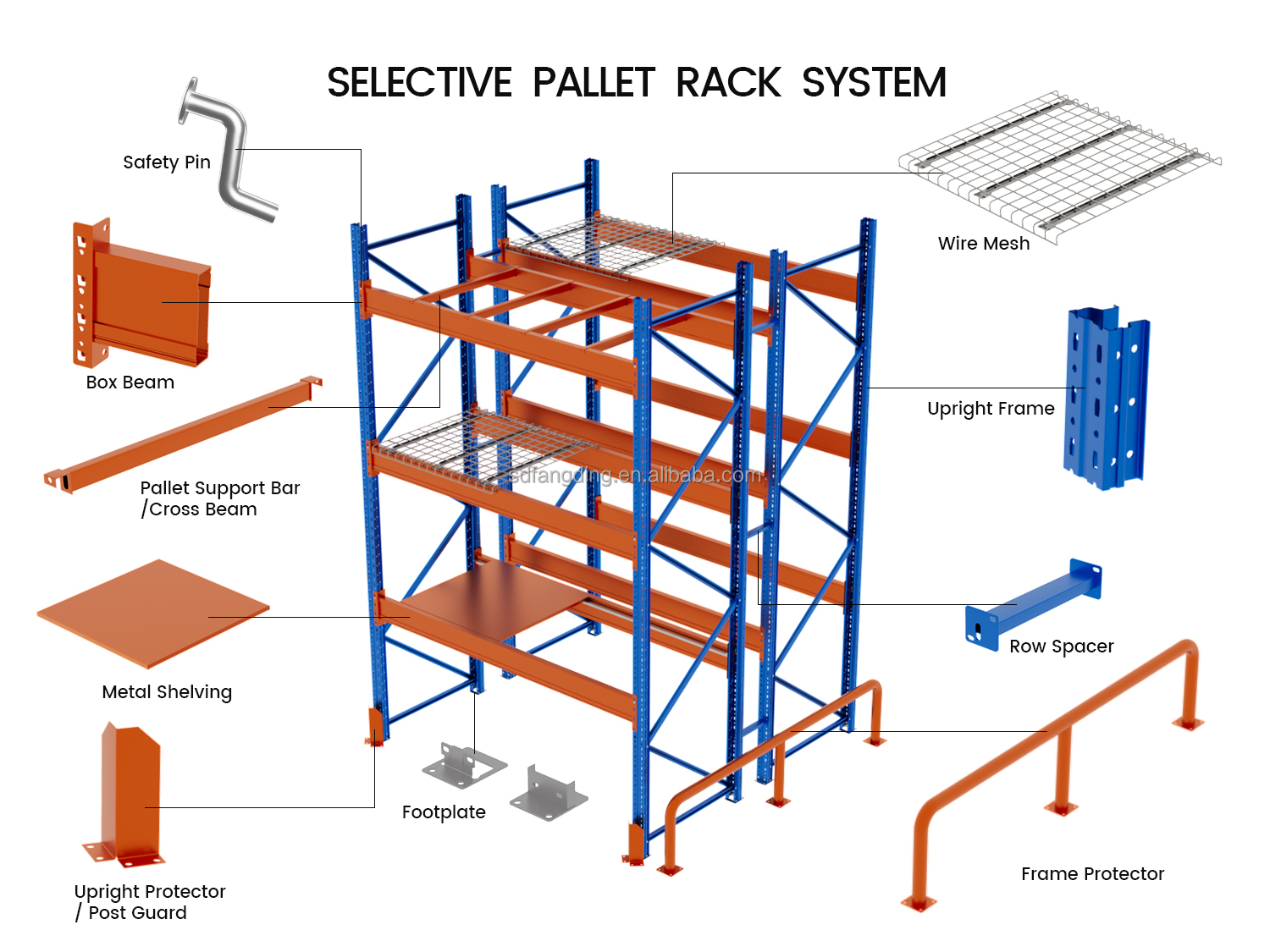

Selective pallet rack also named beam rack or heavy-duty rack, is very common in the various kinds of warehouse racks. The main components are an upright frame+beam, the structure is concise and effective. This is the most diversified warehouse rack and works with forklifts for pallets up and down. It is wildly used by most enterprises. Selective pallet racks wildly use many manufacturers, E-commerce warehouses, third logistics and distribution centers, etc. It is suitable for many kinds of small bulk items, but also suitable for a small variety of items.

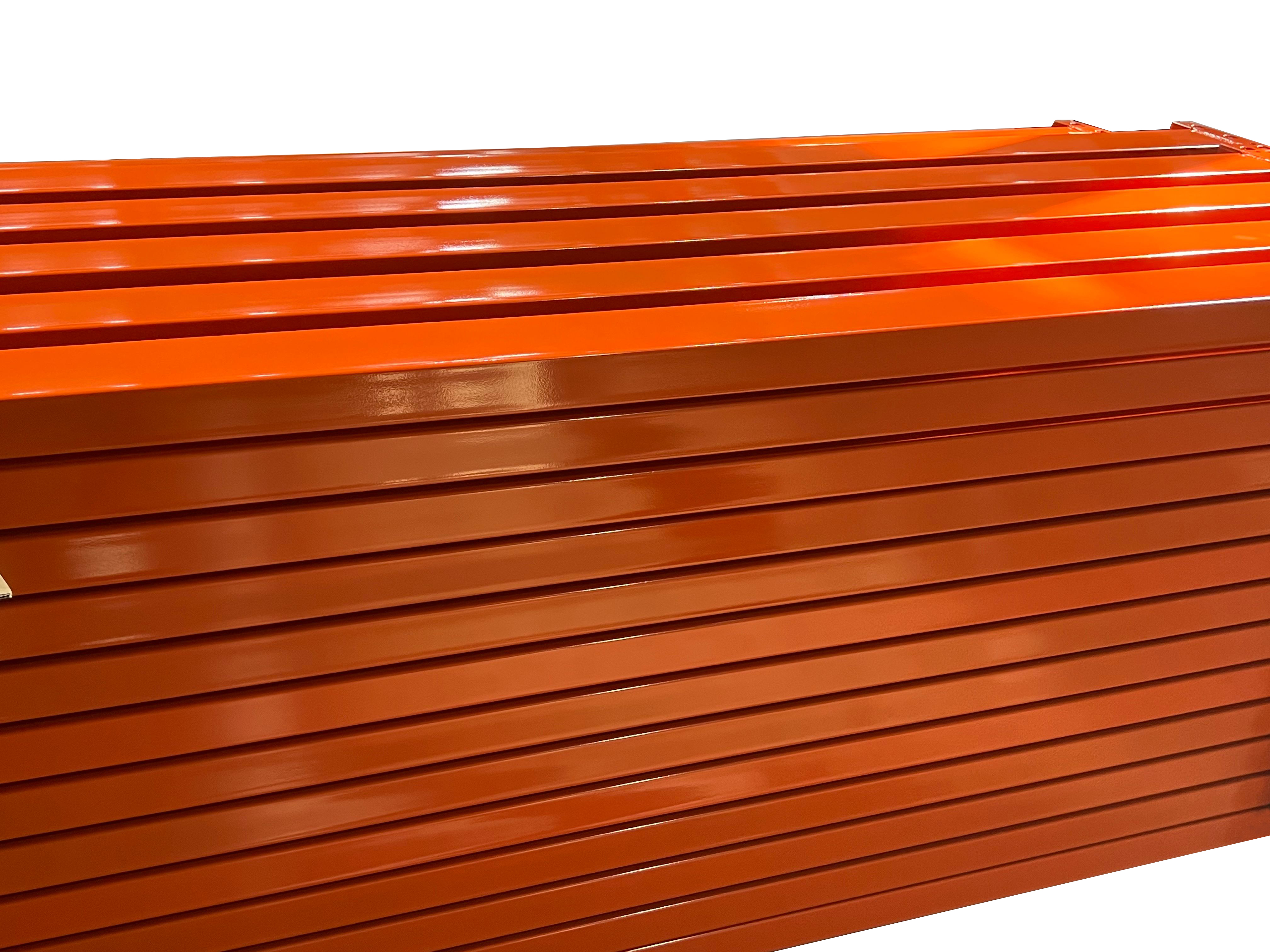

The surface is treated with electrostatic spraying, offering advantages such as corrosion resistance, rust prevention, and a long service life.

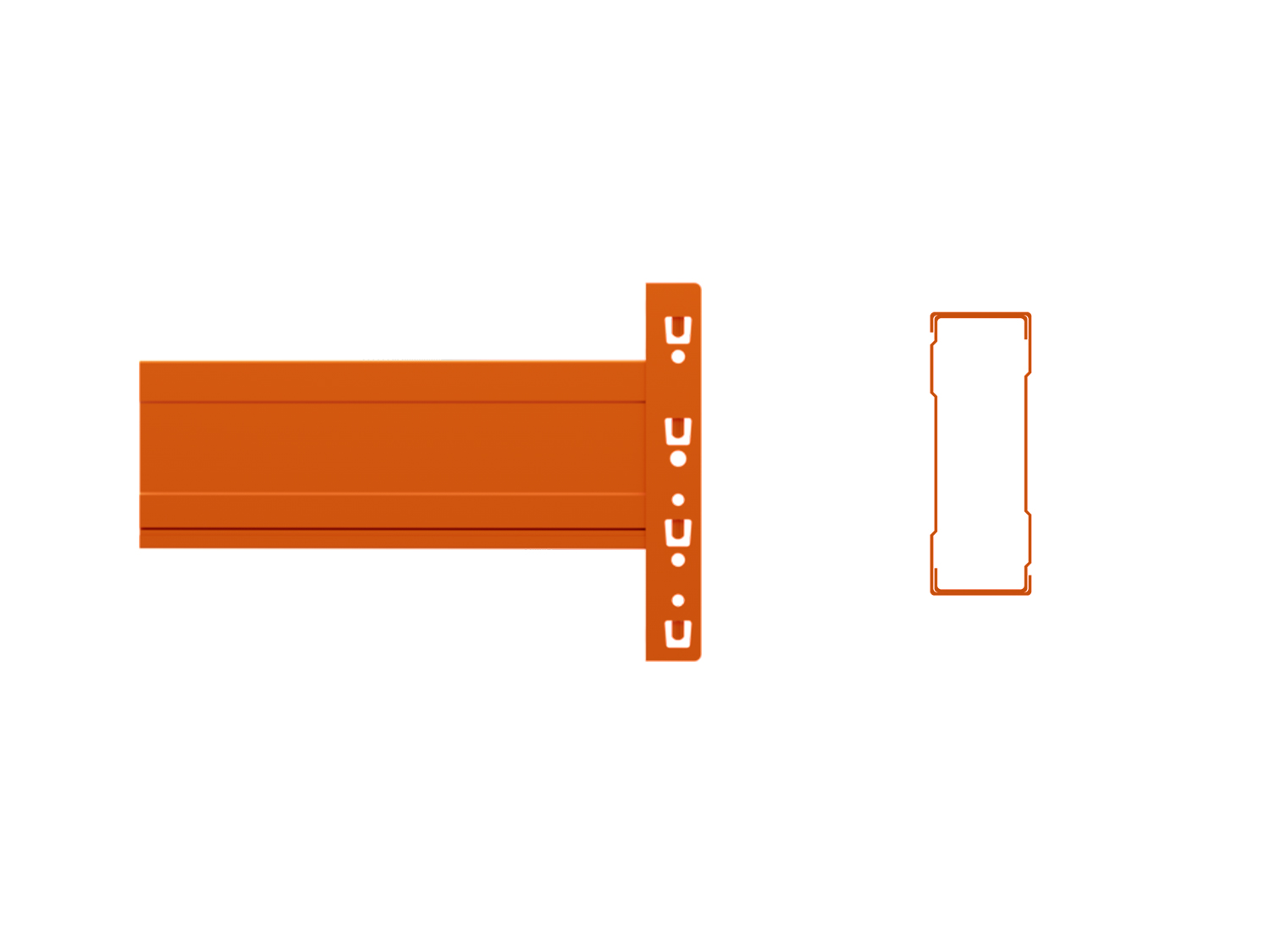

Utilizing a high-specification C-shaped steel double-beam welded structure, it boasts superior bending strength compared to ordinary single beams.

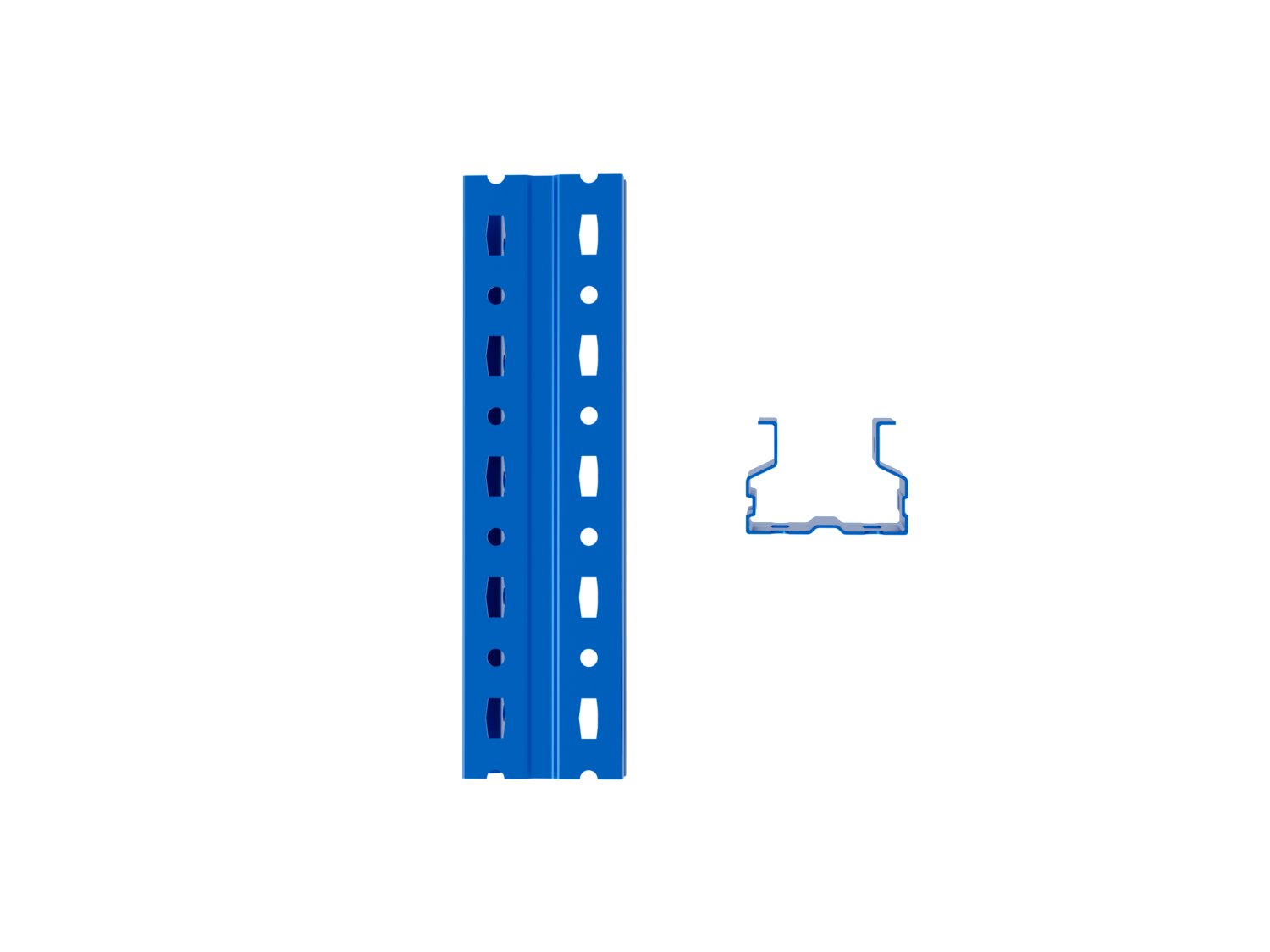

Made of cold-formed steel plate with 21 folds for stronger load-bearing capacity. The surface features evenly distributed diamond-shaped or teardrop-shaped adjustable holes.

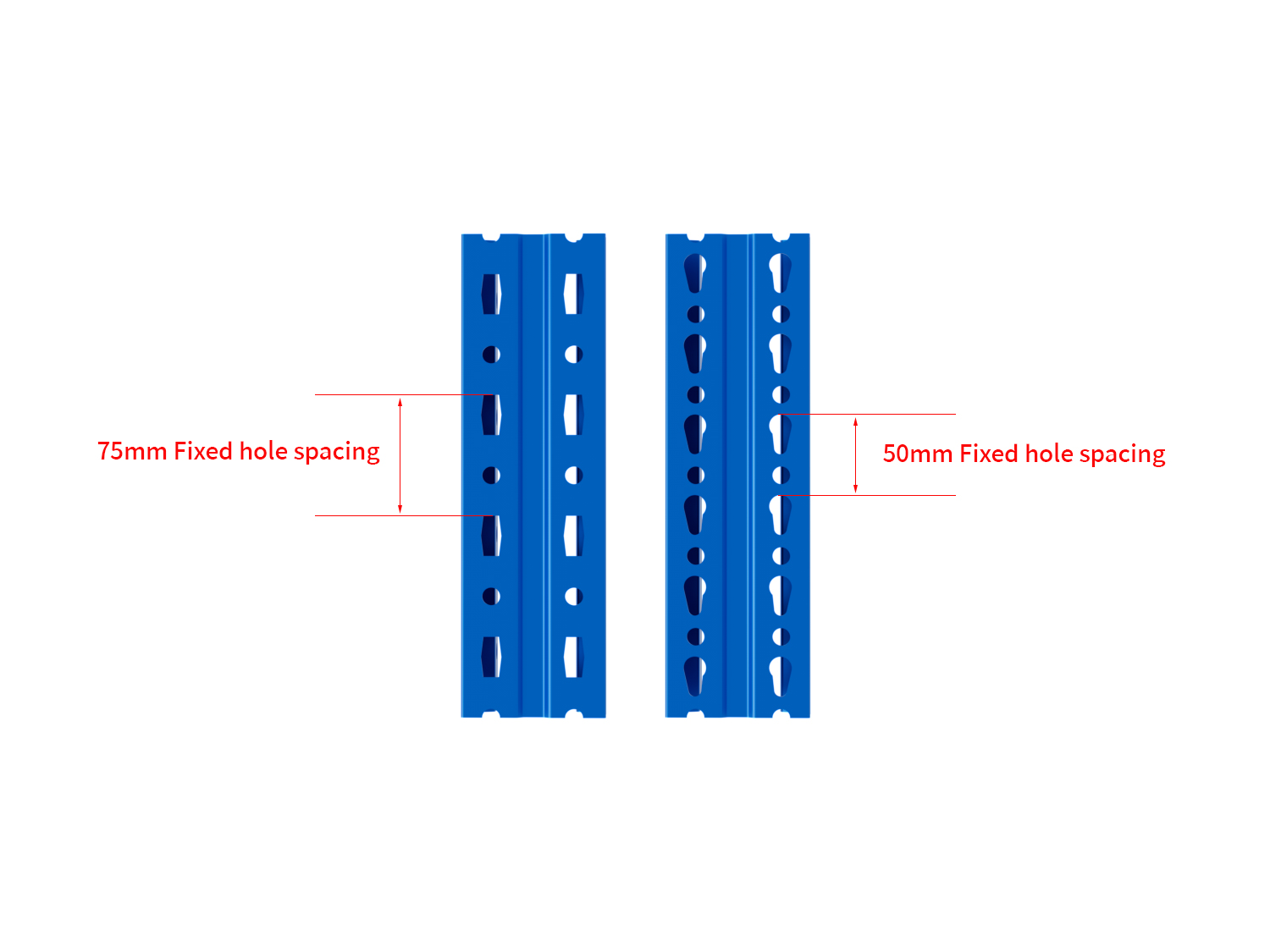

Diamond-shaped holes: 75mm fixing hole spacing; Teardrop-shaped holes: 50mm fixing hole spacing. Customers can adjust the height of each layer as needed.

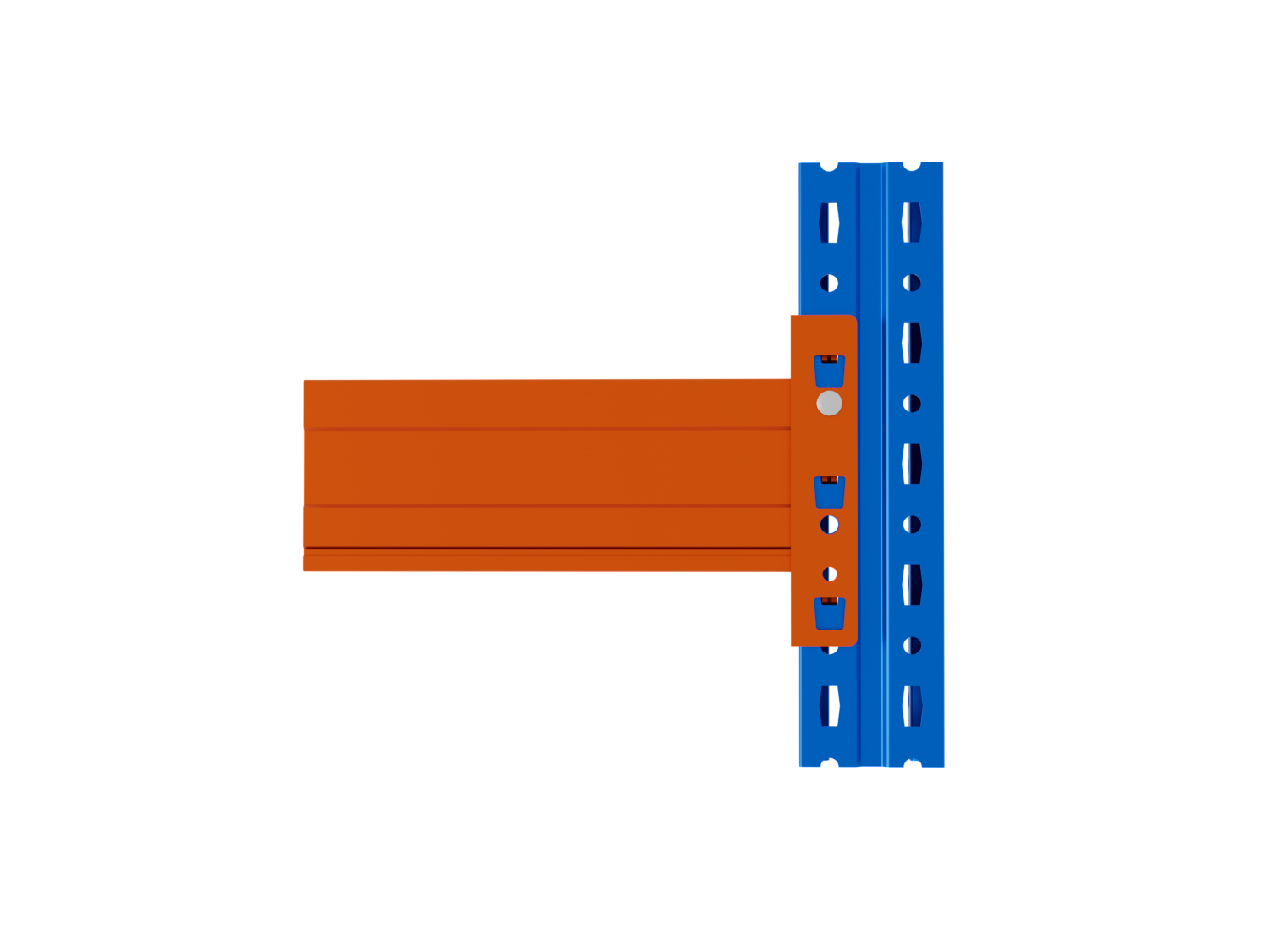

After the hooks are inserted into the column holes, they are locked again with bolts. This effectively prevents the crossbeam from falling off due to impact or vibration.

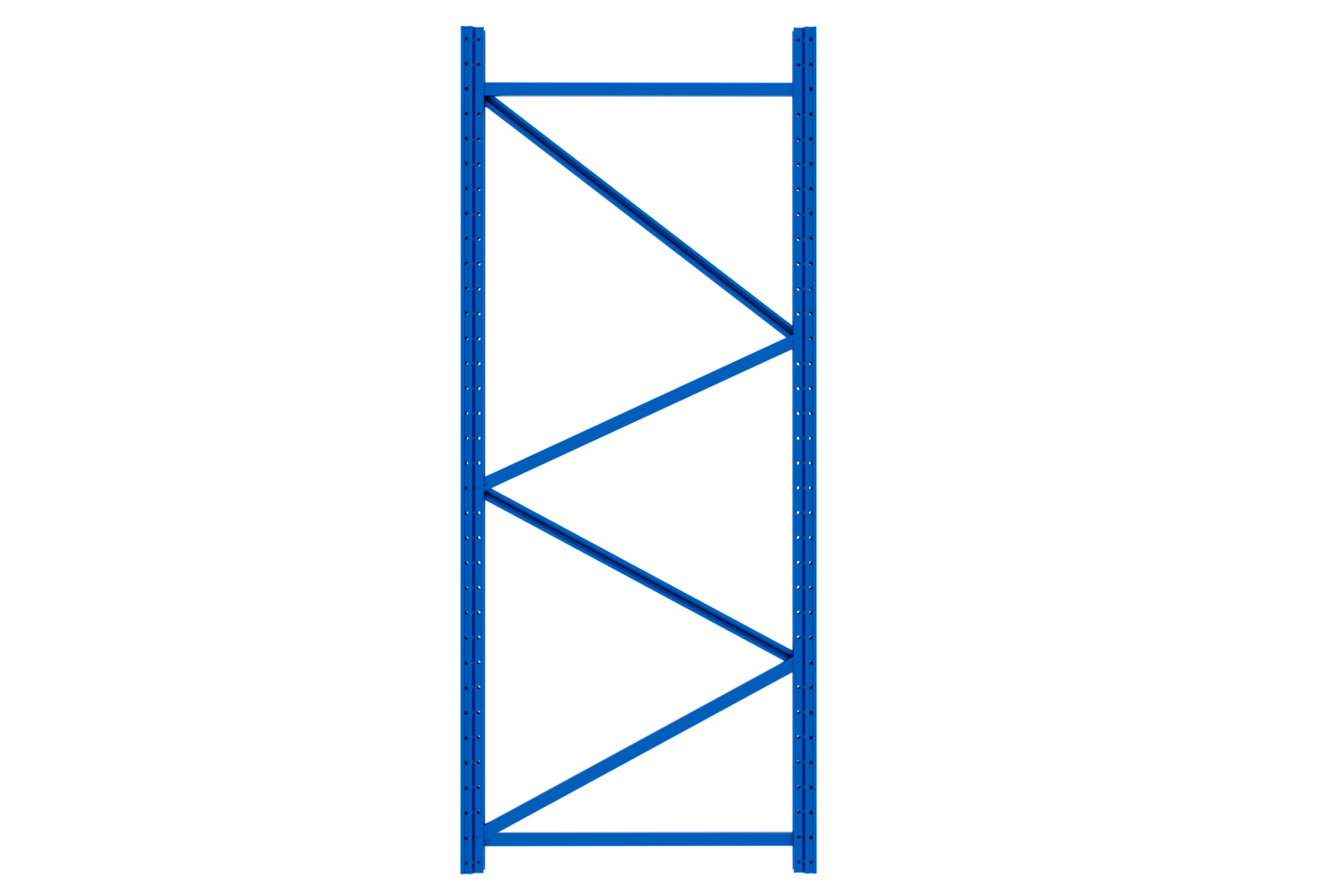

Horizontal supports and diagonal braces are installed every 2-3 layers of uprights, forming a triangular stability structure to prevent the shelving from tipping over.

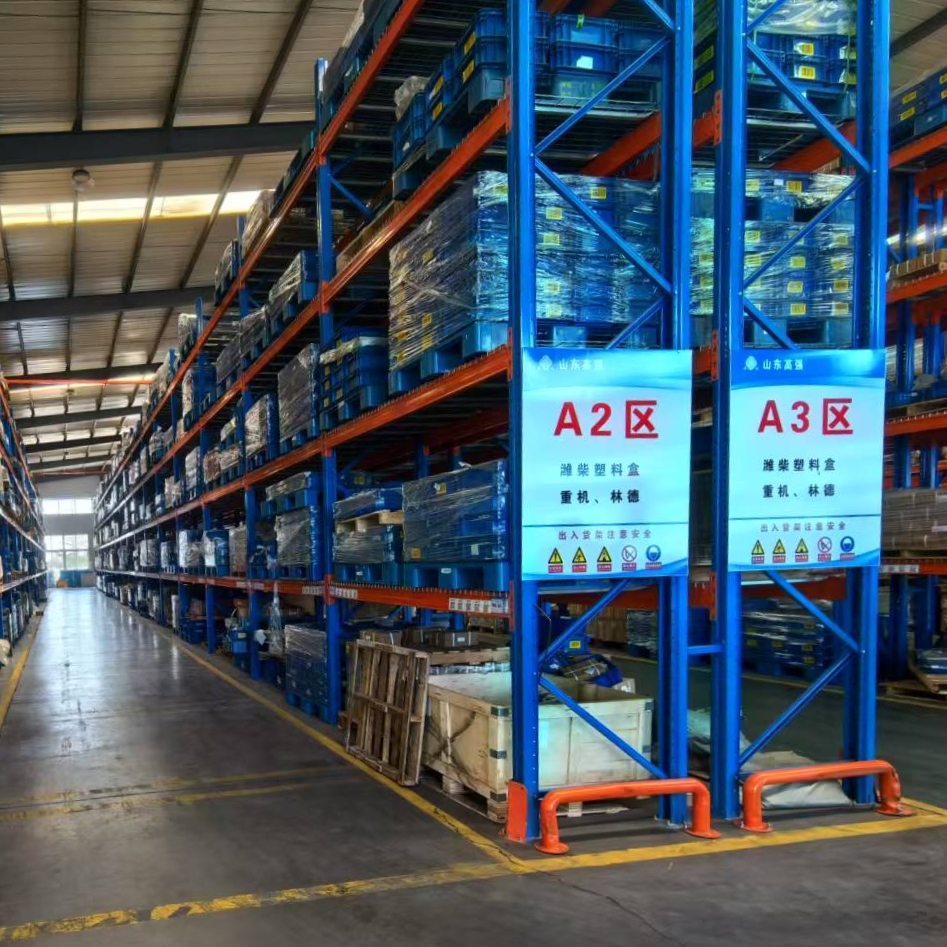

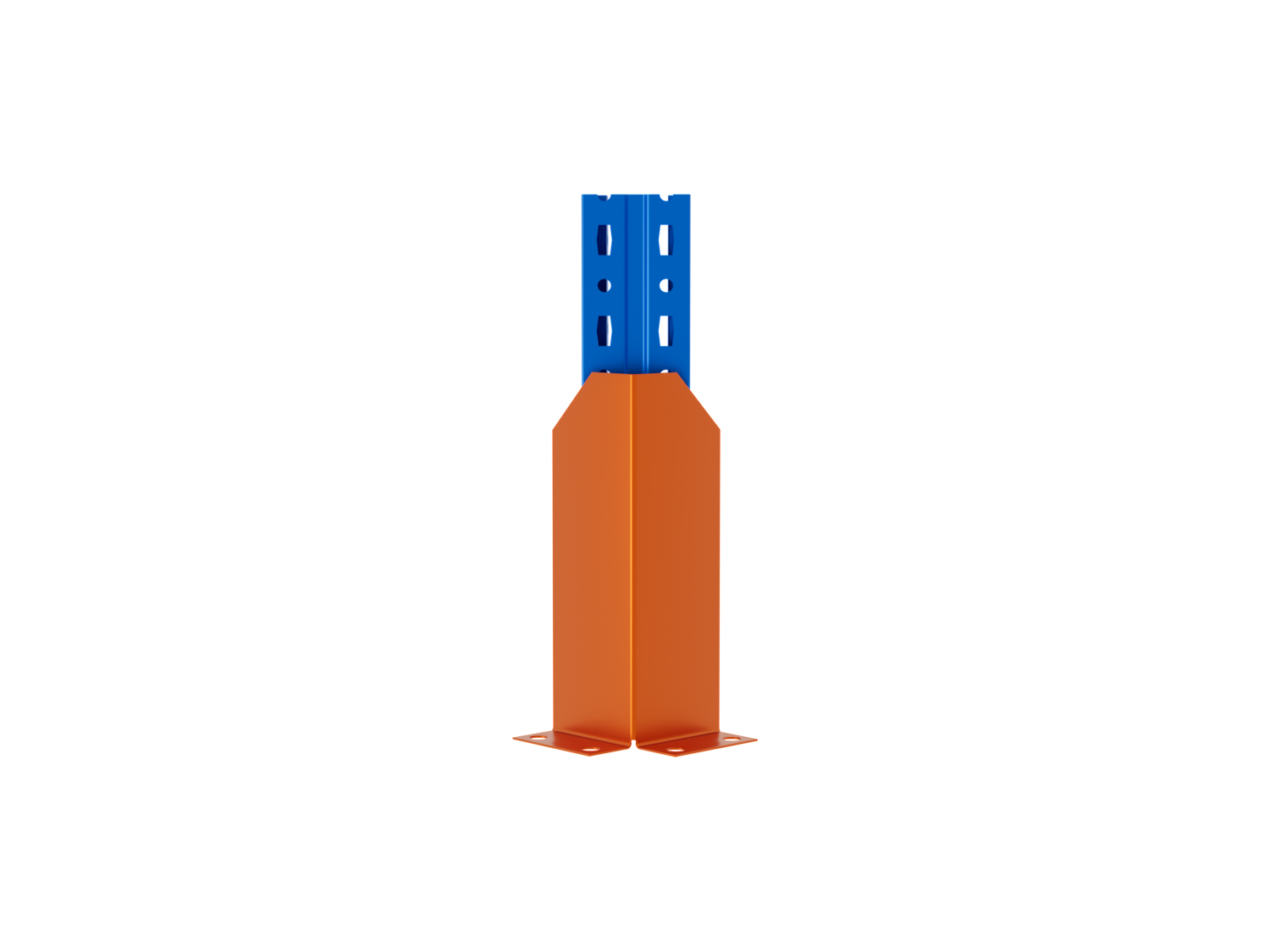

High-strength steel anti-collision upright protectors are installed at column bottoms and passageway sides, fixed to the ground with expansion bolts to absorb forklift impact, preventing column deformation and cargo collision damage.
| Parameter | Specification Details |
|---|---|
| Type | Heavy-Duty Selective Pallet Rack |
| Material | Q235B Steel, Cold Rolled Steel |

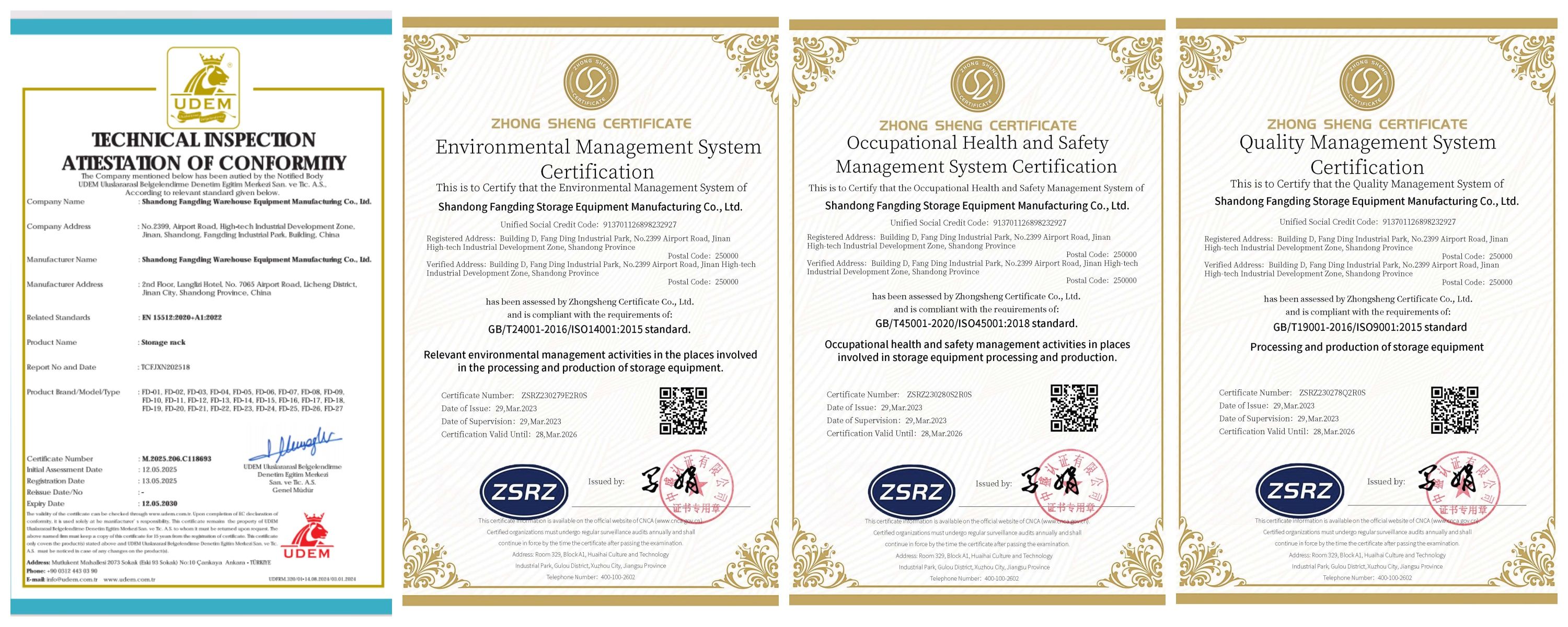

| Certifications | CE, ISO9001, GOST |
| Color | Blue, Orange, Customizable |
| Beam Length | Customizable, Typically 2,000mm(79in) to 3,500mm(138in), adjustable for pallet sizes and weight. |
| Rack Depth | Customizable, 1,000mm(40in) to 1,500mm(60in), depending on pallet dimensions and load weight. |
| Rack Height | Customizable, typically 2000mm to 12000mm or more, depending on warehouse space. |
| Column Size | Customizable, Typically 100mm*70mm, 90 *80mm, 90mm*70mm, 55mm*47mm, based on load requirements. |
| Aisle Width | Typically 2.5m to 3.5m |
| Adjustability | Beams are adjustable in 50mm/75mm increments for flexibility. |
| Environmental Suitability | Normal Temperature or Cold Room (Max -40C) |

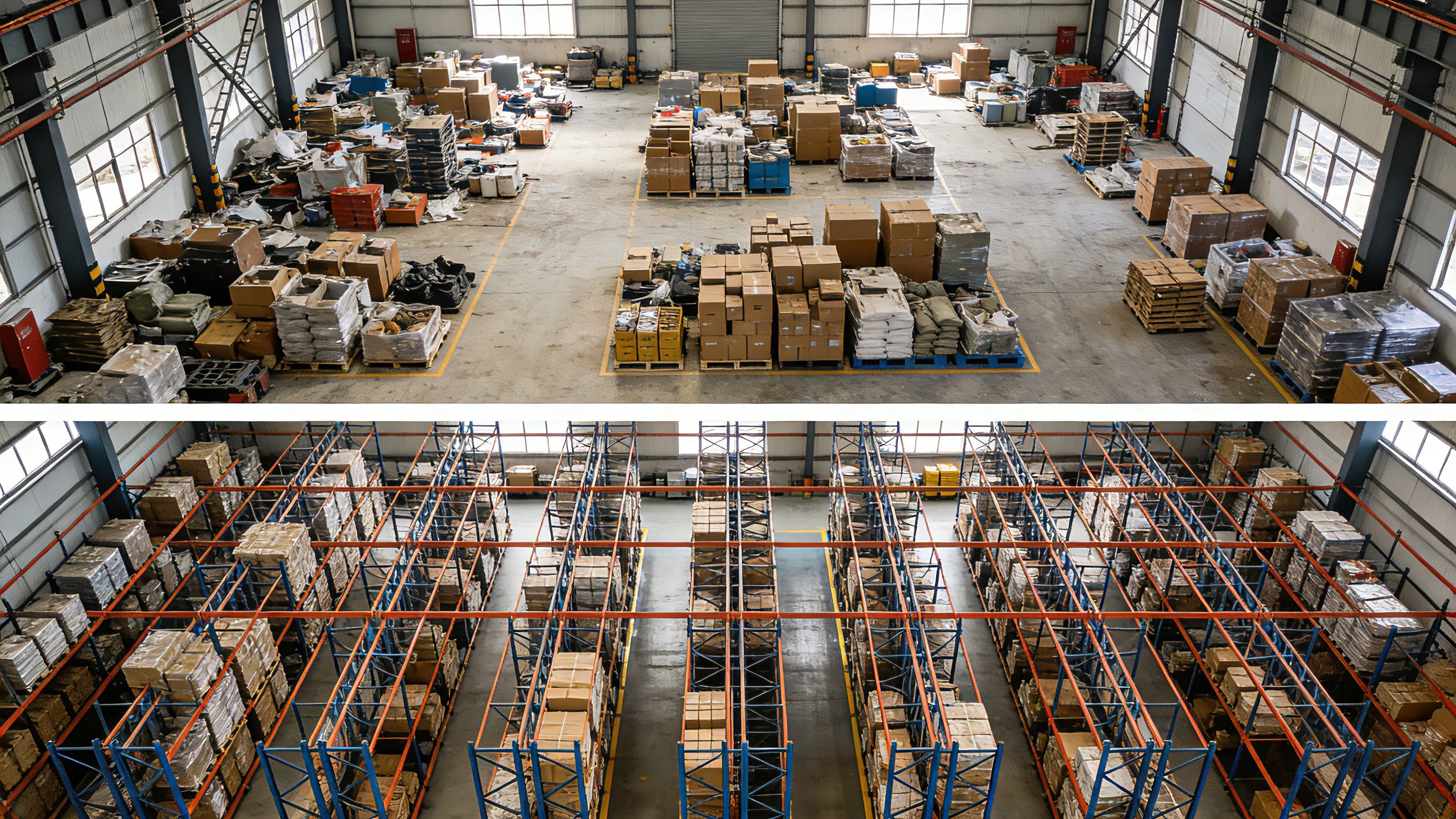

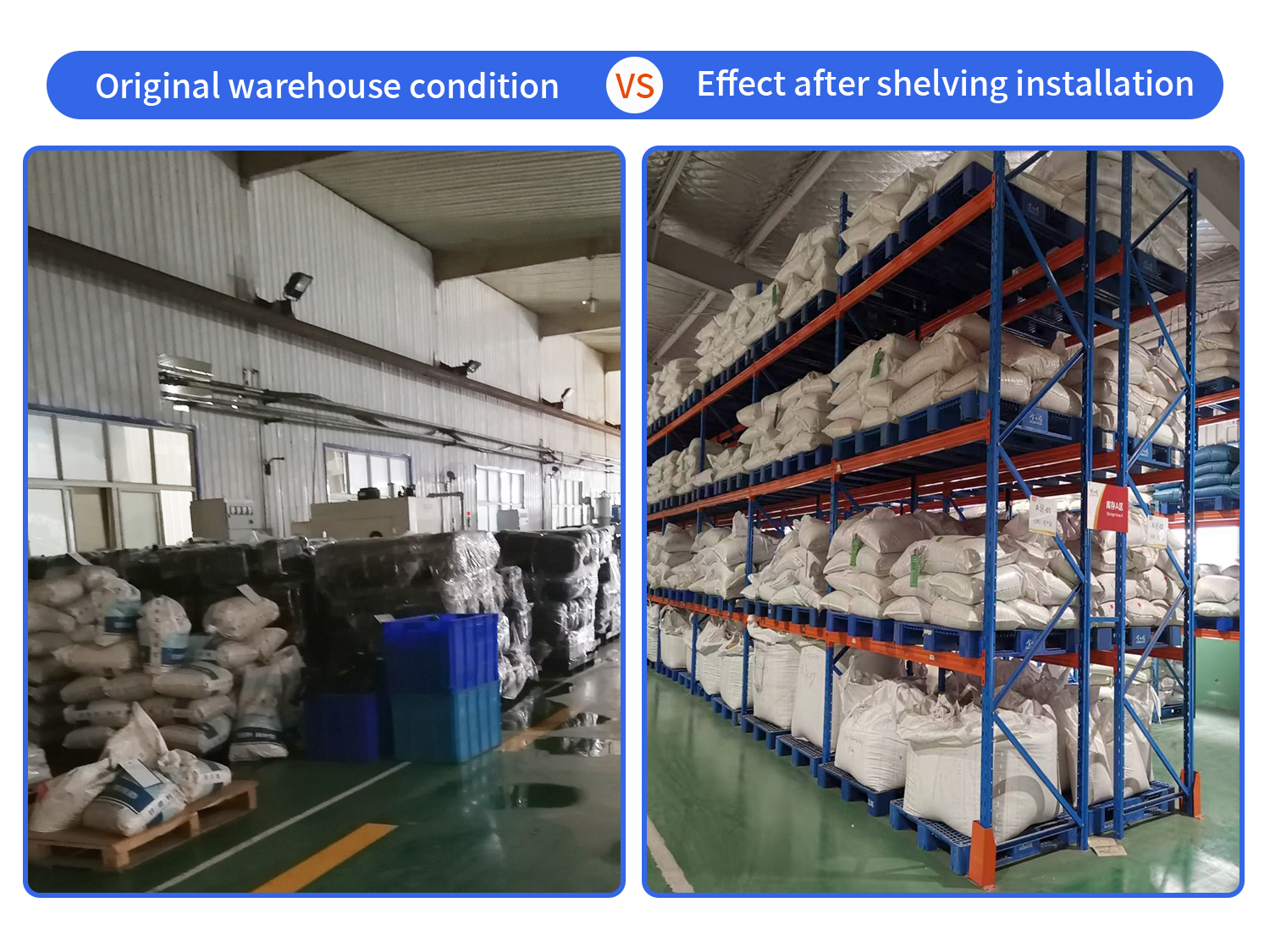

Comparison of warehouse capacity improvement before and after:

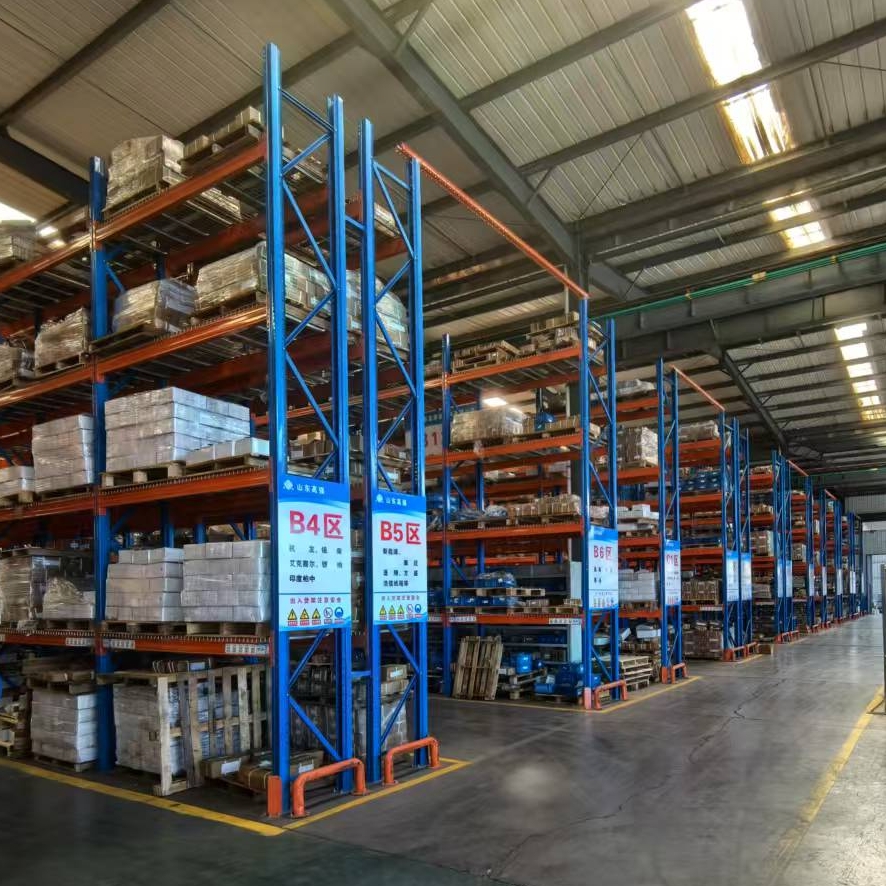

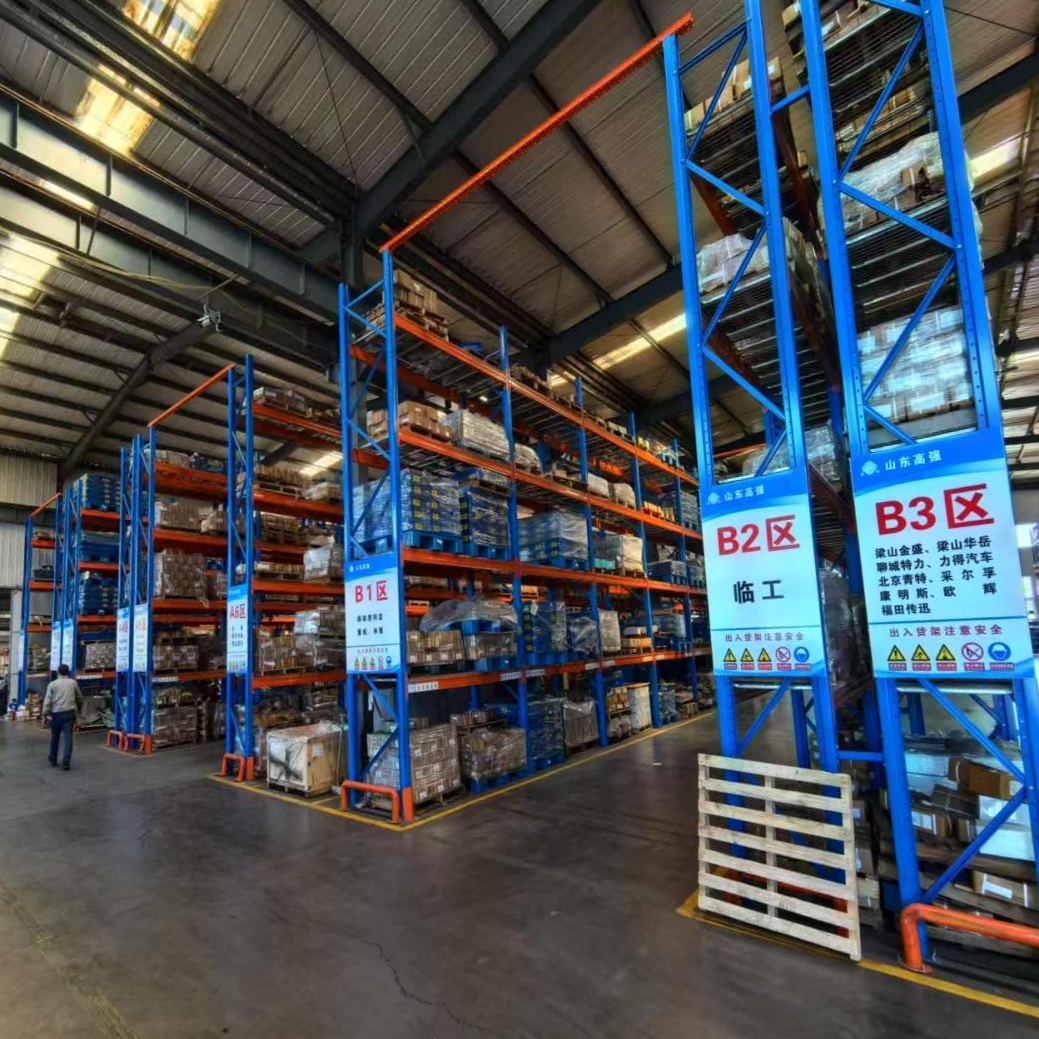

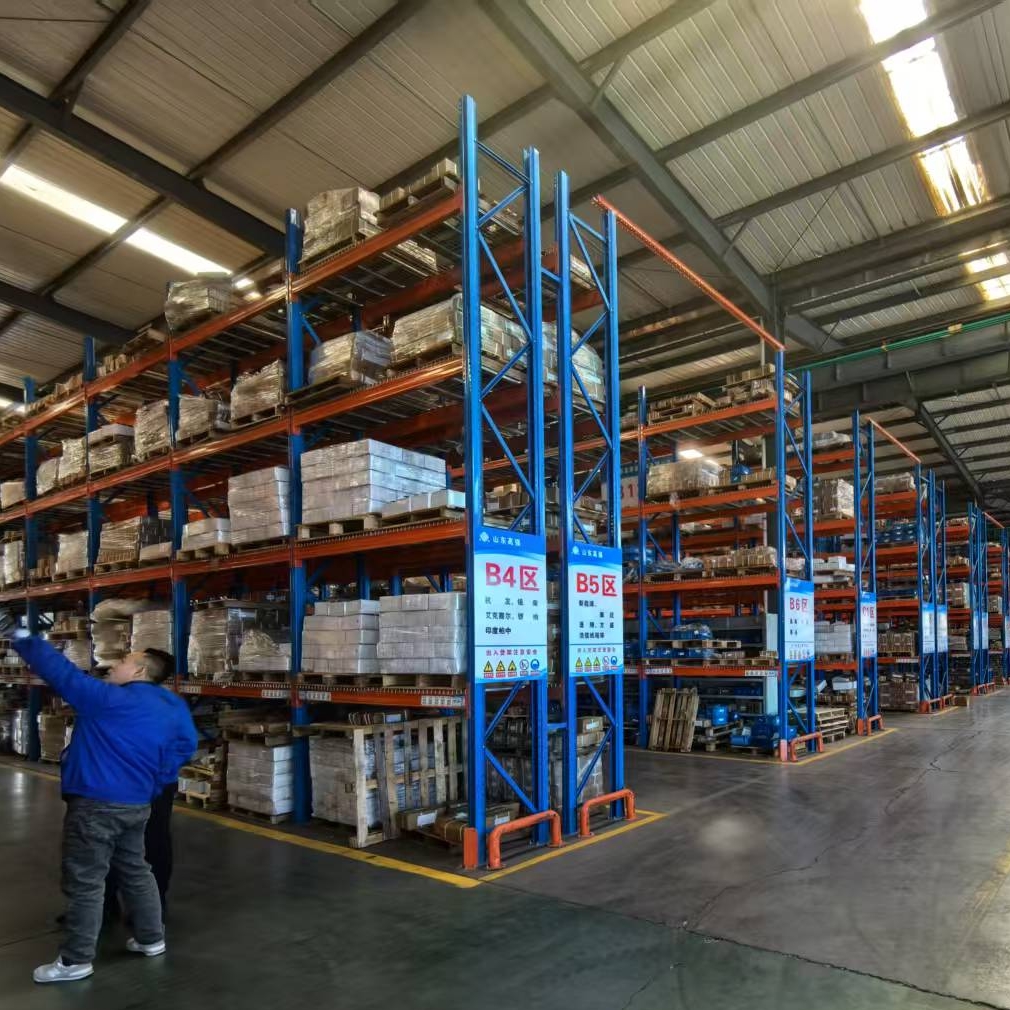

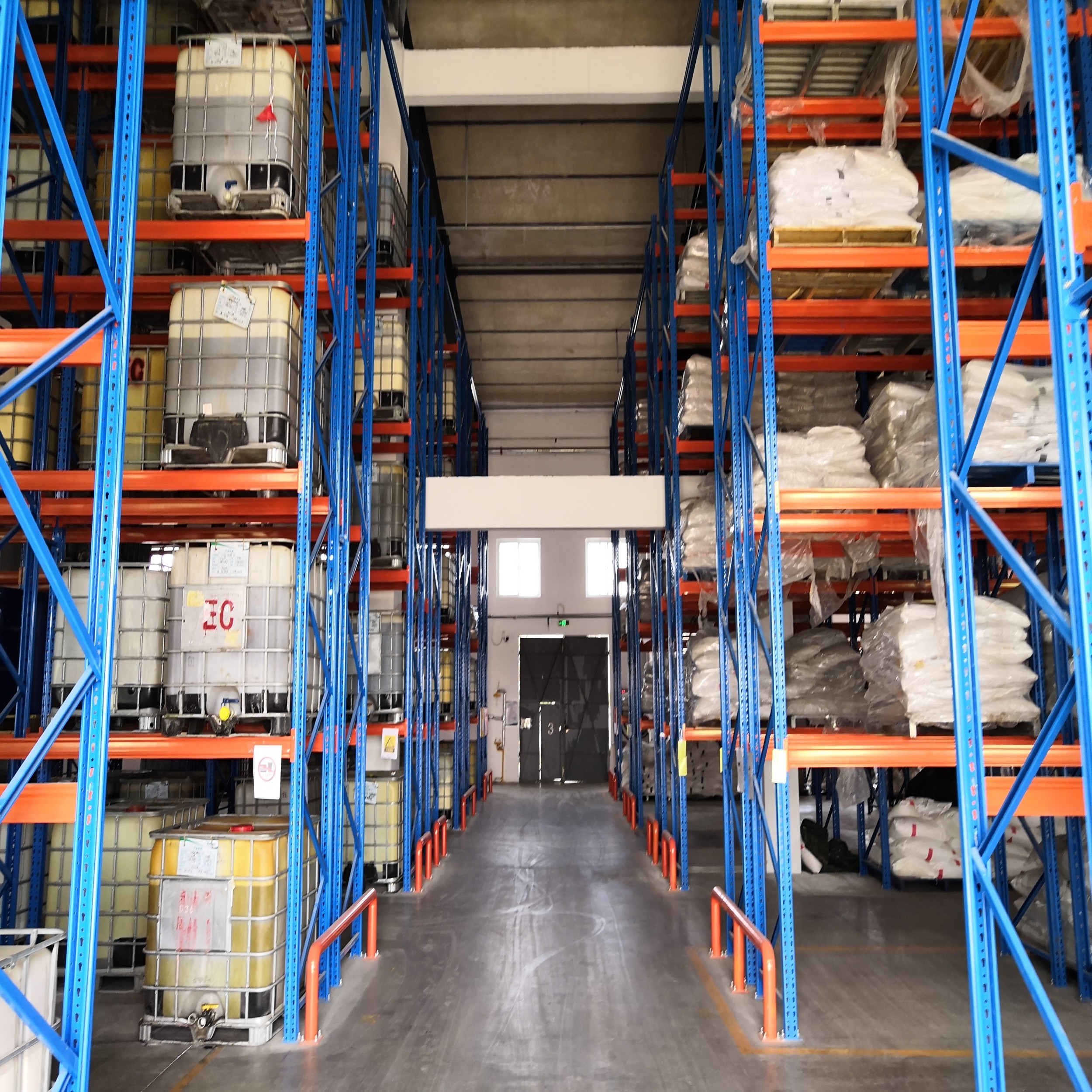

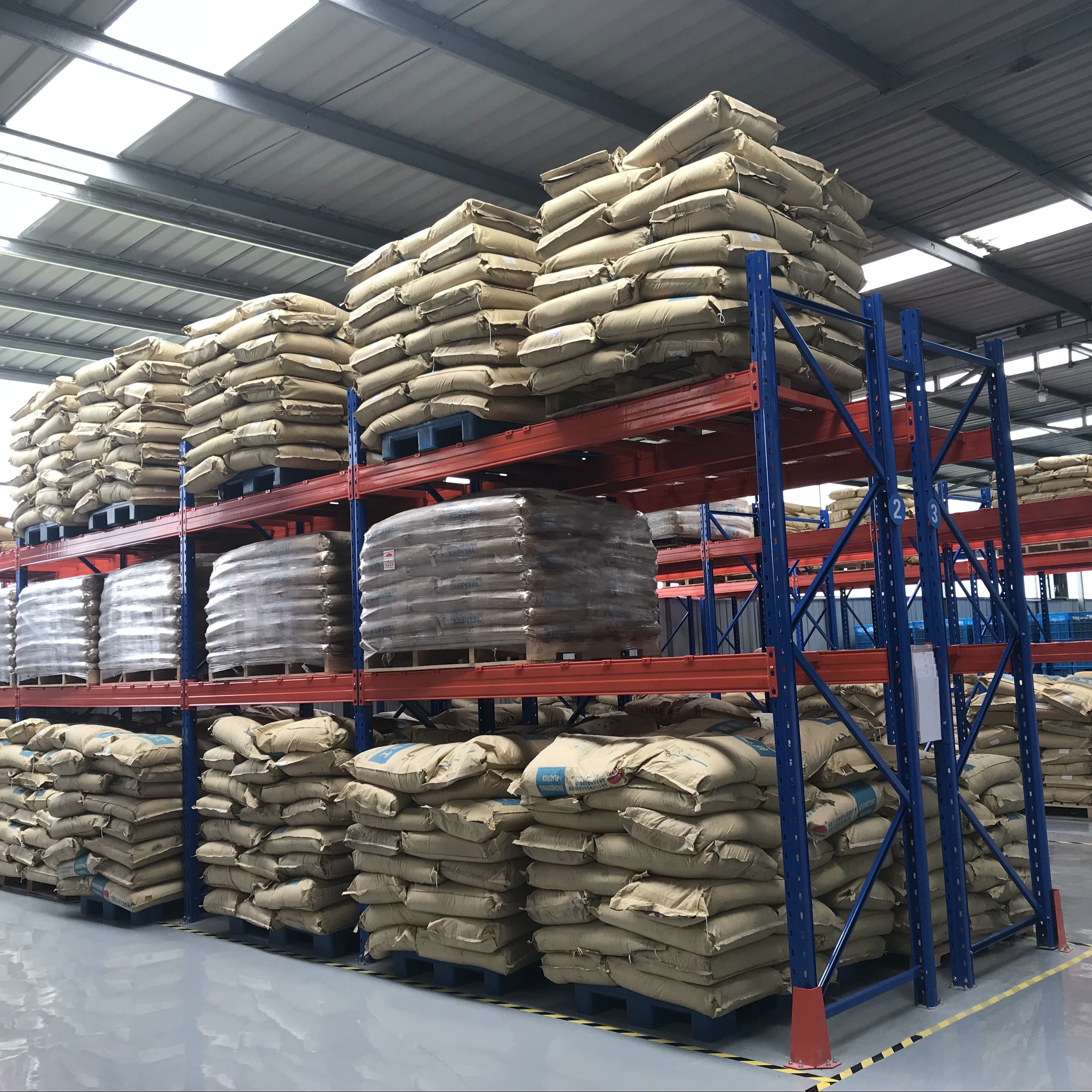

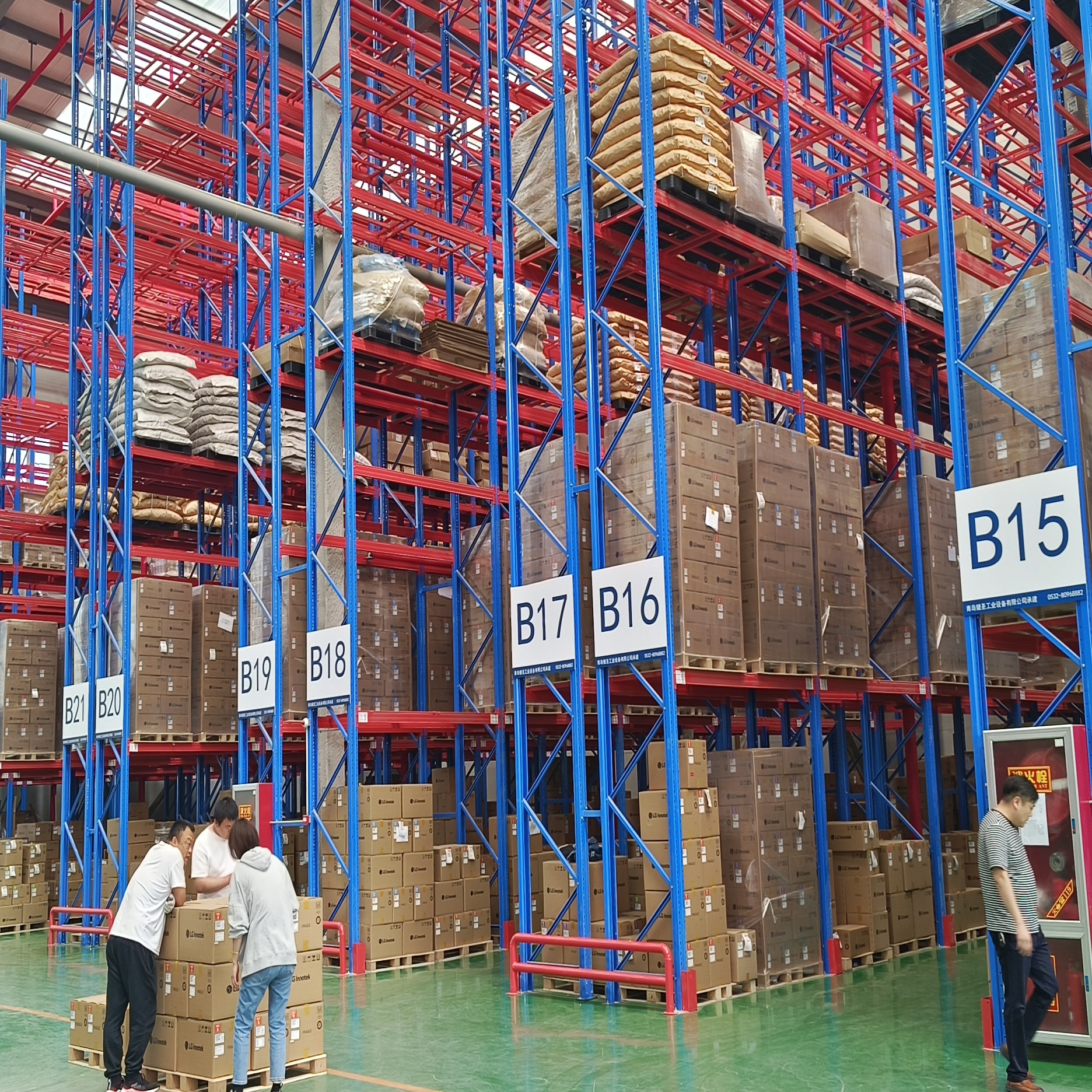

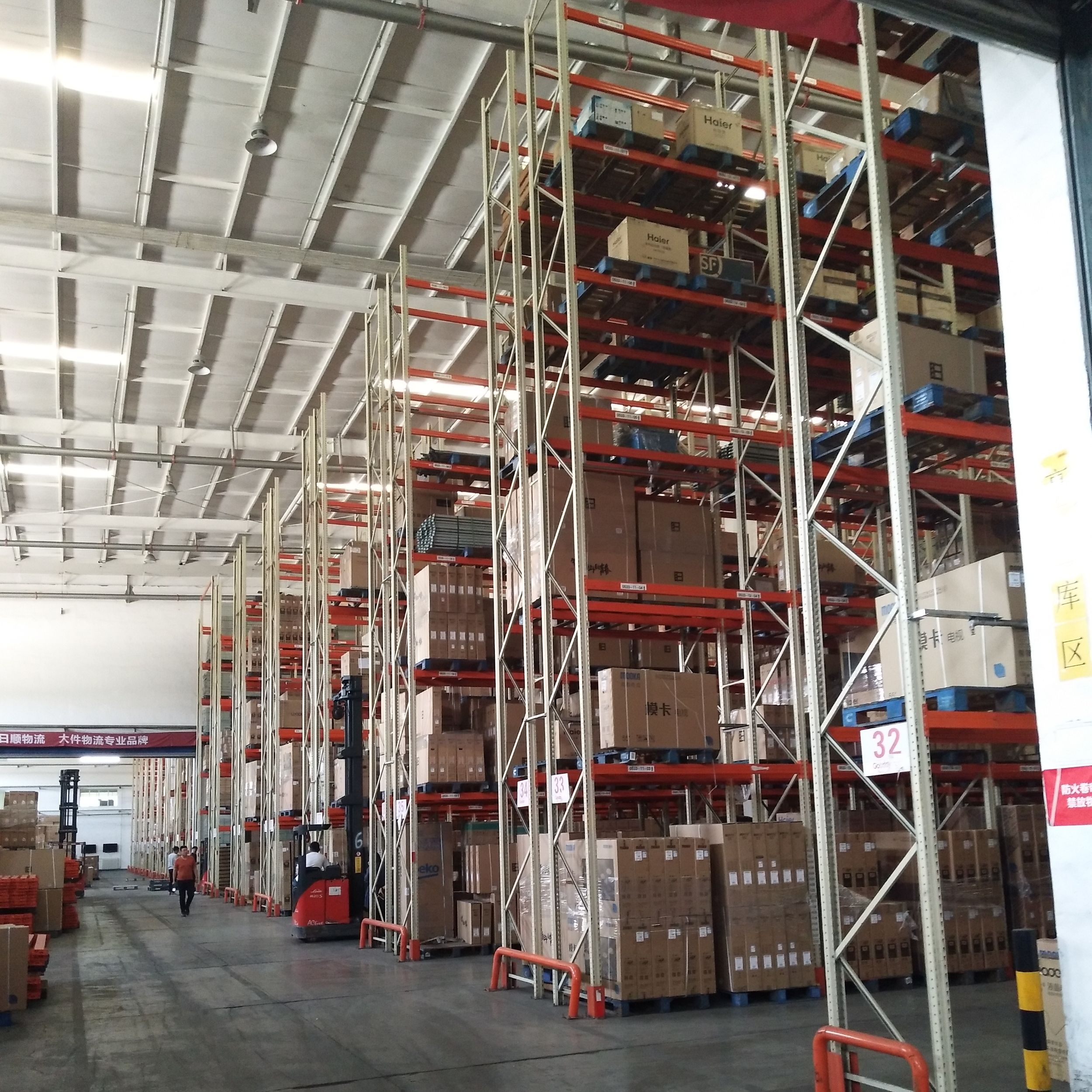

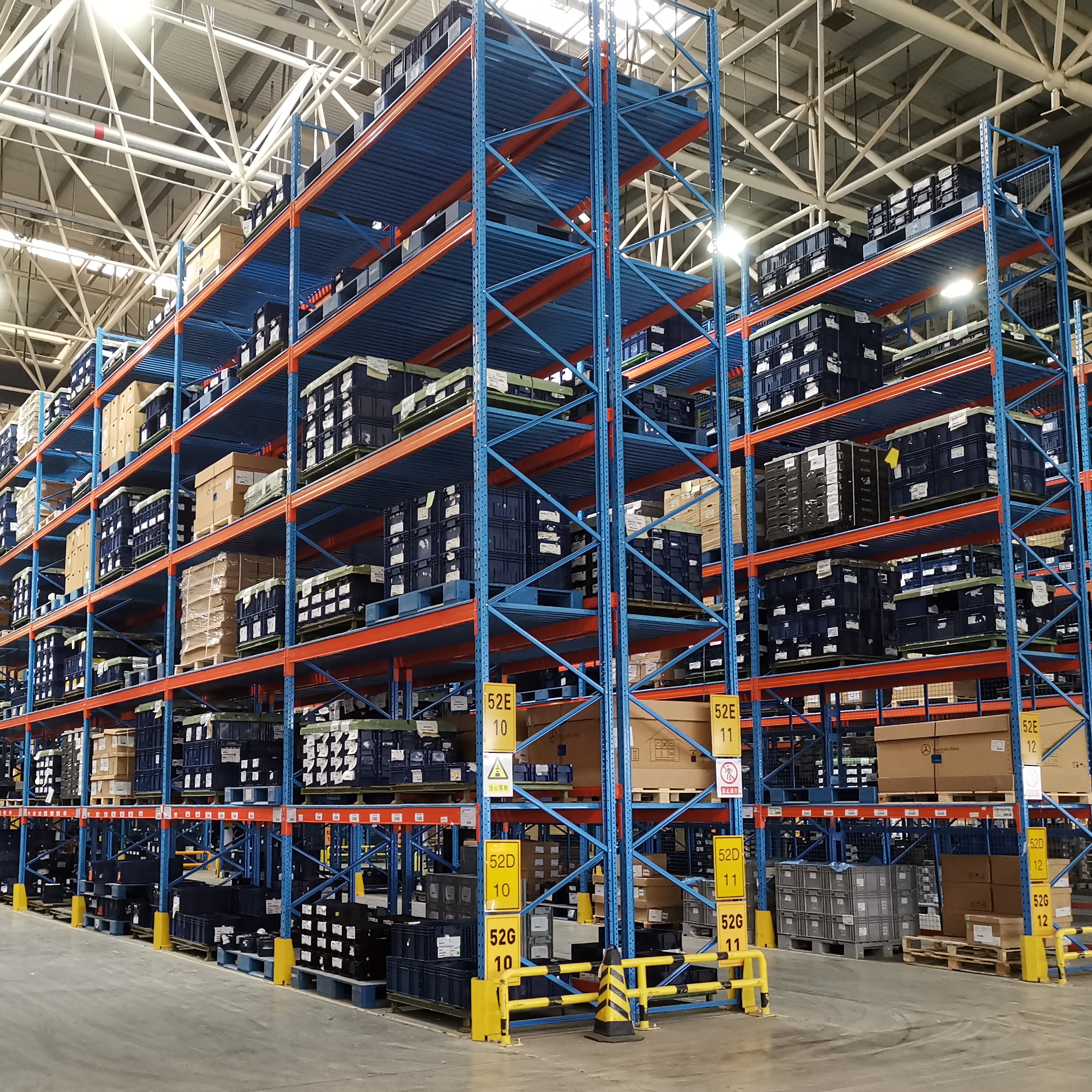

Heavy-Duty Steel Racks have a wide range of applications, suitable for manufacturing warehouses, e-commerce fulfillment centers, third-party logistics (3PL) distribution centers, cold storage warehouses, food and beverage warehouses, hardware and building materials storage, auto parts storage facilities, pharmaceutical warehouses, etc., meeting the storage needs of multi-SKU small-batch or low-SKU bulk palletized goods.

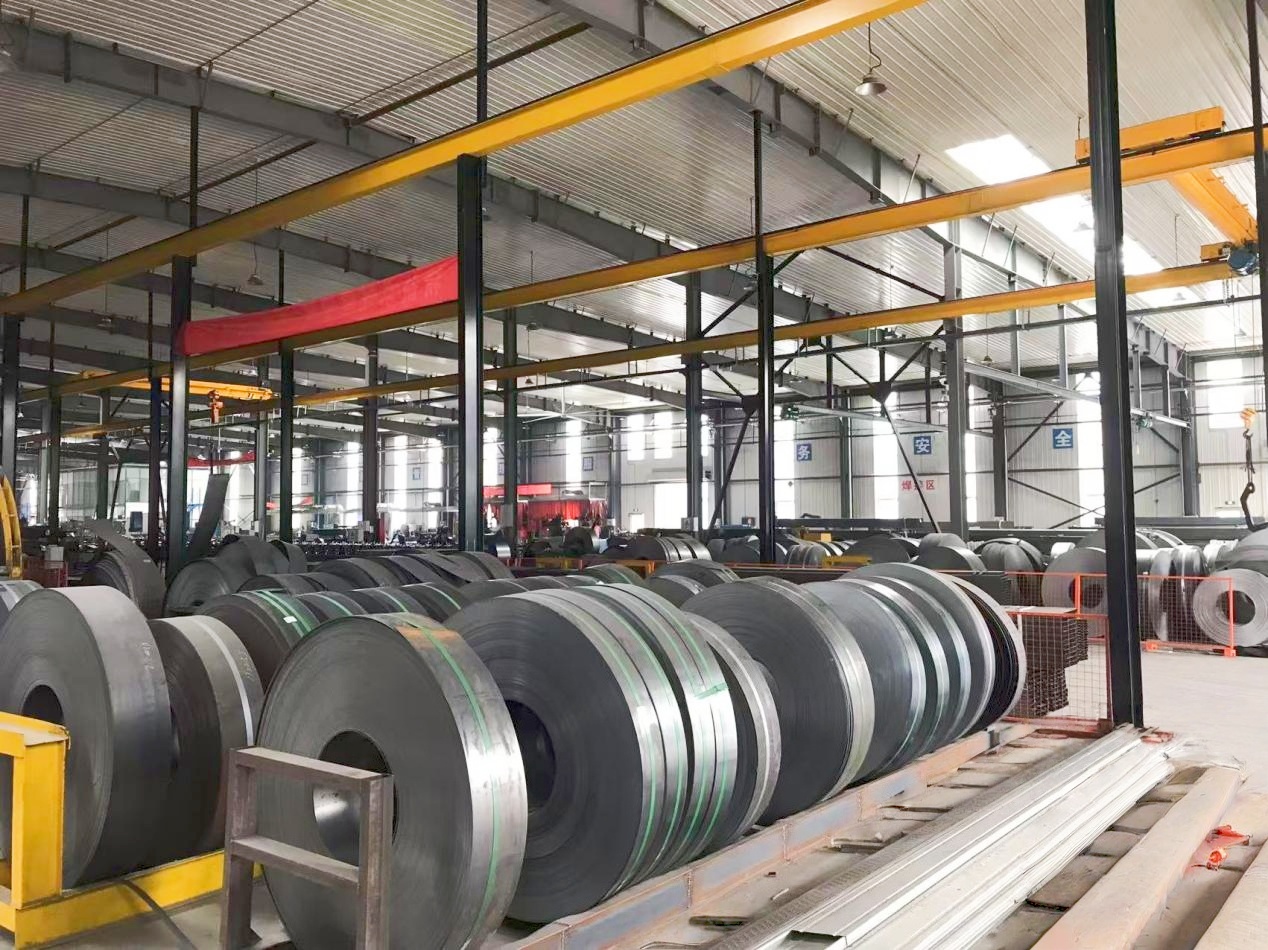

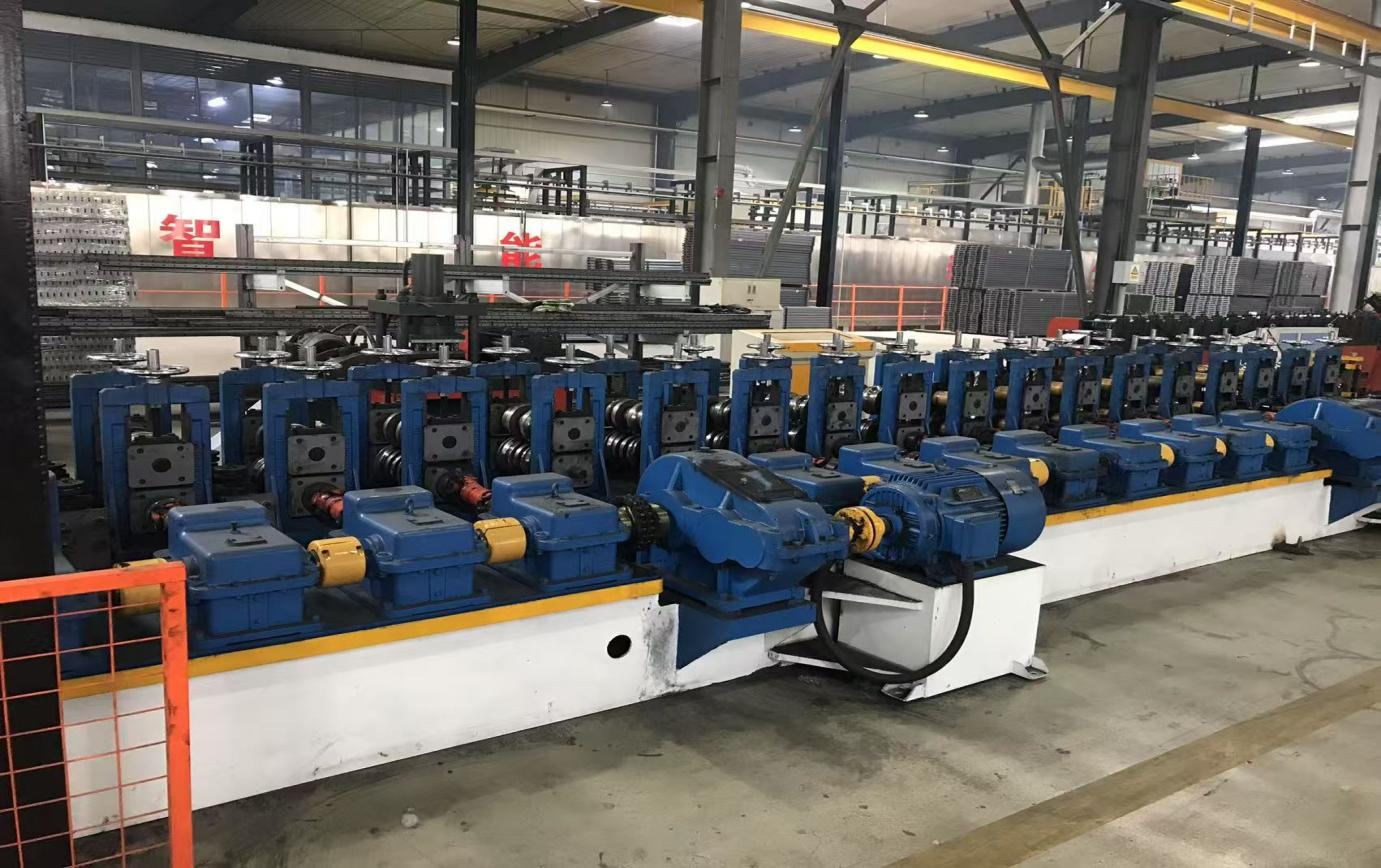

Our manufacturing team has been deeply involved in the warehouse racking manufacturing industry for 16 years. Since inception, we have provided professional warehousing solutions to over 12,000+ users worldwide, helping solve warehousing challenges and maximize inbound and outbound efficiency and space utilization. Currently, the products are sold to Europe, South America, Japan, South Korea, Saudi Arabia, and the Middle East, earning the trust and recognition of users globally.
We consistently focus on our partners' needs, empowering productivity and enhancing product market competitiveness. This focus helps achieve strategic upgrades in the logistics and warehousing fields. In the future, we will continue to drive industry transformation through innovation, deeply cultivate space optimization technology, bring change and innovation to the global logistics and warehousing industry, and save and utilize every inch of space.
Our products are packaged in the following ways:
